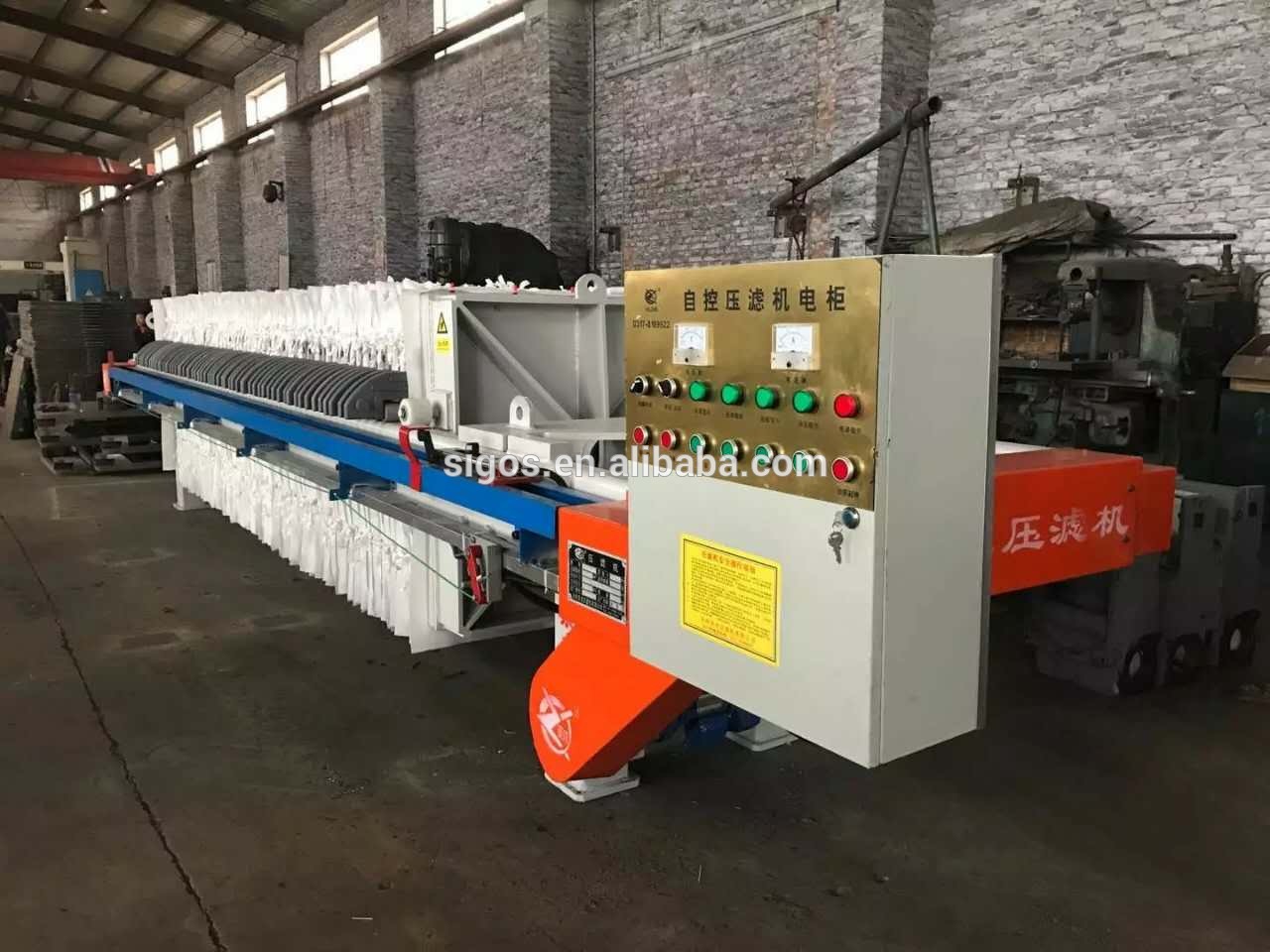

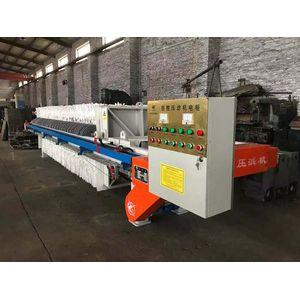

Chamber Diaphragm Filter Press

Our company has its own professional R&D team, Its filter press has many outstanding features:fast filter, highly automated, nontoxic, excellent performance, easy operation.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Hebei, China (Mainland)
  • YALONG
  • XYG1000
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Hebei, China (Mainland)
Brand Name
YALONG
Model Number
XYG1000
Voltage
380V/220V/400V
Power(W)
5.5KW
Weight
3.3ton
Dimension(L*W*H)
4710*1500*1475
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Frame Material
Q235
Chambers
38
Cake thickness
30mm
Filter area
60M2
Material of filter pack
Polypropylene
Press capacity
910L

DETAIL DESCRIPTION

Product Description

Product Application

Our company has its own professional R&D team, Its filter press has many outstanding features:fast filter, highly automated, nontoxic, excellent performance, easy operation. Moreover, the PP plate can accept high temperature and pressure. Also we can design and manufacture the non-standard and full automatic filter press according to the clients requires.

FILTER PRESS SPECIFICATIONS

Frame
Frame Size
mm
4,710*1,500*1,475
Frame Material
High degree steel
Q235
Primer
1 coat anticorrosive
2 coat epoxy

Closure of Filter Pack
Type of hydraulic device
Elecric motor
5.5Kw/380v/60Hz
Type of hydraulic cylinder
mm
D250*600
Hydraulic reservior volume
L
60

Filter Pack
Cake thickness
mm
30
Press capacity
Liter
910
Filter area
M2
60



Certifications

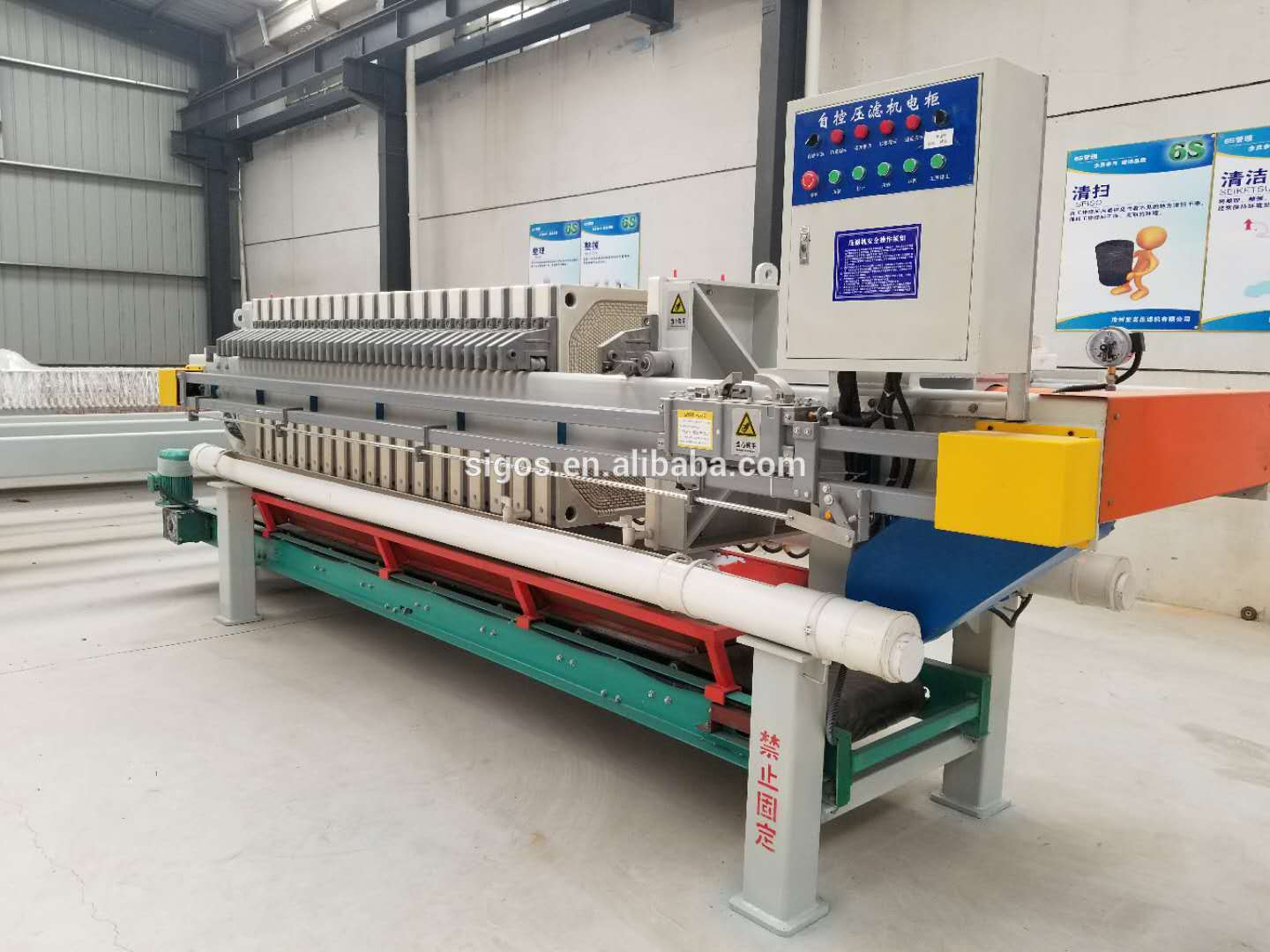

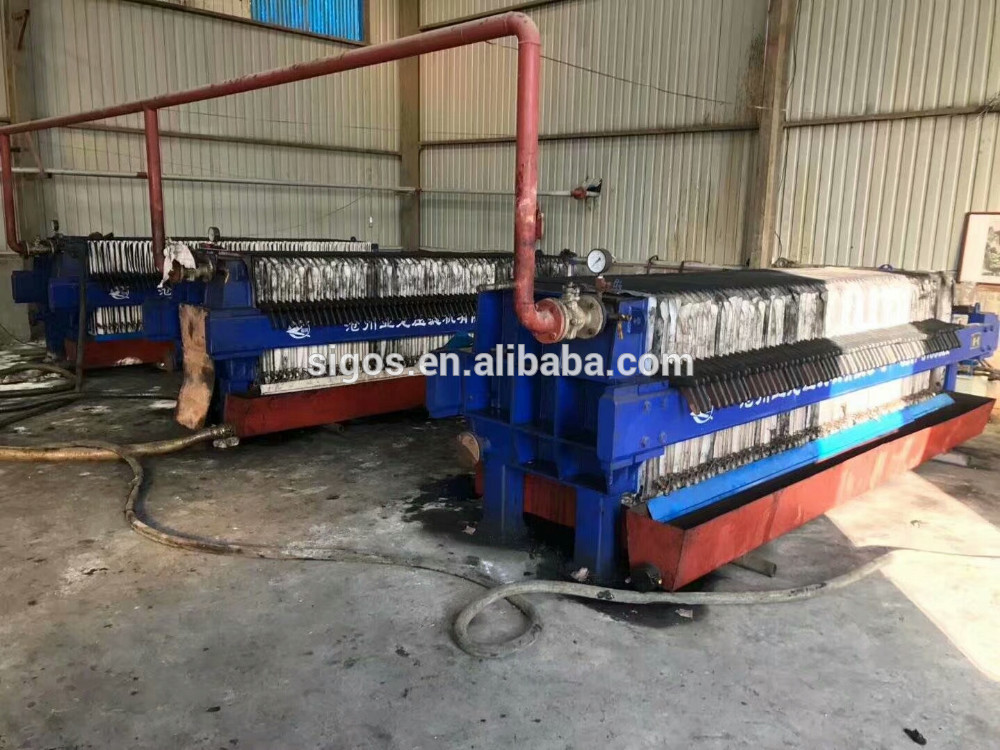

Detailed Images

Machine Parts

Filter Pack 1 set
- Chambers : 38

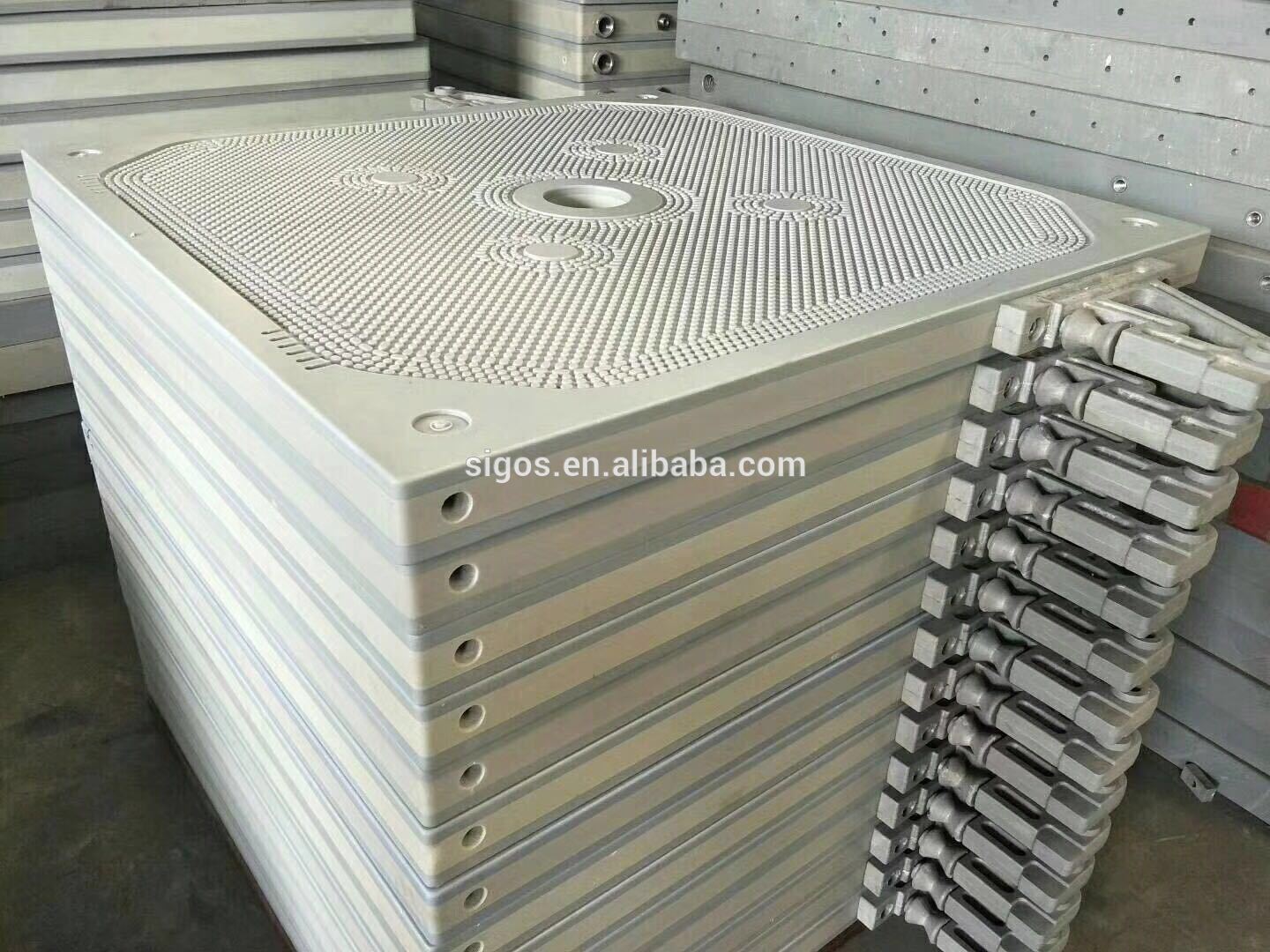

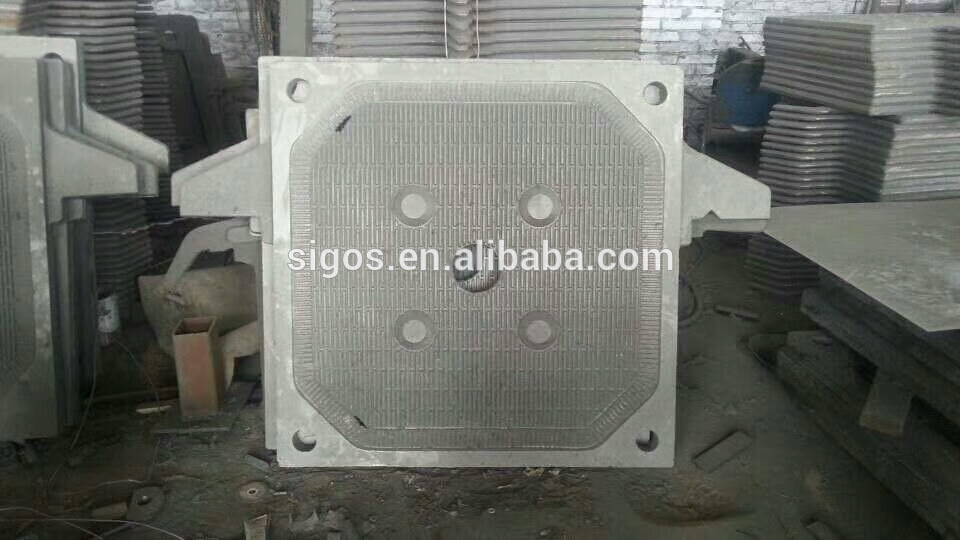

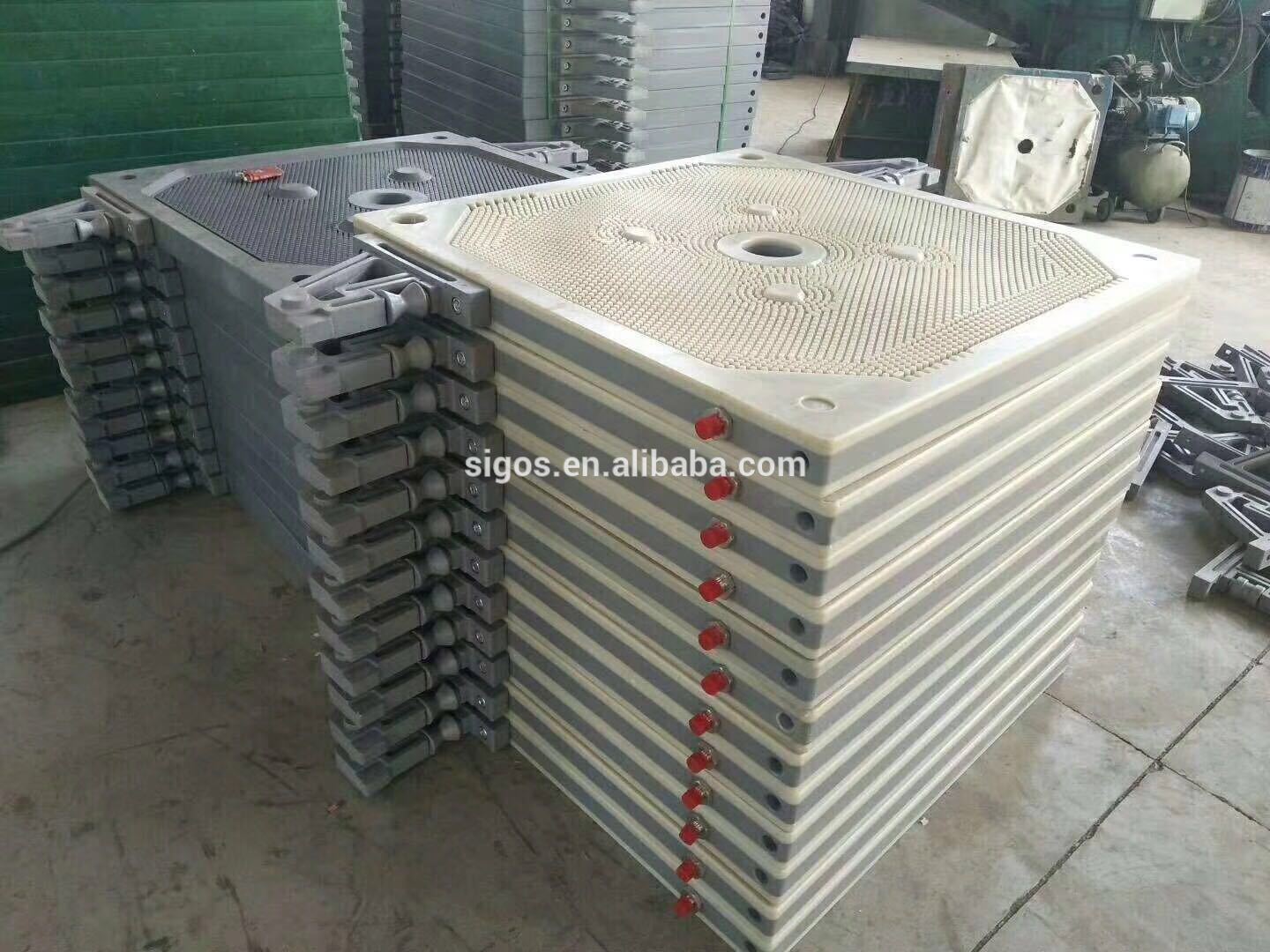

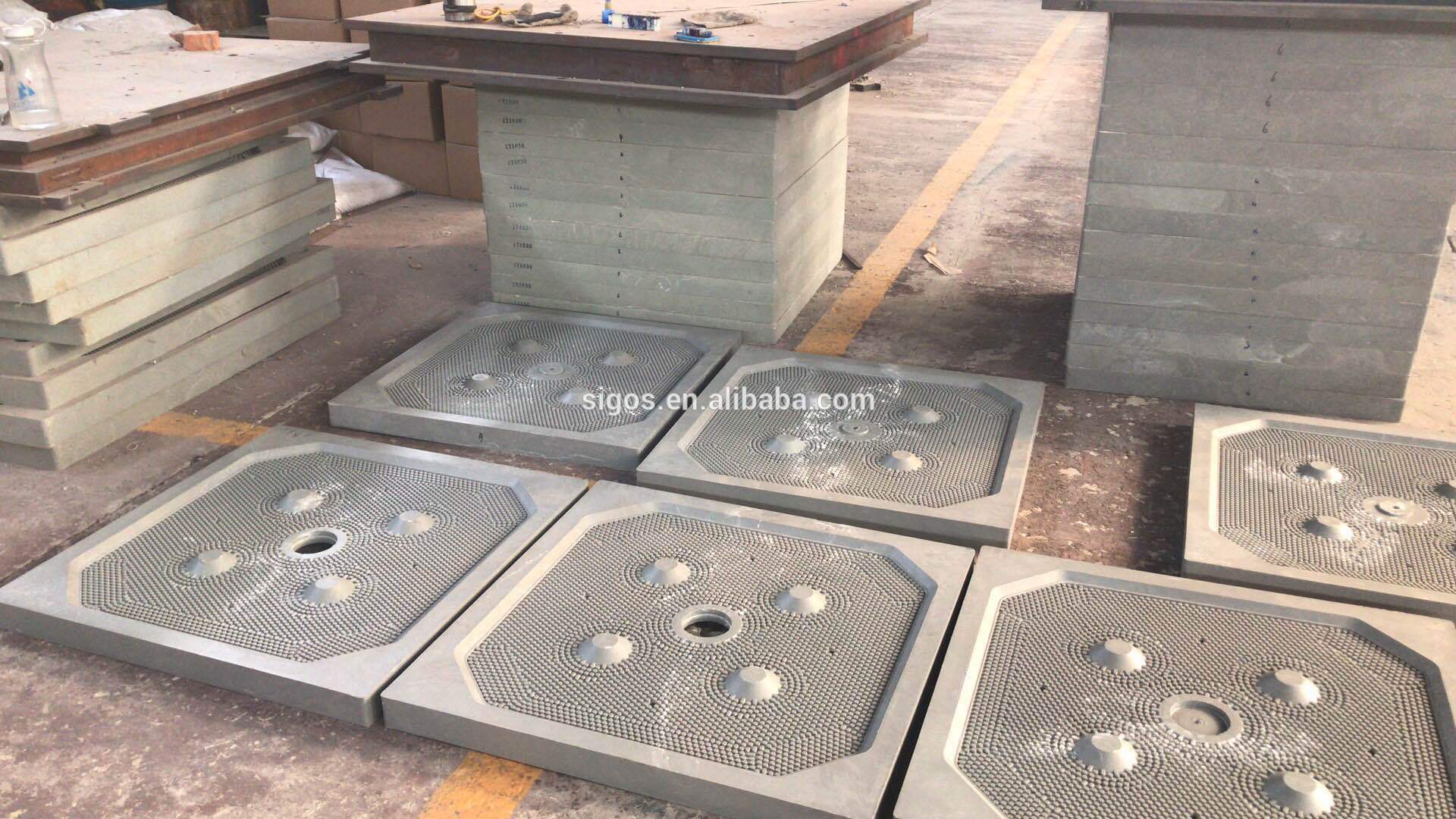

- Chamber plates : 37 intermediate + 1head + 1end plate, 1000*1000*65
- Cake thickness : 30mm
- Press capacity : 910 liter
- Filter area : 60m2
- Material of filter pack : Polypropylene

Main Features

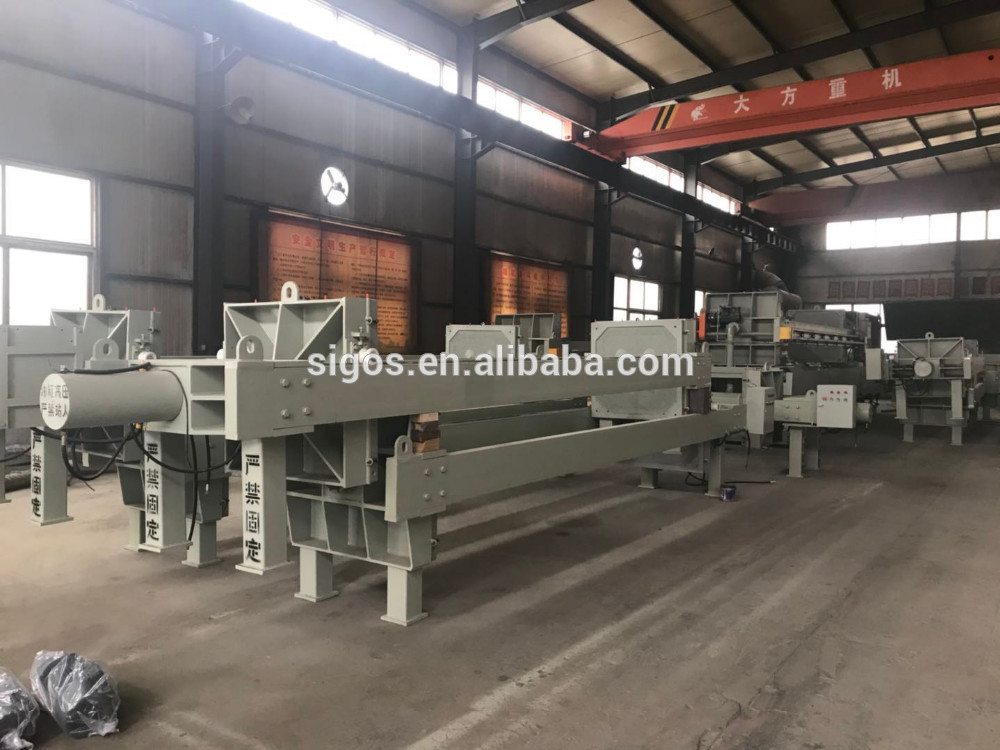

- Frame size : 4,710*1,500*1,475 (changeable)
- Material High degree steel (Q235)
- ports on statinary head : SS304 material
* Surface preparation : sand blast, near white metal blast cleaned surface
* Primer : One coat anticorrosive paint, 2 coat epoxy




Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

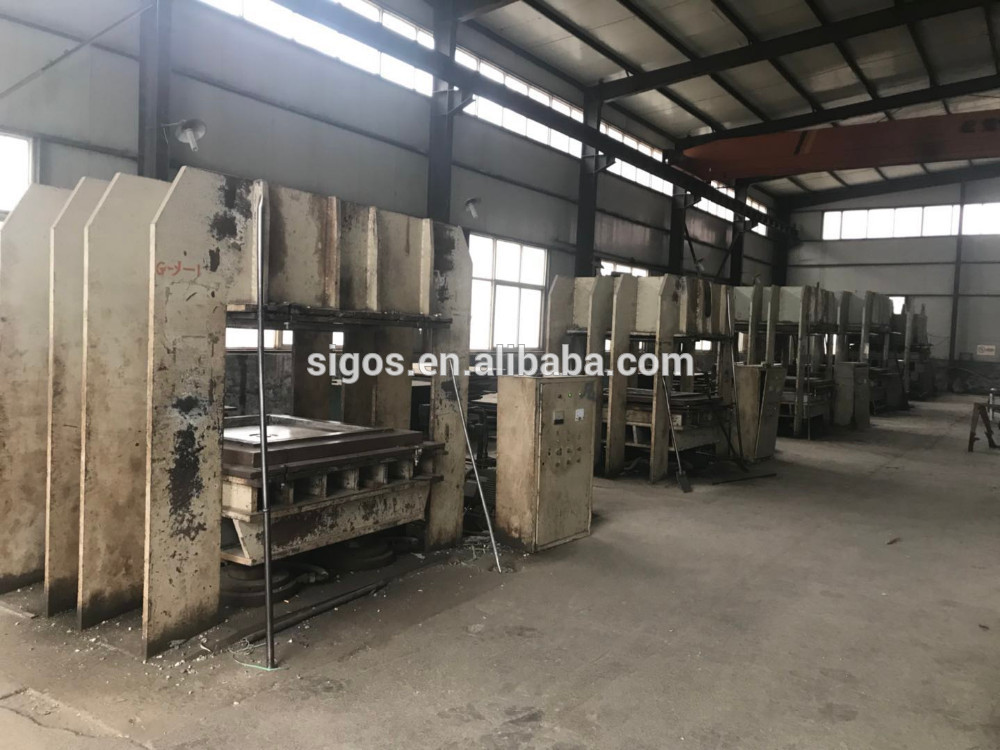

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

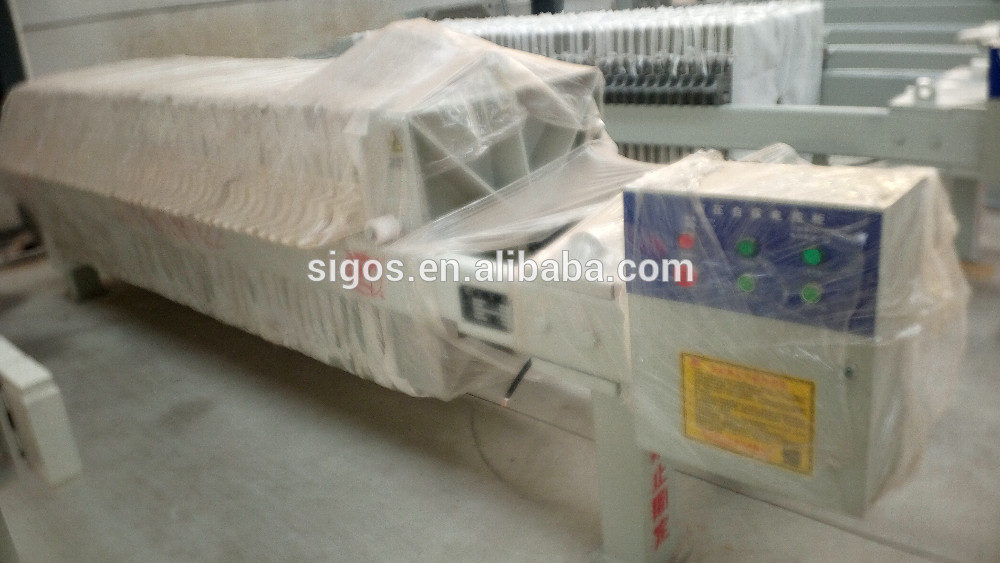

Packing & Delivery
Packaging
Size
4,710*1,500*1,475
Weight
3.5T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
4,710*1,500*1,475
Weight
3.5 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
