2017 new design hydralic filter press/frame filter press/plate filter press machine
This is our big type press filter, it is a kind of solid-liquid separation machine. It’s widely used in chemical industrial, foods, sewage treatment, pharmacy etc.Filter plate are pressed by pressing device( screw jack or hydraulic station)and suspending liquid is pumped into the filter chamber where the particles are retained to form into cake and liquid is permeated through the filter cloth.
It's multifunctional machine, can be used in follow area:
1.Environment protection
2. Food: mash filter solutions, oil fractionation solutions
3.Mineral: coal industry solutions, kaokin industry solutions, tailing solutions;
4.Smelting: alumina industry solutions, smelting industry solutions and so on.
5. Chemical Industry
Specification:
Model | JX20/630-30U | JX30/630-30U | JX40/630-30U |
Filter Area | 20m2 | 30 m2 | 40 m2 |
Inside casing size | 630*630 mm | ||
Filter cake thickness | 30 mm | ||
Filtering board ‘s quantity | 24 Pcs | 37 Pcs | 49 Pcs |
Volume of filter casing | 298 L | 453 L | 595 L |
Pressure of cylinder | 20-22 | ||
Machine size | 3210*1150*1110 mm | 3860*1150*1110mm | 4470*1150*1110 mm |
Weight | 1870 kg | 2170 kg | 2440 kg |

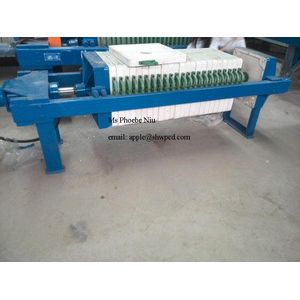

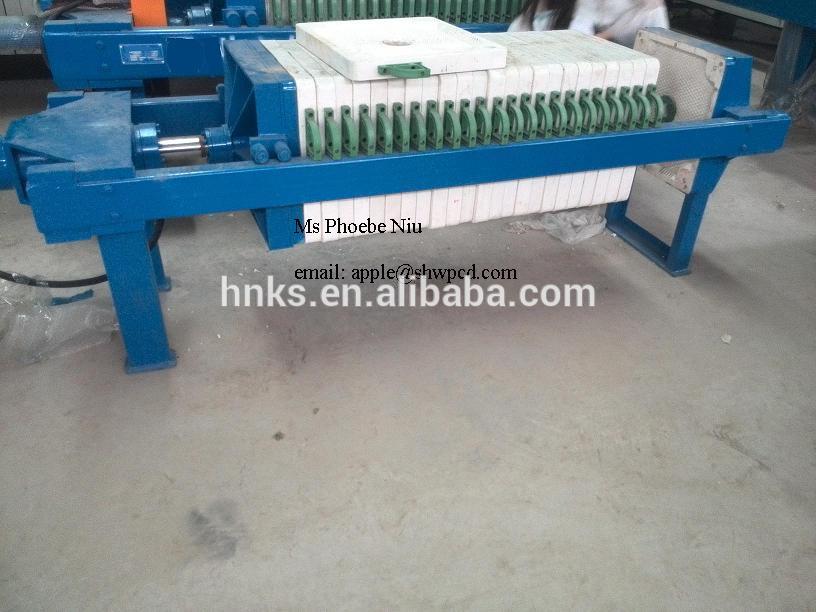

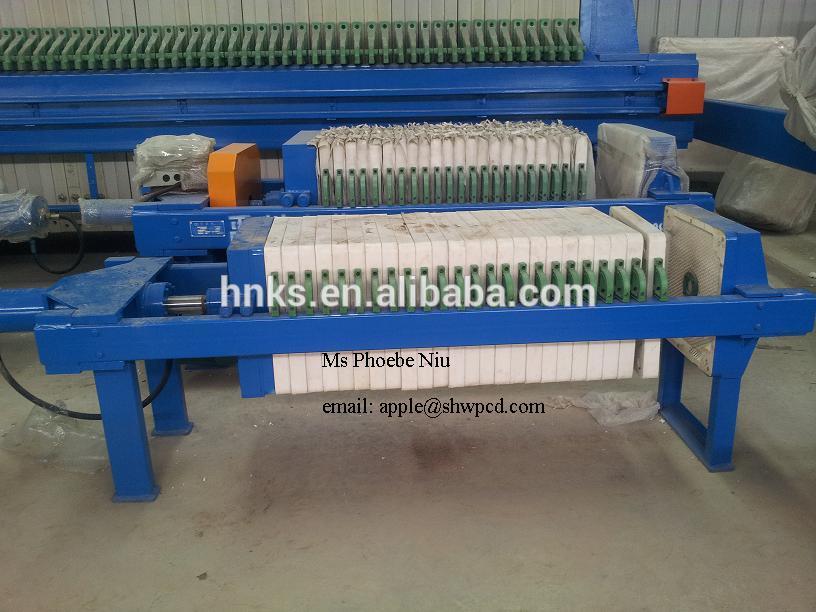

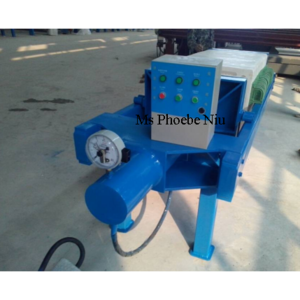

Machine photo:
