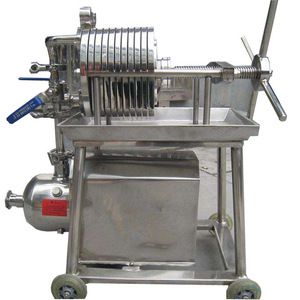

Beer/ wine filter press /plate and frame filter press machine for wine

Buyers are responsible for import duties, custom fees and taxes if any.

Technical Feature

  • New
  • Semi-Automatic
  • 99.9%
  • Henan, China (Mainland)
  • YUANPU
  • YP-100
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~6

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Semi-Automatic
Production Capacity
99.9%
Place of Origin
Henan, China (Mainland)
Brand Name
YUANPU
Model Number
YP-100
Voltage
220V
Power(W)
2.2kw
Weight
200kg
Dimension(L*W*H)
1200*760*650
Certification
ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Plate Frame filter
Application
Beer/ wine filter press /plate and frame filter press machine for wine
Color
Silver
Material
Stainless Steel 304
Function
Seperate Solid
Filter area
0.078 - 7 M2
Keywords
Automatic Pressing Machine
Type
Automatice Filter Press
Product name
Hydraulic Press Machine Automatic Chamber Filter Press
Description
Solid-liquid Separation Machine

DETAIL DESCRIPTION

     Beer/ wine filter press /plate and frame filter press machine for wine

Product Description



Product Description

v Material: Vegetable oil



v Capacity:200L/W



v Solid Content: 25%



v STAINLESS STEEL 304 FOOD DEGREE MATERIAL

Calculation:

The solid will be about: 800*50%=400 L

So here we recommend a filter press with about 400 L filter chamber. And the filter plates material is S.S.304.



Features:

1.Plates and Frame are fully S.S.304 material. It can meet the food degree.



2.It can ensure high pressure and temperature, so that could used in more fields, get lowest moisture and most output.



3.Manual Jack closing is practical and cost saving. Basically ZERO running cost.



4.Plate & Frame structure designed for easy operation and maintenance.



5.The flatness of the filter plate is lower than 25μm can perfectly avoid leakage.



6.Every plates is tested under high closing pressure 21 MPa.



7.All structure is also coated by S.S.304, so that easy to clean and serves longer.



8.Main beam is made of high quality SS304 with sand blasting processing and it is of high intensity and corrosion resisting.



9.All beams are produced by making use of submerged arc auto welding technology.



10.The filter cloth is pure cotton material, so that non-toxic, odourless.



Technical Parameter:



Basic Specifications:

Squeezing

System

Plate Closing

Manual

Cake Discharging

Manual

Max Feeding Pressure

0.6 mpa

Closing Pressure

30 ton

Closing Method

Jack

Structure

Beam

High quality carbon steel Q235

Surface Processing

Covered by S.S.304

Filter Plate

Material

S.S.304

Feeding Method

Corner feeding

Liquid Discharging Method

Hidden Filtrate

Filter Cloth

Material

Cotton

Acid Resistance

Good

Alkali Resistance

Good

Abrasive Resistance

Good

Heat Resistance

120℃
