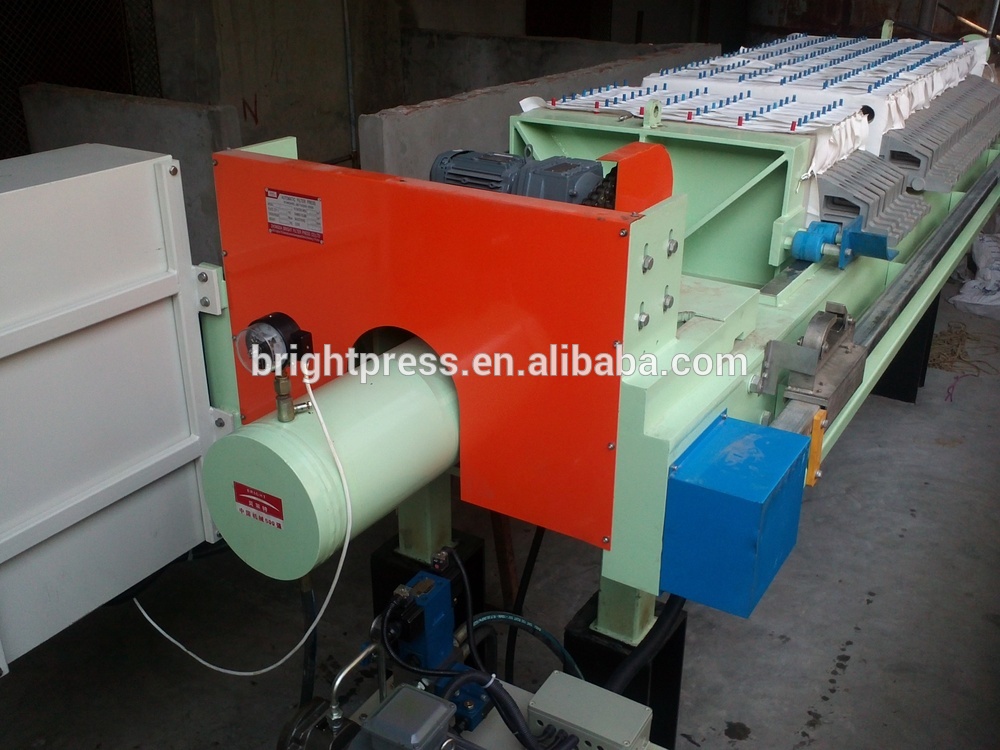

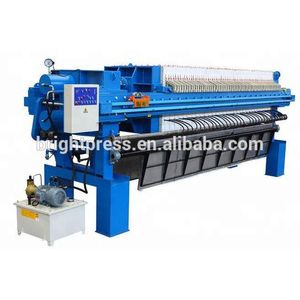

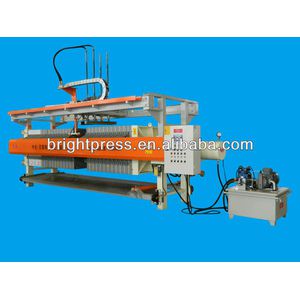

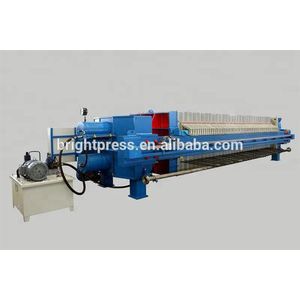

Automatic type membrane filter press

Simple in operation, safe and labor saving, the whole filter press system are auto controlled by the electrical panel.

Technical Feature

  • New
  • Automatic
  • 100%
  • Shandong, China (Mainland)
  • Bright
  • 3ph/380V50HZ.3ph/415V/50HZ
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$200~5

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
100%
Place of Origin
Shandong, China (Mainland)
Brand Name
Bright
Voltage
3ph/380V50HZ.3ph/415V/50HZ
Power(W)
2.2KW-7.5KW
Weight
18800kg
Dimension(L*W*H)
10800X2555X4497.5mm
Certification
ISO9001
Warranty
18 Months
After-sales Service Provided
Engineers available to service machinery overseas
Type
Auto hydraulic
Filter plate type
Membrane
Feeding pressure
0.6~1.0 Mpa
Feeding type
Center feed
Squeezing pressure
1.2~1.6 Mpa
Filtration area
60~120 M2
Chamber volume
0.92~2.38 M3
Cloth washing
Auto

DETAIL DESCRIPTION

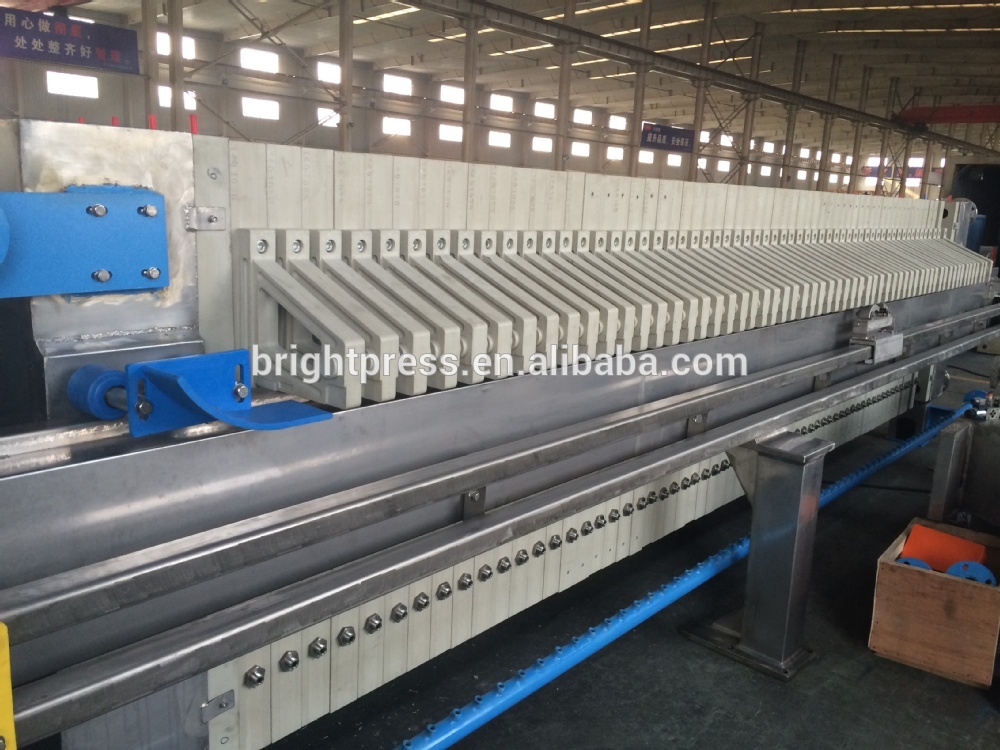

Filter plate are made of strengthened polypropylene & TPE through mold pressing, high in strength, light in weight, corrosion resisted, non-poisonous and odorless;

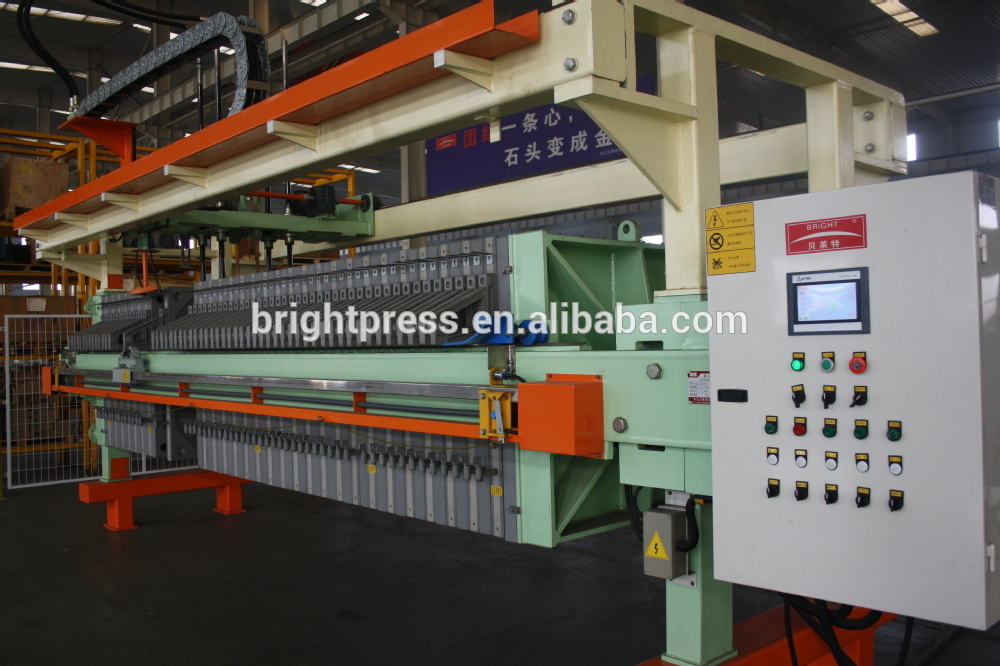

Simple in operation, safe and labor saving, the whole filter press system are auto controlled by the electrical panel. All devices including feed pump, hydraulic power pack, plate shifting device, valves and conveyors are guided by the logic in PLC, and make them work more efficiently.

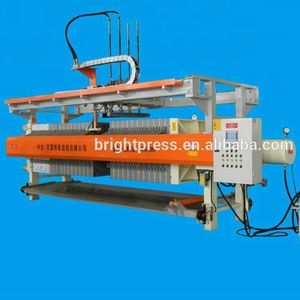

1.  cloth washing system can improve the working effiency and prelong life time of filter cloth

2.   Air pressing or water pressing can be selected for squeezing filter plate with pressure 1.2~1.6 Mpa, this process is designed for reducing moisture content in cake and increase solid rate by 8%-35%.
