machine oil filter press/mustard oil filter/ cooking oil filter
Introduction of machine oil filter press/mustard oil filter/ cooking oil filter

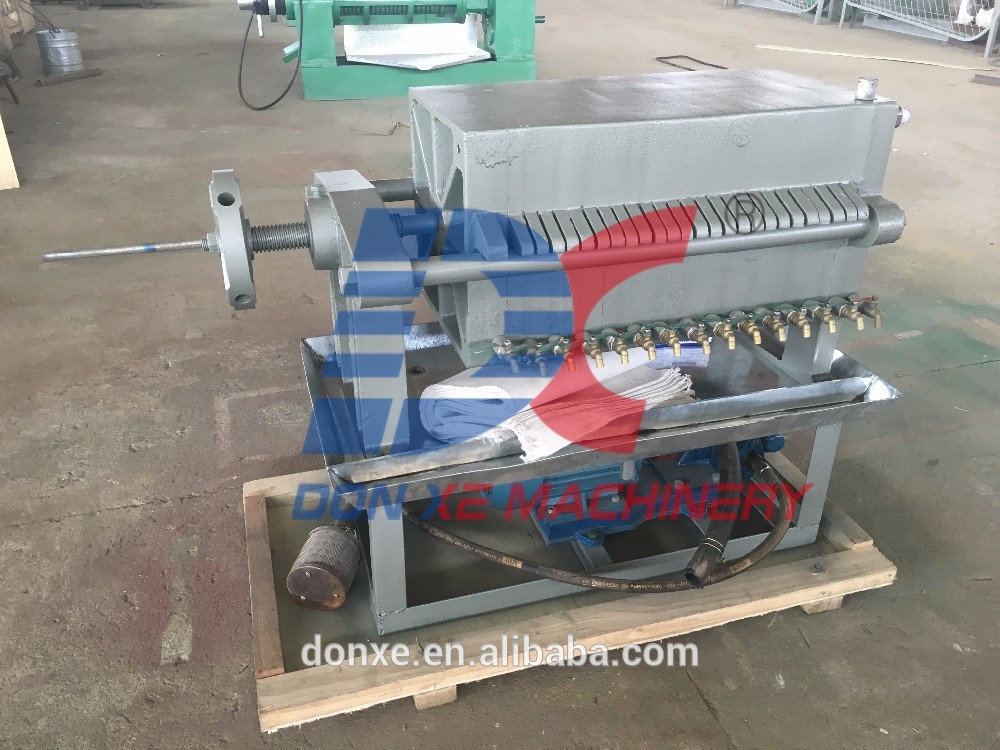

This -plant frame edible cooking oil filter press machine mainly consists of
thrust plate (fixed filter plate), pressure plate (active filter plate), filter plate and filter frame, cross beam (flat iron frame), filter media (filter cloth or filter paper, etc.), pressure Tight device, liquid tank and other components.
Application of machine oil filter press/mustard oil filter/ cooking oil filter
This oil filter machine is designed specially to fit medium and small sized spiral type oil press.
It usually be applied to a complete oil production line to filter all kinds of edible crude oil.
Working principle:
☞ The frame filter press consists of a series of filter chambers formed by alternately arranged filter plates and filter frames. The surface of the filter plate has grooves, and its protruding parts are used to support the filter cloth.
☞ The through holes are formed in the corners of the filter frame and the filter plate, and they form a complete channel after assembly, and can pass the suspension, the washing water and the filtrate.
☞ There are handles on both sides of the plate and frame supported on the beam, and the pressing device presses the plate and frame.
☞ The filter cloth between the plate and the frame functions as a gasket.
☞ Crude oil is fed into the filter chamber by a feed pump and a filter residue is formed on the filter cloth until the filter chamber is filled.
☞ The filtrate passes through the filter cloth and flows along the filter plate groove to the corner channel of the plate frame, and is discharged collectively.
☞ After the filtration is completed, the filter residue may be washed with clear washing water.
☞ After washing, compressed air is sometimes introduced to remove the remaining washing liquid.
☞ Then open the filter press to remove the filter residue, clean the filter cloth, re-press the plate, frame and start the next working cycle.
Main technical parameters of 6LB series oil filter machine
Model | Capacity | Power | Weight | Dimension |
6LB-250 | 80-100 kg/h | 0.75 KW | 180 kg | 890*550*765 MM |
6LB-350 | 180-200 kg/h | 1.1 KW | 500 kg | 1200*660*910 MM |
Advantages of 6LB series oil filter machine
Compared with the other domestic container type filtering device, 6LB series oil filter machine has following features:
1. The first is the remaining material liquid in condenser is less, so it is easy to shift connect and reduce waste.
2. The second is tablet, plane expansion make the filter easy to clean, big filter area, and filter material can be used repeatedly. the filter material filter material service life is long and the cost is low.
3. The replacement of filter material is convenient, and simple operation for the process of different precision.
4. For the new users, it is suitable for a variety of filter material,which could meet all your needs.

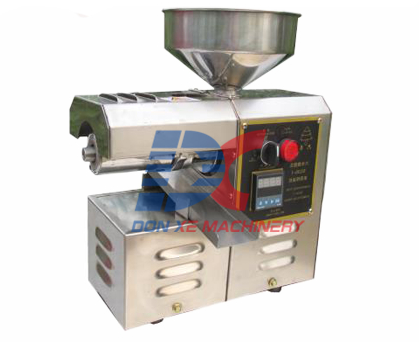

Home oil press machines:

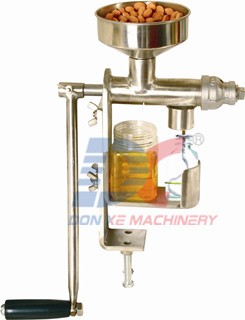

Hand oil press
DXS-10 home oil press
DX-10 home oil press

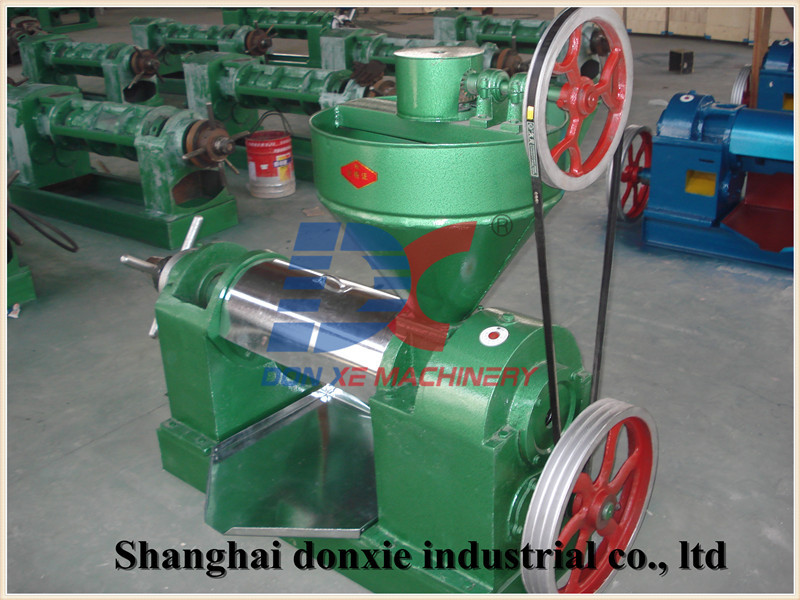

6YL series screw single oil press machines:

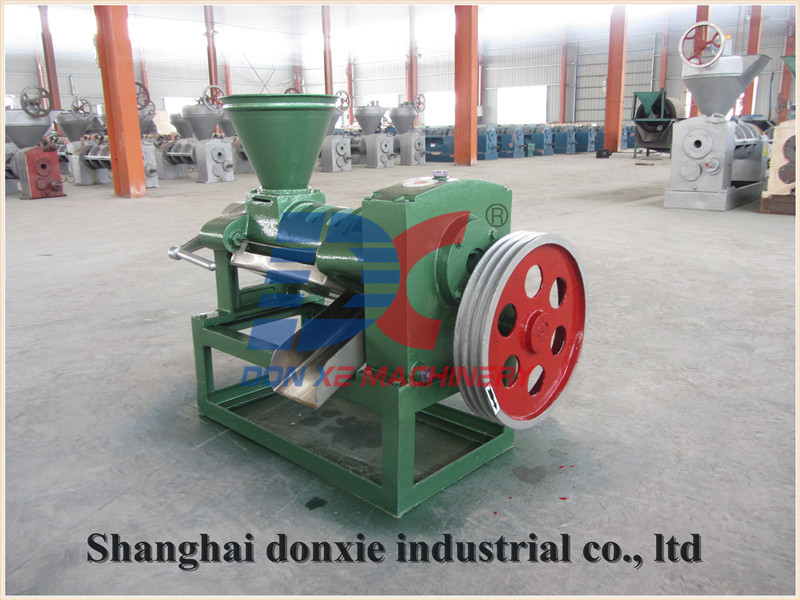

6YL-68
6YL-95

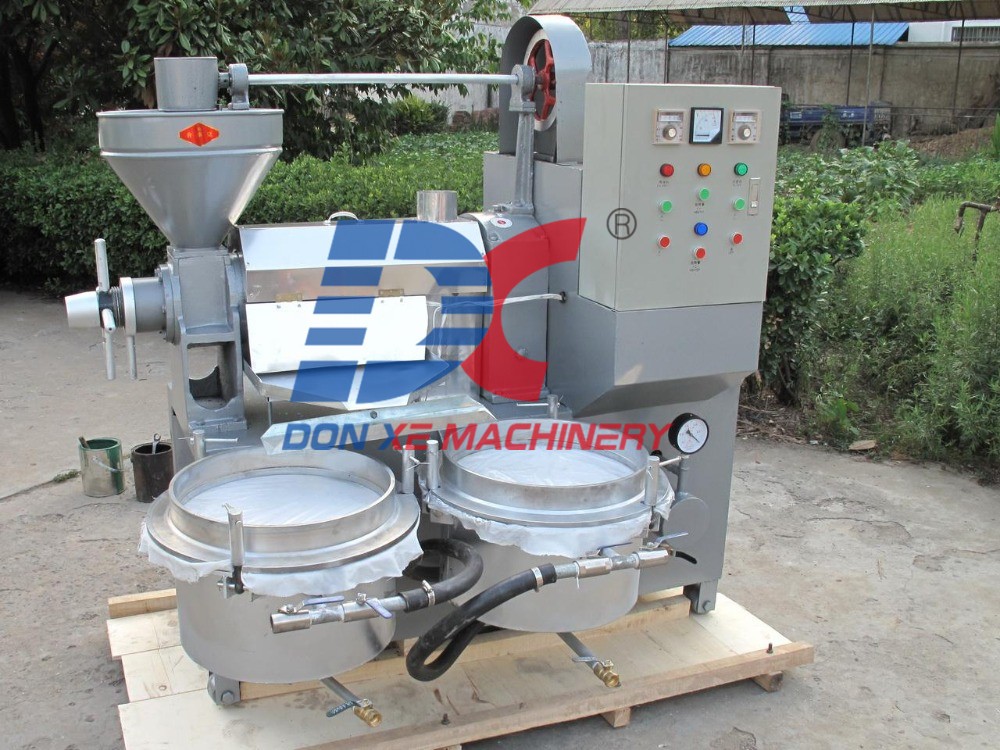

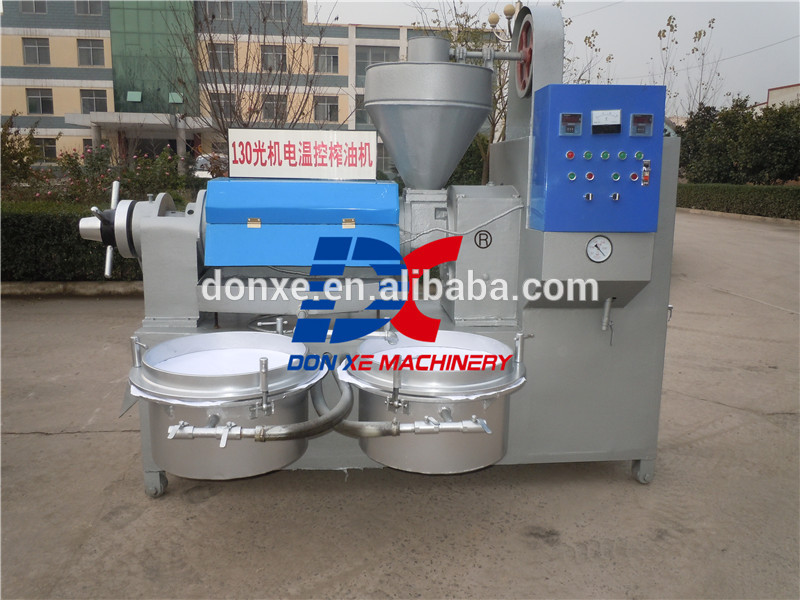

6YL series combined automatic oil press machines:
6YL-100
6YL-130

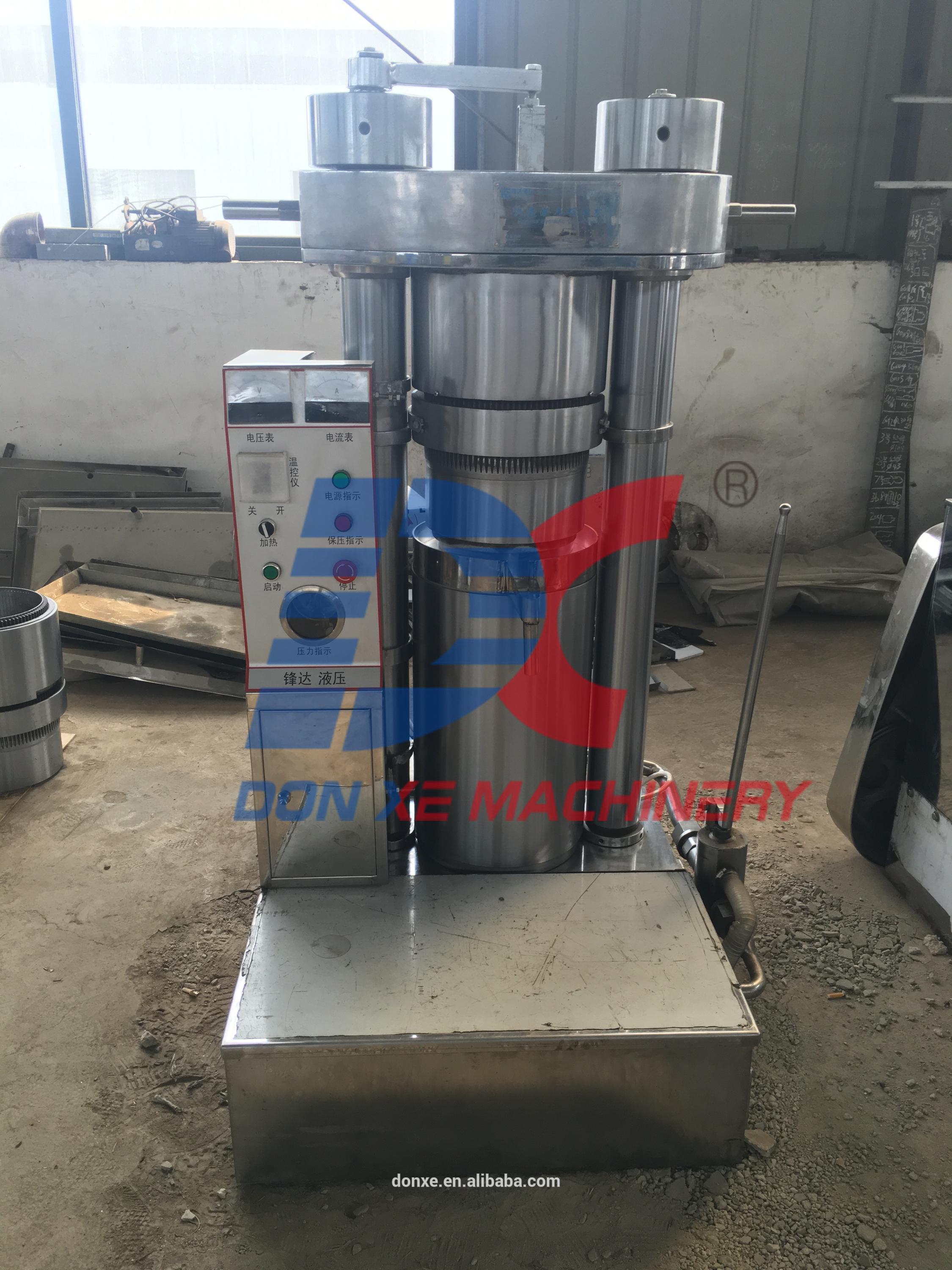

Hydraulic oil press machines:

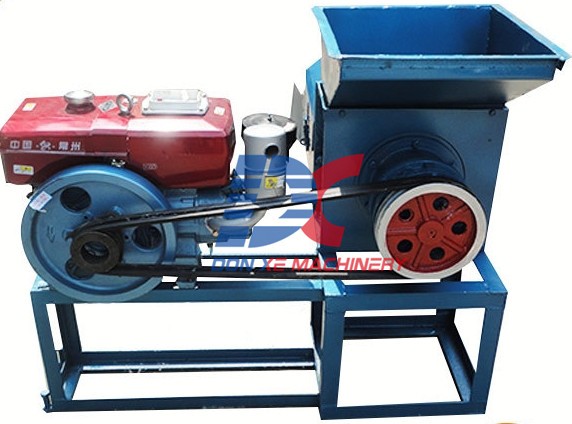

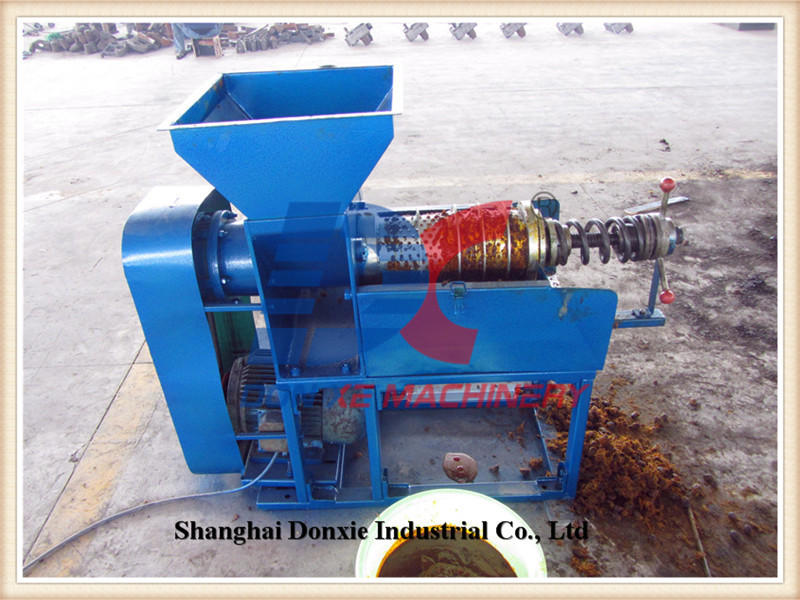

Palm oil press machines:
Complete oil production line:
machine oil filter press/mustard oil filter/ cooking oil filter
Professioanl export standard wooden case and cross binding tape.
Remark:
If you are not sure which processing machines your oil raw material is needed, which model is suitable for your raw project, or you have extra demands for these machines, please contact us for professional instructions and plan.
