Stainless Steel Plate And Frame Filter Press Brewing Mash Filter Wine Filter

This machine is multi-layer stainless steel frame filter,For the concentration of less than 50% viscosity,liquid with a little containing slag,As a enclosed filter to achieve purification, sterilization, clarification and other fine filter, semi-fine filt

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Shanghai, China (Mainland)
  • GORUN-Stainless Steel Plate And Frame Filter
  • GRPF-Stainless Steel Plate And Frame Filter
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$50~200

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Shanghai, China (Mainland)
Brand Name
GORUN-Stainless Steel Plate And Frame Filter
Model Number
GRPF-Stainless Steel Plate And Frame Filter
Voltage
Customer Requirement
Power(W)
0.75-2.2kw
Weight
depends
Dimension(L*W*H)
depends
Certification
CE ISO TUV FDA SGS GMP
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Stainless Steel Plate And Frame Filter
Press Brewing Mash Filter
HS code
8421299090
Advantage1
Customized as your working demand
Advantage2
design and supply directly by factory for 23 years
Application
Liquid filtration and clarify
Filter Grade
Pre-filtration
Machine type
Liquid Filter
Material
Stainless steel 304/316
Application industries
pharmaceutical, chemical, video and other industries
Certificate
CE ISO TUV FDA SGS GMP

DETAIL DESCRIPTION

Product Description

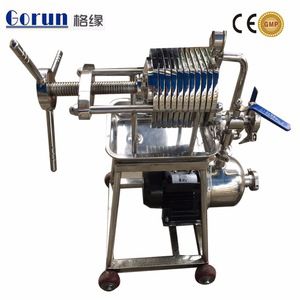

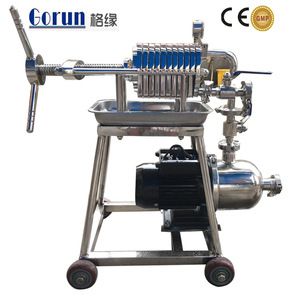

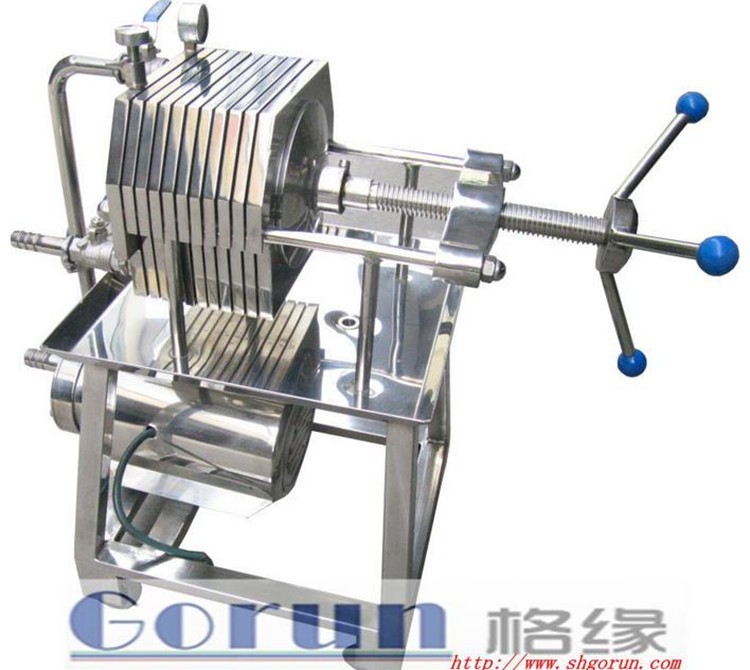

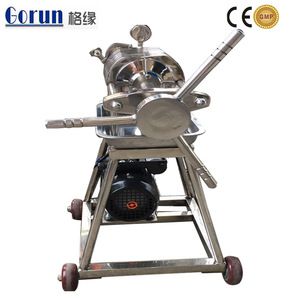

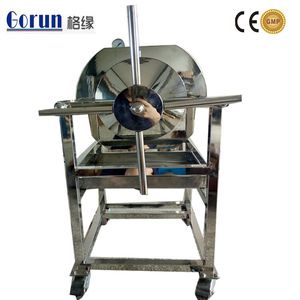

Stainless Steel Plate And Frame Filter Press Brewing Mash Filter Wine Filter

Description

This machine is multi-layer stainless steel frame filter,For the concentration of less than 50% viscosity,liquid with a little containing slag,As a enclosed filter to achieve purification, sterilization, clarification and other fine filter, semi-fine filter requirements,use microporous membrane directly, to achieve the purpose of sterile filtration.

The machine with huge filter area and flow, wide application range, in the pharmaceutical, chemical, video and other industries have a wide range of uses, the application of drug injection in the pharmaceutical plant filtration, the effect is better.

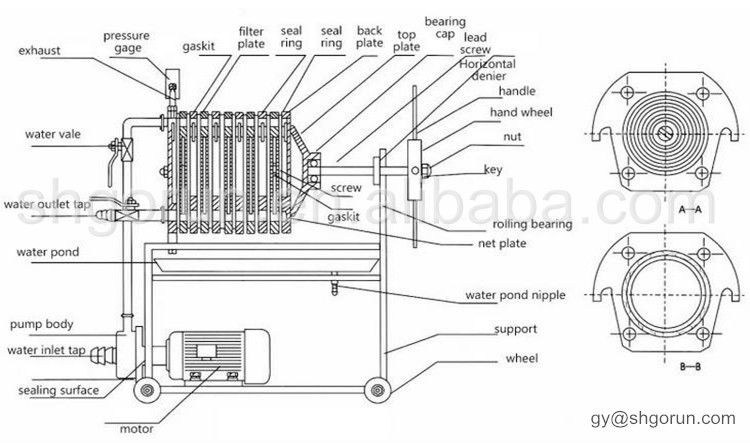

Structures

1.The machine is used in pharmaceutical, food, beverage, water treatment, brewing, petroleum, chemical, anti-corrosion, environmental protection and other industries, is all kinds of liquid filtration, clarification, purification, sterilization treatment of the latest equipment

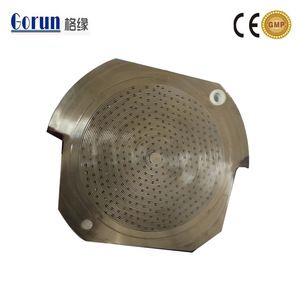

2.Use of bump-type filter plate, increasing the water cross-sectional area, reducing the liquid filtration, flow resistance, the flow of any improper liquid dead angle, to maintain the stability of liquid properties, bump filter plate filter material , Filter paper, etc.) is not easy to break, to extend the service life of various media

3.All the sealed parts of all installed (milky silicone rubber seals, non-toxic high temperature) no leakage, that is, in the filter box on the positive and negative sides, import and export of double-folding ring and other sealing parts are installed circular ring

4.The machine can be filtered liquid according to the different production processes (primary filtration, semi-fine filter, fine filter) requirements, the replacement of different filter users according to the size of the production flow, a corresponding reduction or increase filter frame material

5.When the filter work, pressing the seal ring, no loss of liquid, liquid clarity, and sterilization selection of microporous membrane filter, sterilization effect is particularly good.

Diametions

Modelspecificationflowthe number of Filter  layers filter MembranepowerDimensionsinlet and outlet
GRPF-100Φ1001100.80.75680*310*58019/19
GRPF-150Φ1501.5-2100.80.75780*350*70027/22
GRPF-200Φ2003100.81.1820*380*76027/22
GRPF-300Φ3005100.81.5920*500*90027/27
GRPF-400Φ4008100.82.21260*600*112050/32

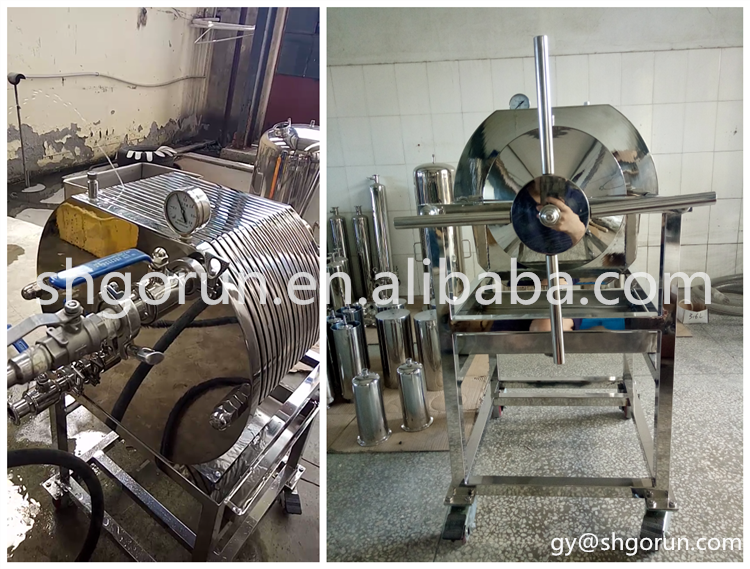

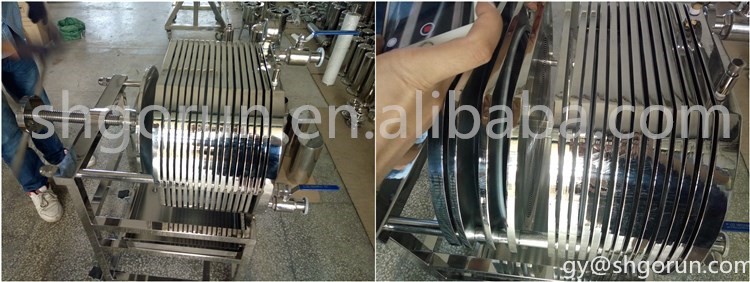

Details and application



Company Information

1.OUR COMPANY



   1.Shanghai Gorun Machinery technology Co,. Ltd derived from Shanghai Geshi filtration company which is founded on 1993.

    2.It is committed to the installation and commissioning of pharmaceutical, food, chemicals, electronics and other industrial equipment design, production and supporting the project.

     3.Our core product is certficated by authority third-party,meet GMP ,America FDA standard,CE,ISO900,SGS,TUV.
    4.There is a professional workshop with 6000 square meters area speaically to manufacture these equipments.

    5.Main products:CIP system,Water treatment system,Stainless steel tanks,Heat exchanger,Filteration equipment,Filter cartridge.

.

2.OUR TEAM

    Our company has a fine business, to understand management, innovation and courage, love and hard work of the workforce, have an age with a reasonable level of education a wealth of technical personnel.



3.OUR CUSTOMERS

    Our customers are from all over the world. Customers favorable comments based on our high-quality products, professional and efficient services.

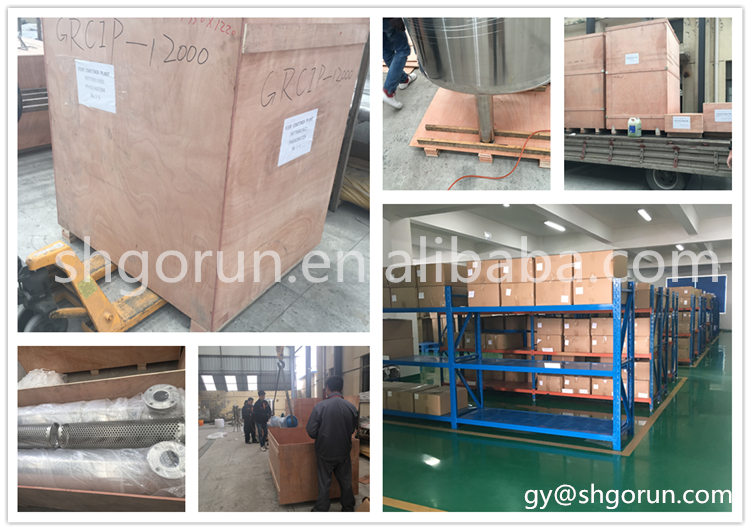

Packing


FAQ

1. Q: How do I pay for my purchase order?

    A:   T/T, and Western Union

2. Q:  What's the MOQ?

    A:  Our MOQ is 1 set.

3. Q:What's the delivery time?

    A: It will take about 25-35days to finish an order, but the exact time is according to actual situation.

4. Q: Can I have my own customized product?

    A: Yes, your customized requirements for color, logo, design, mark, etc.  are very welcome.

5. Q: Do you have quality control?

    A: Yes, we attach  great performance to quality control.

6. Q: How about the warranty control?

    A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
