Best Quality uv curing machine in Dubai
Description:

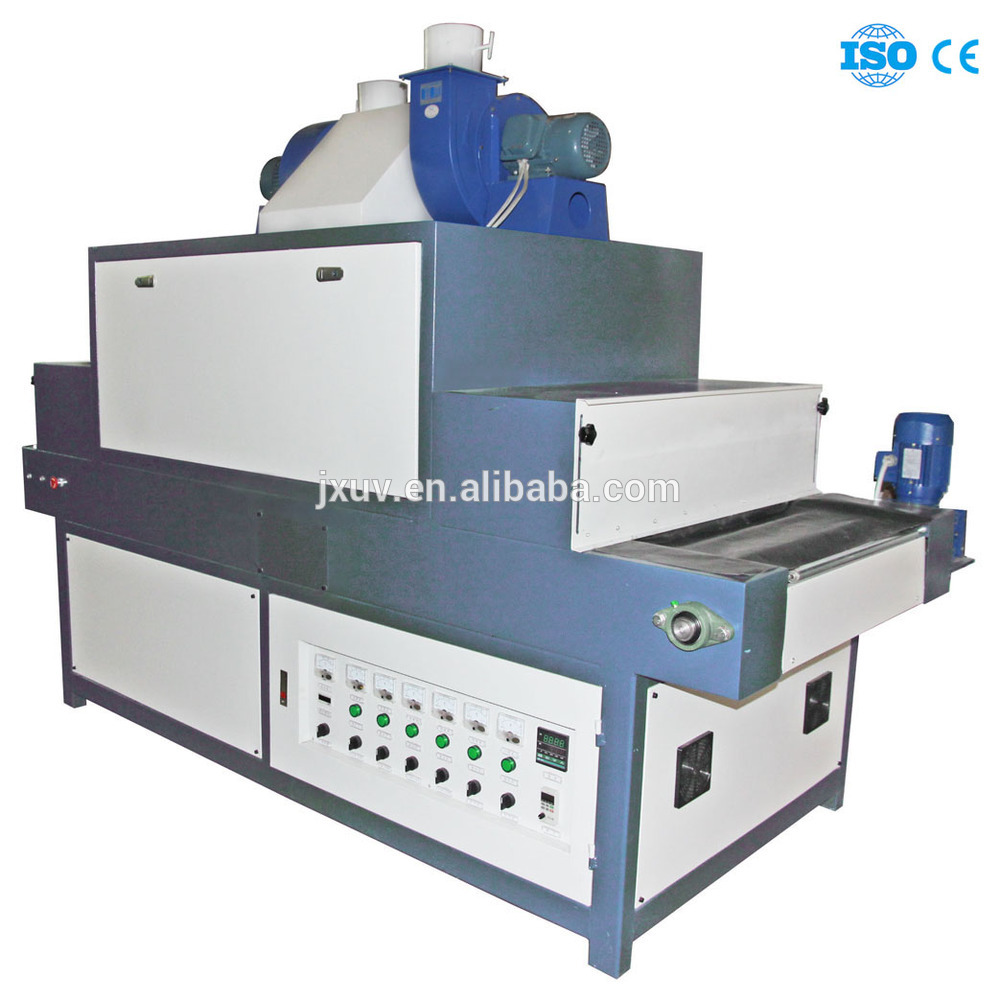

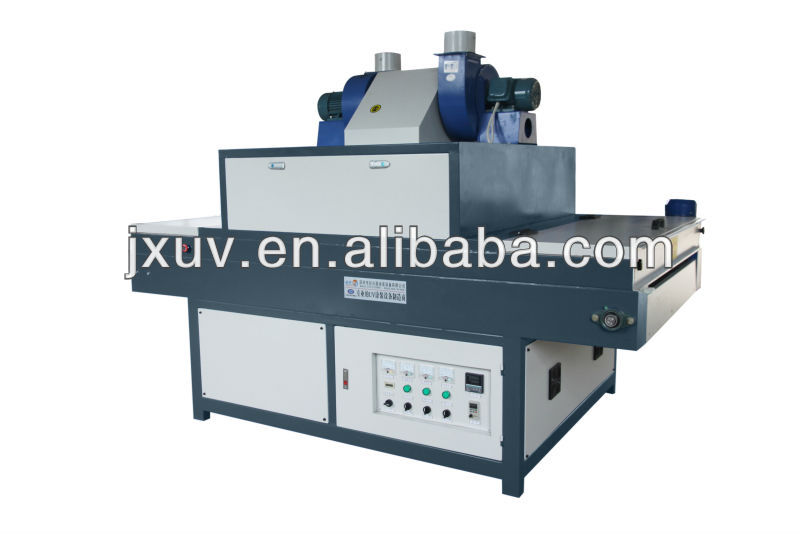

The uv curing machine is welding by angle steel and square steel,the airframe is made of cold-rolled steel plate.
The whole machine is adopted by electrostatic coating which can well anti-corrosion and easy to clean.
The main part of electrical control is from French Schneider with a high sensitivity and prolonged durable.
The motor is from Taixin reducer and the speed is controlled by Taiwan Delta inverter with stable function.
The conveyor with stainless steel pole-style (net-style).
The lamp is made of importing material and the work life is over 800 hours. The reflector is made of importing mater
The power is Taiwan style, more energy-saving and high efficiency.
The control circuit is designed rational; such as leakage protector;overload protected motor.Control circuit insurance;blower motor insurance;uv light amumeter;light on action;XM;LED of power;start/stop switch; power to set a half for uv light. etc
Adopt special air cooling system and digital thermostat. The blower come from Jiuzhou Huipu.the whole machine guaranteed 1 year (except lamp) and maintains a lifelong.
Voltage:380V,50HZ
Model | JXUV 111-600 | JXUV 111-1000 | JXUV 111-1300 |
Working Width(mm) | 600 | 1000 | 1300 |
Working Thickness(mm) | 100 | 100 | 100 |
Feeding Speed(m/min) | 5~20 | 5~20 | 5~20 |
Shortest Convey Length(mm) | 300 | 300 | 300 |
Fan Power(kw) | 0.55*2 | 0.55*2 | 0.55*2 |
Electrical appliances Power(kw) | 0.37 | 0.37 | 0.75 |
Lamp Power(kw) | 5*3 | 7.2*3 | 9.6*3 |
Total Power(kw) | 16.47 | 23.45 | 30.65 |
Machine Size(mm) | 2500*1250*1260 | 2500*1650*1260 | 2500*1950*1980 |
Machine Weight(kg) | 660 | 760 | 860 |
Running Model:
Package
wooden standard carton is suitable for the export and long transportation,free fumigation.
Payment
We usually accept T/T, payment terms : 30% TT deposit, the balance before shipping.
Shipment
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can
help you to handle the export ,we can accept the factory price(EXW.),
We arrange the local shipment,which’s easy for you to control the transportation cost.
Warranty
- 1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer
FAQ
What is the curtain coating machine for wood floor ,Furniture warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
What about the UV coating machine for wood floor working size?
Usually 300mm . Also It can produce as clients requests.
What is the minimum quantity for order?
One set for order.
Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department
before shipping.
How do you ship the finished products?
As the machines is too big , so usually it is shipping by Sea
What’s the Payment term?
Payment term: 30% TT deposit , the balance before shipment.
What’s the delivery time?
Within 25 days after get the payment
Why choose JIXING UV?
1,Professional:We are professional in woodworking machinery field for more than 10 years.
2,Excellent:Our machines get great reputation and produce nice quality product for customers all over the world.
3,Economial:We offer the good price with great quality because we do high-volume production manufacturer.
