Characteristic | |
Temperature range | Room temperature add 10℃~+200℃(392℉). |
Heating rise time | Room temperature~200℃,about 25 minute. |
Temperature uniformity | SAO-8~10 equal±1%. |

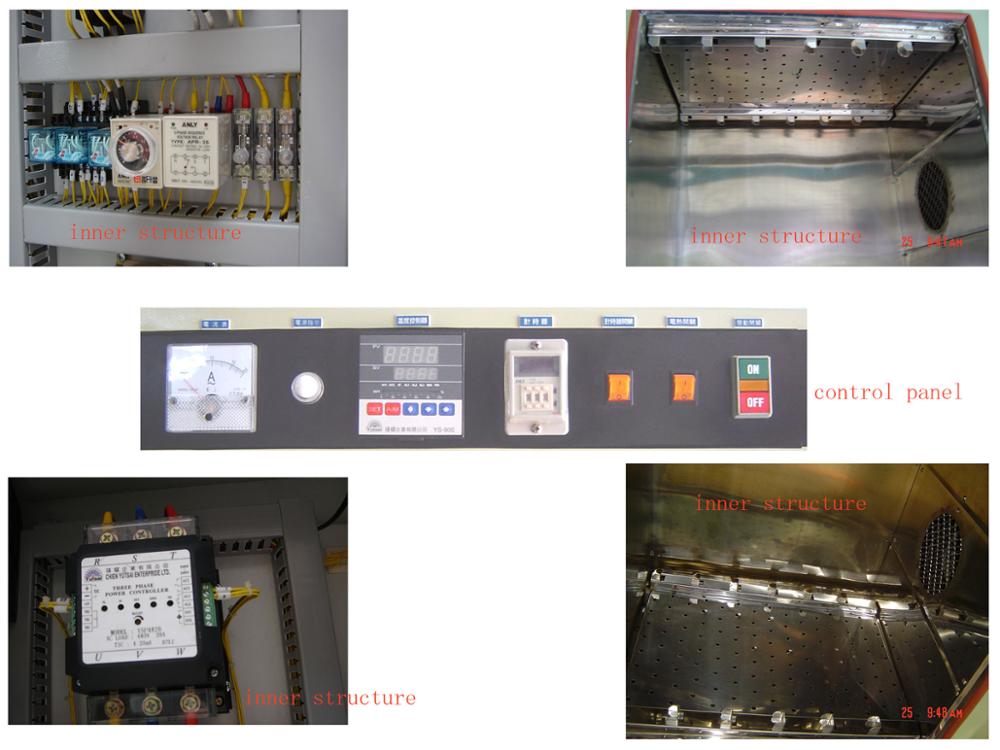

Number setting | Control number display and current output control -SCR. |
Use material | Outside use SS41#powder paint,inside can choose stainless steel or steel paint.SAO-8~10 tow door tow side blow. |
Heat insulation | Doors and other five surfaces with high density of glass and fiber cotton to prevent the heat loose, so it can save power. |
Durable electric heater | Use special oval electric heating porcelain,With the black heat effect,Low radiation not easy oxidation,can use 5years |

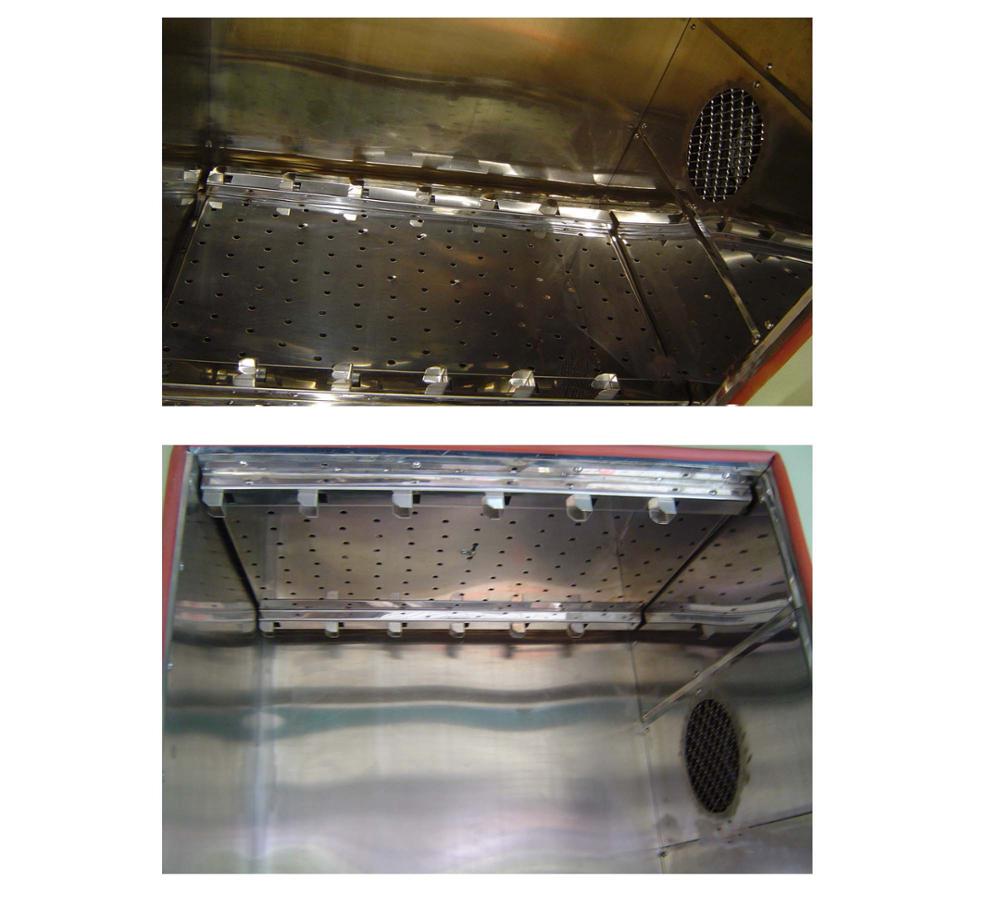

Tray | 10 centimeters per case,the tray can freely change high.(There are four kinds of dishes to choose) |
note:tow doors tow side blow,have 200mm middle column. |

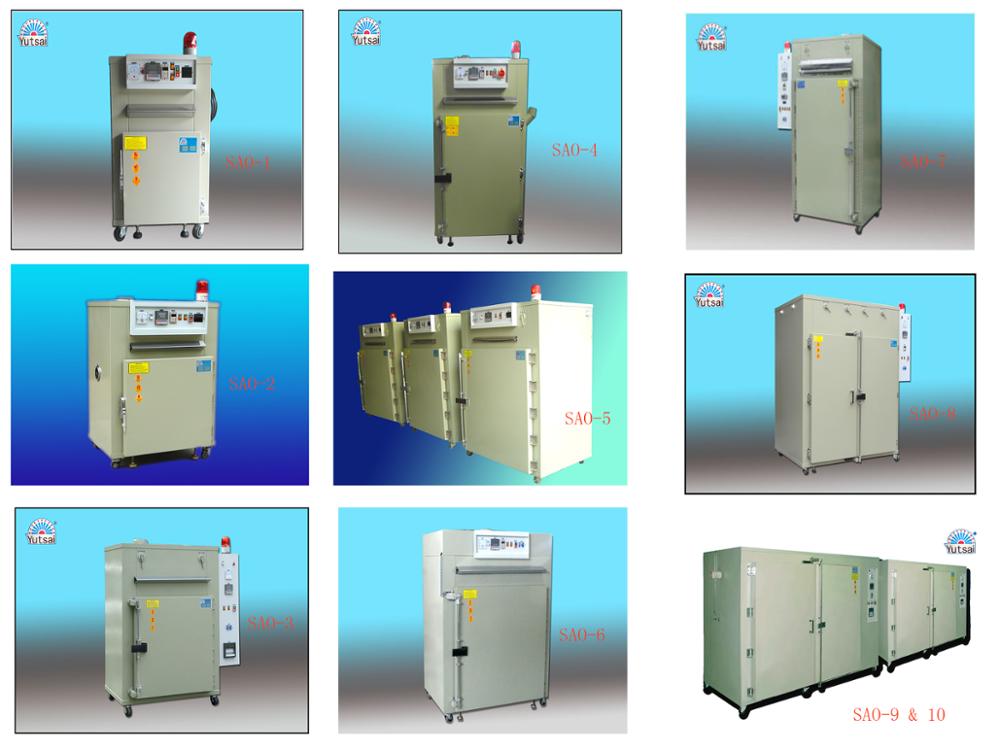

Model | Inner size W×D×H mm | Outer size W×D×H mm | electric power KVA | Outer electric 50/60Hz AC | Tray Layer | Door |
SAO-5 | 1000×600×1000 | 1590×800×1690 | 9 | 3∅220V/380V | 10 | 2 |
SAO-6 | 1200×600×1000 | 1790×800×1690 | 10 | 3∅220V/380V | 10 | 2 |

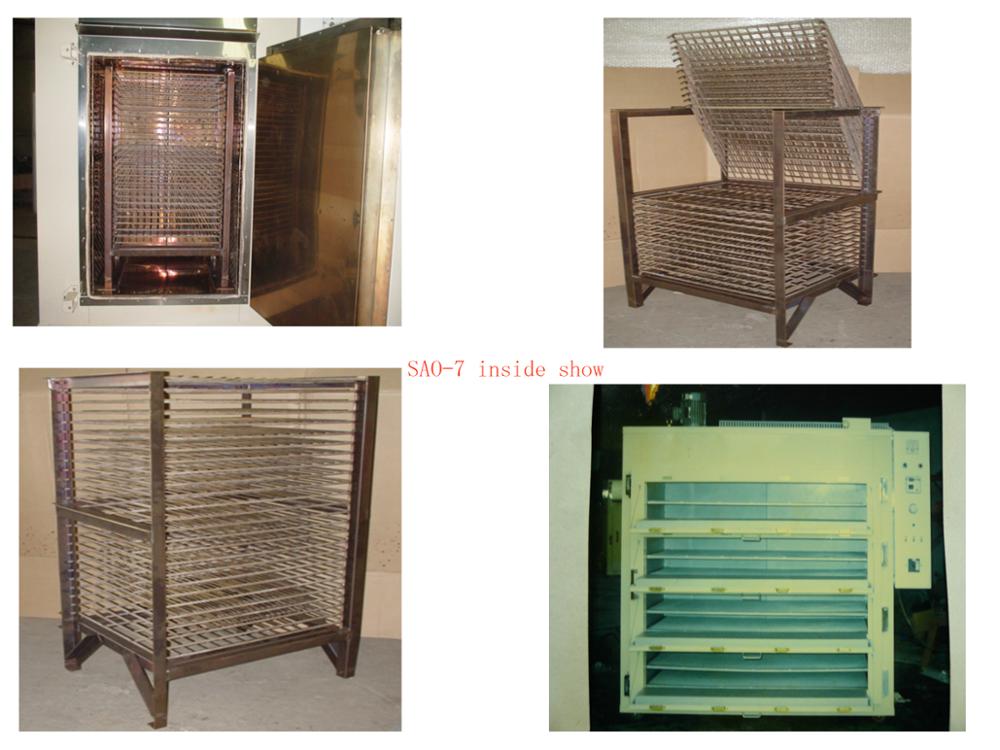

SAO-7 | 1400×600×1200 | 2080×800×1910 | 14 | 3∅220V/380V | 12 | 2 |
SAO-8 | 1600×800×1400 | 2280×1020×2290 | 18 | 3∅220V/380V | 14 | 2 |
SAO-9 | 1800×1000×1400 | 2480×1220×2290 | 24 | 3∅220V/380V | 14 | 2 |
SAO-10 | 1800×1400×1400 | 2480×1620×2290 | 28 | 3∅220V/380V | 14 | 2 |

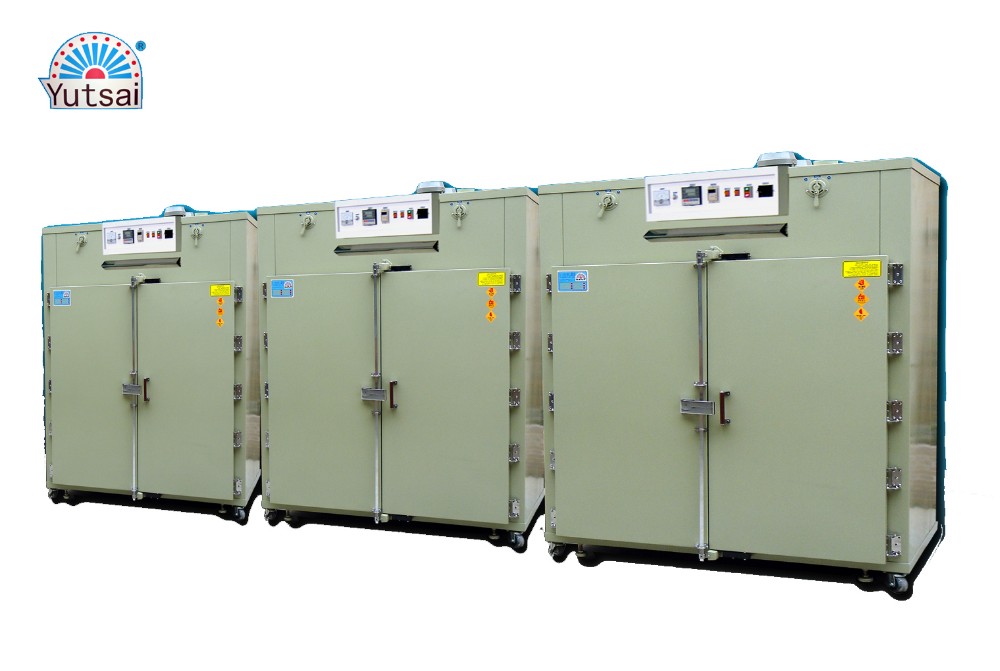

Hot air circulation oven is our original product, with carefully designed and continuously update,it have reach the international advanced level.
The device is a kind of oven, and can be installed, divided into CT type (centrifugal fan)
CT-C (axial fans) series products, it is the use of steam, electricity and gas as heat source,
through the heater heating,a large number of hot air will circulate in the oven, and then continue to dehumidify from the outlet,increase the heat transfer effect, and keep reducing the moisture.
The oven equipped with low noise and high temperature proof axial flow fan and automatic temperature control system, the circulatory system fully closed, the thermal efficiency of the oven is from the traditional drying room 3 - 7% increase to the current 35 - 40%, the highest thermal efficiency up to 70%.
The device named SAO series is according to the national pharmaceutical administration released the industry standard.
Advantage
1.Strong durability: As the heater is sealed in the housing,the contact area with air is small,it is difficult be oxidized.
2.Heated air circulation: Baked good is heated uniformly
Accurate and reliable electrical control:reasonable structure,effective working area,full-function,simple operation,easy to maintenance and adjustment,low noise,high reliability,low cost,low energy consumption and high production efficiency.
Application
Apply for baking of food and goods with chemical gas ,removal of the substrate,curing of the lnk and drying of film and so on. Widely used in the precision baking,drying,tempering,preheating,stereo types and processing of electronics,electrical,communications,plating,plactics,metal,chemicals,food,printing,pharmaceutical,PC board,power,dipping,spraying,glass,ceramic and building materials and so on.
With the help of our experienced professionals, we offer a comprehensive range of Hot Air Oven that gives accurate control over temperature setting. These are provided with double walled insulation, which keeps the heat in and conserves energy.
To assure optimum performance and durability, we manufacture these ovens using superior quality raw material such as sheets and structural steel, blowers and motors, burners, insulation , heat exchanger and Control systems.

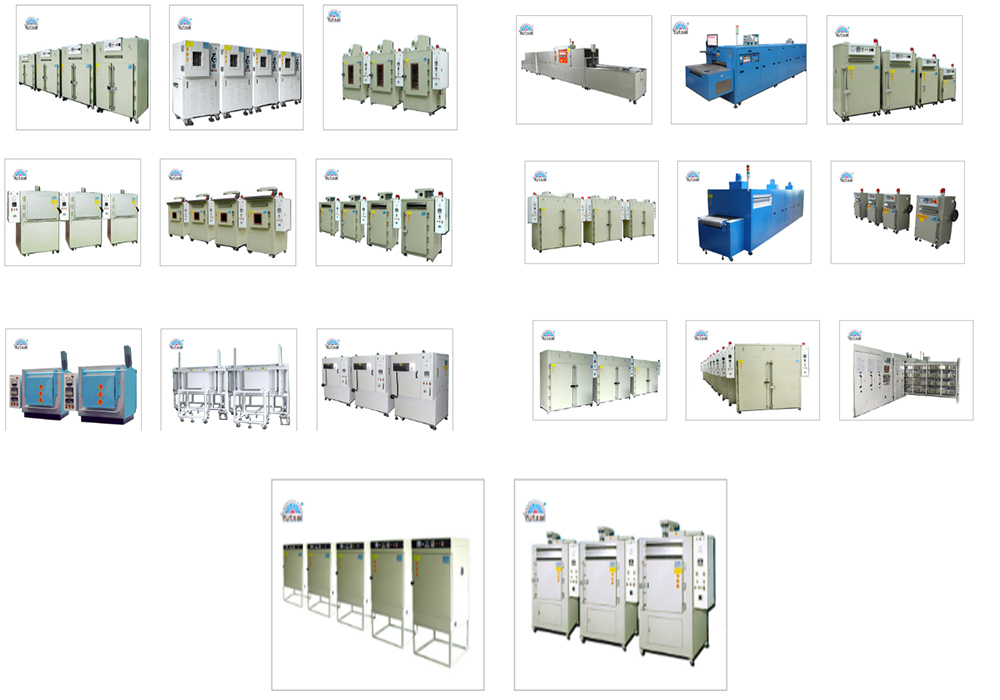

VITECH manufactures the following type of ovens
Dry Off Ovens for moisture removal after Pretreatment or any wet process
Industrial Drying Oven for any drying application
Batch / Conveyorised Ovens for paint or powder curing
Hot Air Generators - Electrical / Oil /Gas
Heat Exchangers
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,avise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convenient
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Package and shipping and work shop:
We has the steady domestic clients such as: FOXCONN, HuohYow, FU BROTHRT industrial company, HUAXIN technology company, PUYAO group etc. It's all about more than 500 company include Domestic ,foreign and military enterprises. We also has the long-term relationship with Thailand, India and England.
The company toward higher, farther, more perfect operating system. the Taiwan Head Company as the axis, and we make efforts in mainland market development.
Our company sticks to a "Human Oriented" management pattern and attaches importance to the selection and cultivation of qualified employees. Every year, periodic or aperiodic professional trainings held at home and abroad make sure the employees have grasped the latest technology and skills. Outstanding expertise and employee quality guarantees high-quality products.What's more, good after-sale services and technical support eradicate your fear of trouble in the future when purchasing or using our products. Company has won ISO9001:2008 certification.
Quality is our fundamental, credibility is our aim, customer satisfaction is our eternal pursuit. Welcome to visit, discussions and suggestions as well as inquiries from the new and old customers. Wish to establish a long-term partnership and friendship with clients all over the world.
1. Can you customize the product?
Yes, we can customize any products according to customer's requirements.
2. Which payment terms are you doing?
PayPal, West Union, T/T, (100% payment in advance.)
3. Which shipment is available?
By sea, by air ,by express or as your requirement.
4. Which country you have been exported?
We have been exported to many countries, all most all around the world, like Malaysia, Vietnam,
Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Portland Etc.
5. How long is the delivery time?
It's about 15-30 days.
