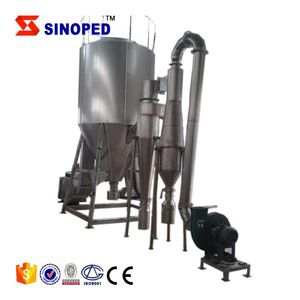

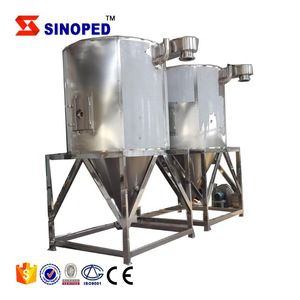

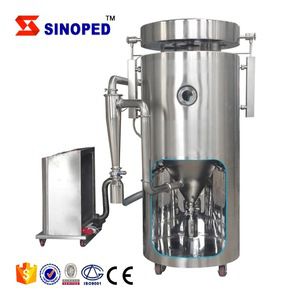

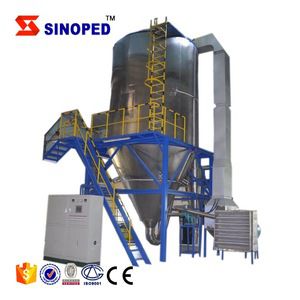

| LPG Series High Speed Centrifugal Spray Dryer LPG Series High Speed Centrifugal Spray Dryer is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies. |
| Technical parameters | |||||||||
| Model | 5 | 25 | 50 | 100 | 150 | 200 | 500 | 1000 | 2000-6000 |
| Inlet temperature(℃) | 140-350(Automatic control) | ||||||||
| Outlet temperature( ℃) | 80-90 | ||||||||
| Spraying method | High-speed centrifugal atomizer (Mechanical transmission or stepless variable frequency speed regulating) | ||||||||
| Moisture evaporating ability(kg/h) | 5 | 25 | 50 | 100 | 150 | 200 | 500 | 1000 | 2000-6000 |
| Rotary speed(rpm) | 25000 | 22000 | 21500 | 18000 | 16000 | 12000-13000 | | ||
| Body diameter(m) | 1.2 | 1.9 | 2.2 | 2.56 | 2.96 | 3.36 | 5.2 | 7.6 | |
| Diameter of the atomizing disc | 60 | 120 | 150 | 180-210 | |||||
| Transmission power(kw) | 4.2 | 14 | 18 | 28 | 37 | 43 | 76 | 109 | |
| Max heating power(kw) | 9 | 36 | 48 | 72 | 84 | 96 | 144 | ||
| Recovered dry power(%) | >95 | ||||||||
| Nozzle's lifting height(m) | -- | 2.5 | 3.2 | It is decided by the process. |
There will no further notification if the appearance or parameters of our products are modified. Thanks.
Working Process soymilk dryer
After been filtered and heated the Air enters into the air distributor on the top of the dryer .The Hot Air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal Sprayer/Atomizer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads .Through the very short time of contacting the heat air, the materials can be dried into the Final products .The final products will be Discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
Why choose us?
1. SINOPED has been engaged in the purification technology and application. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Our products are certificated by the most prestigious national and international institutes.
3. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each lot of the incoming material and the finished products carefully, so that we can supply the best products for customers.
4. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer products with the best quality and the most competitive price. Win-win is our ultimate purpose.
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba’s trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba’s trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
