Description:

Spray drying is a wide applied process in liquid process shaping and dyring industry. Particularly it is suitable for producing powder, granules or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

Principle:

After filtering and heating, the air enters into the air distributor at the top of the drier. The hot air enters into the drying chamber in the spiral from and uniformly. By passing through the high-speed centrifugal spray at the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting the heat air, the materials can be dried into the finished products. The finished products will separator. The gas will be discharged from blower.

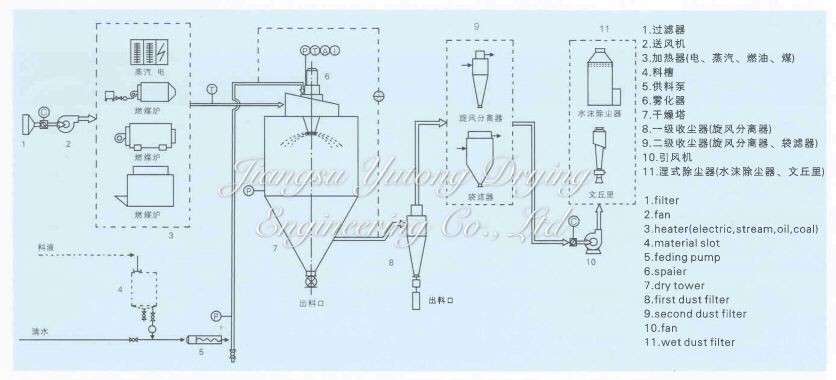

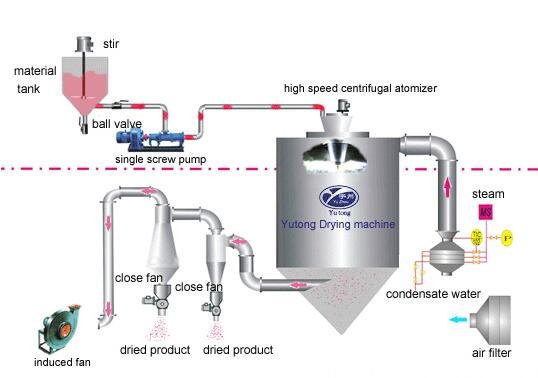

Technological process:

Features of equipment:

* Quick drying speed, the surface area of material liquid through atomizing is increased greatly. In hot air stream, 95% to 98% of moisture can be evaporated at the moment. Particularly suitable to finish drying thermal sensitive materials.

* The product made by the machine has good uniformity, fluidity, solubility, high pure, and high quality.

* The productive process is simple and the operation control is very convenient. For liquid containing 40-60% of damp (for special material, may be 90%), it can be dried to powder product through drying one time. After dried, it is not necessary to crush and sieve. So it reduces productive procedure and raises the purity of product. For the size, bulk density and moisture of product can be adjusted within certain scope through changing operation condition. The control and management are very convenient.

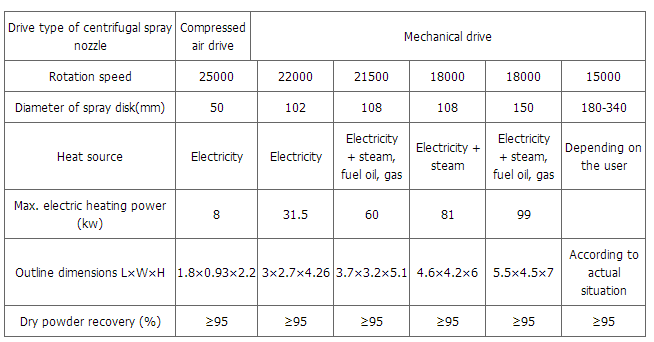

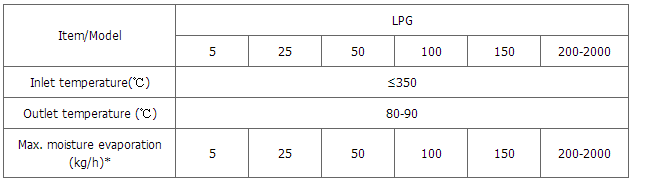

Technology Parameters:

Application:

* Chemical industry: Solium fluoride (pqtassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.

* Plastics and resin

AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly chloroprene and etc.

* Foodstuff Industry

Fatty milk powder, protein, cocoa milk powder, substiture milk powder, egg white (yolk), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth.

Curve of Moisture Evaporation:

Profile of Jiangsu Yutong Drying Engineering Co., Ltd

Jiangsu Yutong Drying Engineering Co., Ltd is a famous enterprises specializing in drying, mixing, granulating, evaporating, concentrating and seperating equipment. Our company has passed authenticaion of ISO9001 international qualtiy system. Moreover, our products have acquired "high quality recommendation certificate" issued by American international quality authentication committee and "East China excellent technical product certificate" issued by Jiangsu Science and Technology Association. Our company emphasizes visualization and creat brand, so we have been evaluated as both "AAA" enterprise by Jiangsu International Qualification company and "regard contract and keep faith" enterprise by industry and commerce department.

Our company is located in a famous town of south of Yangtse River, Changzhou City (1 hour by train from Shanghai), occupying over 50 unit of area with over 11000 square meter building area. We have undeniable engineering and more than 100 sets equipments. Every year we can produce about 600 sets equipments and also can develope more than 30 types which are selling to all the country, such as Australia, America, Brail, Iran, Ukraine, Russia, Thailand, India, Vietnam, etc

Jiangsu Yutong Drying Engineering Co., Ltd stocks many stocks many kinds of trial machine for cutomer taking materials to test and examine. Welcome you come to Yutong for visiting and guiding!

Yutong Aptitude:

Yutong Patent:

Jiangsu Yutong Drying Engineering Co., Ltd factory:

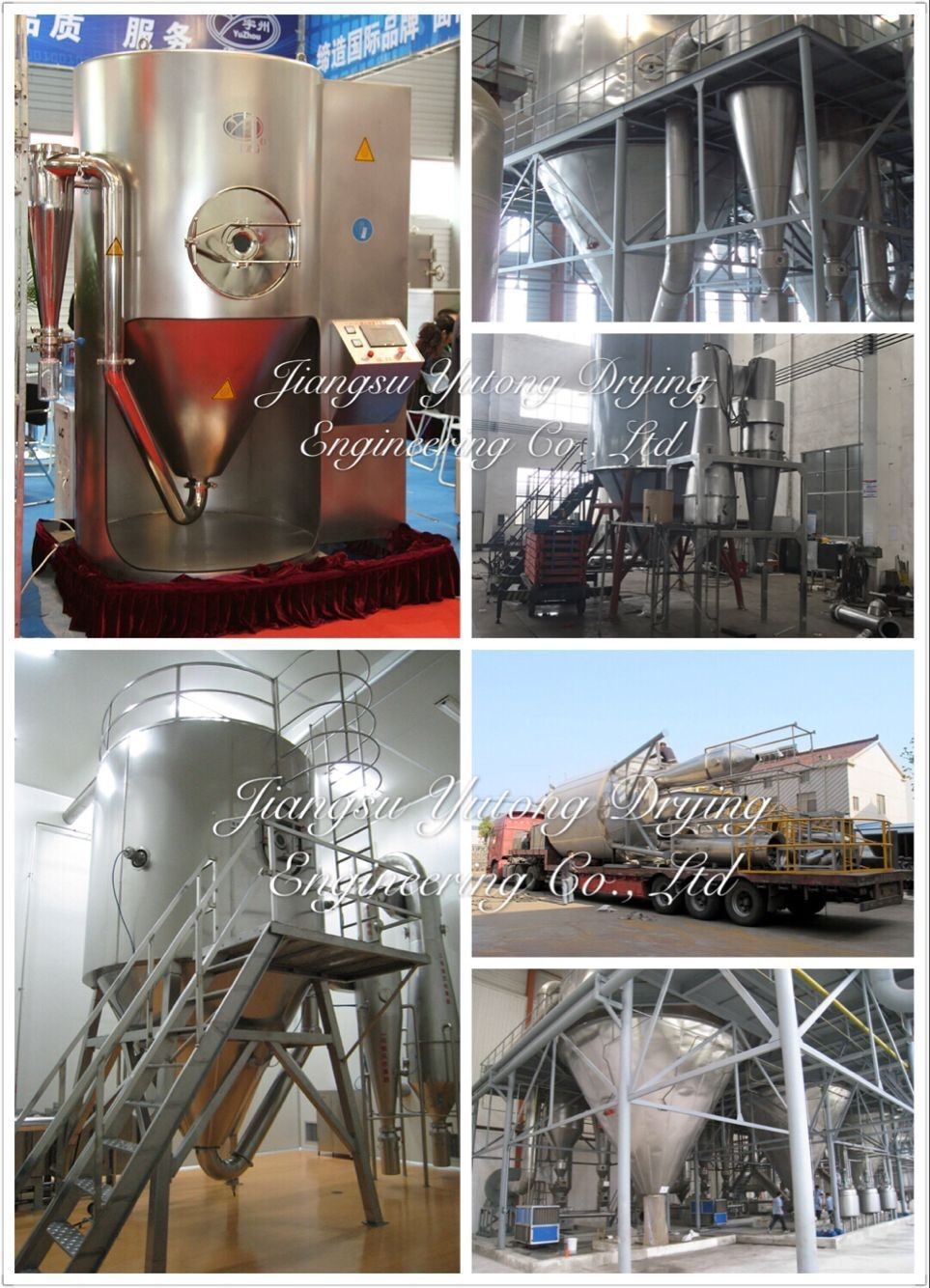

Jiangsu Yutong Drying Engineering Co., Ltd manufactured LPG high speed centrifugal spray dryer for other customers.

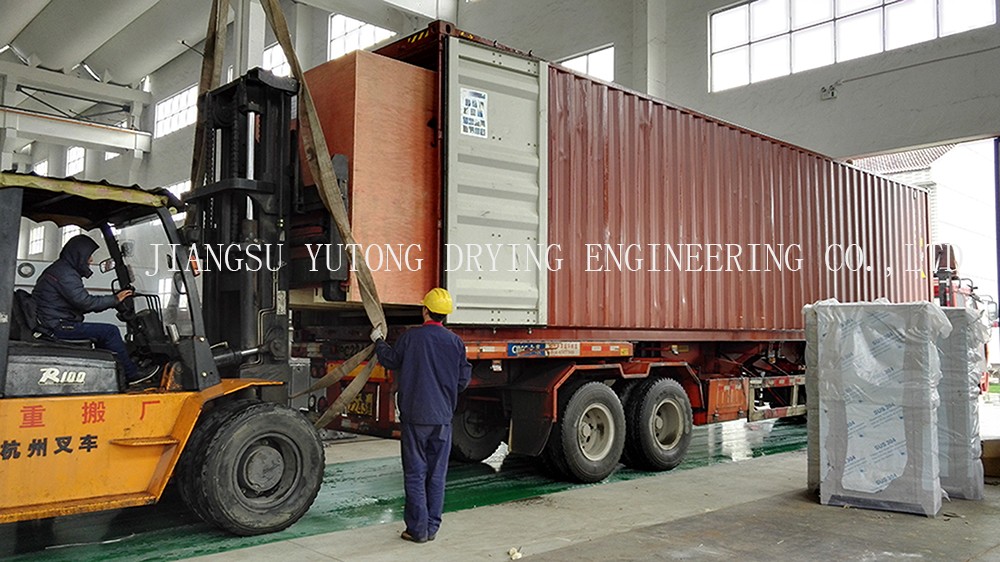

Shipment of equipment:

 Pre-service

Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.

1. Introduce the product to the customer in detail, answer the question raised by customer carefully;

2.Make plans for choice according to the needs and special requirements of users in different sectors;

Sale service

1. Ensure product with high quality and pre-commissioning before delivery;

2. Delivery on time;

3.Provide full set of documents meet customer’s requirements.

After-sale service

Provide considerate services to minimize clients’ worries.

1.Assist clients to prepare for the first construction scheme;

2.Install and debug the equipment;

3.Train the first-line operators;

4. Examine the equipment;

5.Take initiative to eliminate the troubles rapidly;

6.Provide technical support;

7.Establish long-term and friendly relationship.

Service commitment

1. Provide clients one-year warranty to make sure the machine work well;

2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;

FAQ

1. Q: Jiangsu Yutong Drying Engineering Co., Ltd is a manufacturer, trading company or a third party?

    A: We are a manufacturer, Yutong company established in 2000.

2. Q: Where is your factory located?

    A: Yutong is located in Changzhou city, Jiansu province, China. it is In the middle of Shanghai and Nanjing.

3. Q: How can I go to your factory?

    A: You can fly to shanghai Pudong or Hongqiao international airport directly, then take the high speed train to Changzhou station (just 1 hour from Shanghai to Changzhou by train) and we arrange to pick you up at Changzhou station to go to our company. Yutong company is around 30km away from Changzhou station.

If you are in China now, you can fly to Changzhou Benniu airport, or take train or bus to Changzhou city directly .

We sincerely welcome to visit our company at any time.

Principle of work matters that should be known before order:

1. What is Particle liquid name and materials property, solid contents or water contents, viscosity, surface tension and PH value.

2. Powder material contents after the drying, permissible residual water contents, particle size, and permissible maxing temperature.

3. Energy that can be supplied: steam pressure supply capacity, electricity capacity, fuel coal, oil and air capacity?

4. Control requirement: how many celcius the inlet air temperature need to be controlled?

5. Powder collection requirement: whether or not the bag type collector should be mounted and what is the requirement of the environment for discharging the exhausted gas?

6. Other special requirements.
