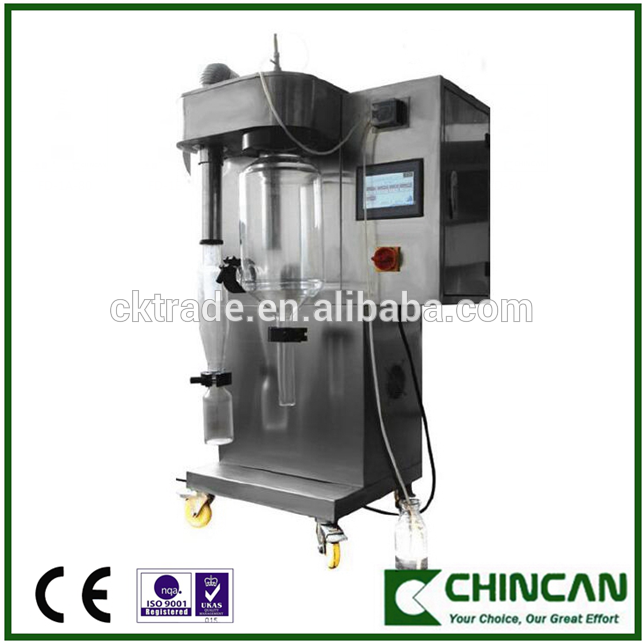

B-6000Y Lab Spray Dryer with CE certificate LCD touch screen
Characteristic:
1. High efficient jet imported.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won’t be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate.
Technical data:
| Max capacity | 1500-2000ml/h |
| Temperature range of Inlet air | 30℃ -280℃ |
| Temperature range of outlet air | 30℃ -140℃ |
| Precision of temperature | ± 1 ℃ |
| Dryer time | 1.0-1.5 S |
| Speed of squirt pump | 50-2000ml/h (Adjustable) |
| Spray system | 1 liquid nozzle (standard 1.0mm) |
| Blowing rate | 0-330m3/h, 686Pa |
| Air compressor | 4.2m3/h, 2-5bar |
| Spray direction | downwards co-current |
| Heater power | 3KW/220V |
| Dimensions | 1200×650×500mm |
Warning: This lab spray dryer can only be used for aqueous solution, Organic solvent forbidden!

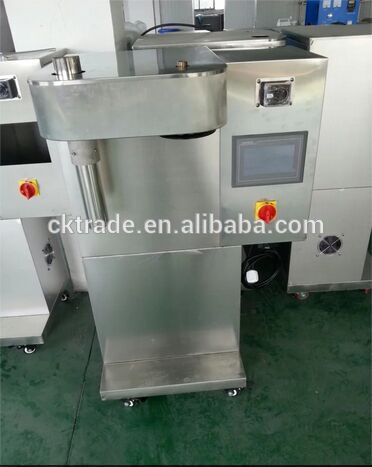

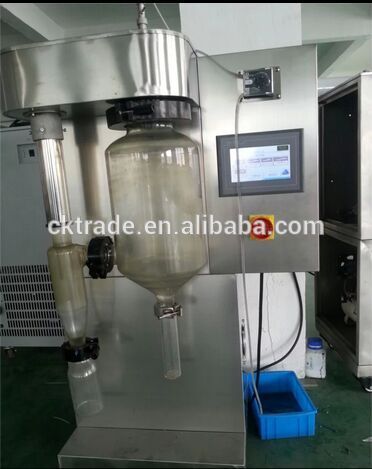

Real Pictures:
This year Shipping shows:
Packing Details: Standard export packing and neutral packing if needed, carton box, wooden case or upon request, packing carefully.
Delivery time: Within 15 working days after the receipt of payment.
Shipping Method: Air / Sea / Express: DHL TNT FedEx UPS EMS, etc.
Q: Can you do OEM service ?
A: We can provide the specific products needed around the world at significantly lower costs.
CHINCAN also offers a Private Labeling Program to provide high quality lab supplies at lower prices.
If you need further information regarding our OEM or Private Label programs, please contact us freely.
Q: How long is your delivery time?
A: Usually, delivery time is 10-15 days depend on the order quantity & inventory.
Q: How about your quality warranty ?
A: Normally all CHINCAN products are supplied with a warranty of 12 Months from the date of shipment.
Q: What is your terms of payment ?
A: Payment 100% T/T, Western Union, L/C, Trade Assurance, Credit Card ect. in advance ,before shippment.
