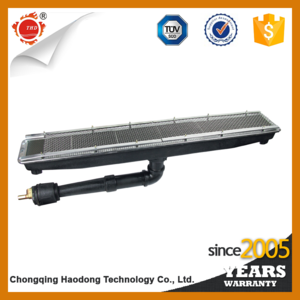

Natural gas and LPG infrared industrial burner components for spray dryer machine

manufacture and assemble super efficient infrared radiant gas fired burners suitable for both the OEM and replacement markets.

Technical Feature

  • New
  • Drying Oven
  • Chongqing, China (Mainland)
  • THD
  • HD242
  • 220V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$70~80

PRIMARY PARAMETERS

Condition
New
Type
Drying Oven
Place of Origin
Chongqing, China (Mainland)
Brand Name
THD
Model Number
HD242
Voltage
220V
Power(W)
9400 w/hour
Dimension(L*W*H)
840*130*175mm
Weight
11.7 kg
Certification
TUV
Warranty
1 Year
After-sales Service Provided
No overseas service provided

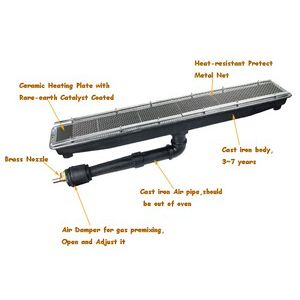

Material of cover
cast iron
Material of mesh
alloy of iron,aluminum and chromium
Air inlet
brass nozzle
Ceramic plates
Cordierite with catalytic coating
Kind
industrial burner components
Fits for
industrial burner components for spray dryer machine
temperature
850C
Gas type
natual gas or LPG
Built in
Infrared industrial burner components
Heat output
31960 btu/hour

DETAIL DESCRIPTION

Natural gas and LPG infrared industrial burner components for spray dryer machine

Specification



 Industrial Ceramic Infrared Gas Burner Catalogue
MODEL
Dimension
Weight
Gas Type
Heat Output
Consumption

mm
kg

KW/h
Kcal/hr
NG(m3/h)
LPG(kg/h)
HD61
423*80*94
3.8
NG/LPG
2.4
2030
0.18
0.18
HD82
219*164*108
4.8
NG/LPG
3.1
2700
0.24
0.24
HD101
690*80*115
6.9
NG/LPG
3.9
3380
0.3
0.29
HD162
570*130*175
8
NG/LPG
6.3
5400
0.49
0.47
HD410
410*175*220
8
NG/LPG
6.3
5400
0.49
0.47
HD242
840*130*175
11.7
NG/LPG
9.4
8120
0.75
0.71
HD600
600*175*220
11.7
NG/LPG
9.4
8120
0.75
0.71
HD262
930*130*175
13
NG/LPG
10.9
9360
0.8
0.82

Haodong manufacture and assemble super efficient infrared radiant gas fired burners suitable for both the OEM and replacement markets. The gas burners can be fitted in a wide range of proprietory process drying, heating and product finishing equipment.

We made infrared burners are designed and constructed to operate on all families of gases and will operate at all gas pressures. They are therefore suitable whatever the gas pressure and in whichever position you wish to fire the burner. - We guarantee it will work!

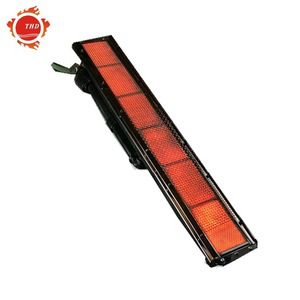

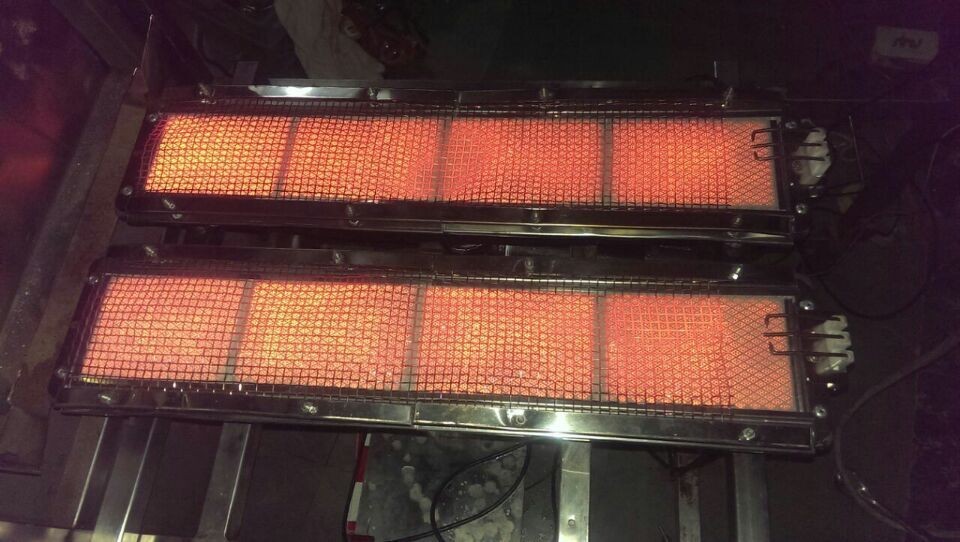

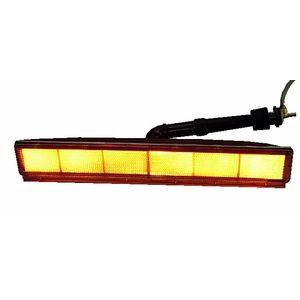

Flameless when they are working

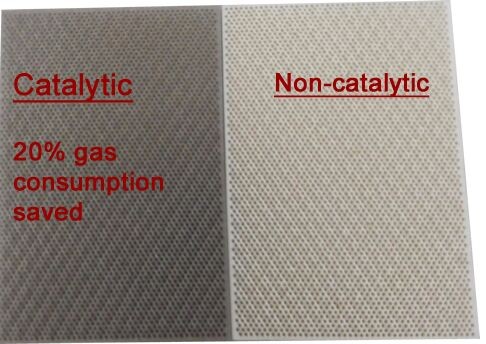

 The black catalyst coating on the Cordierite honeycomb plates,makes the gas saving more than 20%,longer lifetime,less carbon monoxide,NOx and noise,also vent free when they were used for many times.

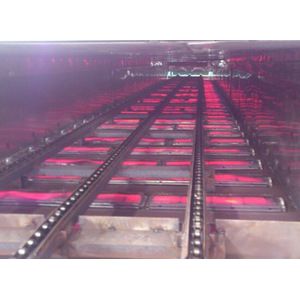

Our infrared burners are used for a wide range of industrial processing including

  • Catering equipment - grills, rotisseries, frying ranges, griddles, kebab machines, naan/pitta bread ovens, bainsmarie steamers and boiling units.
  • Drying - animal foods, cereal and vegetable crops
  • Curing - dry powder and wet paint coating applications, including stove enamelling and vitreous enamel
  • Plastic shrink wrapping
  • Heat walls - for textile, carpet and paper drying
  • Heat treatment ovens
  • Road laying plant - screeding and road planing
  • Forced draught installations - fabrication, welding, pre-heating
  • Construction and building industries - concrete and plaster drying, site heating
  • Foundry mould and core dring
  • Die heating
  • Ceramic holloware and flatware - prior/post glazing
  • Glass forming
  • Metal billet heating
  • Metal annealing
  • Destruction of memory in plastics



Please send us inquiry for more information.
