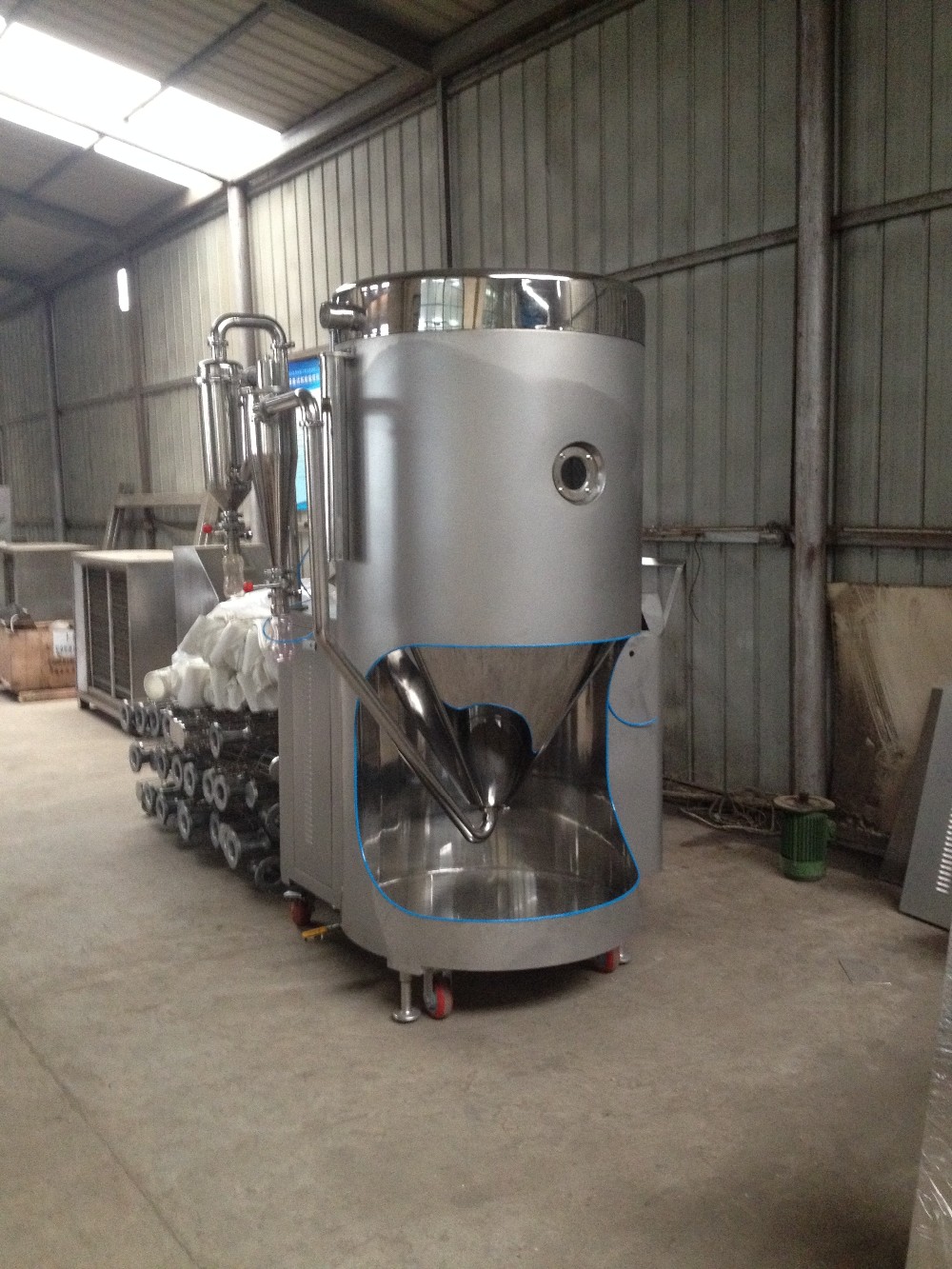

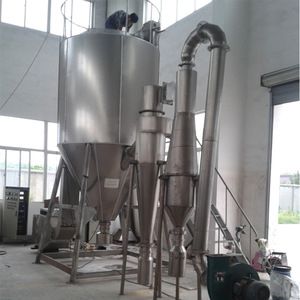

LPG Sereis High Speed Centrifugal
Spray Dryer Machine
Spray Dryer Machine is a technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Working Theory
water
feed pump-------- →centrifugal spray atomizer
slurry ↓
high-efficiency air filter → drying chamber
↑ ↓
Electrical heater cyclone → finish product
↑ ↓
Steam exchanger suction fan
↑ ↓
blower spray dust catcher
↑ ↓
Elementary and middle exhaust emission
efficiency air filter
Original liquid would be feed by Peristaltic Pump frm vessel, and become spray with help of High Speed Atomizer, the atomizer would be driven by Compressed Air. Atomizing Disc diameter can be reac 25000 rpm at most. Peristaltic Pump can be adjusted and stable, which can ensure Feeding Stably and Control Temperature effectively.

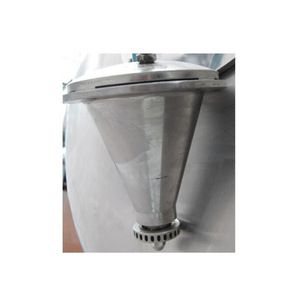

The new air would be filtered by Pre-filter and Mid-filter, then start to be heated by Electricity, until inlet air temp. reach above 300C(Depend on actual need). At this moment, the heater air would be enter the spray chamber uniformly, with the help of Spirl-type Hot-ait Distributor on the cover. After hot air touch with Spray Dryer materials, water can be evaported very fast, fine and dryer powder can be collected by cylone separator.
Machine Advantages

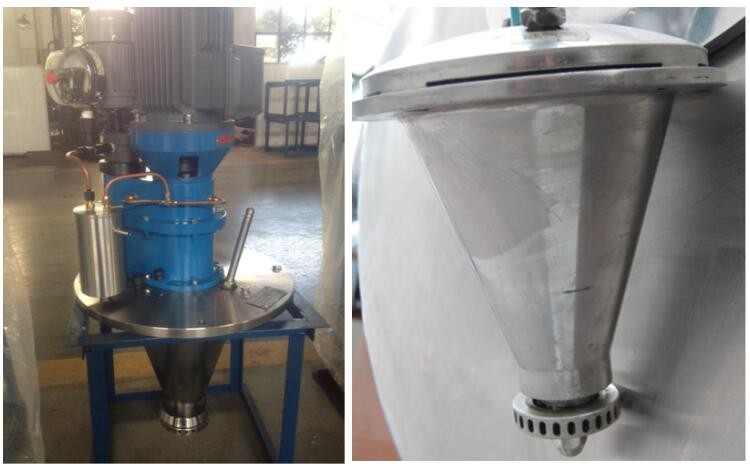

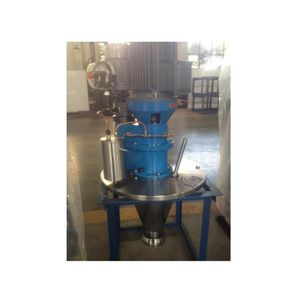

Atomizer is the most important accessory in spray drying machine, it is used for changing LIQUID status into SPRAY status at a high speed rotation motions, usually can reach 18000~25000 rpm, Our company has adopt Chinese Specilalzied Supplier, can ensure customers for 2 years warranty period.
After-dried Products
Industrial Types

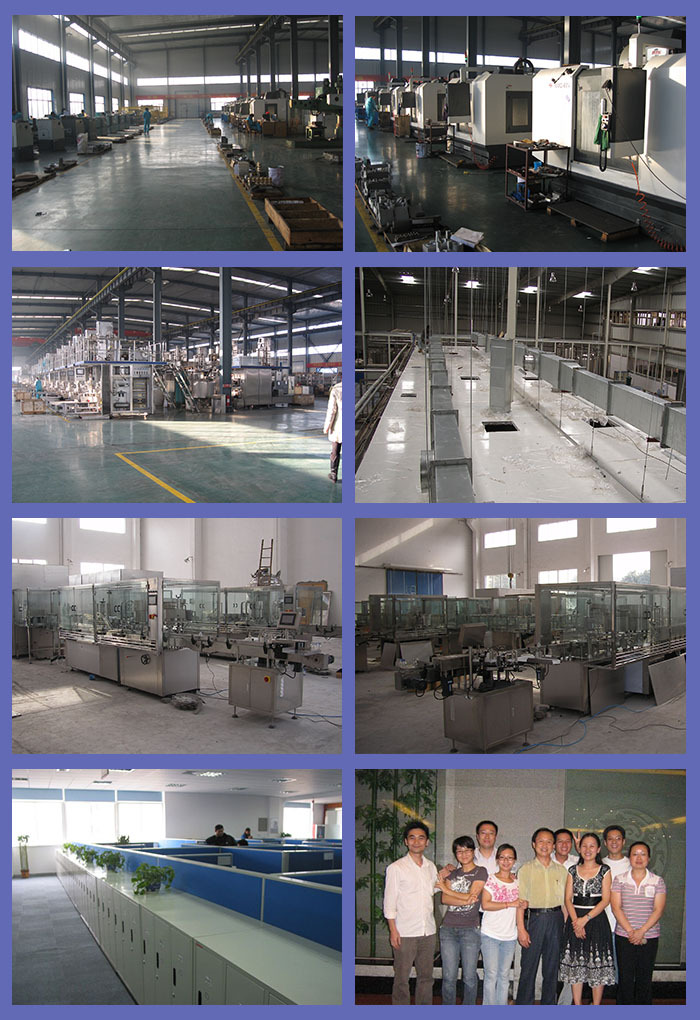

| Our Company is located in the beautiful seashore city, Qinhuangdao and is specialized in manufacturing pharmaceutical machinery and packing machinery. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially in North American countries and France, the Netherlands, Australia, India, Pakistan, Russia and many other countries and regions. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits. |
