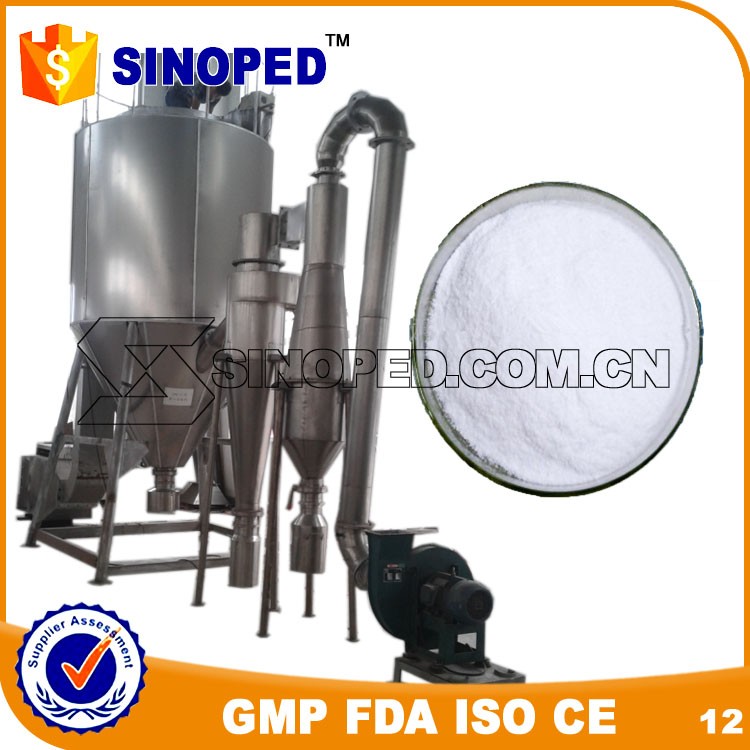

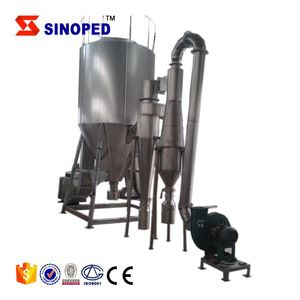

LPG Series Fresh Leave Extract Dryer Machine
Plant extract drying machine is a technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
| SPECIFICATIONS FOR LPG Spray Dryer | ||||||
| | 5 | 25 | 50 | 100 | 150 | 200~2000 |
| Inlet Air Temperature(C) | 140~350 Automatically Control | |||||
| Outlet Air Temperature(C) | 80~90 | |||||
| Max Evaporation Capacity(kg/h) | 5 | 25 | 50 | 100 | 150 | 200~2000 |
| Way of Atomizing | Compressed Air | Mechanical Transmission | ||||
| Rotation Speed(rpm) | 25000 | 18000 | 18000 | 18000 | 15000 | <15000 |
| Diameter of Atomizer(mm) | 50 | 100 | 120 | 140 | 150 | 180·340 |
| Heat Source | Electricity | Electric Heat + Steam/Oil/GAS | As Acual | |||
| Max Electric Power(KW) | 9 | 36 | 63 | 81 | 99 | |
| Dimension(mm) | 1.8x0.93x2.2 | 3x3x4.5 | 3.7x3x5 | 4.6x4x6 | 5.5x5x7 | |
| Dried Powder Collect Rate % | >95% |

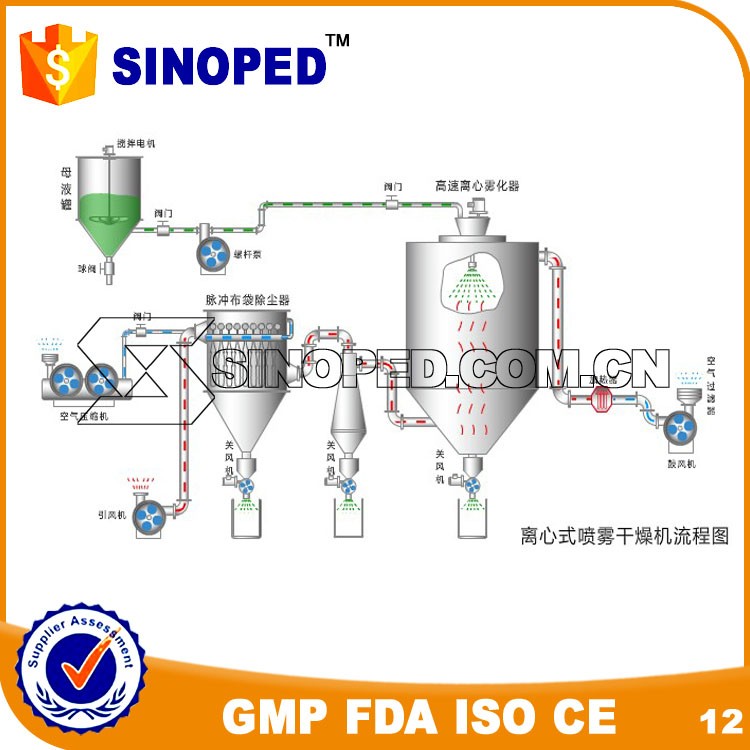

Working Principle
The new air would be filtered by Pre-filter and Mid-filter, then start to be heated by Electricity, until inlet air temp. reach above 300C(Depend on actual need). At this moment, the heater air would be enter the spray chamber uniformly, with the help of Spirl-type Hot-ait Distributor on the cover. After hot air touch with Spray Dryer materials, water can be evaported very fast, fine and dryer powder can be collected by cylone separator.
Outstanding Features
1) Atomizer is the most important accessory in spray drying machine, it is used for changing LIQUID status into SPRAY status at a high speed rotation motions, usually can reach 18000~25000 rpm, Our company has adopt Chinese Specilalzied Supplier, can ensure customers for 2 years warranty period.
2) LPG Spray Dryer has a high speed of drying, after the spraying of the liquid material, the surface area of the material will be increased greatly. In the hot-air flow, 95~98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.
3) Product with good uniformity, mobility and solubility, high purity and good quality.
4) The production procedure are simple and the operation and control are easy. The liquid with the moisture contents 40~60% (for special material, the content may reach 90%). can be dried ino the powder or particle product once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedure in the production and to enhance the product purity. The product particle diameters, looseness and enhance the product can be adjusted through changing the operation condition in a certain scope. It is very important to carry out the conrtol and management.
Machine Parts
Name: Pneumatic Atomizer
Brand: LPG
Original: China
mainly used for pilot model, can reach 25000 rpm, Our company has adopt Chinese Specilalzied Supplier, can ensure customers for 2 years warranty period.
Main Features

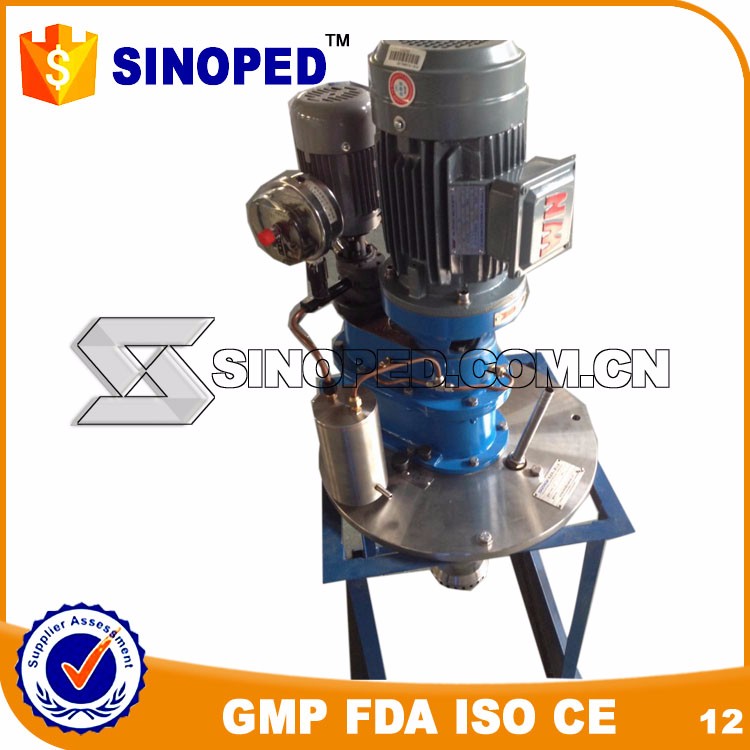

Name: Mechanical Atomizer
Brand: LPG
Original: China
mainly for production model, can reach 8000~18000 rpm, Our company has adopt Chinese Specilalzied Supplier, can ensure customers for 2 years
Machine Parts

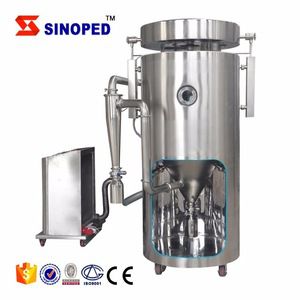

Name: GEA Standard Pilot Model
Brand: LPG5
Original: China
Laboratory minor spray dryer, design based on GEA, EU standard, cooling system, up to GMP strictly.
Company Introduction
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, fermentors, centrifuges, granulators, mixers, spray dryer, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | As Actual Size |
| Weight | 2000KG |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Packaging | |
| Size | As Actual Size |
| Weight | 2000KG |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
