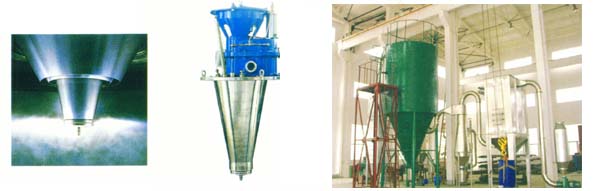

Spray dryer machine
Overview:
Liquid spray drying technology is shaping and drying of the most widely used industrial process. Ideal for the solution, emulsion, suspension and paste liquid plastic raw materials generated in the powdery, granular or massive solid products. Therefore, when the particle size distribution of the finished product, residual moisture content, bulk density and particle shape must meet precise standards. Spray drying is a very good process.
Application:
* Chemical Industry: sodium fluoride (K), basic dyes pigments, dyes intermediates, fertilizer, formaldehyde acid, catalyst, of sulfuric acid, amino acids, such as carbon black white.
* Plastic Resin: AB, ABS emulsion, urine-formaldehyde resins, phenol-formaldehyde resin, of plastic (urea) formaldehyde resins, polyethylene, polyvinyl chloride, etc..
* Food industry: the rich fat milk, Ga prion, cocoa, milk, milk substitute, hunting blood meal, eggs, Please (Yellow).
* Food and plants: oats, Jishi, coffee, instant tea, spices seasoning meat, protein, soybean, peanut protein, such as hydrolysate.
* Carbohydrates: corn pulp, corn starch, glucose, pectin, maltose, such as potassium sorbate.
* Ceramic: alumina, ceramic tile materials, magnesia, such as talc.
Technical parameters
| Model | LPG | ||||
| 5 | 25 | 50 | 100 | 150 | 200-2000 |
| inlet temperature ℃ | 140-350 automatically controlled | |||||
| outlet temerature ℃ | ~80-90 | |||||
| Max.water evaporation capacity | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| centrifugal spraying nozzle transmission mode | compressed air transmission | Mechanical transmission | ||||
| Rotation speed rpm | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| sprayingdesc diameter mm | 50 | 100 | 120 | 140 | 150 | 180-340 |
| Heat supply | Electricity | Electricity+steam | Electricity+steam,fuel oil and gas | Settled by users themselves | ||
| Max.Electric heating power kw | 9 | 36 | 63 | 81 | 99 | |
| overall dimensions m | 1.8×0.93 ×2.2 | 3×2.7 ×4.26 | 3.7×3.2 ×5.1 | 4.6×4.2 ×6 | 5.5×4.5 ×7 | Depends on the concrete conditions |
| Dried powder restoring tate % | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
| Note:For the water evaporation capacity, material property,the inlet and outlet tempratures,please refer the following diagram for reference. |
Changzhou Haijiang Drying Equipment Co., Ltd. is a rise in the era of the sun industry pride, carrying the trend of the East China Sea, dazzling in the Yangtze River Delta by sea, Changzhou. since its inception in 2001,Relying on unique advantages of the region to bring the broad market, and more than 10 years of self-catching the continuous development of the company. haijiang has become key enterprises in China's dry industry trade.

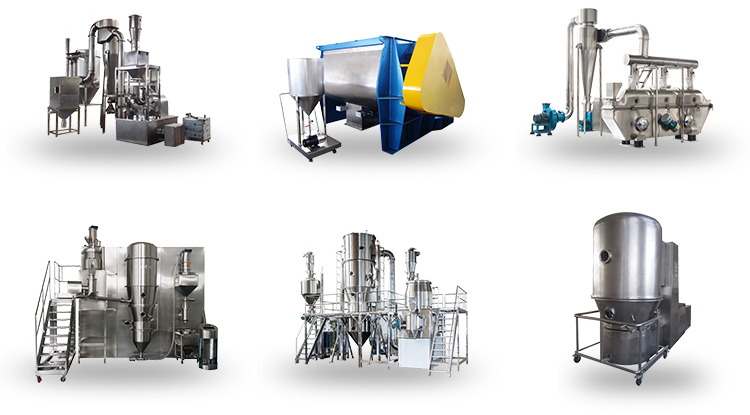

Haijiang cover over 20,000 square meters ,have modern office plant more than 10,000 square meters, Haijiang is a professional manufacture of drying , granulation, pellting, coating, mixing, crushing, screening . Main products have 50 varieties and 600 models, with an annual output 1,000 sets, Haijiang is widely used in pharmaceutical, chemical, food, agricultural and sideline products processing, textiles, electronics, feed and other fields.
