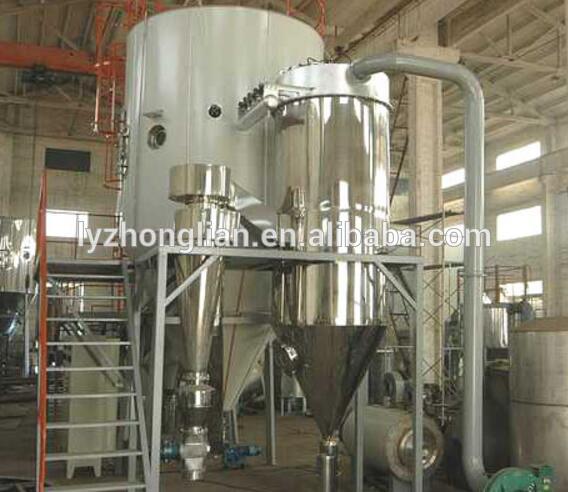

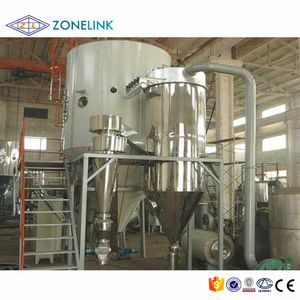

blood Powder Spray Dryer price for pig blood powder
Application:
High Speed Spray drying Machine is a technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Atomizer is the most important accessory in spray drying machine, it is used for changing LIQUID status into SPRAY status at a high speed rotation motions, usually can reach 18000~25000 rpm, Our company has adopt Chinese Specilalzied Supplier, can ensure customers for 2 years warranty period.
Technical parameter:
Item/Model | LPG5 | LPG25 | LPG50 | LPG150 | LPG200-2000 |
Inlet temperature | 140-350 self-control | ||||
Outlet temperature | 80-90 | ||||
Water evaporation (kg/h) | 5 | 25 | 50 | 150 | 200-2000 |
Centrifugal spray head transmission form | Compressed air transmission | Mechanical transmission | |||
Maxi. speed(r.p.m) | 25000 | 18000 | 18000 | 15000 | 8000-15000 |
Spray disc diameter(mm) | 50 | 120 | 120 | 150 | 180-240 |
Heat source | electricity | Steam+ electricity | Vapor + electricity, fuel, gas, hot blast stove | ||
Electric heating maximum power(kw) | 9 | 36 | 72 | 99 |
|
Overall dimensions | 1.8×0.93×2.2 | 3×2.7×4.26 | 3.5×3.5×4.8 | 5.5×4×7 | Determined according to the actual situation |
Powder recovery (%) | ≥95 |

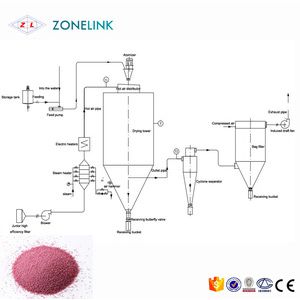

Working process
water
feed pump-------- →centrifugal spray atomizer
slurry ↓
high-efficiency air filter → drying chamber
↑ ↓
Electrical heater cyclone → finish product
↑ ↓
Steam exchanger suction fan
↑ ↓
blower spray dust catcher
↑ ↓
Elementary and middle exhaust emission
efficiency air filter

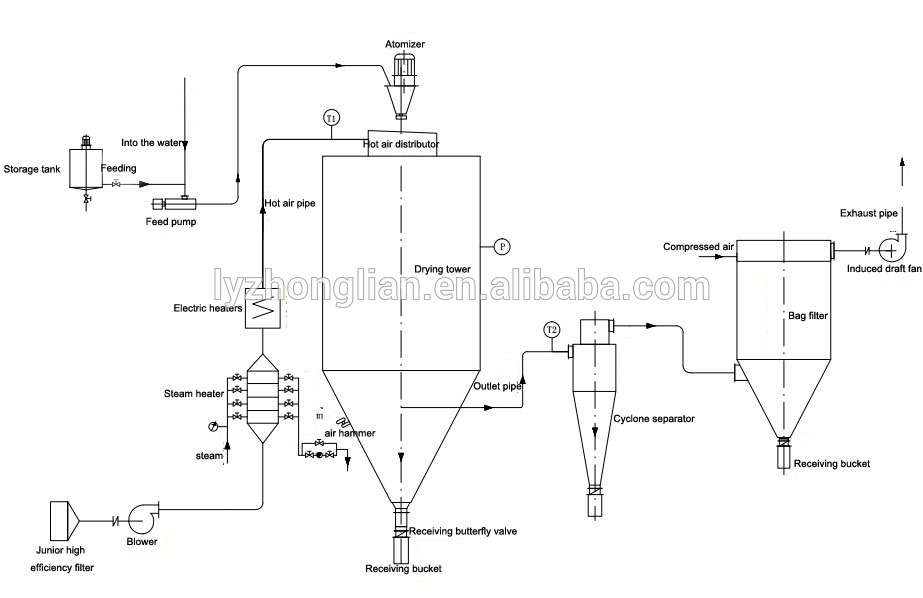

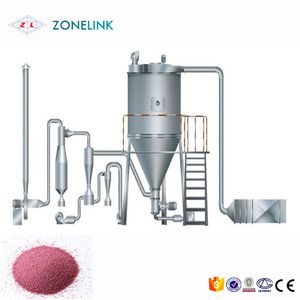

Structure draw:
Advantages:
The drying speed is high when the material liquid is atomized , the surface area of the material will increase greatly .In the hot-air flow,95%-98% of water can be evaporated within only seconds.More suitable for drying the heat sensitive materials.Spray Drying Machine final products own the advantages of good uniformity, flow ability & solubility. Also high in purity and good in quality.
The production procedures are simple and the operation and control are easy .The liquid with moisture contents of 40-60% (for special materials, the contents might be up to 90 %.) can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity .The product particle diameters, looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and management.

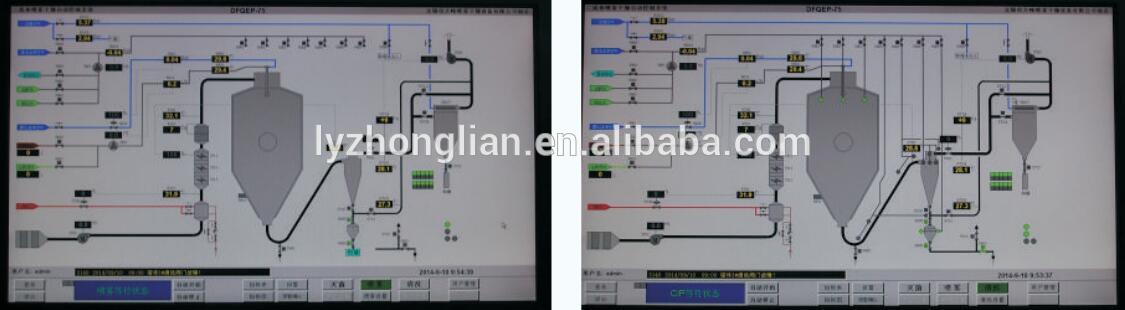

PLC control:

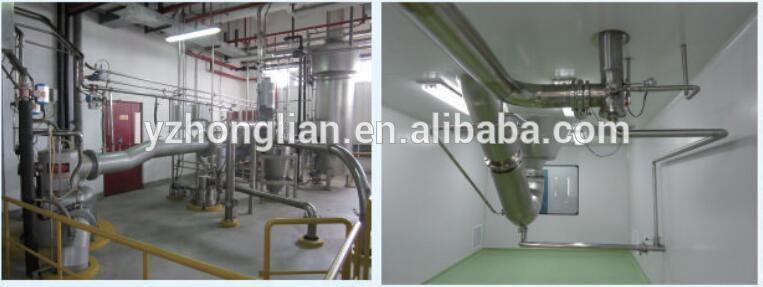

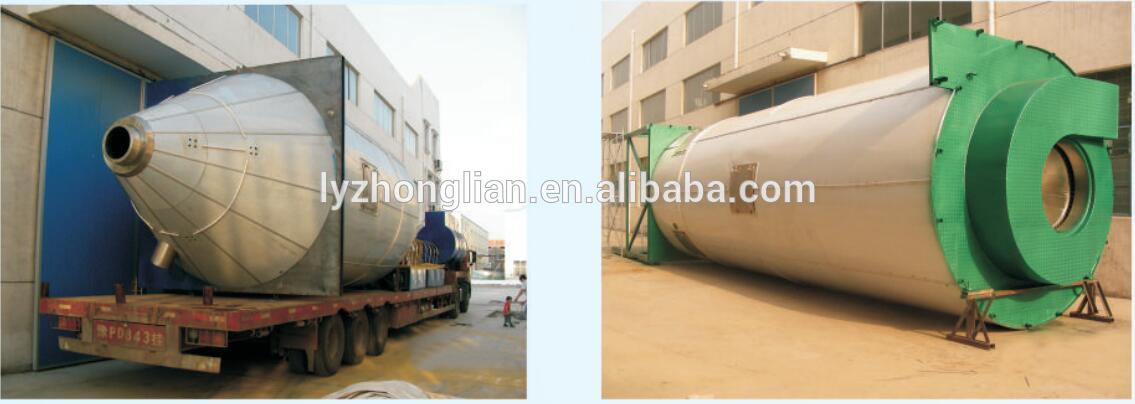

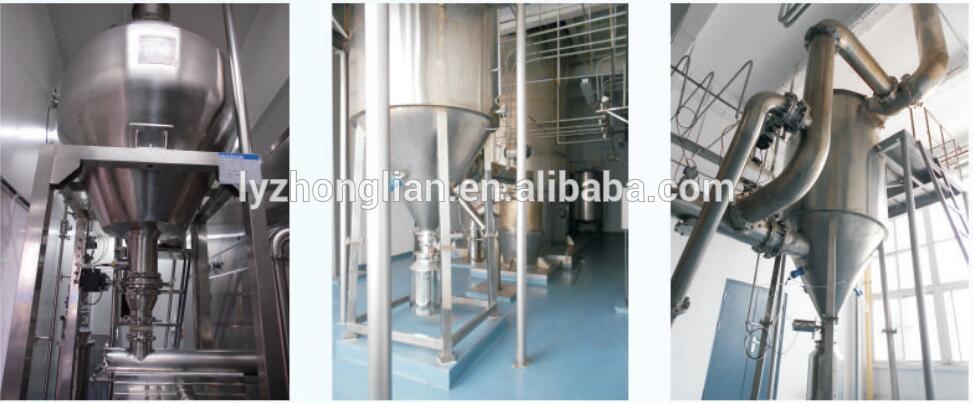

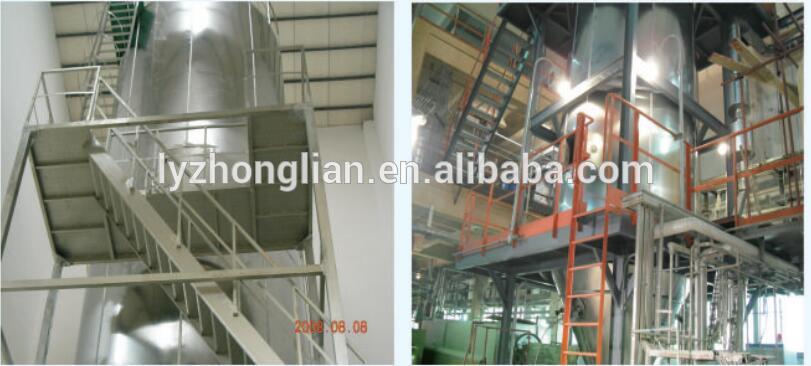

Successful case
Boold powder in India Milk powder in Canada Coffee in Brazil
ceramic powder in Spain Blood in Pakistan
Sterile medicinal project in China. Sterile medicinal project in China.
Final Products Photos Reference
Cooperative partner
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. ,belongs to ZHONGLINAN international Group. We are the professional manufacturer of pharmaceutical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant complete set of production line equipment.
Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. In the same industry take the lead through the ISO9001:2008 international quality system certification, and get the certification of SGS, CE, GMP and so on.
At present, our products have been exported to the United States, Mexico, New Zealand, South Korea,Australia,Turkey,Japan,Thailand,Malaysia,Singapore,Indonesia,Canada,Kenya,Seychelles,Italy,Iran,Venezuela,Peru,India,Russia,Denmark,Spain,Finland,Greece,Colombia,and so on more than 30 countries. Our aim is saving your valuable time and cost, providing you with the workable solution!
We can offer you the whole production line,details contact to:
