High quality instant paint dry uv drying machine for spray dryer

Instant drying; avoid drying waiting time, greatly reducing the coating process time.

Technical Feature

  • New
  • Spray Drying Equipment
  • Shandong, China (Mainland)
  • GYD
  • GYGH1300
  • 220V 50HZ
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Shandong, China (Mainland)
Brand Name
GYD
Model Number
GYGH1300
Voltage
220V 50HZ
Power(W)
20kw
Dimension(L*W*H)
2.5m
Weight
1300kg, 1500kg
Certification
ISO9001-2008
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
UV curing machines
Model
GYGH1300
Working width
1300mm
Feeding speed
5-30m/min
Feeding power
0.75kw
IR light power
9.7kw x2
Winder power
1.1kw x 2
Total motor power
23kw
Overall dimensions
2500x1765x1300 mm

DETAIL DESCRIPTION

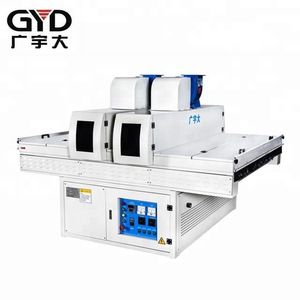

UV Paint Dryer





Features:

A. Instant drying; avoid drying waiting time, greatly reducing the coating process time.

B. It can be directly connected with the coating machine. The machine can be connected to the drum type or curtain coating machine. After coating, the finished product is directly dried, eliminating the trouble of handling.

C. Coating surface hardness increased, bright color.

D. Extensive drying function: wood, plywood, furniture, steel, building materials, lenses, leather and other UV coating after drying.



Techincal Data

ModelGYGH1000GYGH1300
Working width(mm)10001300
Feeding speed (kw)5-30m/min5-30m/min
Feeding power0.75kw0.75kw
IR light power8kw x 29.7kw x 2
Winder power1.1 kw x 21.1kw x 2
Total motor power20 kw23 kw
Overall dimensions2500x1465x1300 mm2500x1765x1300 mm
Weight (KG)1300 kg1500 kg

FAQ



Whats our warranty?



One year for main body, and three months for the electrical parts.



Why choose GYD?



1.We have more than 10 years’ experience in producing the automatic spray painting line and coating line.

2.Excellent after-sales service

3.Fast delivery time
