MKLB-stainless steel Lab Spray Dryer

High efficient jet imported, two-flow spray atomizing structure, 316 stainless steel.

Technical Feature

  • New
  • spray dryer
  • Shandong, China (Mainland)
  • MKLB
  • MSD-B
  • 220V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~5

PRIMARY PARAMETERS

Condition
New
Type
spray dryer
Place of Origin
Shandong, China (Mainland)
Brand Name
MKLB
Model Number
MSD-B
Voltage
220V
Power(W)
6KW
Dimension(L*W*H)
1950*700*700mm3
Certification
ISO9001 CE
Warranty
3 Years
After-sales Service Provided
Overseas third-party support available
Name
Lab Spray Dryer
Max capacity
2000-3000ml/h
Dryer time
1.0-1.5 S
Speed of squirt pump
50-3000ml/h
Blowing rate
10m3/min, 686Pa
Power
6kw
Air compressor
4.2m3/h, 2-5bar

DETAIL DESCRIPTION

MKLB-stainless steel Lab Spray Dryer

Product Description

1. High efficient jet imported, two-flow spray atomizing structure, 316 stainless steel.

2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.

3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.

4. Manual controlling is available, be able to adjust technical parameters during the process of experiment.

5. With jet cleaner (stylet), its frequency can be automatically adjusted.

6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won’t be burned out by incorrect operation (Forcibly shut fan).

7. Spray chamber, cyclone separator, and receiving bottle are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.

8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.

9. Use PID controller, the accuracy of heating temperature is around±1°C.

10. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid pollution. To make sure the process conducted steady and smoothly.

11. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.

12. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.

13. Innovative tower wall purging device, improves the material recycling rate.

Max capacity: 2000-3000ml/h

Temperature range of Inlet air: 30℃ -300℃

Temperature range of outlet air: 30℃ -140℃

Precision of temperature: ± 1 ℃

Dryer time: 1.0-1.5 S

Speed of squirt pump: 50-3000ml/h (Adjustable)

Spray system: 1 liquid nozzle/jet (standard dia.1.0mm,)

Blowing rate:10m3/min, 686Pa

Air compressor: 4.2m3/h, 2-5bar

Spray direction: downwards co-current

Heater power:6KW   220V

Dimensions (H×W×D): 1950×700×700mm3

Company Information

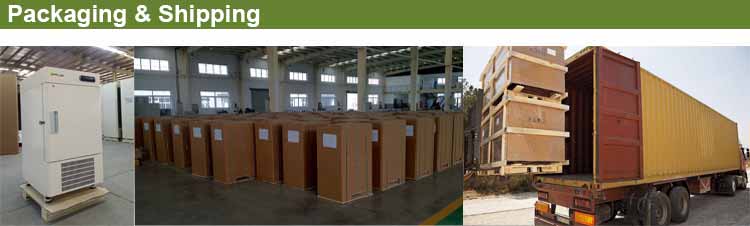

Packaging & Shipping
