PET Crystallizer Machine

PET Crystallizer adopts the absorbents with excellent performance and high efficiency,which are especially applicable to solve low intensity,size deviation,bad lustre and silver bar phenomenon of engineering plastics in order to improve the grade of the d

Technical Feature

New

Jiangsu, China (Mainland)

DSG

380V

15KW

Send Standard Inquiry

Add Inquiry List

$3~5

PRIMARY PARAMETERS

Condition

New

Place of Origin

Jiangsu, China (Mainland)

Brand Name

Model Number

DSG

Voltage

380V

Power(W)

15KW

Dimension(L*W*H)

2x1.8x2.2

Weight

1ton

Certification

Warranty

13 month

After-sales Service Provided

Engineers available to service machinery overseas

Motor

Siemens

contactor

Siemens

Button

Schneider

DETAIL DESCRIPTION

TAIRONG MACHINERY

PET Crystallizer Machine

Features:

–We apply the imported 4A or 13X molecure sieve absorbents

–Stability in dry air dew point(DP≤--50^oC)

–The closed loop air keeps high effficiency and energy-saving

–It's suitable for drying slice up in various kinds of materials.

The lowest moisture will be less than 30--40PPm.

–Three-way valve,cross valve,unique design,which ensures non-leakage of 2--3kg/cm pressure.

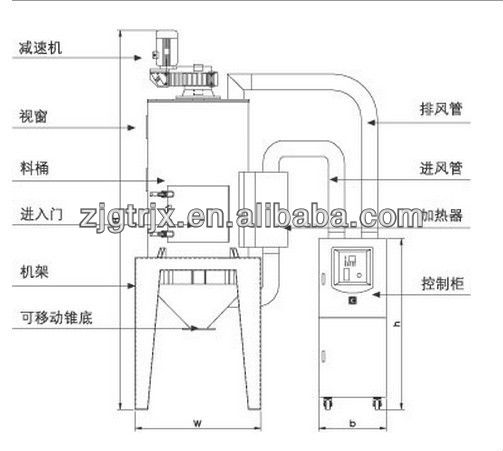

Easy type Drawing

PET dryer, PET Continual crystal drying machine, plastic dryer

CSGTechnical Standards:

Drying material	Moisture content	drying time(H)	Dry temperature()	DRA-30ZL -KS	P-50 -KS	P-100 -KS	D-400 -KS	D-800 -KS	D-1600 -KS
initial period	Drying period
ABS	0.4	0.08	2~3	80	12	50	100	200	400	800
PA6	0.6	0.1	4~6	75	10	40	80	160	320	640
PA6.6	0.6	0.1	4~6	75	10	40	80	160	320	640
PC	0.3	0.02	2~3	120	12	50	100	200	400	800
PE	-	-	1~2	80	15	60	120	240	480	960
PEB	0.3	0.05	3~5	90	10	40	80	160	320	640
PET	0.3	0.01	4~6	150	10	40	80	160	320	640
PBT	0.3	0.01	3~5	150	10	40	80	160	320	640
PMMA	0.5	0.05	3~5	80	10	40	80	160	320	640
POM	0.2	0.03	2~3	100	11	50	100	200	400	800
PP	-	-	1~2	90	15	60	120	240	480	960
PPO	0.2	0.03	2~3	120	12	50	100	200	400	800
PS	-	-	1~2	80	15	60	120	240	480	960
PUR	0.5	0.03	3~5	90	10	40	80	160	320	640
PVC	0.2	0.05	2~3	80	12	50	100	200	400	800
SAN	0.2	0.05	2~3	80	12	50	100	200	400	800
OETG	0.3	0.05	4~6	65	10	40	80	160	320
PPS	0.2	0.02	3~5	150	10	40	80	160	320

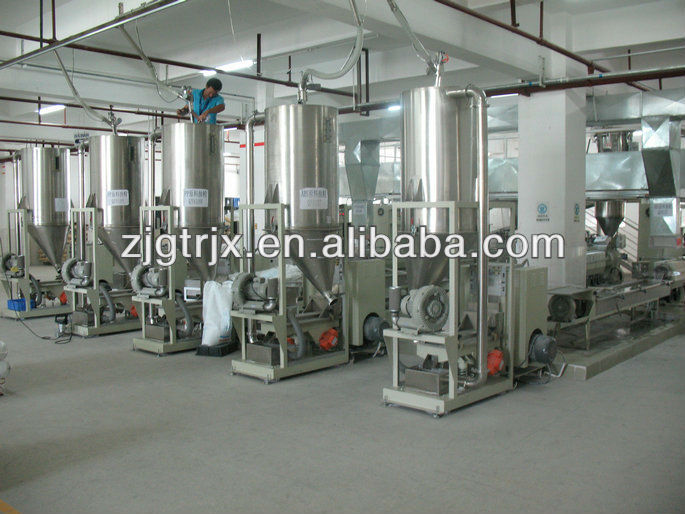

Production in Client's Factory

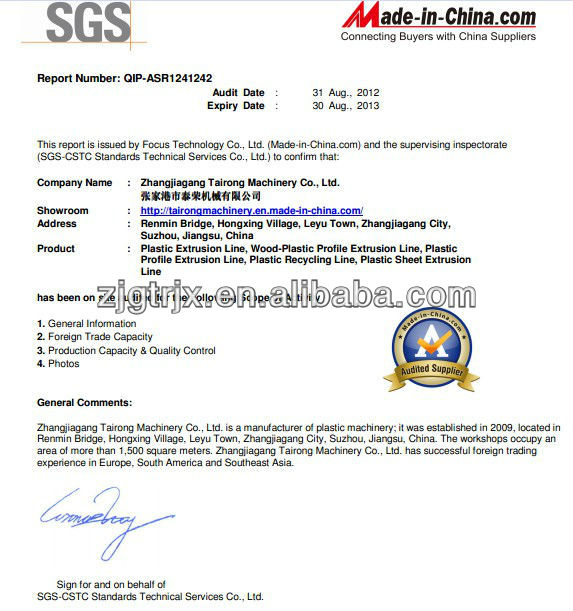

SGS Certification

If any questions,please feel free to contact us soon. Thanks.

Contact person:Mr Jason

Mobile:86-15151456568(Available at any time.)

Skype:vipjasonwu
