High quality industrial colsed-loop pet Crystallizer for fiber/textile

MCR closed-loop crystallizers are used for constant crystallizeation of uncrystallized PET regrinds or pellets, Processed materials can then be dried and dehumidified directly.

Technical Feature

  • New
  • Guangdong, China (Mainland)
  • Mitex
  • MCR-300 PET Crystallizer
  • 380V 3 phase 50hz, 380V 3PHASE
  • 1100
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Place of Origin
Guangdong, China (Mainland)
Brand Name
Mitex
Model Number
MCR-300 PET Crystallizer
Voltage
380V 3 phase 50hz, 380V 3PHASE
Power(W)
1100
Dimension(L*W*H)
85x150mm
Weight
500kg, 500kg
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Name
High quality industrial colsed-loop pet Crystallizer for fiber/textile
Volume
300kg
Motor
1.1kw
blower
2.2kw
Heater
24KW
Capacity
150kg/hr
Dimension(main frame)
85x150mm
Dimension(Control Part)
66x145mm

DETAIL DESCRIPTION

High quality industrial colsed-loop pet Crystallizer for fiber/textile



Product Description





Related Products

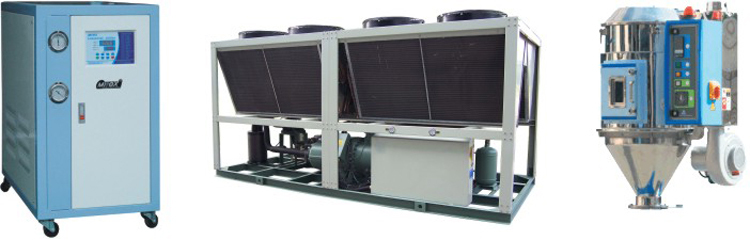

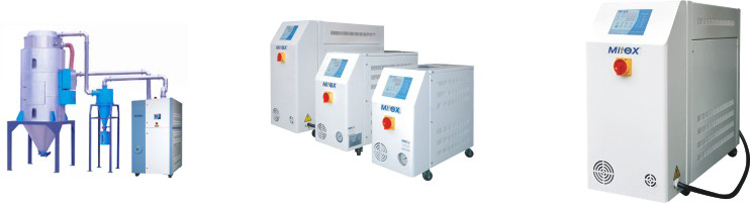

   Water-cooled chiller                         Air-cooled chiller                      Hopper Dryer

   Honeycomb rotor dehumidifier               Water type MTCU             Oil type MTCU







Technology

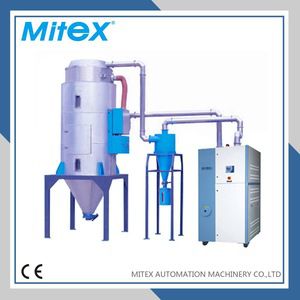

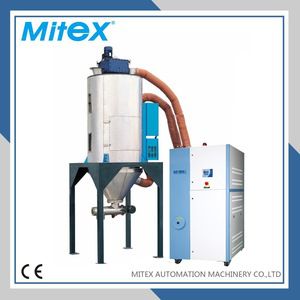

FEATURES of  PET Crystallizer

MCR closed-loop crystallizers are used for constant crystallizeation of uncrystallized PET regrinds or pellets, Processed materials can then be dried and dehumidified directly. Crystallized materials can be conveyed to material storage bin or into drying hopper.

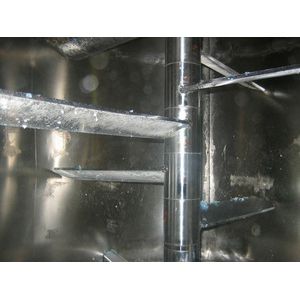

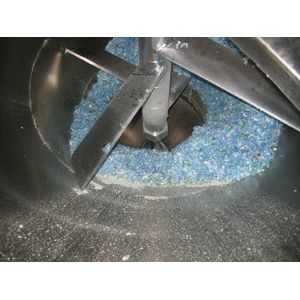

  • Fixed speed of agitator makes material not lump together during the crystallization.



    High efficiency and even crystallization.



    Simplify and improve drying efficiency.



    Materials can be dried under high temperature by using standard hopper.



    Can be used with dehumidifiers for direct processing



    Cyclone dust collector is standard, which is applied to dust-rich place. Can effectively reduce the load on air -return filte and extend the life of the filter to reduce the number of times of filter cleaning.



    Safe design, access doors  and removable Conesection have safety interlocks make cleanout conveniently.

    Relible, high-quality material output, scientific structure&design.



Specifications



MODELMCR-100MCR-300MCR-600MCR-1000MCR-1500
Volume (Kg)10030060010001500
Motor (Kw)0.251.11.51.52.2
Blower (Kw)0.552.235.511
Heater (Kw) 1224486868
Capacity(Kg/hr)50150300500750
Dimensions(mm)mainframe(L*W*H)91x12085x150130x170150x170165x230
control system (L*W*H) 66x14576x14576x14576x145
Net weight(Kg)23050086012601750

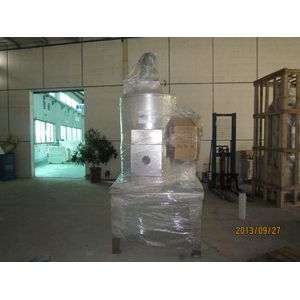

Packaging & Shipping
