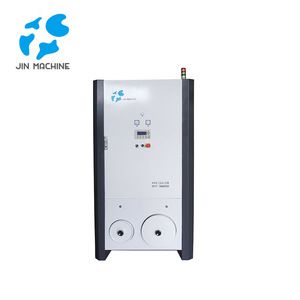

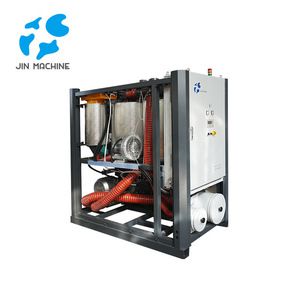

CSG series is a fully automatic drying system with  zeolite desiccant beds, which Can be used with Hopper Bank Series and multi-hopper systems. It can adapt and automatically control operating parameters based on  type and quantity of polymer.Up to 40% energy saving in comparison with traditional dryers

1.Ease of maintenance with access process, regeneration, and air filters

2.Self-adaptive PID temperature control from 60℃ to 300℃

3.No use of cooling water

4.No moving or rotating internal parts

5.no need of manual control, Full auto-adaptive operation

6.On-board heating unit on hopper

7.Diagnostic functions,Dewpoint, heater, and temperature alarm  8.Visual and audible alarms available

9.Anti-stress function protecting polymers against overheating

10.Sturdy, well proven design for extended operational life

11.Visual and audible alarms available

12.Automatic dew point control system: not switch to new desiccant bed  before the dew point gets -30°C

CSG standard 500-2500 series

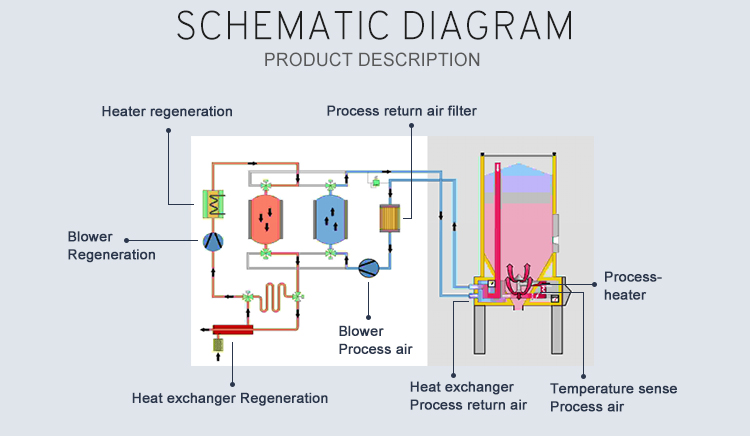

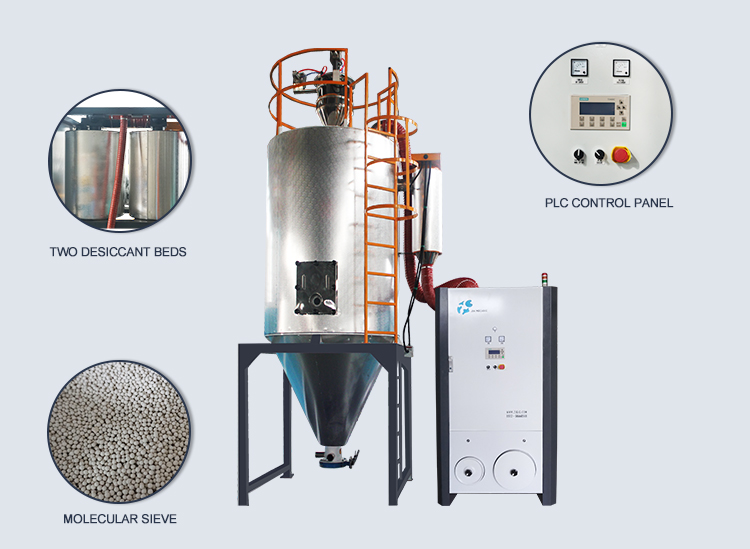

Zeolite double tower design with two desiccant cartridges and double pump technology: one dedicated to process air production and one for saturated tower regeneration for a continuous dry air flow, automatic regeneration and cooling phase.

1.Models are available in industry-standard 2-bed

2.two pumps

3.dew point -30℃ to -50℃, dewpoint monitor

4.throughput up to 600kg/h

Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai.  We are a factory, manufacturing mainly plastic dryer machines. We offer turnkey solutions including conveying, drying and mixing with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally no more than 40 working days.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

 Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 2 days for dryers and 15 days for central conveying system.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintaince.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
