high boiling point extraction high evaporating efficiency high vacuum degree high precision for short path distillator

PRIMARY PARAMETERS

Condition

New

Application

Distillation

Power Source

Water, electricity, natural gas

Process

Vacuum Distillation

Place of Origin

Sichuan, China (Mainland)

Brand Name

FOREVER

Model Number

DZ-1000

Voltage

380

Power(W)

7.5

Dimension(L*W*H)

1200mm1200mm7000mm

Weight

7000kg

Certification

Design license of special equipment

Warranty

12months

After-sales Service Provided

Engineers available to service machinery overseas

Product name

Short Path Distillator

Use range

High vacuum distillation

Performance features

High vacuum degree,Low distillation temp

Structure characteristic

High precision,Integral processing

Application range

Distillation separation of high boiling point products

DETAIL DESCRIPTION

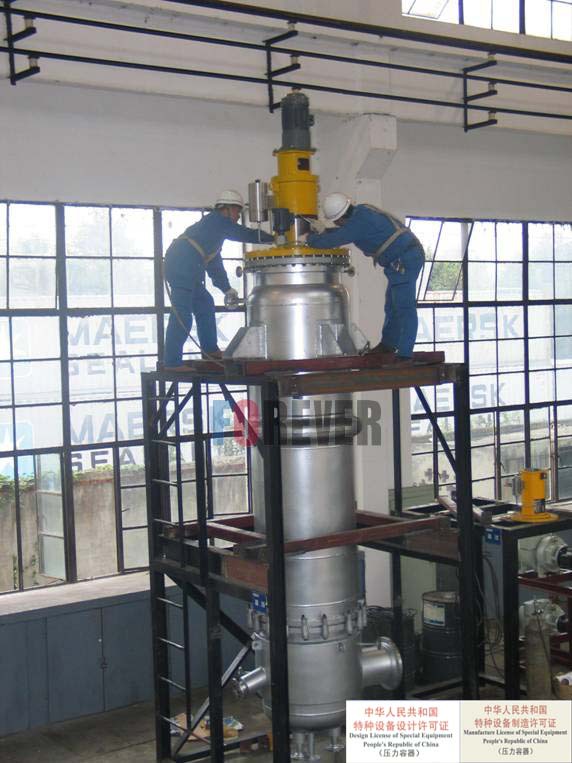

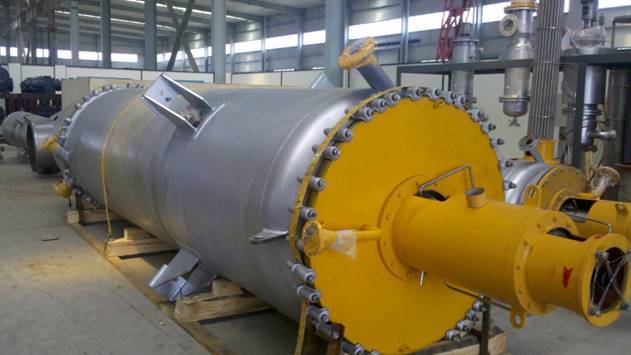

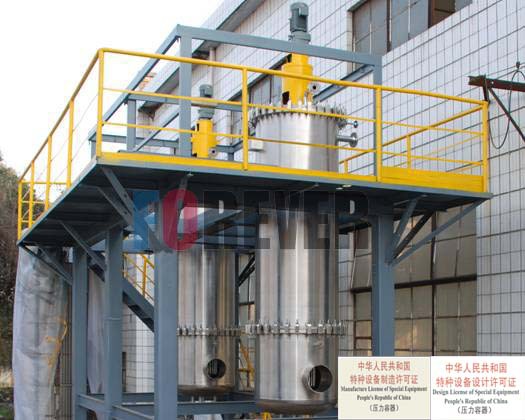

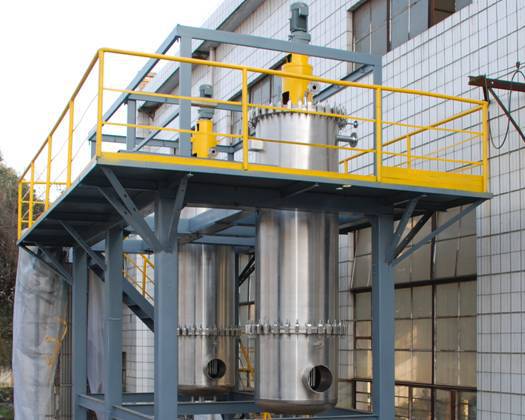

Product Description

high boiling point extraction high evaporating efficiency high vacuum degree high precision for short path distillator

Short path distillator is a special high-tech thermal separationtechnique operating at a process pressures in the range of 1 to 0,001mbar. It is an excellent method for gently thermal treatment of heatsensitive and high boiling products. The Short Path distillator consistsbasically of a cylindrical body with a heating jacket, a rotor andcondenser inside. On the supporting structure of the rotor mobileprecision wiper blades are mounted.. DZ series of short pathdistillator is a new separation equipment. The wiper blades creates amechanically agitated, thin product film on the heating surface insideof the body. By means of gravity the product flows in a spiral pathdownwards, whereby the volatile portion of the product evaporates.Multistage short path distillation plants self-developed by SichuanForever Chemical Engineering Technology Co., Ltd adopt circumfluencesystems and temperature controlled systems. The core-tech has achievednational patents in 2002.

Good Sealing is key to long time operation under hignvacuum

Forever’s mechanical seal is based on design concepts from Germany and Japan

5 years of warranty for normal operation

Equipped With import reducer;

SKF or NSK bearing;

Military industrialflexible coupling

Excellent Features

Minimal pressure loss
Low distillation temperature and short retention time
Big diathermanous coefficient, high evaporating efficiency
Widely used, adaptable to high viscosity and solid containing liquid
Strong adaptability, easy to operate

Structure Characteristics

The highly precise power transmission and the excellent mechanical seal design assure a steadily long-term working.
Cylindrical body is whole processed without mechanical connecting.
The internal surface of cylindrical body is highly polished with no material sticking.
The unique liquid spreader and device against splashes assure a good product quality effectively.

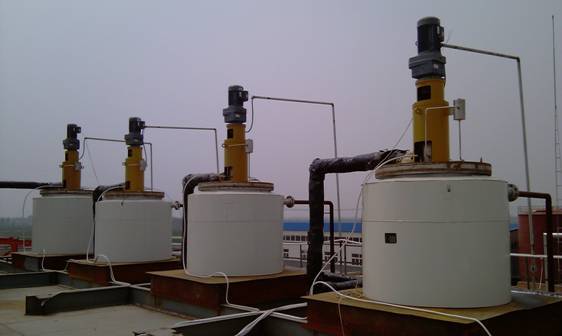

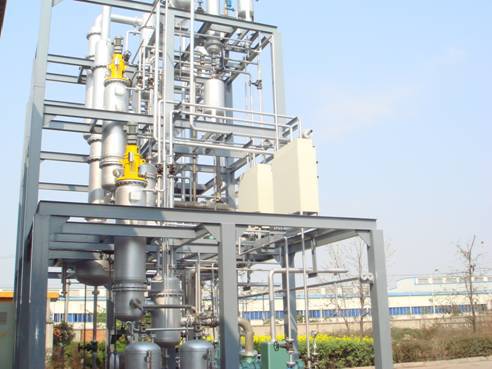

Application Areas

Short-path distillatory is mainly used in purification, concentration, solvent recycling and monomer removal, color enhancement and drying ,etc, especially in the separation process of high boiling point, thermal sensitive, and easily oxidized material. It has successfully applied in Pharmaceuticals, Chemicals for Daily use, Oil chemicals, Petroleum, Biochemicals, Food and Fine chemicals, etc.

product types

Types	Feed rate (kg/h)	Evaporation surface area (sqm)	Condensation surface area (sqm)	Diameter (mm)	Height (mm)	Weight(kg)
DZ-010	10	0.1	0.2	100	1180	128
DZ-050	50	0.5	1	265	2220	650
DZ-100	100	1	2.2	315	2700	800
DZ-200	200	2	4.5	415	3520	1300
DZ-300	300	3	6.5	500	4400	2100
DZ-400	400	4	9	500	4850	3050
DZ-500	500	5	11	600	5200	4100
DZ-600	600	6	13	700	5700	5000
DZ-800	800	8	17.5	800	6100	6200

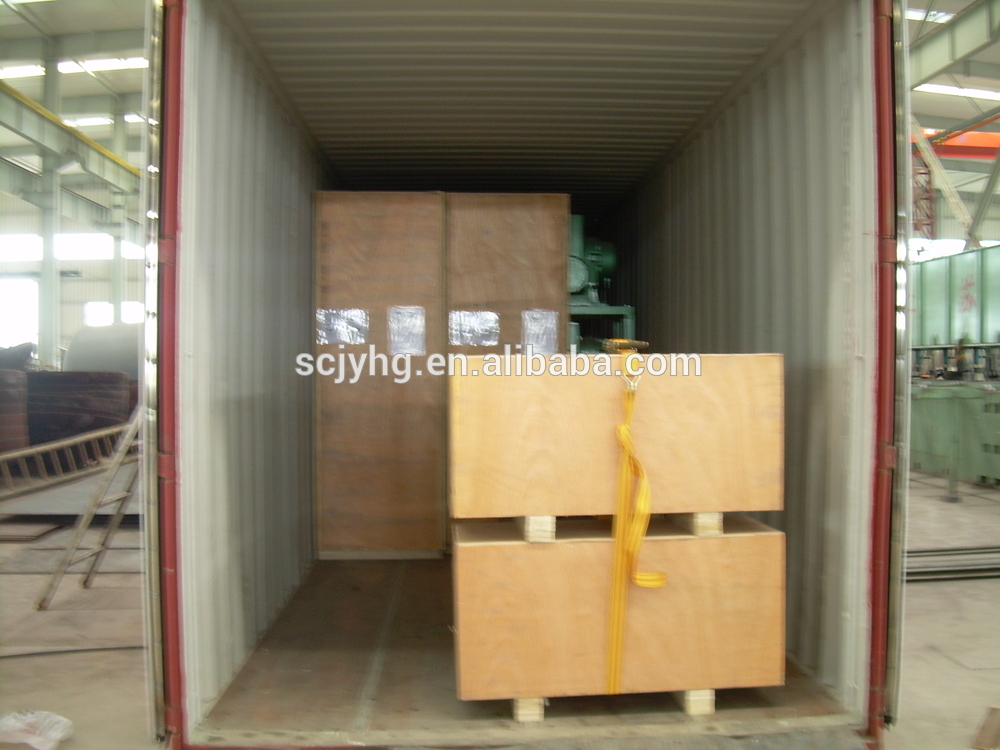

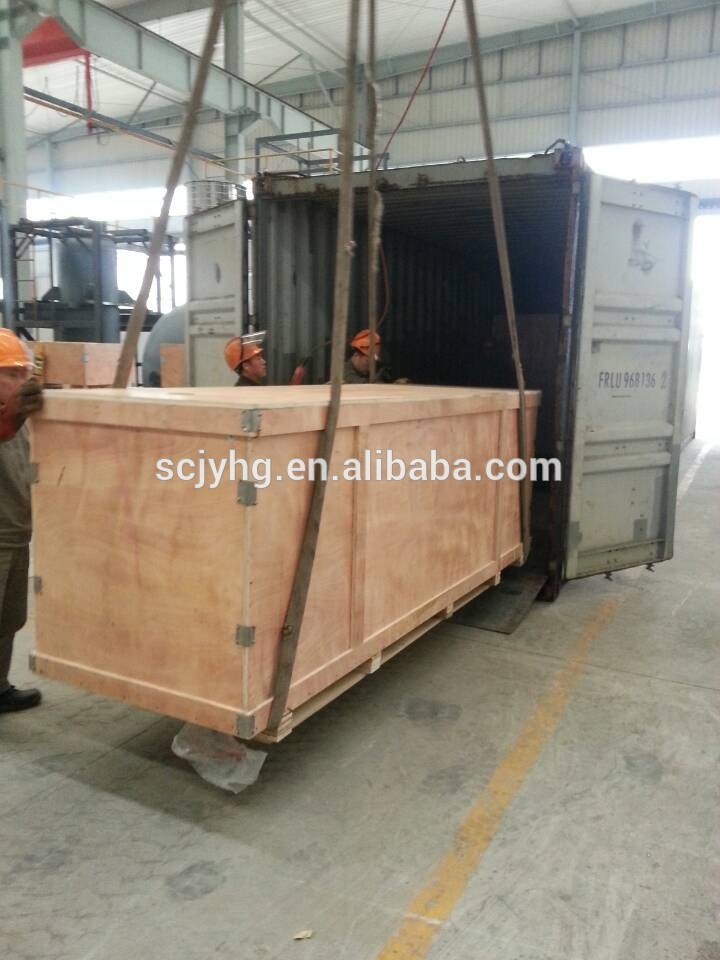

Packaging & Shipping

Meet the requirements of overseas export goods packaging

Our Services

For the plants we design, FOREVER will provide the technology services and trainings.

Design and manufacturing the main devices, design or stocking of secondary devices.
Documents for the design and device.
Manufacture, delivery, assembly and commissioning of turnkey plants as well as components.
Testing for engineering and performance.
Maintenance and repair for the devices.
Receiving the messages about the client's trouble indistillation system, FOREVER will reply and provide the settled projectwithin 24 hours. If necessarily, we will do our best to send anexperienced service engineering within 72 hours. For the product weprovided, we will provide materials and spare parts cost-freely withinguarantee.
