Evaporator for milk processing/Multi effect evaporator
Energy save, high quality finished product
 | Application This Multi effect evaporator is widely used in food, food deep processing, beverage, environmental conservation, chemical and other industry. It's also applied for used for the concentration of glucose, oligosaccharide, fresh milk, juice, vitamin C and other solution.
Evaporation capacity: 500L/h to 50000L/h
|
Equipment structure

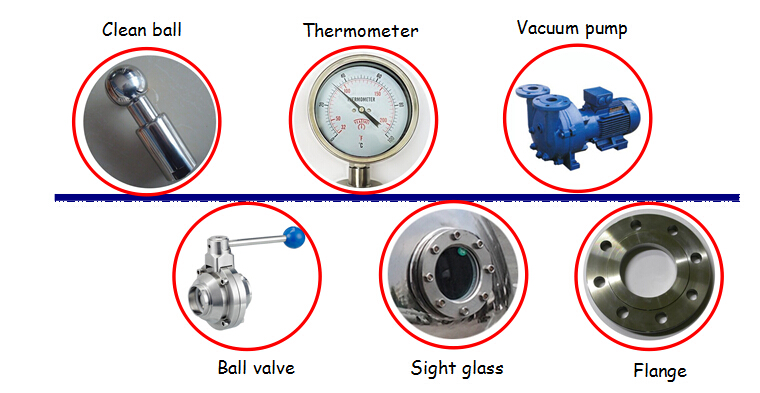

It consists of (1st-effect, 2nd-effect, 3rd-effect)separators and evaporators and preheaters,condenser and vaccum pump, feeding pump,circulation pump, discharge pump, condensed water pump and system pipe fittings, etc. Equiped wit CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.
Equipment characteristics
1. Material: SUS304 or SUS316L;
2.Full closed process, fast and low temperature evaporation;
3.Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe all, it's easy for cleaning;
4.Low steam consumption: 1kg steam can evaporte 3.5kg water;
5.Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump, this would make full use of the heat and the evaporation temperature is low.
6.Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale, short cocentration time, the concentration ratio can reach to 1:5.
7.This equipment can realize automatic production, intellectual system management, which is in conformity with GMP standard.
8.Can be desinged into different technological process according to the different characteristics of the materials , also can according to different users' requirements equip with automaticl control system.

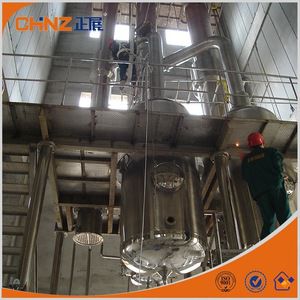

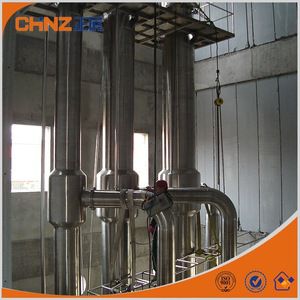

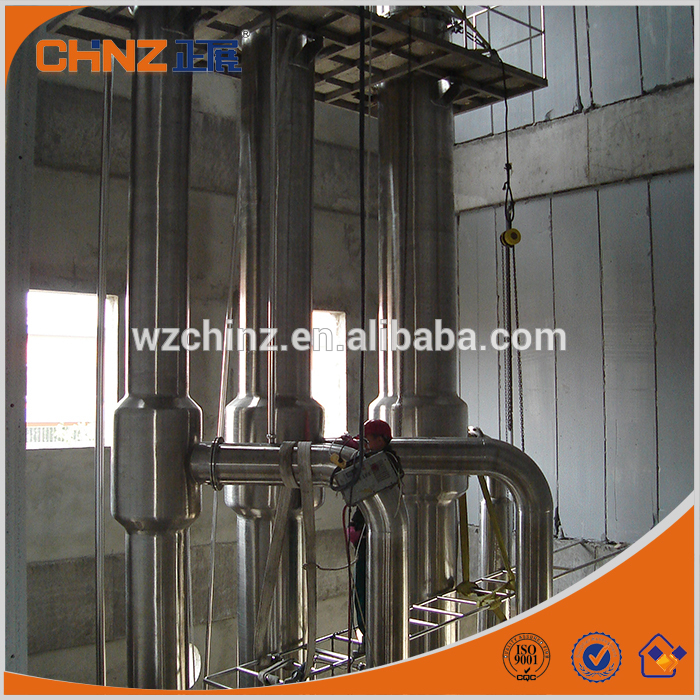

More pictures
 |  |
Configurations
Strong seaworthy wooden case/wooden support/ Iron support
♦ LCL (Less container load) Pack by waterproof plastic film first,then pack by plywood
♦ FCL(Full container load) Fixed on wooden support by steel wire
♦ If large tank, pack by waterproof plastic film first, then fixed on wooden support by steel wire.
Q.Are you manufacture or trading company?
A.We are factory, we have our own design team and own workshop, with more than 10year's OEM experience.
Q.Can you make me quotation and send me your price list right now?
A.Sorry, our products are all none standards, need custom-made according to client's requirements, so pls let me know your requirements, we will make drawing and quotation for you.
Q. What's your MOQ?
A. 1PCS/SET.
Q.What's the payment terms?
A. 30%T/T as advance payment, 70% before shipment, we also accept irrevocable L/C at sight, Western Uunion, Money Gram.
Q.What's your delivery time?
A.25-50 working days according to your Qty.
Q.Can you send the machine to my sea port?
A. Yeah, we can, we accept FOB, C&F, CIF, CIP, both by sea and rail way. And our nearest port is Ningbo.
Q.Where is your factory located?
A. Our address: Yongshou industry zone, West heat of Yongqiang street, Shacheng town, Longwan district, Wenzhou city.
Q.Do you provide installation&debugging service?
A. Yeah, if single machine, we will send you the installation drawing and documents first, if you still have problems, we will arrange our engineers go to your place for installation guiding. If production line, our engineer will go to your place do installation & debugging for you directly.
Q. Do you provide after-sale service?
A. The warranty period is one year. If there’s any problem of the equipment not caused by reasonable operation in one year,we will help you solve it (If it is small problem like spare part is broken, we will send you freely;other small problem we will guide you to solve it by phone or e-mail;If the problem cannot be solved by guiding,we will arrange technician come to your place to mend it after confirmation)
