Product Description .
Brief Description of Rotary Evaporator
RE-2000A industrial rotary evaporator is a newly designed new generation smart industrial rotary evaporator, digital display of temperature, control part use high-performance single chip as main control chip, adopt special control program according to controlled member, beauty in appearance and stable in property. Besides, it has reserved updating connector, which can update software to meet client requirements.

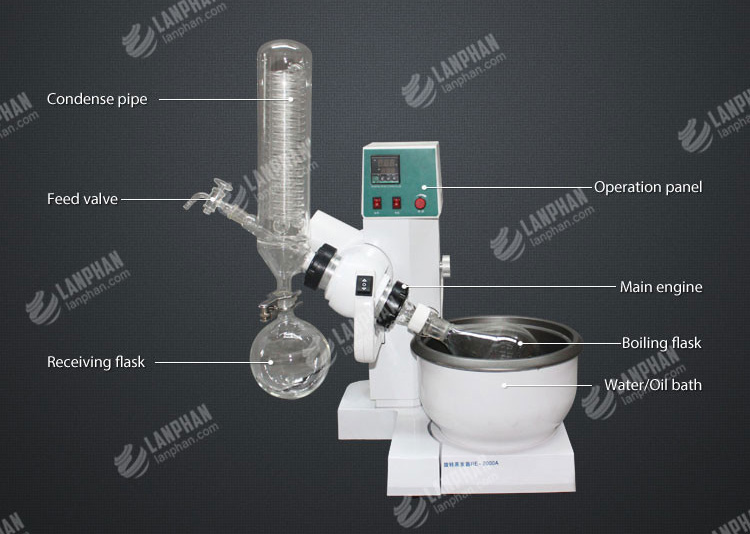

Product Display .
If you are interested in this product, pls send me inquiry Contact Supplier
| Basic Parameter | Type | RE-2000A |
| Glass Material | GG-17 | |
| Support Material | Aluminum alloy | |
| Shell Material | Teflon recombination, full-closed heating | |

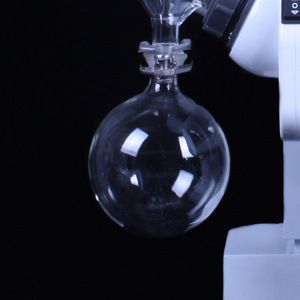

| Volume of Rotary Bottle | 1L 24# Standard Aperture | |
| Volume of Recycling Bottle | 1L 35# Standard Aperture | |
| Vacuum Degree | 0.098Mpa | |
| Rotating Power | 40W Brushless Electric Machine | |
| Rotating Speed | 0-180rpm | |
| Heating Power | 1.5KW | |
| Temperature Control Range of Bath Kettle | 0-99℃ | |
| Temperature Accuracy | ±1℃ | |
| Voltage/Frequency (V/Hz) | 220V/50Hz | |
| Up and Down Distance | 120mm | |
| Shape Size(mm*mm*mm) | 660*420*830 | |
| Package Size(mm*mm*mm) | 630*560*540 0.19m³ | |
| Package Weight (KG) | 26 | |
| Function Allocation | Speed Adjustment Mode | Electrodeless Speed Regulation |
| Rotating Speed Display Mode | Digital Display | |
| Temperature Display Mode | PT100 Sensor digital display | |

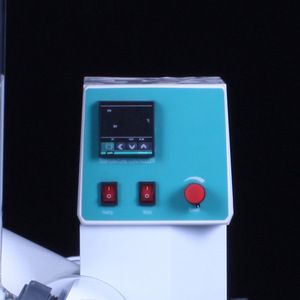

| Temperature Control Mode | Smart Temperature Control | |

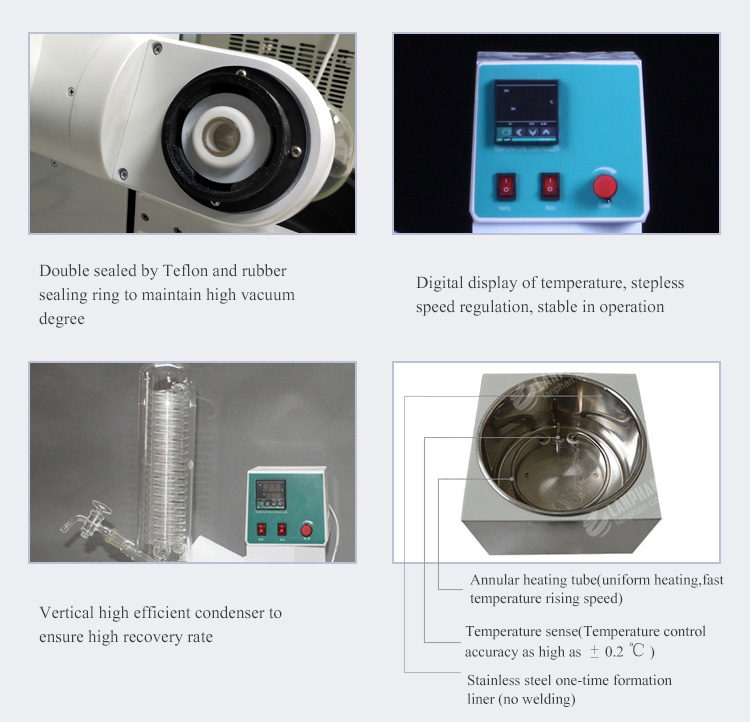

| Sealing Mode | Telfon Sealing | |

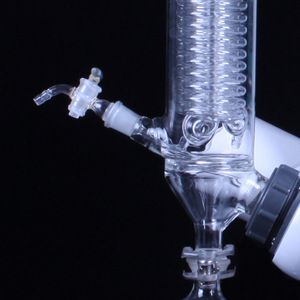

| Condenser | Vertical Condenser 85*430mm | |
| Up and Down Mode | Manual Up and Down of Main Engine | |
| Continuous Charging | 19# Standard Aperture Feeding Valve | |

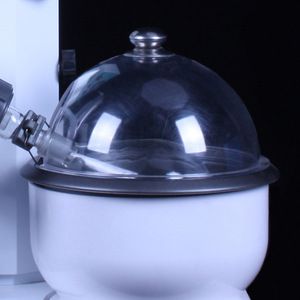

| Optional Equipping | Anti-splash Device | Equipping Transparent Cover of Bath Kettle |
| Heating Method | oil bath 0-400℃ | |
| Material of Bath Kettle | whole 304 stainless steel | |
| Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements. |
Packing List of Rotary Evaporator
| Machine Part | Glass Part | ||
| Head with the motor | 1 set | Rotary Bottle | 1 pc |
| Host | 1 unit | Recycling bottle | 1 pc |
| Control box | 1 pc | Condenser | 1 pc |
| Bath pot | 1 unit | 19# feeding valve | 1 pc |
| Recycling bottle clamp | 1 pc | Adapter | 1 pc |
| PTFE Tube | 1 pc | Glass Shaft | 1 pc |
| Heating wire | 1 pc | ||
| Fasten Screw | 1 pc | ||
| PTFE Flask remover | 1 pc | ||
| Nut with pad | 2 sets | ||
| Spare Parts | |||
| Operation Manual | 1 pc | 10A fuse | 2 pcs |
| Warranty Card | 1 pc | Sealing gasket | 1 pc |
| Quality Certificate | 1 pc | Packing List | 1 pc |

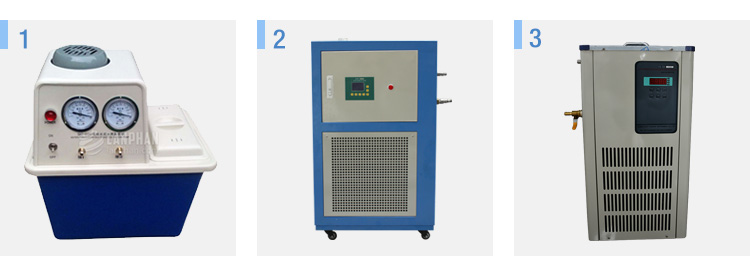

Corollary Equipment .
1. Rotary vacuum evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..
2. Rotary vacuum evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.
3. Rotary vacuum evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.

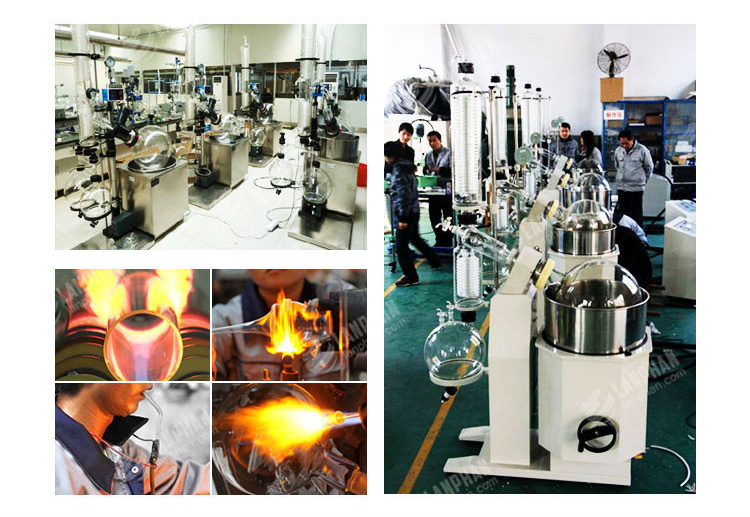

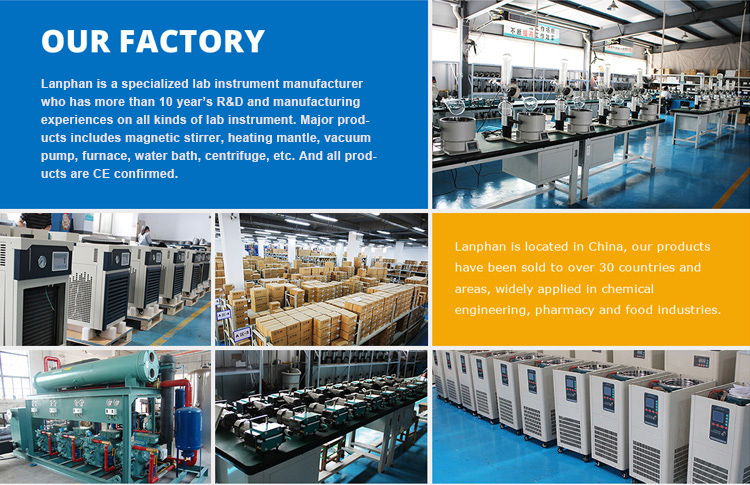

Workshop .
For more information, please contact us
Contact Supplier
Contact us
for more details about price, packing, shipping and discount.
Tel: 86-371-67447999
Web: http://www.rotovap.cn
Address: Jianshe Road, Zhongyuan District, Zhengzhou,
Henan, China
Q: What’s the difference between vertical and inclined condenser?
A: They have no difference essentially. Vertical condenser is gradually popular because of its small space usage and convenience for transportation and use. Most high-capacity instruments use vertical condenser.
Q: What factor decides the working efficiency of industrial rotary evaporator?
A: For same type equipment, mainly includes: steam temperature, vacuum degree and cooling water temperature. Restricted by some material’s thermolability, the steam temperature may have certain limitation when working, so high vacuum degree and low cooling water temperature are two main factors for efficiency improving.
Q: How to select all kinds of rotary vacuum evaporator?
A: As for structure, our R series products all have excellent corrosion resistance ability and leakproofness ability. According to the solvent volume, 2L, 3L, 5L’s machine is fit for lab and sample test; 5L, 10L, 20L’s machine is fit for medium experiment; 20L, 50L’s machine is fit for medium experiment and production, especially suitable for the extraction of metal ionavoiding polluted material.
