MVR steam compression evaporator

The machine can widely used in the concentration of the glucose, starch sugar, oligose, maltose, sorbierite, milk, juice, vitamin C, maltodextrin and other aqueous solution.

Technical Feature

  • New
  • Distillation
  • Electric
  • Drum Evaporator
  • Shandong, China (Mainland)
  • JINTA
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~3

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Electric
Process
Drum Evaporator
Place of Origin
Shandong, China (Mainland)
Brand Name
JINTA
Voltage
220V/380V/440V/as your requirement
Power(W)
as your requirement
Dimension(L*W*H)
as your requirement
Weight
as your requirement
Certification
ASME,ISO,CE
Warranty
24 months
After-sales Service Provided
Engineers available to service machinery overseas
Material
Stainless Steel, Carbon Steel, Alloy(Titanium) Etc.
Application Industries
Alcohol Plant, Fuel Ethanol, Petrochemical Engineering, Starch Etc.
OEM
available

DETAIL DESCRIPTION

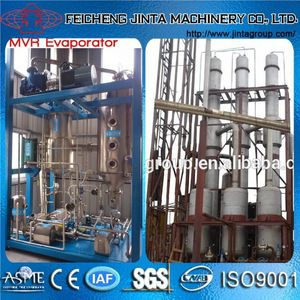

                                    MVR  Evaporator











Product Description








Specification Table



Water/steam and elactricity consumption (rough)

Type/ConsumptionCondensed water(ton)Steam (ton)Cooling water (ton)Pump electrical comsumption(kw*h)
1-effect evaporator1 ton1.2 ton60 ton7.5kw*h
2-effect eporator1 ton0.7 ton30~35 ton5.5kw*h
3-effect evaporator1 ton0.4 ton20~25 ton4kw*h
4-effect evaporator1 ton0.4 ton20~25 ton4kw*h





Application:



The machine can widely used in the concentration of the glucose, starch sugar, oligose, maltose, sorbierite, milk, juice, vitamin C, maltodextrin and other aqueous solution. And also widely used in liquid waste disposal such as industry field of gourmet powder, alcohol and fishmeal.



Its outstanding advantage lies in the point that it can fulfill the continuous operation and low temperature evaporation. It saves energy and time with low loss and maximize remain the material's color, fragrance and favor. It can satisfy the continuous production requirements. This product is mainly used in the industries such as food, Chinese and Western pharmaceutical, biochemical pharmaceutical, further processing of agricultural and auxiliary products, health drinks, juice, fine chemical, light industry, PRO-environment etc.



The SJM evaporator series (three effect falling film evaporator) allowed arranging special process flow according to different feature of material. It can also designed according to customer's special requirement.



Characteristic:



A. Evaporation capacity: From 500Kg/h to 80T/h

B. Material of contact: According to detailed raw material.

C. The equipment composed of one-effect, two-effect, three-effect heater, one-effect, two-effect, three-effect separator, preheater, composite condenser, hot press pump, vacuum pump, product pump, surge tank, electric cabinet, worktable and all pipelines and valves.

D. Low steam consumption, 1kg steam evaporate 3.5kg water. Heat evenly and high heat transfer efficiency;

E. Low evaporate temperature. Partial of indirect steam re-inhaled into one-effect heater by jet-type hot press pump can make full use of the heat and evaporate temperature are relatively lower.

F. The process is under vacuum situation, the temperature is relatively low, so it is not easy to scaling in the evaporator.

G. It can be quipped with CIP System, it is easy to clean all the equipment and ensure no dead angle

H. It is equipped with PLC, With a complete configuration, operation, monitoring and control function. The system includes communication interface, display alarms, print reports, control section, to achieve automatic control of feeding quantity, the heating temperature, the feeding & discharging concentration & cleaning of equipment.





Company Information

 Our company is the largest manufacturer of alcohol, fuel ethanol and DDGS high protein feed complete equipment in China.

Our company can design and manufacture class-I, class-Ⅱ, class-Ⅲ pressure vessel.

Our company is capable to design, manufacture, install and adjust 3000t-500000t alcohol complete equipment in the turnkey project .





Our Projects





1. it is a turn-key whole set equipment, simple equipment, less worker, less area, less cost.

2. This can produce 1000L-1000000L 95%-99.9% alcohol(ethanol) per day.

3.this can use corn, wheat, cassava, molasses, rice, potato, date, beetroot ,sugar cane ect which contains starch or sugar material.

4. We can do the turn key system or section part.

5. We can improve and rebuild old alcohol(ethanol) production line .



You can choose single distill tower to save money, also can choose 5 distill column to get good quality alcohol(ethanol).





Our Services




Production Qualitification

1). Our company was established in the 1950s, designed and manufactured the first stainless steel distillation column in China.

2).Our company can produce 6 full sets of equipment (including crushing section, liquefying and saccharification section, fermentation section, distillation section and DDGS section) in a month.

3).Among 16 production workshops, 3 workshops are for mechanic manufacture, 5 workshops are for manufacturing process, 8 workshops are for assembling & welding.

4).We own advanced machining equipment and product testing equipment.



Designed capability

1). We own Design License of Special Equipment D1 & D2 Class; Manufacture License of Special Equipment A2 Class; Design License of Special Equipment GC Class.

2). Our company achieves more than 20 patent certificates on distillation, DDGS, and other fields.

3). Our company owns ASME certification, ISO 9001 Quality System Certification, ISO 14001 Environmental Management System Certification & GB/T28001 Occupational Health and Safety Management System Certification.







After-Sales Service

 1). Our company can provide a sophisticated product after-sale service and can ensure the implementation, maintenance and commission of projects.

2). We can reach the project site after receiving the user’s notification.
