Mechanical Vapor Recompression(MVR) roots blower
Mechanical Vapor Recompression Evaporator MVR vacuum evaporator
Product Description
Mechanical vapor compression means (MVR) is the re_use of the secondary
self_generated steam energy, that is, converting electrical energy into heat energy,
the heat energy is recycled, rely on special feature of automatic circulation of
evaporator to concentrated and evaporation, further enhance the energy efficiency
of a proprietary technology, and through the touch screen, PLC and other equipment
to control each dynamic parts and valve, this technology has become a countercurrent
falling film evaporation plant upgrade products. Energy saving effect is particularly
prominent.
Water evaporation amount(t/h):
Model and specification: 5,12,20,24,30,40,60,80,100,120,140,160,200,250,300......
Main Principle:

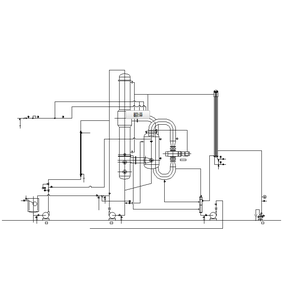

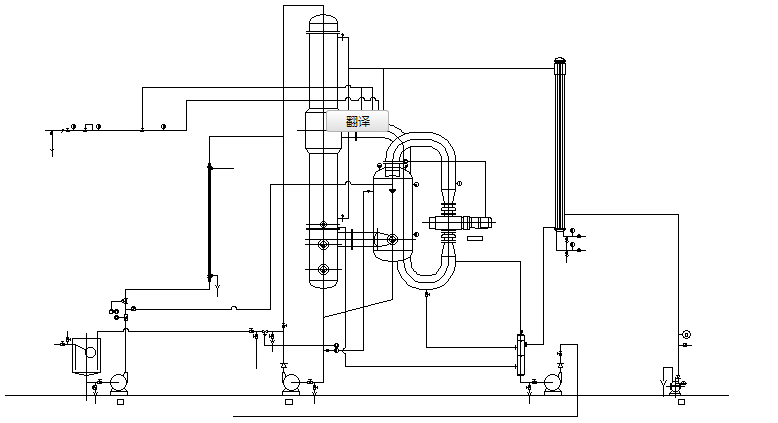

Mechanical vapor recompression (MVR) evaporator, arising from the use of secondary evaporator steam, compressed by the compressor, pressure, temperature, enthalpy increase, and then sent to the evaporator as heating steam heating chamber used to make maintain liquid boiling point, while the heating steam itself is condensed into water. In this way, had to be abandoned on the steam has been fully utilized, recovery of latent heat, but also improves the thermal efficiency and economics of health is equivalent to steam for 30 multi-effect evaporation efficiency, reducing the need for external heating and cooling resource requirements, reduce to consumption and reduce pollution.
Applications:
Mechanical vapor recompression (MVR) evaporator for milk, glucose, organic acid, VC, xylose, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling, paper making, salt making and other industries to low-temperature enrichment.
System components: From heater, separator, compressors, vacuum pumps, circulating pumps, operating platform, electrical control cabinet and instrument valves, piping systems such as composition, structure, very simple.
Main features:
01. MVR Evaporator saving technology is the most advanced of the current international evaporator technology requires only a very small amount of Health and steam (when start up, need a small amount of steam, normal operation, is almost no need for the steam), greatly reduce business operating costs, reduce environmental pollution.
02. As a result of compressors to provide heat, and compared to conventional evaporator, the temperature difference is much smaller, to achieve a moderate evaporation, which greatly improve product quality and reduce fouling.
03. No condenser or only a small area condenser, structure and process is very simple, fully automatic, continuous operation, safe and reliable.
04. Equipment with CIP cleaning within the pipeline can be realized in situ cleaning, the entire device easy to operate, no dead ends.
05. The evaporator is a material at low temperatures ( evaporation temperature 45℃-75℃ )and does not generate foam under the state of evaporation, liquid evenly, do not run material, not easy to coking, minimum denaturation for heatinf material .
