50l rotary vacuum evaporator for crystallization/Distillation equipment falling film flash Rotovap

Rotary vacuum evaporators are efficient laboratory distillation units for applications like standard solvent distillations, concentration of reaction mass or solutions, separation of solvents from extracts, crystallization and powder drying.

Technical Feature

  • New
  • Distillation
  • Electric
  • Rotary
  • Henan, China (Mainland)
  • KRYQCN
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~300

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Electric
Process
Rotary
Place of Origin
Henan, China (Mainland)
Brand Name
KRYQCN
Model Number
RE-1002
Voltage
220V/110V
Power(W)
120W
Dimension(L*W*H)
1170*340*410MM
Weight
80-300KG
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
20L Rotatary evaporator with heating bath
Rotary flask
20L
Receving flask
10L
Rotating Speed
0-120rpm
Vacuum degree
0.098Mpa
Motor power
120W
Heating water bath power
5000W
Application Industries
Lab Chemical Pharmaceuticals
Optional
Explosion proof
Package
wooden box

DETAIL DESCRIPTION

Xingyang Kori Instrument  is manufacturing Vacuum Rotary Evaporator with different size at 1L,2L,3L,5L,10L,20L,30L and 50L

10L,20L,30L,50L are optional for Explosion proof .







Purpose & Usage of Rotary Evaporator /Rotovap



Rotary evaporator (or rotavap /rotovap)Rotary vacuum evaporators are efficient laboratory distillation units for applications like standard solvent distillations, concentration of reaction mass or solutions, separation of solvents from extracts, crystallization and powder drying. It always used in several big industrials, including but not limited to: Pharmaceutical, Biotechnology, chemicals, cosmestics and many more .

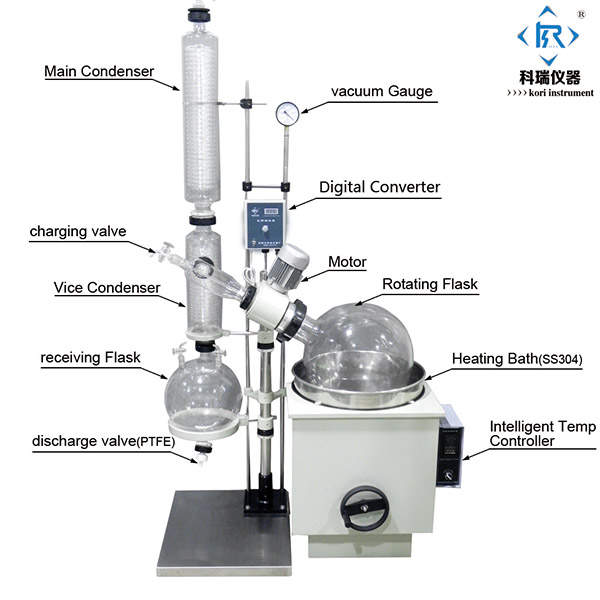

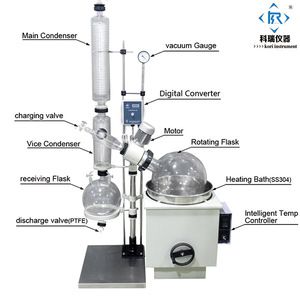

Rotary evaporator /Rotovap/Rotavapor/Rotary Evap details

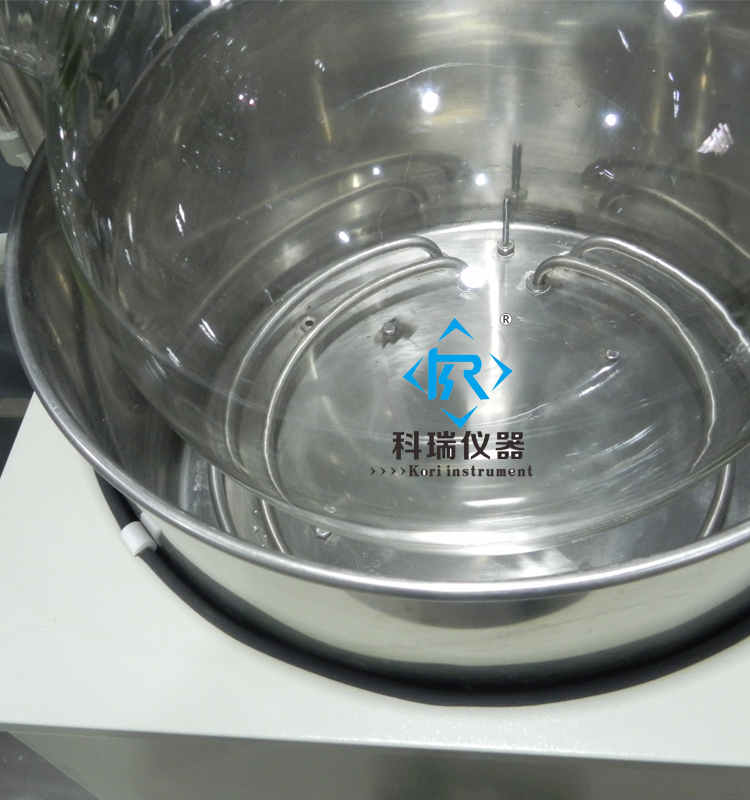

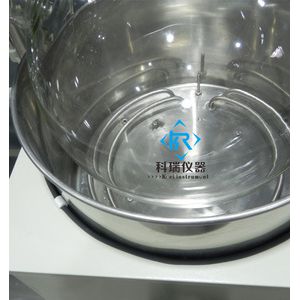

Stainless Steel Heating Water bath



Rotary Flask





Receiving Flask with 2pcs Vacuum discharge valve For Non-stop Receiving



Technical Data



ModelRE1002RE2003RE3002RE5003
Rotary flask10L20L30L50L
Receiving flask5L10L10L20L
Rotating speed 0-120RPM
Motor power120W120W180W180W
Heating Power3000W5000W6000W7500W
Voltage 220V220V220V220V/380V
Maximum Temperature200C
Vacuum Degree 0.098Mpa
Explosive proof Optional



( Friendly reminder : Because water bath need big  power consumption so make sure you have 220V or 380V Voltage )



For more details ,Kindly Click "Contact us " now !

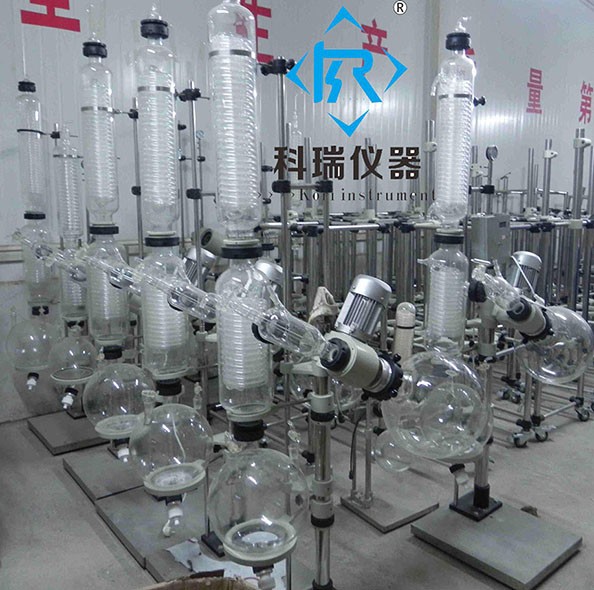

Explosion proof Rotary evaporator/Rotovap/evaporador rotatorio







Mini lab Rotary evaporator

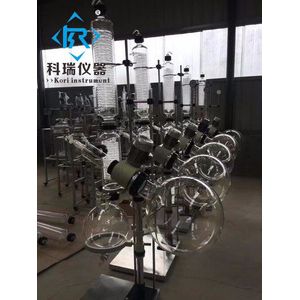

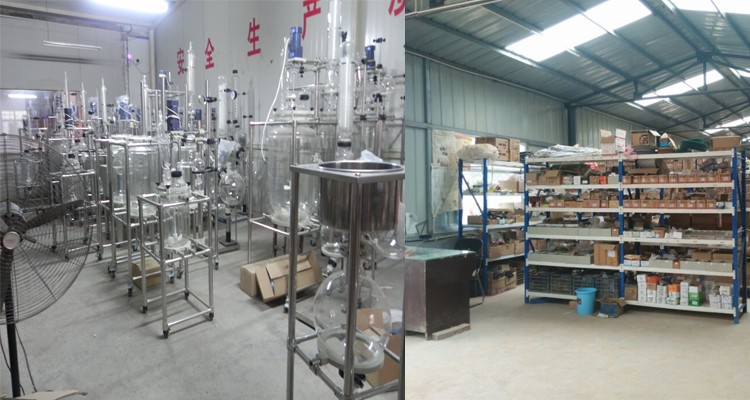

Rotary evaporator & Glass Reactor &Filter warehouse







Water circulation Vacuum pump : Small Vacuump Pump  & Big Vacuum Pump



 For more details ,Kindly Click "Contact us " now !







Please  send your inquiry by click "contact us "  Thank you !
