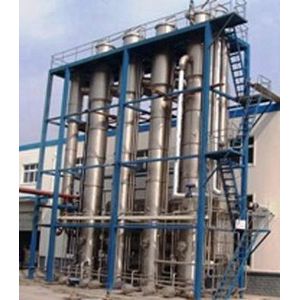

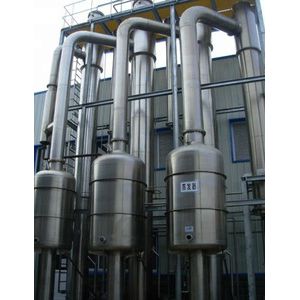

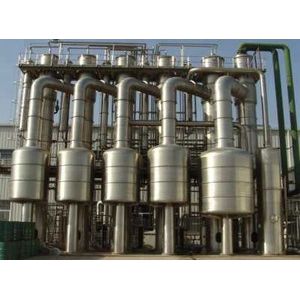

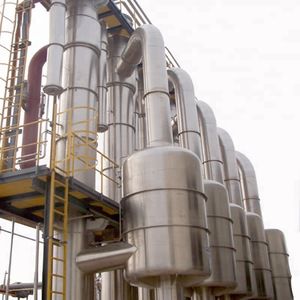

Triple-effect falling film evaporator/ vacuum concentrator for juice
Evaporating Type:
Falling film evaporator | Used for low viscosity, good fluidity material |
Rising film evaporator | Used for high viscosity, poor fluidity material |
Forced-circulation evaporator | Used for puree material
|
For the characteristic of juice, we select the falling film evaporator. There are four
types of such evaporator:
Parameters:
Item | 2 effects evaporator | 3 effects evaporator | 4 effects evaporator | 5 effects evaporator |
Water evaporation volume (kg/h) | 1200-5000 | 3600-20000 | 12000-50000 | 20000-70000 |
Feed concentration (%) | Depend on material | |||
Product concentration (%) | Depend on material | |||
Steam pressure (Mpa) | 0.6-0.8 | |||
Steam consumption (kg) | 600-2500 | 1200-6700 | 3000-12500 | 4000-14000 |
Evaporation temperature (°C) | 48-90 | |||
Sterilizing temperature (°C) | 86-110 | |||
Cooling water volume (T) | 9-14 | 7-9 | 6-7 | 5-6 |
Design of allocation material device:
