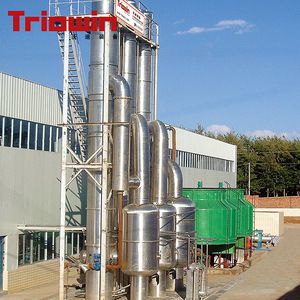

Fruit juice concentrator falling film evaporator

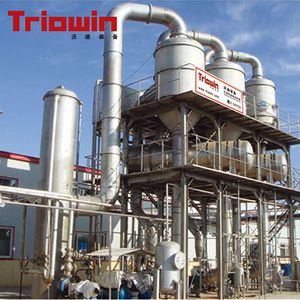

Falling evaporator:
Suitable for evaporation of heat-sensitive product(such as milk,juice,starch, etc.) in continuous process with high
performance for end product quality control,energy saving and high stability.
| Model | TW15B1200 | TW15B2400 | TW15C3600 | TWC15C10000 | TWC15C20000 | ||||||||
| Hydraulic times(effect) | 1 | 2 | 1 | 2 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
| Hydraulic capacity(/lh) | 1200 | 2400 | 3600 | 10000 | 20000 | ||||||||
| Vacuum degree(kpa) | 65-73 | 89-91 | 65-73 | 89-91 | 59 | 78 | 90 | 52 | 76 | 88 | 52 | 76 | 88 |
| Evaporation temperature(℃) | 67-73 | 46-50 | 65-73 | 46-50 | 76 | 62 | 48 | 75-80 | 55-65 | 45-50 | 75-80 | 55-65 | 45-50 |
| Heating temperature(℃) | 82-86 | 67-73 | 87-90 | 70 | 40 | 76 | 62 | 93 | 80 | 65 | 93 | 80 | 65 |
| Finished product concentration(%) | 45-65 | 48-65 | 48-65 | 45-72 | 45-72 | ||||||||
| Heat pump pressure(mpa) | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.6-0.8 | 0.6-0.8 | ||||||||
| Steam consumption(kg/h) | ≦500 | ≦1000 | ≦1550 | ≦3300 | ≦6600 |

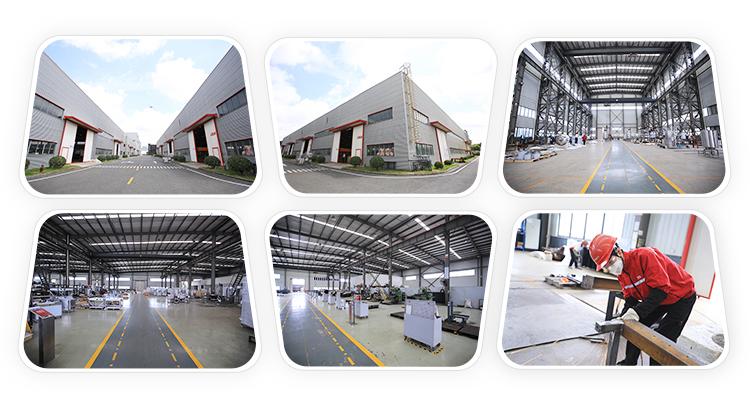

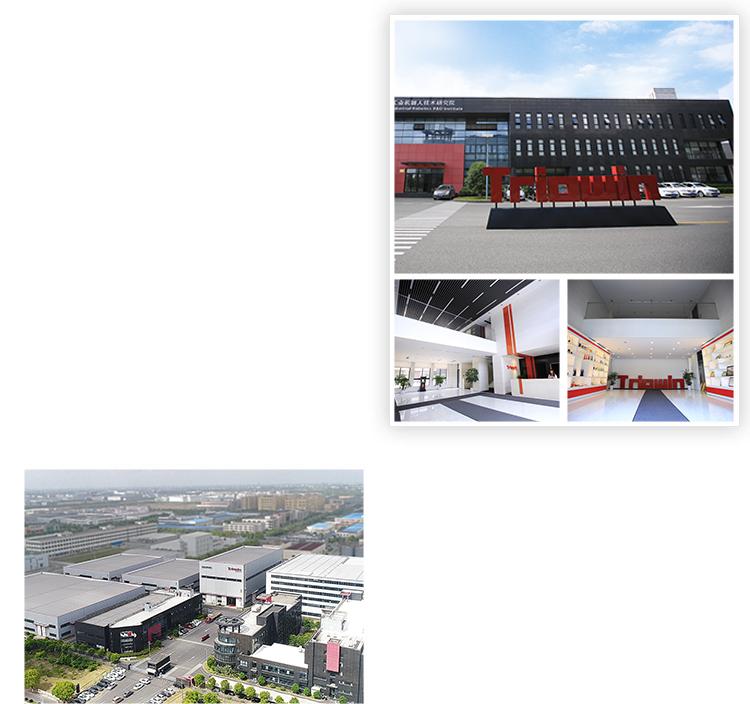

Established in 1999 , Shanghai Triowin Intelligent Machinery Co., Ltd has a registered staff of about 400 people. The Jinshan factory covers an area of 13.3 acres.
Triowin possesses a research team consisting of Masters, PHDs and senior engineers, and has established close strategic partnership with Shanghai Jiao Tong University ,Tongji University , University of Shanghai for Science and Technology, Shanghai Ocean University, Jiangnan University, Huazhong Agricultural University and other domestic prestigious universities to cultivate masters, doctorals and postdoctoral work station.
After years of accumulation, Triowin owns 271 patents of various kinds, and has undertaken a number of major equipment projects sponsored by government entities. The strong technology and rich experience enable us to provide customized solutions for customers accurately.
OUR CERTIFICATES
