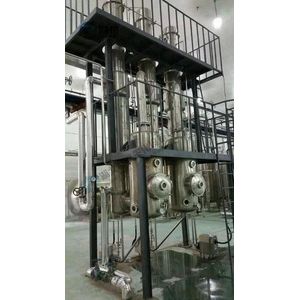

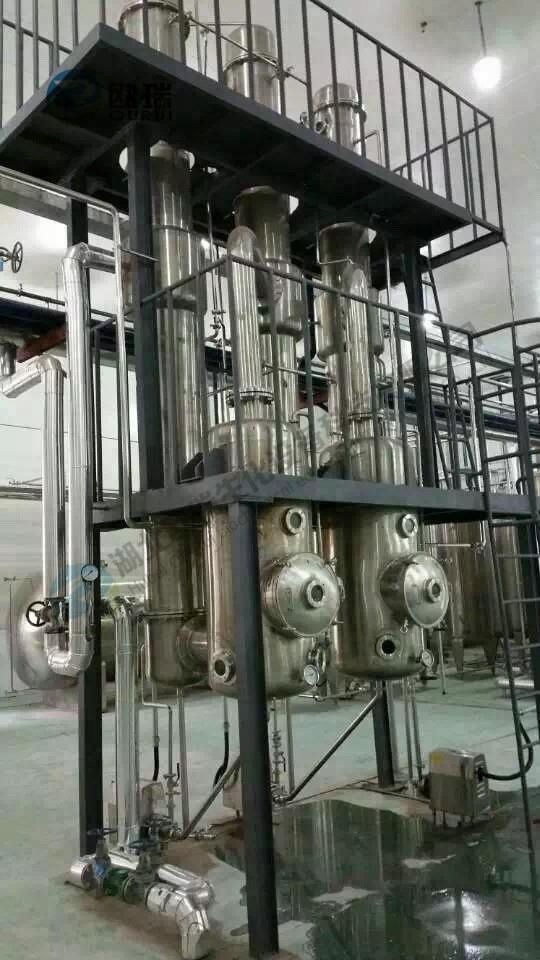

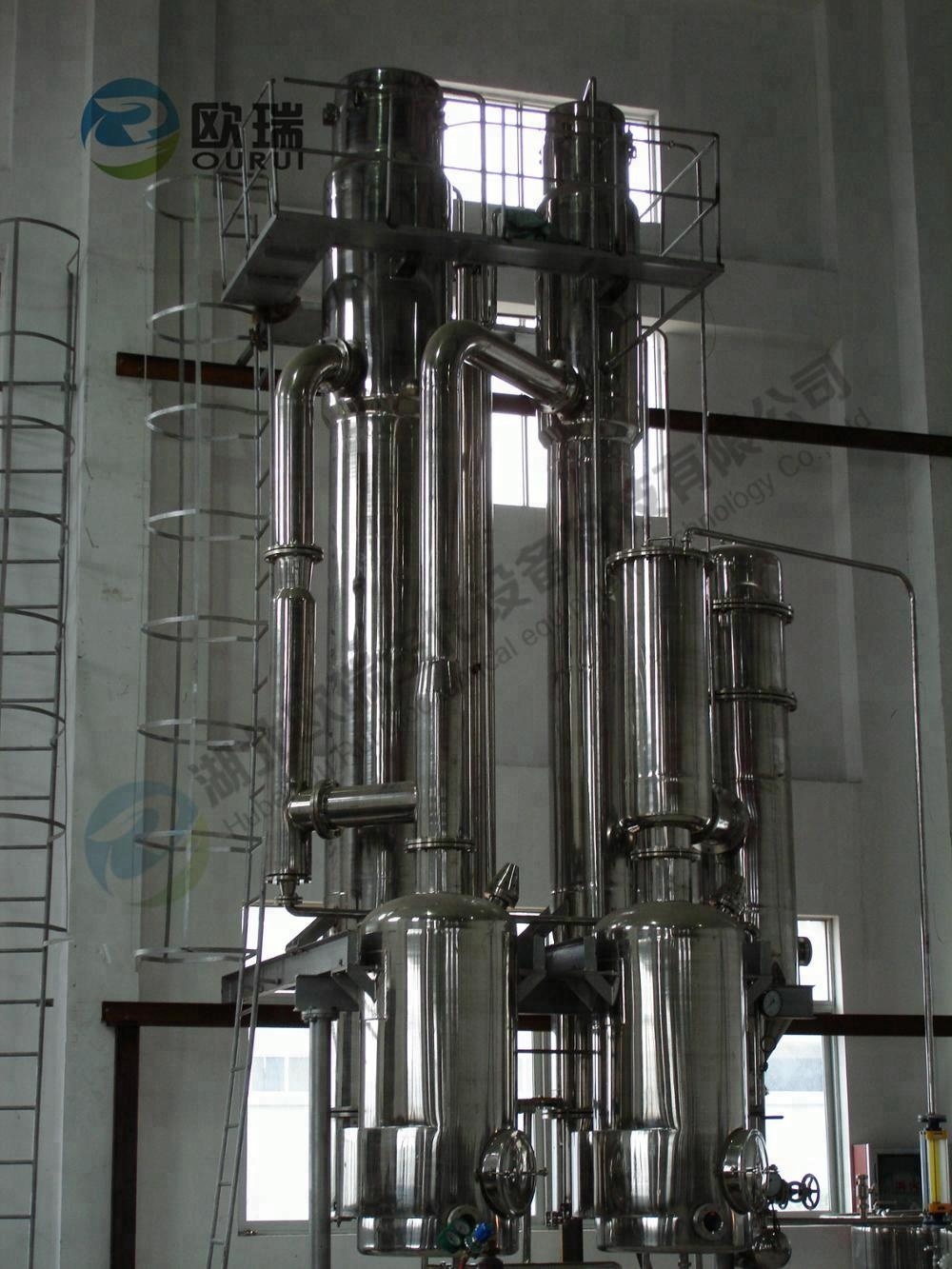

Double-effect Falling Film Evaporator
Double-effect Falling film evaporator is widely used for concentration of solutions in dairy product industry, food industry, fruit juice industry, beverage, chemical industry, environmental protection industry, pharmaceutical industry and etc, also is used for sewage treatment of relative industries.
Double-effect falling film evaporator is operated continuously under vacuum and low temperature condition, with features of high evaporation capacity, low energy consumption, low operating cost and could keep the original color, flavor and active ingredient maximize.
Configuration
Effect I/ Effect II Heater, Effect I/Effect II Separator, Thermal Compression pump, Condenser, Charging Pump, Effect I material transfer pump, Discharging Pump, Vacuum Pump, Condensate Pump, Electrical Control Cabinet, Operation Platform and pipelines .
Advantage
1.High heat transfer efficiency realized for the heating system even heated with steam and feed liquid in flow evaporate The equipment has smaller energy consumption.steam consumption and cool water circulation amount if equip with heat pressure pump.
2. Feed liquid evaporated while accelerated flow downward along the pipe wall that suitable for evaporation and concentration of high viscosity materialLiquid heat in very short time for it inner film evaporated in every tube That make the equipment very fit food concentration can maximum protect food nutritious.
3.Whole process operated under vacuum condition Which meet the sanitary requirement and environmental protection requirement. Meanwhile can significantly reduce the evaporation temperature. If equipped with heat pressure pump,part of second steam will resucted and mixed with live steam .Steam pass through pump ierred into heating shell,steam rapidly spread make liquid soft heated,is very suitable for concentration of heat sensitive products.
4. Equipment suitable for evaporation and concentration of foamability material Liquid film evaporated in heating tube formed liquid-vapor separate. Big part of feed drIiauid extracted from the bottom of cylinder. Only small part of feel liquid and all second steam enforced to separate Feed liquid not in big impacted no foam formed in the whole process.
5. Equipment can also sterilize food Feed liquid flow to sterilizer after preheated.Temperature up to 94°Cand lasting for 24 seconds.Then flow into first stage.Liquid evaporate in few seconds then temperature drop at once.
6. Can equip with CIP cleaning system,achieve clean in spot.Completed set operated easy without dead angl.
7. Can continuous feed materiaI and discharge material.
8. Can equip with automatic system,achieve automatic control of inter and outlet material,discharge viscosity and cleaning.Can equip with protection facilities in case of suddenly blackout,break down which will cause trouble with heat sensitive products other safeties,alarm facilities can achieve automatic operate and control.
| Model | Evaporation capacity of water | External dimension LXWH(mm) | Steam consumption | suggested power(kw) |
| JFS-2-0.8 | ≤ 0.8(T/h) | 4500X2500X7000 | ≤ 0.45(T/h) | 20 |
| JFS-2-1 | ≤ 1(T/h) | 4500X2500X7200 | ≤ 0.55(T/h) | 22 |
| JFS-2-1.5 | ≤ 1.5(T/h) | 4800X3000X7600 | ≤ 0.8(T/h) | 30 |
| JFS-2-2 | ≤ 2(T/h) | 4800X3000X7800 | ≤ 1.1(T/h) | 30 |
| JFS-2-3 | ≤ 3(T/h) | 4800X3200X8000 | ≤ 1.65(T/h) | 35 |
Pre-Sales Service
* Inquiry and consulting support.
* Provide technical proposal.
* View our Factory.
* View our projects.
After-Sales Service
* Training how to instal & how to use the equipment.
* Engineers available to service machinery overseas.
Hubei Ourui biochemical equipment technology co. LTD. was established in 2013 . We have rich experience in organic acid fermentation, starch sugar, pharmaceuticals, chemical industry, wastewater treatment, Relying on the technical support of Hubei University of Technology , under the leadership of several industry experts, We have built up a professional team of design, manufacture, construction and commissioning after 3 years efforts, have become one of well-known contractor of bio-fermentation industry.our company already have the certification of ISO9001 and ISO14001 . It has D1/D2 grade pressure container manufacturing qualifications and has obtained 6 national patents.
We own a 5000 square meter standard factory for tank production and processing , with advanced processing methods which can provide the quality certification of the first and second class pressure vessel for the fermentation tank & supporting tank.
ISO9001:2000 Certificate
Manufacturing license of Special equipment
Strategic partner
Automatic barrel welding
Welding effect photo
Automatic tube plate welding
Welding effect photo
Hydraulic brake shears machine
Digital display universal winding machine
Large automatic polishing machine
CNC milling machine
Large vertical lathe
CNC machining center
Q.Are you manufacture or trading company?
A.We are factory, we have our own design team and own workshop, with more than 5 year's OEM experience.
Q.Can you make me quotation and send me your price list right now?
A.Sorry, our products are all none standards, need custom-made according to client's requirements, so pls let me know your requirements, we will make drawing and quotation for you.
Q. What's your MOQ?
A. 1PCS/SET.
Q.What's the payment terms?
A. 30%T/T as advance payment, 70% before shipment.
Q.What's your delivery time?
A.25-50 working days according to your Qty.
Q.Can you send the machine to my sea port?
A. Yeah, we can, we accept FOB, C&F, CIF, CIP, both by sea and rail way. And our nearest port is Wuhan.
Q.Where is your factory located?
A. Our address: Zengdu Economic Development Zone,Suizhou,Hubei,China.
Q.Do you provide installation&debugging service?
A. Yeah, if single machine, we will send you the installation drawing and documents first, if you still have problems, we will arrange our engineers go to your place for installation guiding. If it is a production line, our engineer will go to your place do installation & debugging for you directly.
Q. Do you provide after-sale service?
A. The warranty period is one year. If there’s any problem of the equipment not caused by reasonable operation in one year,we will help you solve it (If it is small problem like spare part is broken, we will send you freely;other small problem we will guide you to solve it by phone or e-mail;If the problem cannot be solved by guiding,we will arrange technician come to your place to mend it after confirmation).
