Falling film evaporator for milk juice concentration

The SENON Falling Film long tube vertical evaporator is preferred for heat sensitive liquors.

Technical Feature

  • New
  • Food Processing, Food/pharmaceutical etc
  • Electric
  • Thermal
  • Shanghai, China (Mainland)
  • SENON
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$200~7

PRIMARY PARAMETERS

Condition
New
Application
Food Processing, Food/pharmaceutical etc
Power Source
Electric
Process
Thermal
Place of Origin
Shanghai, China (Mainland)
Brand Name
SENON
Model Number
SN356
Voltage
380V/50HZ / can be adjusted by local, 380/415/450/600V
Power(W)
356kw
Dimension(L*W*H)
4000mm x 8000mm x 16000mm
Weight
80tons per set
Certification
CE ISO ASME
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Product
Falling film evaporator
Effect
Single/double/triple/multiple/MVR
Material
SS304/SS316L/duplex steel
Evaporation capacity
From 5t/h to 1000t/h
Supply fresh steam
Above 0.35MPa
Cooling Water
Pressure above 0.3Mpa
Pump
Sulzer/customized
Energy consumption
Lower operation fee

DETAIL DESCRIPTION

Product Description

Specifications

Falling Film Evaporator for tea / coffee / syrup / juice / wastewater
The SENON Falling Film long tube vertical evaporator is preferred for heat sensitive liquors. A film of liquor flows down the inside of a tube and is circulated to maintain the required flow. Because of the circulating pumps on each effect maintaining the wetted tube surfaces these evaporators have excellent turndown capabilities.


Features
Design Features: High heat transfer coefficient, Thermal vapor re-compression, short residence time
Multiple Effects used for the steam economy
Operate under vacuum
Fouling across the tube is less
Easy to Start, Operate, Clean and Low Pressure drop


Applications
For liquids which contain small quantities of solids and have a low to moderate tendency to form encrustations.
Dairy Industries for milk concentration
Food industries: Juice concentration
Low Concentration RO reject Concentration
Chemical product
Pharmaceutical product Concentration

SENON is capable to design and supply many different types of equipment to achieve processing requirements. Our specialty is designing and installing innovative systems to convert liquid solutions into dry solids using evaporation and crystallization. Please reach us & let us know your requirements.
Looking forward to hear from you!

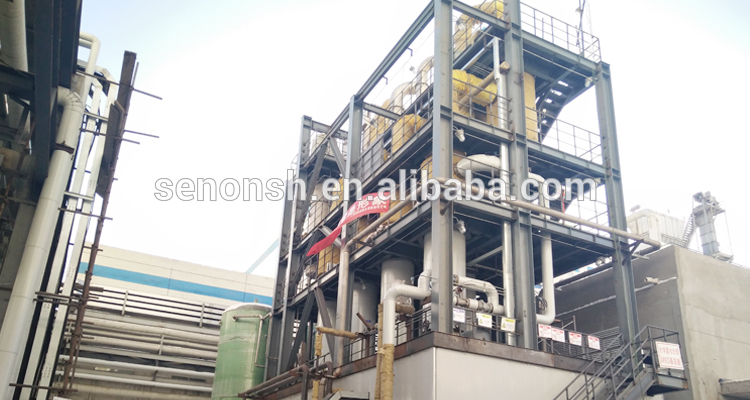

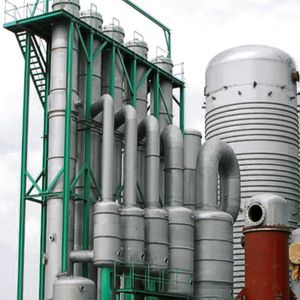

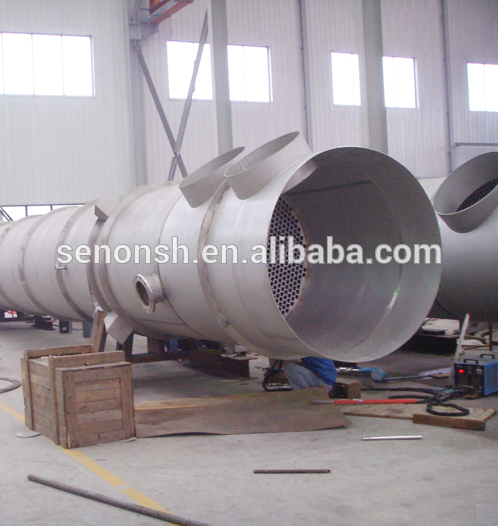

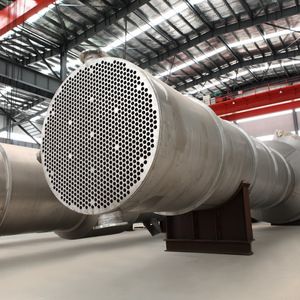

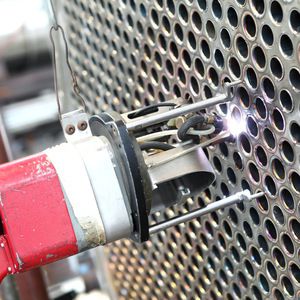

Detailed Images
Our Company

Shanghai SENON Co., Ltd. is a global leader in engineering, manufacturing, installing, debugging and training evaporation and crystallization equipment, used for fermentation industry, food industries, pulp and paper making industry, fiber industry, chemical industry, edible salt industry, lithium battery industry etc.

SENON has passed ISO9001:2008 quality management system certification, CE certification, ISO14001:2004 environmental management system certification, has gained A1, A2, ASME pressure vessel manufacturing qualification, A2 pressure vessel design qualification, mechanical and electrical equipment installation three-level qualification, as well as has the Independent import and export authority, more than twenty national patents. SENON is a high-tech enterprises in Shanghai. SENON brand is famous brand products of Shanghai.

Certificates
Parts of Clients
Packing & Delivery
Pre-packing in frame
putting in container
transported by trucks
