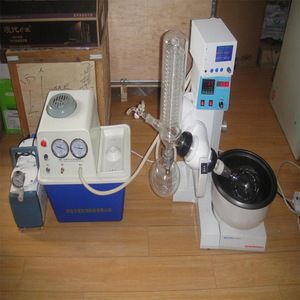

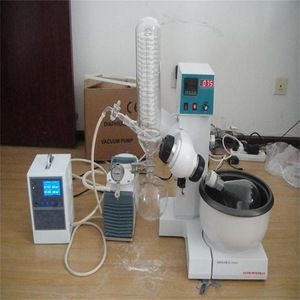

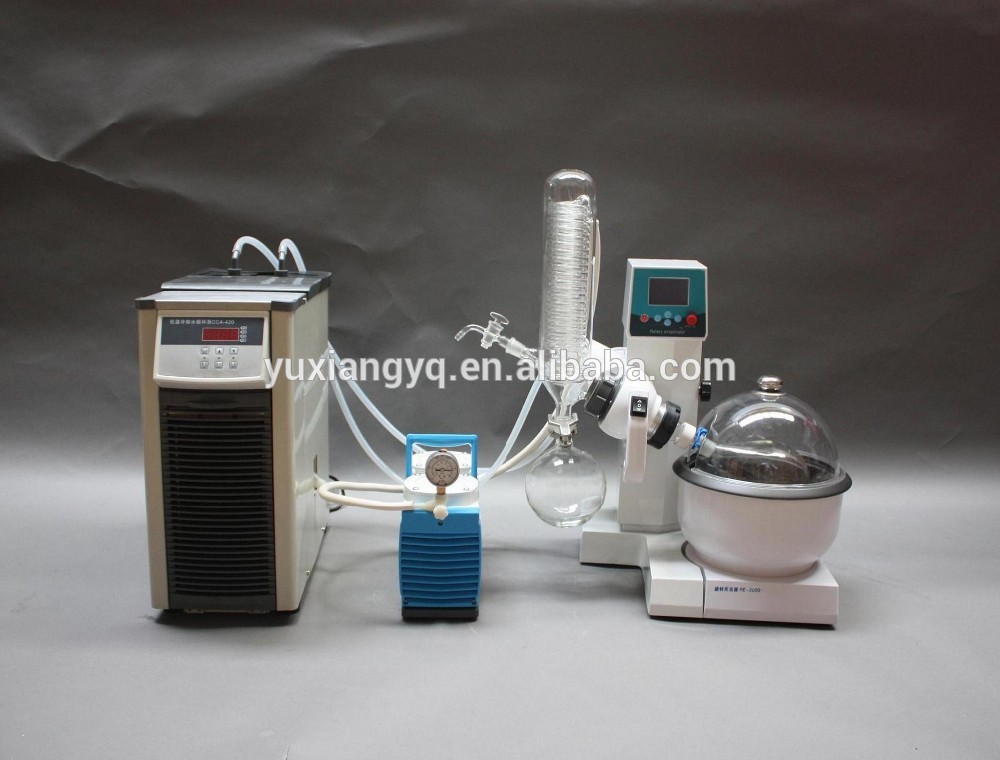

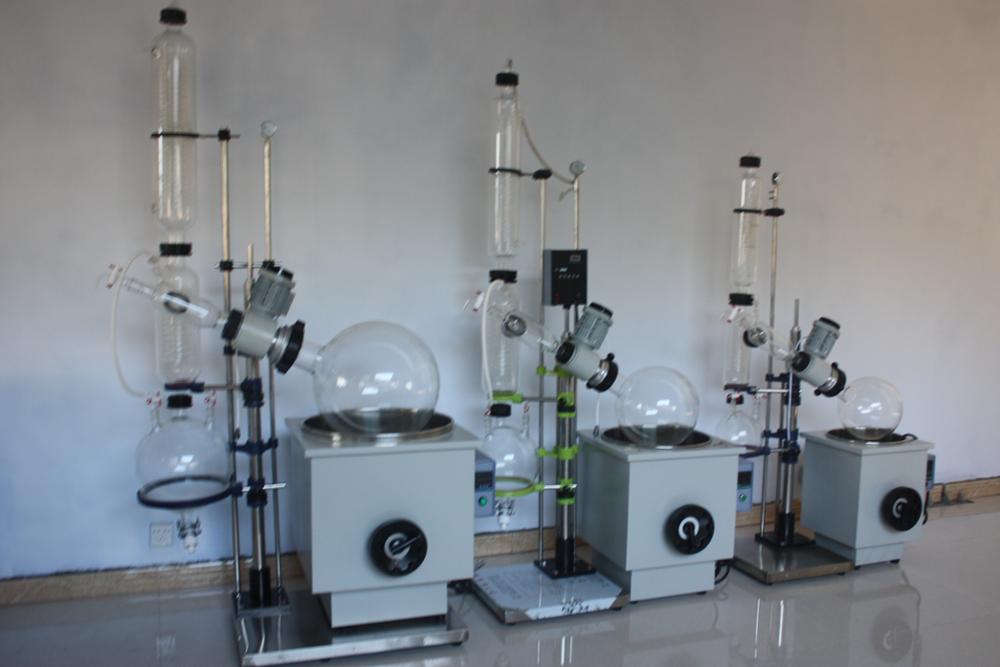

A rotary evaporator is used to remove high boiling point solvents under low pressure. HEB rotary evaporators set new standards for safety, efficiency, and ease of use. These rotovaps offer excellent distilling solutions for the demanding user. Distillation has never been more easy and intelligent than with the new RE-2000A and RE-2000B control auto(with vacuum controller). We are pleased to offer our customers the industry leading models from HEB and a value option.
Technical Parameters :
Basic
Parameter | Type | RE-2000B |
Glass material | GG-17 | |
Stent material | Aluminium alloy | |
Bath material | Teflon composite pot, fully enclosed heating | |
Rotary flask volume | 1L Dia:24 flange opening | |
Collecting flask volume | 1L Dia:35the ball mill mouth | |
Rotary power | 40W | |
Rotary speed | 0-180rpm | |
Heating power | 1.5KW | |
Temperature control of bath | 0-99℃ | |
Temperature precision | ±1℃ | |
Elevating power | 15W | |
Elevating stroke | 120mm | |
Voltage/frequency (V/Hz) | 220V/50Hz | |
Exterior size (mm*mm*mm) | 660*420*830 | |
Packing size (mm*mm*mm) | 620X620X470 0.181 square | |
Packing weight (KG) | 26 | |
Function configurations | Speed regulation method | Electronic stepless speed regulation |
Temperature display | PT100 sensor digital display | |
Temperature controlling | Intelligent temperature control | |
Sealing method | Teflon sealing | |
Elevating method | Main machine auto-lifting | |
Condenser | Vertical condenser 85*430mm | |
Feed continuously | 19# standard feed value | |
optional configurations | Heating method | Oil bath 0-400℃ |
Bath material | 304 stainless steel | |
Splash bafle | Transparent cover assorted with bath | |
Our laboratory glass and instruments are developed independently, we can manufacture according to customers’ demands. |
Company introduction

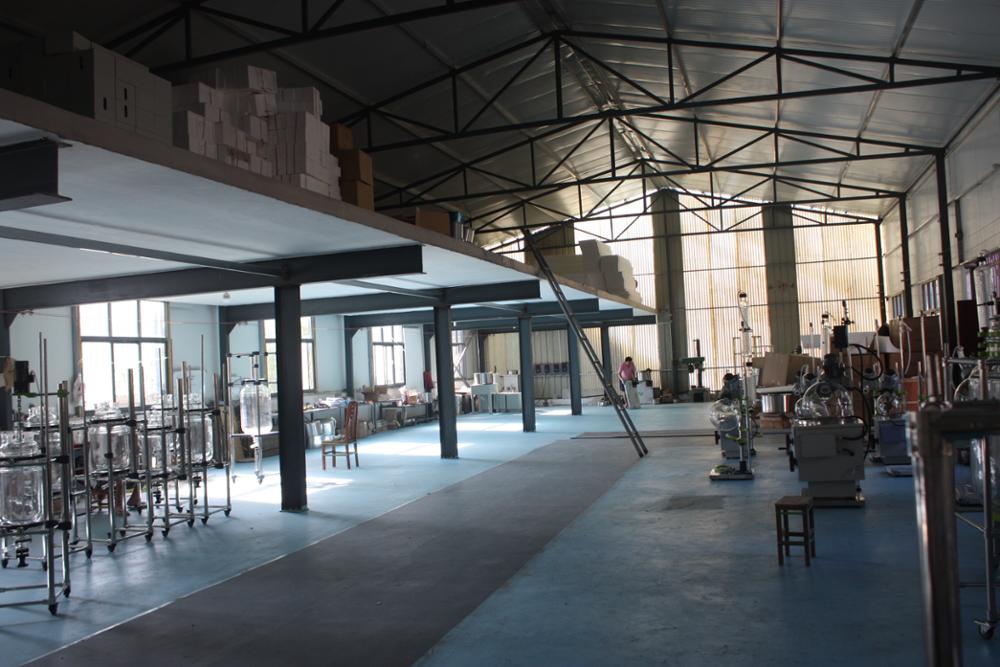

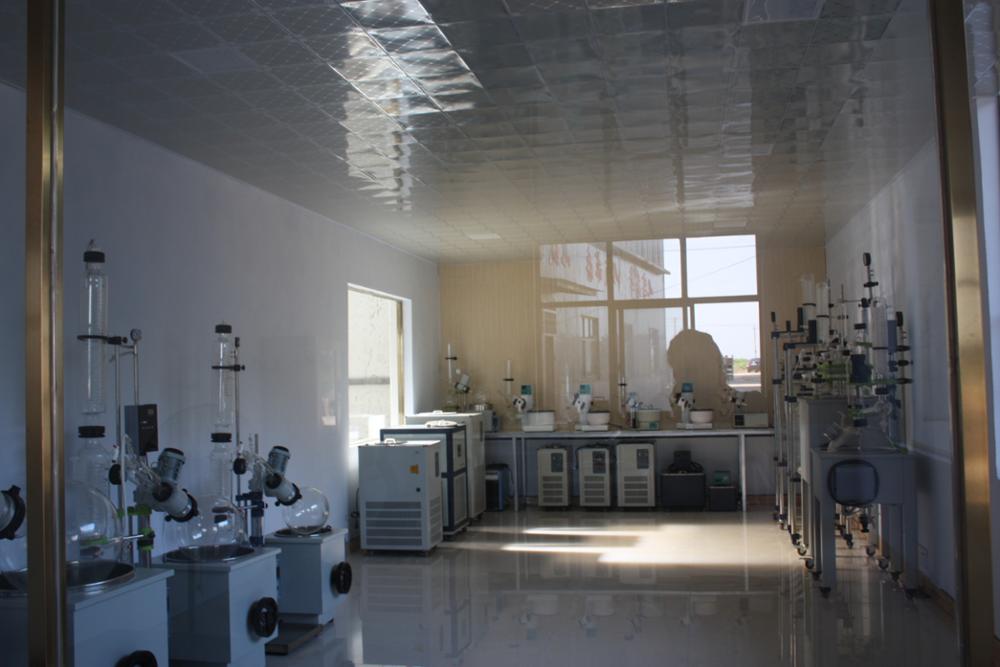

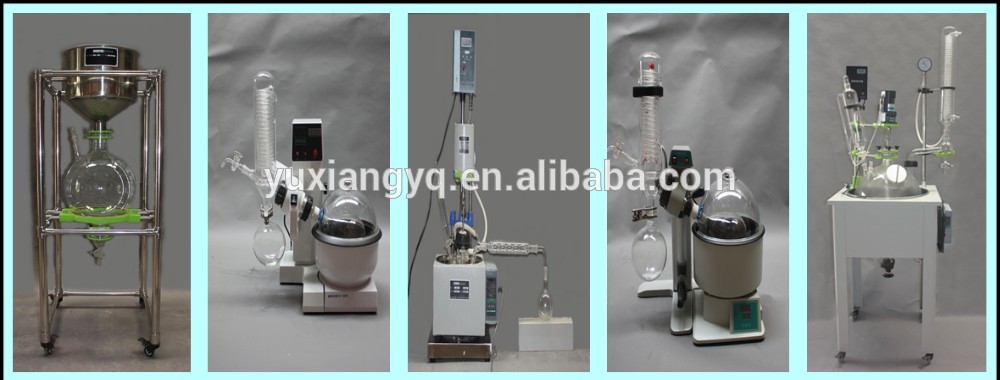

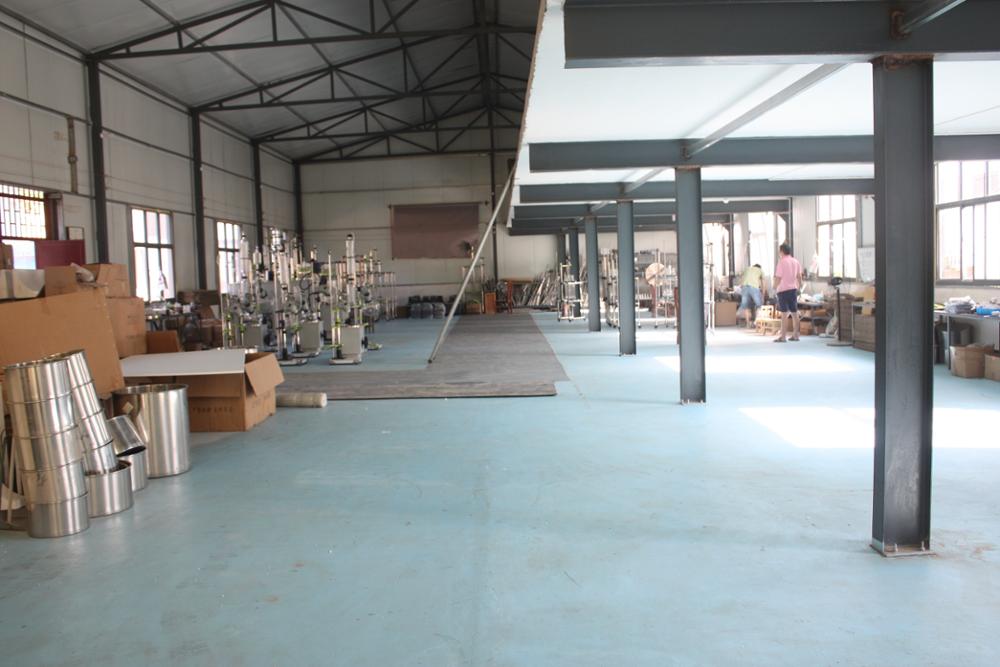

Gongyi City Yuxiang Instrument Co., Ltd, is established in 2004, professionally manufacturing rotary evaporator, reactor, circulating machine and kinds of pumps. Our company and factory has passed more than 12 years, is a technological innovation-based enterprise provided with integration of research, develop, manufacture and marketing. Nowadays, our products have gotten extensive application in Asia, European and America, even spread all over domestic laboratories. Our products passed ISO9001 International Quality System Certification, and some products passed CE certification. We want to joint hands with you to create more precise experimental instruments.
Our service
we promise: if it has any problem in warranty time(one year), if it is some parts including temperature controller, Heating element, stirring motor or rotary motor,etc, we must ship to customer by Express(Fedex or DHL or TNT),and air shipping cost is free also. if glass were broken due to natural reason in one year, still we can send new glass part to every customer, and air shipping cost is free also; if it were broken due to human reason, we only charge the cost to every customer, it is our forever promise!
1. Are you the factory?
Yes, we are factory, we established in 2009 years, and started to manufacture rotary evaporator, Jacketed Glass Reactor, Chiller,Heating Circulation Bath, etc.
2. What about the delivery time?
Normally, we have stocks for our hot sale products, the delivery time is about 3~5 days.
As for the customized instruments, it needs 10~20 days to manufacture.
3. What’s the warranty period? How do you provide this?
One years (12 months).
We have very Strict inspection for each manufacturing procedures, the instruments which you received is reliable.
If there’s any errors, we’ll provide you the on line solution with in 12 hours and provide you the spare parts and the shipping cost totally free.
If the problem was caused by the instrument quality, and cannot be repaired, we’ll ship you the new one.
