Main Features:
2.Stainless steel SUS304/316L,titanium
3.Rotary scraper thin film evaporator
Scraper film evaporator
Application:
Scraper film evaporator is used in Chinese and western pharmacy, food, petrochemical, environmental protection industries etc.
Description:
1.It has good heat transfer effectiveness, and its evaporation capacity & strength can achieve 200kg/m2·hr, with high thermal efficiency.
2.Material heating time is short, from 5 seconds to 10 seconds. Under vacuum conditions, the equipment can favorably retain heat-sensitive material's various ingredients, and produce non-decomposition, to ensure the quality of products.
3.Thin film evaporator is adapt to wide range of viscosity. Material of high viscosity can also be processed. Material viscosity can be as high as 10 million per cent tabor (CP).
4.Changing the rotation direction of the scraper groove,it can adjust the process time of material in the evaporator.
5.The wall of thin film evaporator cylinder body is after precision milling and polishing processing, so its surface is not easy to generate coking and fouling.
Parameter:
| GBN0.3 | GBN0.5 | GBN0.8 | GBN1.0 | GBN1.5 | GBN2.0 |
Heat exchanger area(m2) | 0.3 | 0.5 | 0.8 | 1.0 | 1.5 | 2.0 |
Steam pressure(MPa) | 0.3 | |||||
Vacuum degree(MPa) | -0.095 | |||||
Evaporation capacity(kg/h) | 50 | 85 | 140 | 200 | 270 | 400 |
Steam consumption(kg/h) | 56 | 95 | 150 | 220 | 280 | 430 |
Agitator power(KW) | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 3.0 |
Agitator speed(r/min) | 134 | 134 | 134 | 125 | 125 | 86 |
Equipment height(mm) | 2500 | 2750 | 2900 | 3100 | 3500 | 4800 |

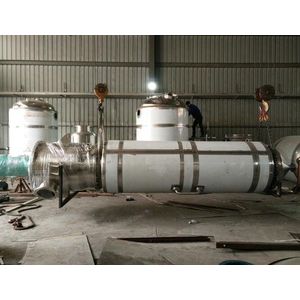

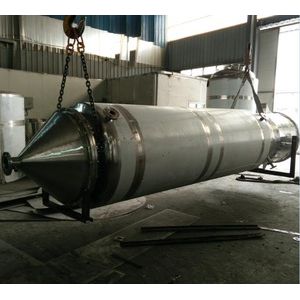

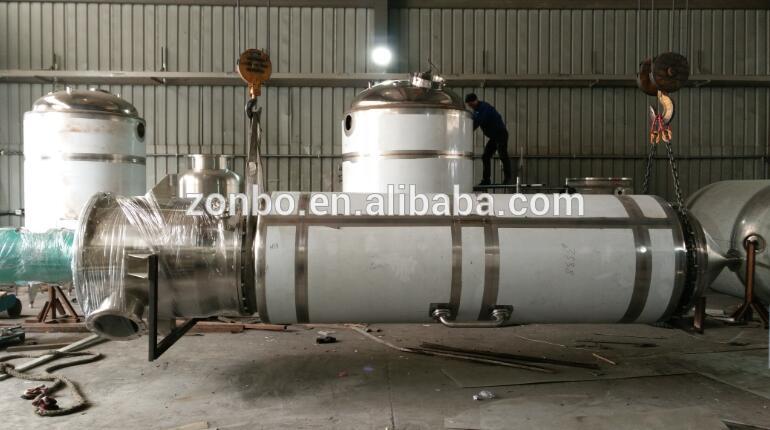

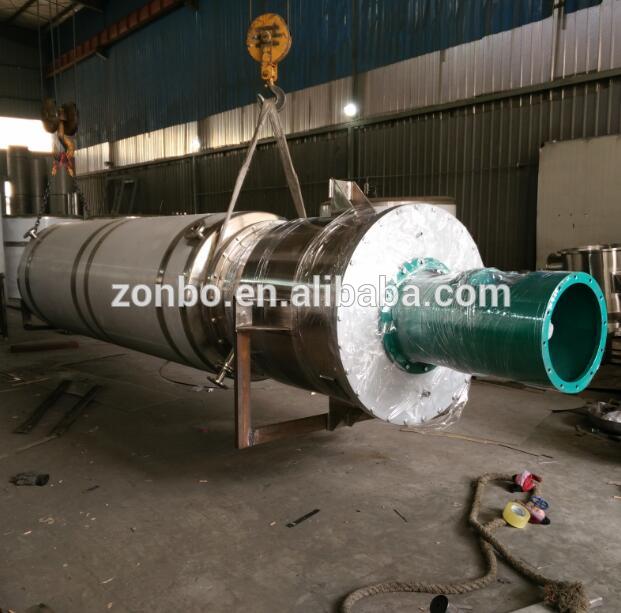

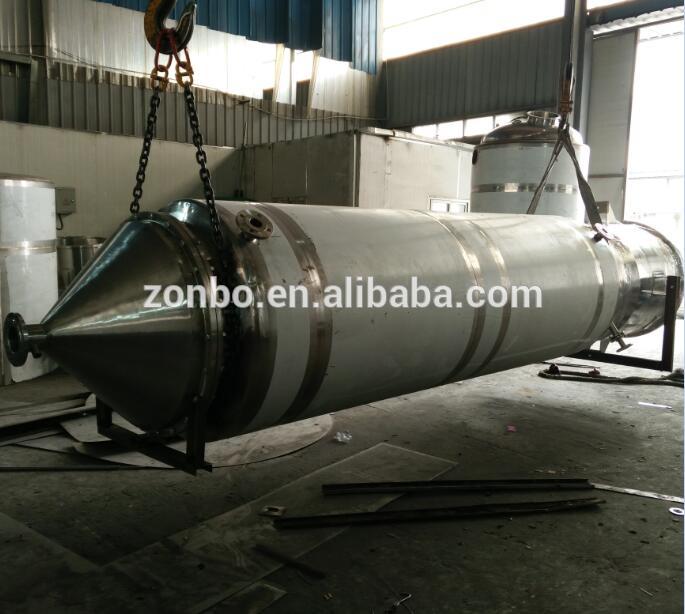

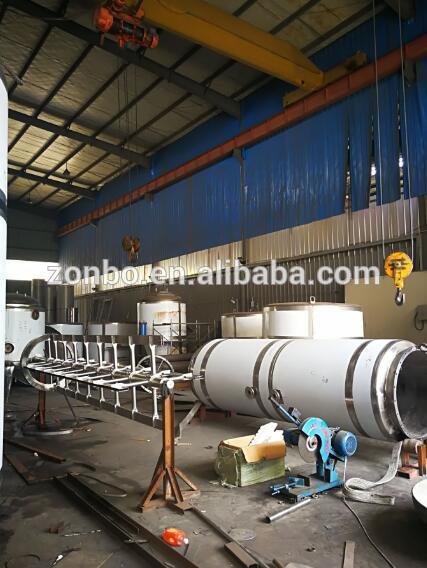

Scraper film evaporator
Scraper film evaporator
Scraper film evaporator
Scraper film evaporator
Scraper film evaporator
Ketchup(Tomato paste)-Scraper film evaporator
Concentrated juice-Scraper film evaporator
Condensed milk-Scraper film evaporator
