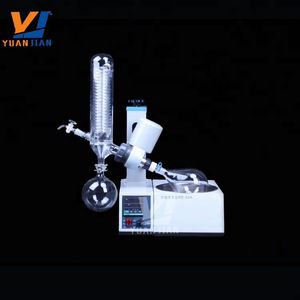

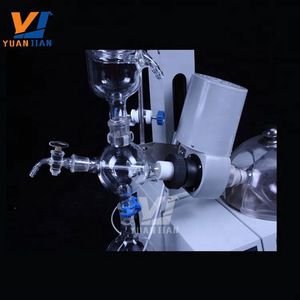

Upgraded with Heating Bath and Vacuum Application Thin Film Lab Rotary Evaporator for Sale

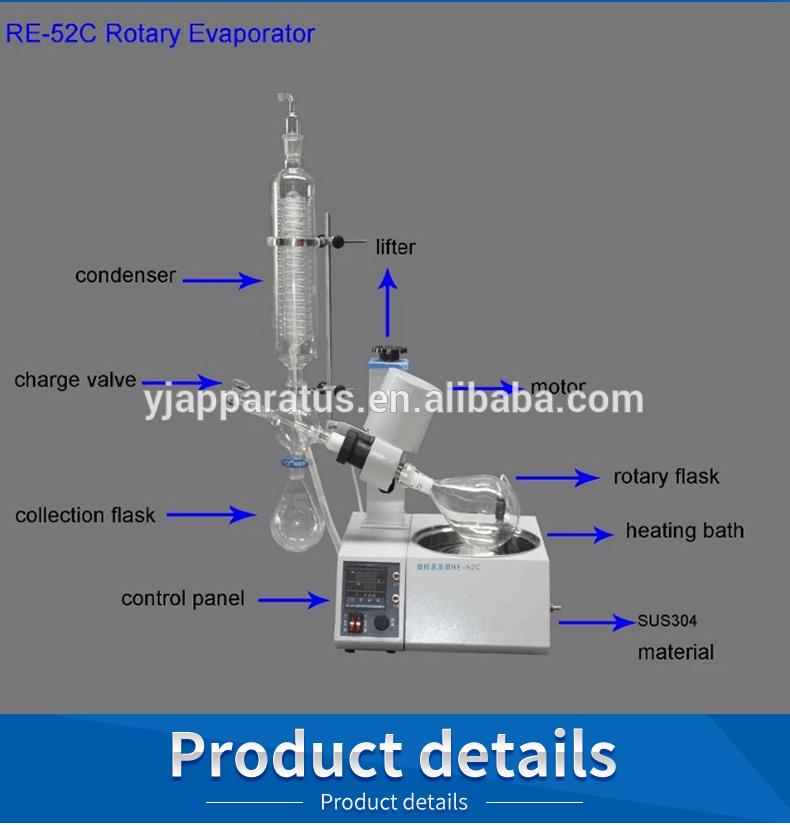

Rotary Evaporators are used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation and distillation.
The rotating flask is heated by water/oil bath and it keeps rotating to increase the surface area for evaporation.
The boiling liquid becomes vapor under certain temperature and the vapor can be cooled down and recovered by the condenser. In this way, the separation and purification are finished.

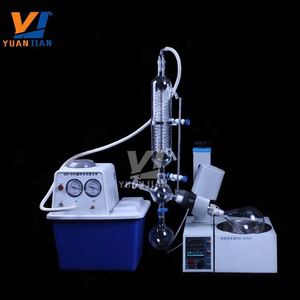

It usually works with water circulating vacuum pump and circulating chiller as a whole system.
1. PTFE sealing ensures perfect vacuum
2. Downward-condensing vacuum connection design ensures safe vacuum operation.

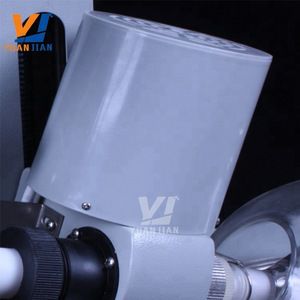

3. Motor lift makes it easier to operate.

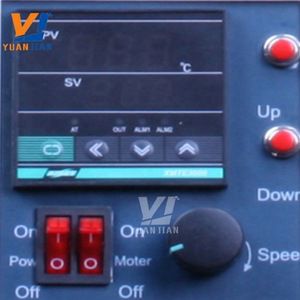

4. PID temperature controller ensures accurate temperature control.
5. Digital display of rotation speed and temperature.
6. Modular design(individual rotary and water bath modules) for easy future upgrades.
7. AC brushless motor, stable speed without spark
8. The heating bath adopts SUS304 material which is applicable to Water Bath
Specifications | |
Product Name | Laboratory Rotary Evaporator, Motor Lift |
Model Name | RE-52C |
Type | Water Bath |
Glass Material | High quality Boro glass 3.3 |
Supporting Material | SUS304, Powder coated which is anti-corrosive |
Heating Bath Material | Stainless Steel 304 |
Temperature Range | Water Bath(0~99℃) |
Temperature Accuracy | ±1℃ |
Rotating Flask Capacity | 0.5 ~ 2 L |
Receiving Flask Capacity | 1L |
Motor Power | 30W AC brushless motor |
Rotation Speed | 0 ~ 120 rpm |
Lifting Method | Automatic motor lifting |
Lifting Power | 15W |
Lifting Distance | 120 mm |
Speed regulation mode | Stepless speed regulation |
Temperature Sensor | CU50 |
Sealing Method | PTFE Materials |
Condenser | Vertical Coil Condenser 85 * 460 mm |
Power Supply | 220V / 50Hz |
Dimension | 700W*440D*1005H mm |
Total Weight | 21 KG |
pckaging Detail
wooden case or according to your requirements for packing
Delivery Time
Shipped in 7 days after payment

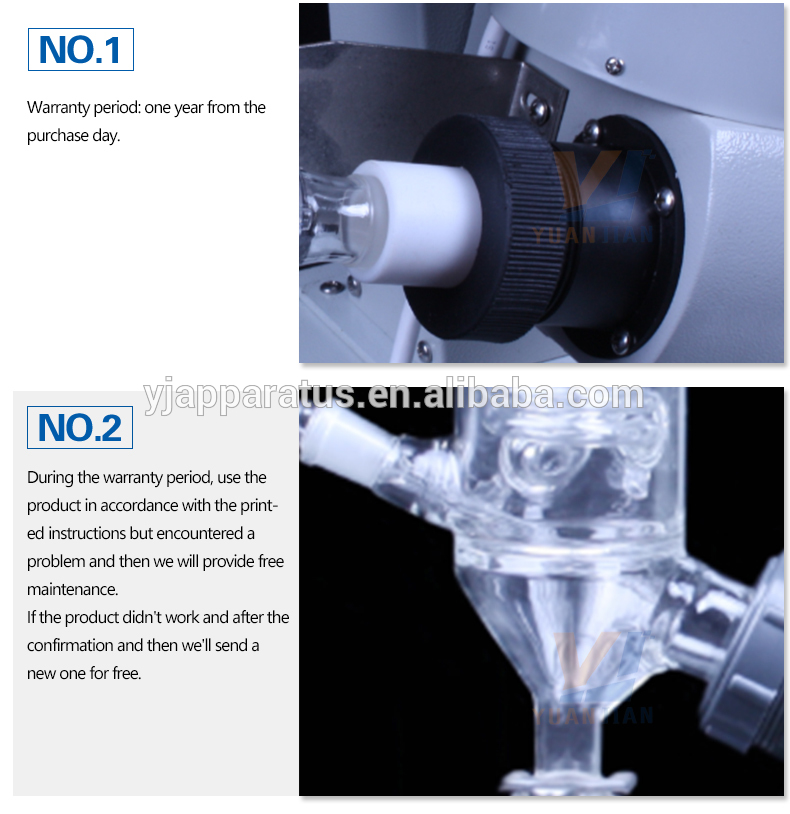

1. Warranty period: one year from the purchase day.
2. During the warranty period, use the product in accordance with the printed instructions but encountered a problem and then we will provide free maintenance.
If the product didn't work and after the confirmation and then we'll send a new one for free.

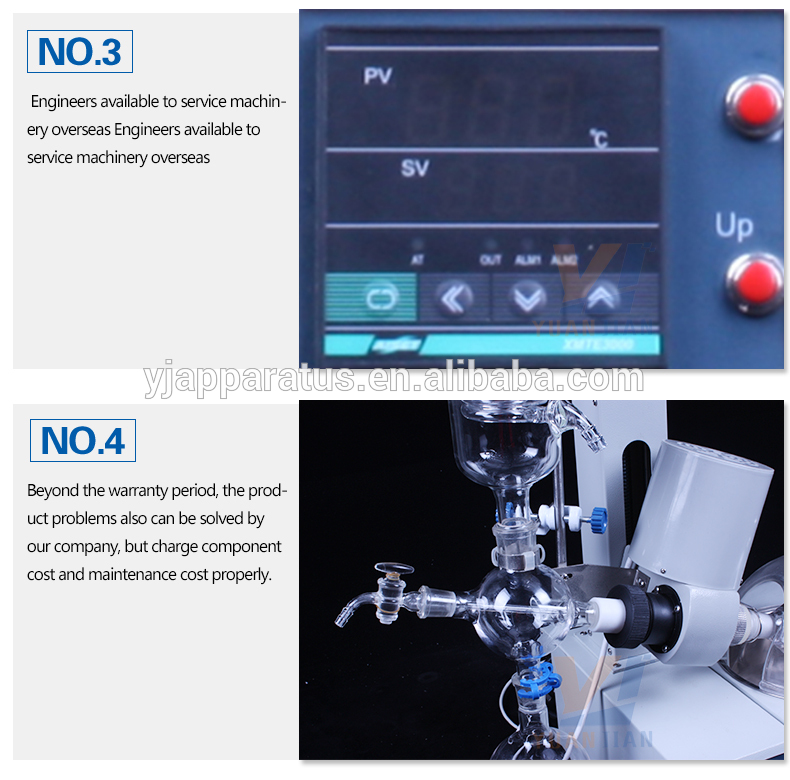

3. Engineers available to service machinery overseas.
4. Beyond the warranty period, the product problems also can be solved by our company, but charge component cost and maintenance cost properly.

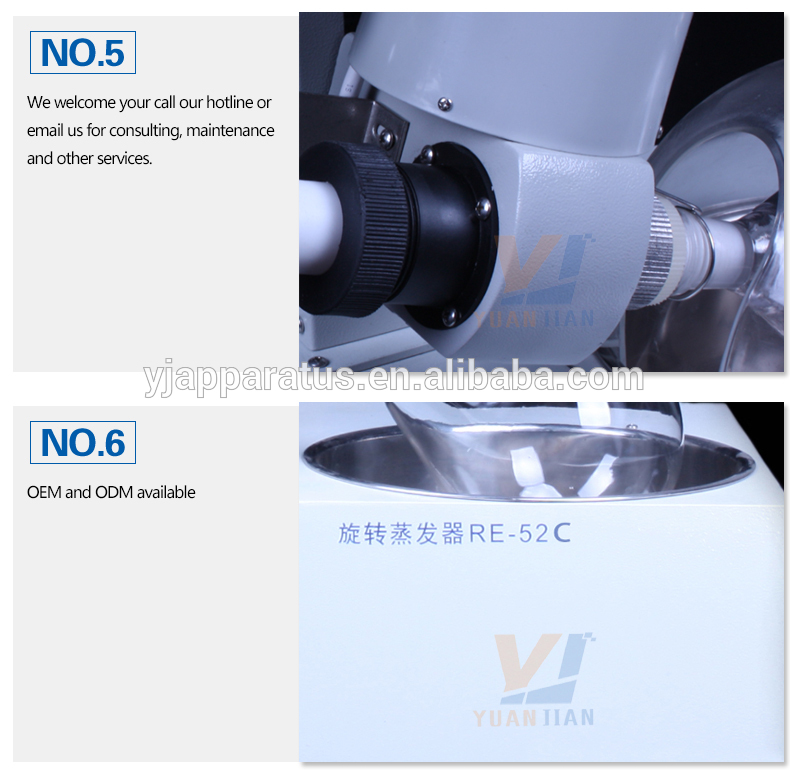

5. We welcome your call our hotline or email us for consulting, maintenance and other services.
6. OEM and ODM available.
7. "Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you
