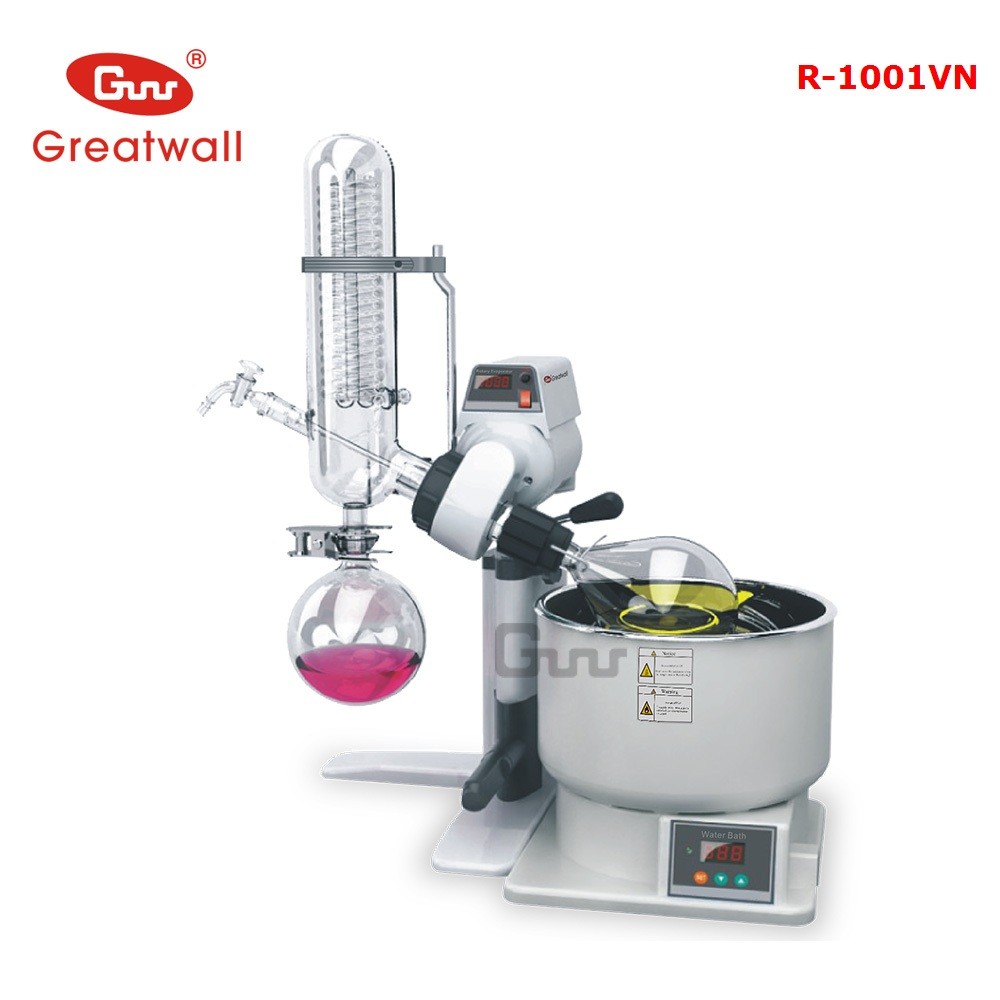

2017 New Digital Thin Film Rotary Vacuum Evaporator 0.5l, 1l, 2l

                                               R-1001VN

Functions

♦ Distillation of solvents.

♦ Concentration of solutions and suspensions.

♦ Crystallization and recrystallization.

♦ Synthesis and purifying of fine chemicals.

♦ Recycling of solvents.

♦ Extract essence oil from flowers and other herbals.

Working Theory

♦ Liquid in totating flask is constantly heated by the water bath and it becomes vapor under certain  temperature.

♦ The boiling points of liquids are reduced by decreasing their pressure under vacuum condition, allowing solvents to be vaporized at much lower temperatures than their boiling points at normal pressure.

♦Vacuum pump stabilizes the vacuum at a particular pressure, enabling only the intended solvent to evaporate. The pressure can then be lowered further and stabilized to vaporize other solvents in turn.

♦Condenser converts the gas back to liquid, which requires lowered temperatures. Liquid nitrogen, dry ice or water is used in achieving the cooling effect, after which the condensate is collected into receiving flask.

♦The evaporation flask constantly rotates, which aims to increase the surface area of the liquids. The centrifugal force keeps the liquid sticking to the inner surface of the flask, exposing a larger surface area and causing faster evaporation.

 Product Description

PTFE  Double Vacuum Sealing (Patented)

Features

♦ Expandable module design.

♦ Stepless speed control.

♦ PID temperature controller and digital temperature display.

♦ Solvent-resistant PTFE and Vinton gaskets ensure perfect vacuum. (Patented)

♦ Downward-condensing vacuum connection design ensures safer operation.

♦ Specialized motor and compact structure provide quiet, vibration-free operation.

♦ Easy multi-level manual lift with secure lock for the evaporating flask.

♦ Safety Protection: Dry-run, Over-temp shut-off, Fuse protections.

Why

♥We are a technological innovative and exporting-oriented manufacturer.

♥Professional solutions can be offered by our excellent engineer and designer team.

♥28 years' experience and 83 national patents make us outstanding among others.

♥6S managing principels can be found in every managing details from office to workshop.

♥Strict quality control and inpection system promise no defected product to be delivered.

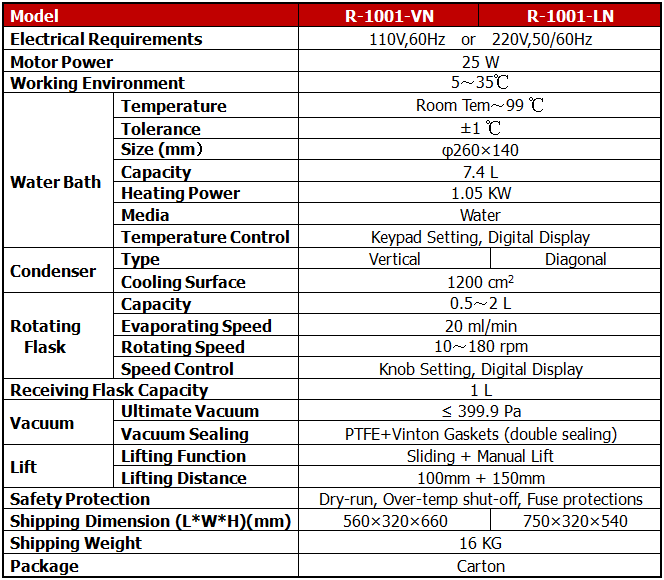

 Specifications & Parameters

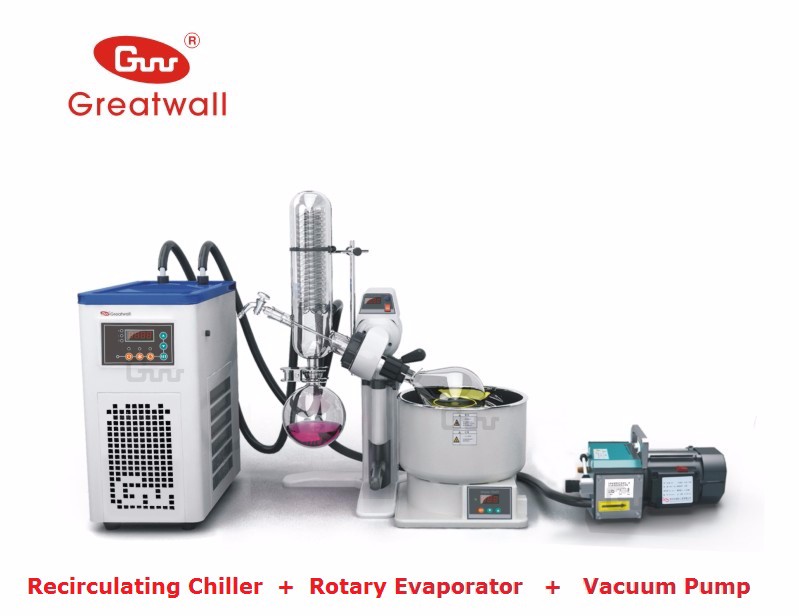

Recommended Working System

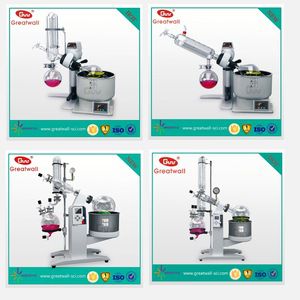

Other Models of Rotary Evaporators

 Optinal Models:

1. R-1001: 1L/2L

2. R-1005: 5L

3. R-1010: 10L

4. R-1020: 20L

5. R-1050: 50L

All Parameters

Packaging & Shipping

 Packaging: Standard Exporting Wooden Case

Shipping

1. By Express/Courier:  For Urgent ans Small Orders

2. By Air:  For Urgent and Light Equipment

3. By Sea:  For Large Quantity of Big and Havey Equipment

 Certificate

Iso 9001:2008 Certificate

 All equipment are produced in accordance with ISO 9001: 2008.

Company Information

     Zhengzhou Greatwall Scientific Industrial and Trade Co, Ltd. is a leading

technological innovative and exporting-oriented manufacturer since 1988.

We have been focusing on lab technology with 83 patents have been registered so far.

     Our main products are Rotary Evaporators, Vacuum Pumps, Chillers,

Glass Reactors, High Temperature Circulators, Heating and Cooling System.

All production is conducted strictly in accordance with ISO 9001 system and

6s managing principles. Our strict testing, inspection and quality control

system ensure every single product delivered to our customers is perfect.

      Greatwall Scientific can be our best partner.

          Believe us, believe your choice!

 1.Office Building

2.Glances at Workshop

3.Glances at Customers's Visit and Exhibitions

 FAQ

Q: Are you manufacturer?

A: Yes, we are a leading manufacturer of scientific and lab equipemnt in China since 1988.

Q: What is your MOQ?

A: 1 Set.

Q: Do you provide OEM service?

A: Yes, we do provide OEM service.

Q: How long is your Warranty?

A: We provide a 1-year warranty (glassware are not included).

Q: How do you provide after-sale-service?

A: We provide 24-hour techincal support by email or by video, as well as techinical training service.

Q: What if I do not know how to choose the right equipment and right size?

A: Do not worry. What you need to do is just informing us of your requirements.

Q: We are interested in your equipment, but we want some parts to be changed, can you do that?

A: Yes, we can. Our technical team will provide you tailored solutions to meet your requiements.

Q: For more questions, please contact us without hesitation.

A: We will responde within 12 hours.

Q: Do you have oversea agents?

A: Yes, we have agent in USA, South Korea, Taiwan at present.

Q: Do you have oversea angents?

A: Yes. We have agent in USA, South korea, Taiwan at present.
