Preferable alternative to short path distillation kits: much shorter residence time, lower processing temperature, capable of continuous operation, and available as a plug-and-play turnkey solution.
LAB1ST Scientific is now offering turnkey packages for wiped film molecular distillation units, including the evaporator, vacuum pump, heaters, chillers and necessary feeding/receiving equipments. The wiped film molecular distillation unit is superior than traditional short path distillation kit by shorter residence time, lower separation temperature, capability of continuous and unattended operation. The units are available in various sizes (from 60mm diameter to 200mm or more), with processing speed starting from 250g/hour.

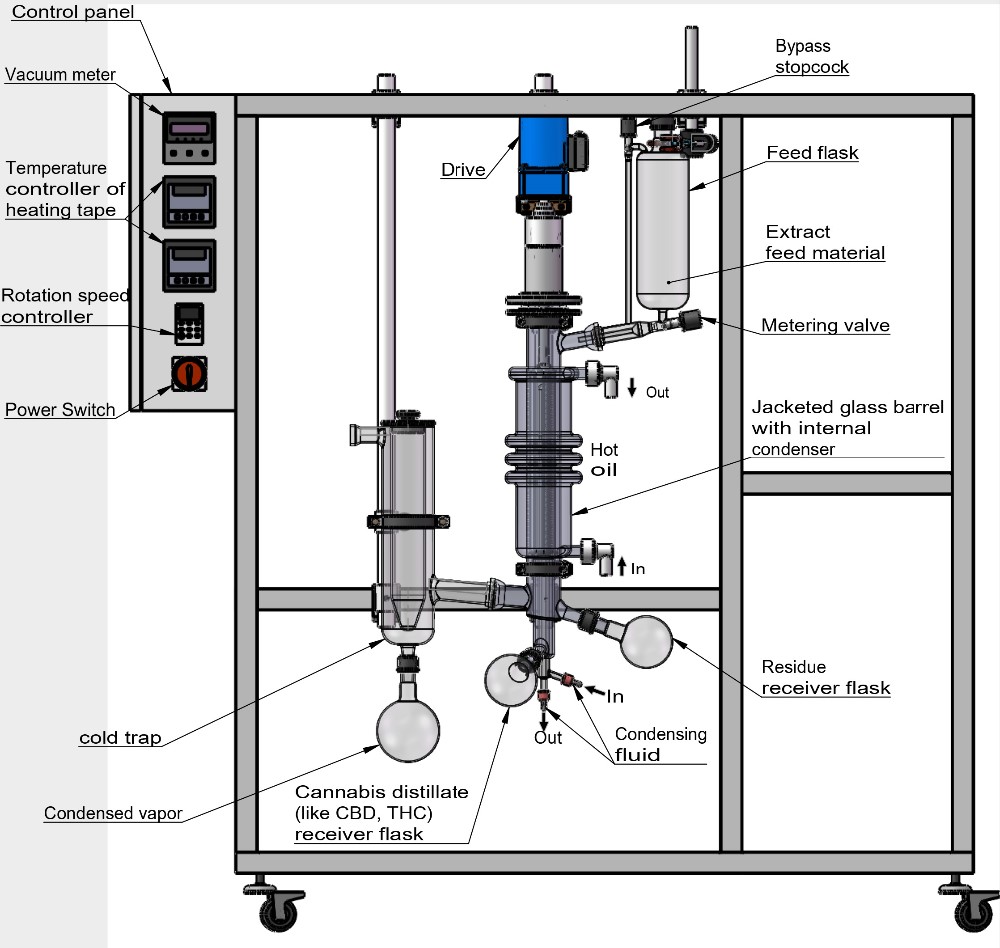

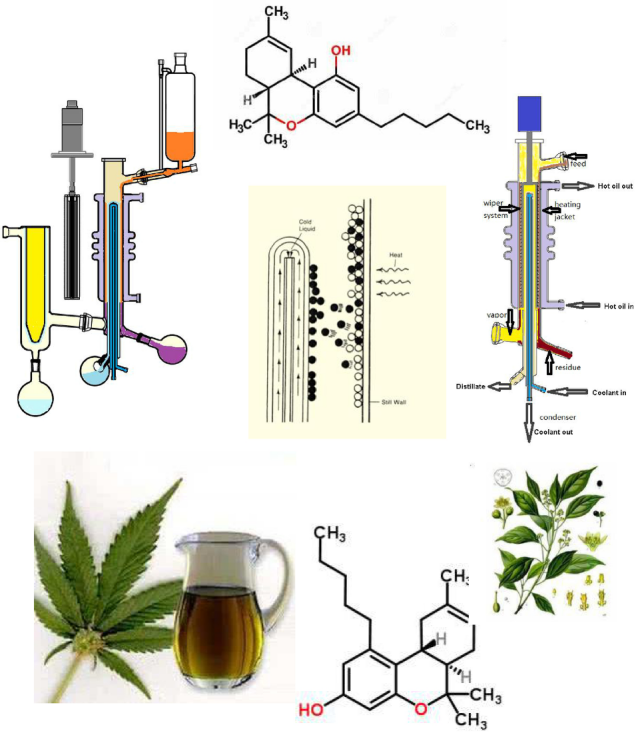

Thin Film Evaporator is a special liquid-liquid separation technology, which is different from the traditional distillation by boiling point difference separation principle, but by different substances molecular movement of the average free path difference to achieve separation.
Thin Film Evaporator Short Path Molecular Distillation
*All Borosilicate 3.3 glass design for a perfect view on the separation process.
*Short residence time(separation is finished in seconds, instead of hours.).
*The very low operating pressure ensure very low distillation temperature and therefore a very gentle distillation is possible.
*Various size options(60mm,100mm,150mm) for different throughput).
*Turkey package which is plug-and-play, technical supports available.
*The system can be upgraded for continuous distillation process.
*Industrial grade(>=200mm) products are available upon request.

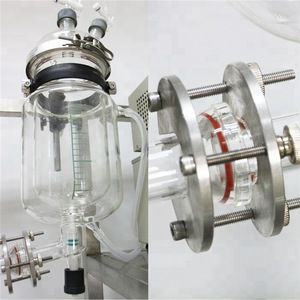

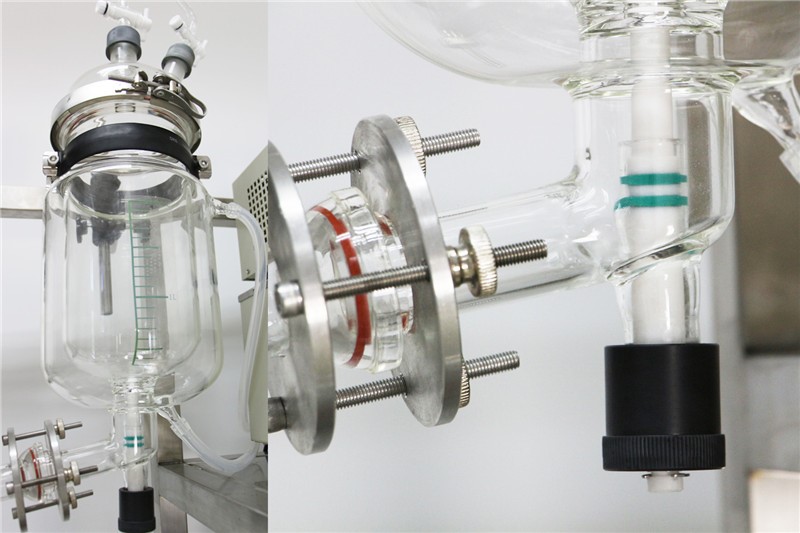

Feeding System
*Jacket designing
*Multiple entry of material
*High Borosilicate glass 3.3
*Feed insulation system available

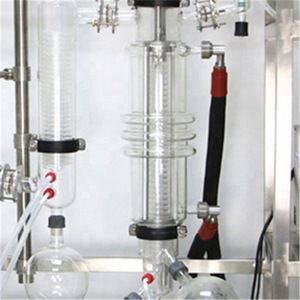

Short path evaporator with internal condenser

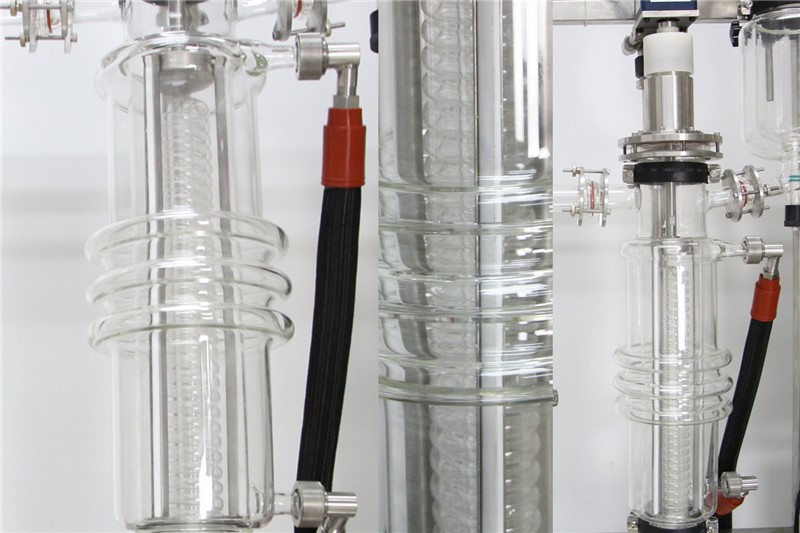

*Made of high Borosilicate glass 3.3 easy for viewing multiple entry of material
*PTFE blades, which is high temp resistance and anti-corrosive

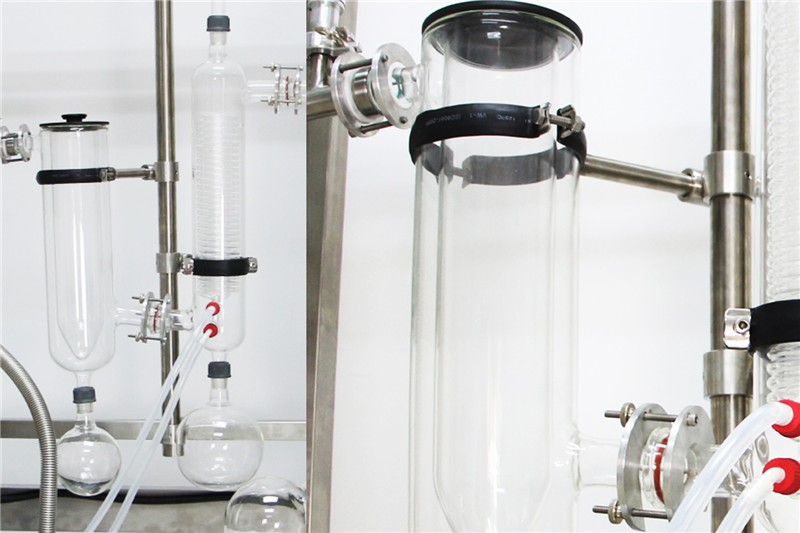

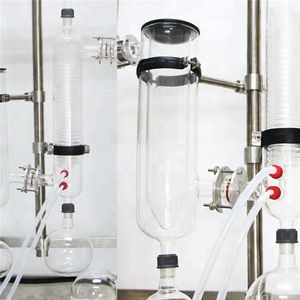

Cold Trap

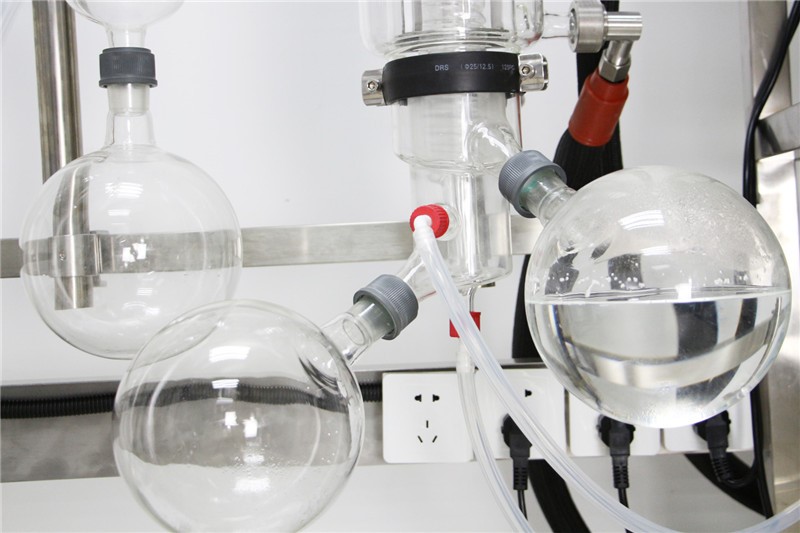

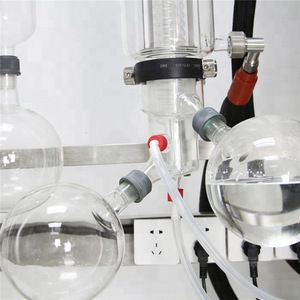

*The main components are fabricated in Borosilicate glass to enable observation of product properties like foaming, fouling and film distribution on the heated shell during distillation.
Receiving System
*The receiving system can be upgraded for non-stop operation.

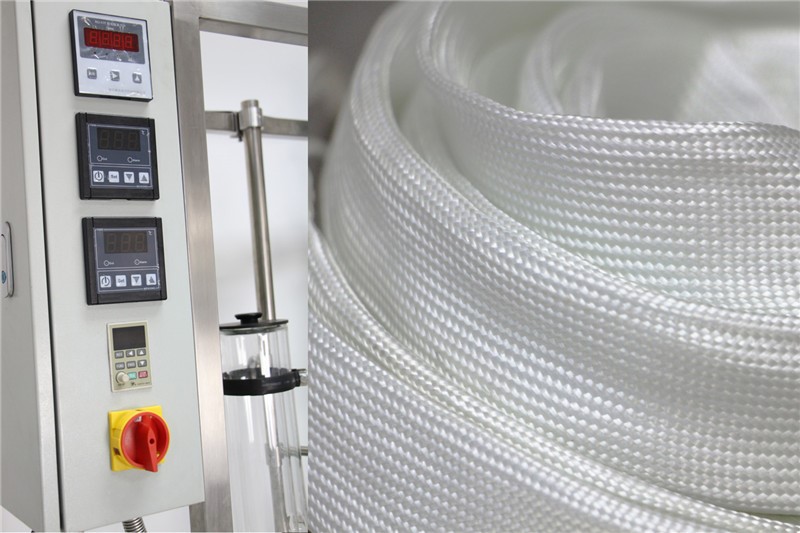

Controller Console
*VFD controlled stirring motor with digital speed disply.
*High accuracy vacuum display to monifer the pressure during operation.
*Temperature controllers for heating the inlet/outlet pathways and keeping liquid moving.
| Model | MD-060 | MD-080 | MD-100 | MD-150 | MD-200 |
| Effective evaporation area (m2) | 0.06 | 0.1 | 0.15 | 0.24 | 0.35 |
| Barrel diameter (mm) | 60 | 80 | 100 | 150 | 200 |
| Feeding funnel volume（L） | 1 | 1.5 | 2 | 2 | 5 |
| Feed rate(g/hr) | 250-500 | 500-750 | 750-1500 | 1500-3000 | 3000-5000 |
| Yield at end of 8-10 hr.day | 1-3 Liters | 2-5Liters | 3-8Liters | 6-15Liters | 10-20Liters |
| Motor power (W) | 90 | 120 | 120 | 120 | 200 |
| Maximum speed (rpm) | 0-500 | ||||
| Distillate receiving flask | 1L | 1L | 2l | 3L | 5L |
| Recycle receiving flask | 1L | 1L | 2L | 3L | 5L |
| Operation Temperature | Up to 200 ℃ |

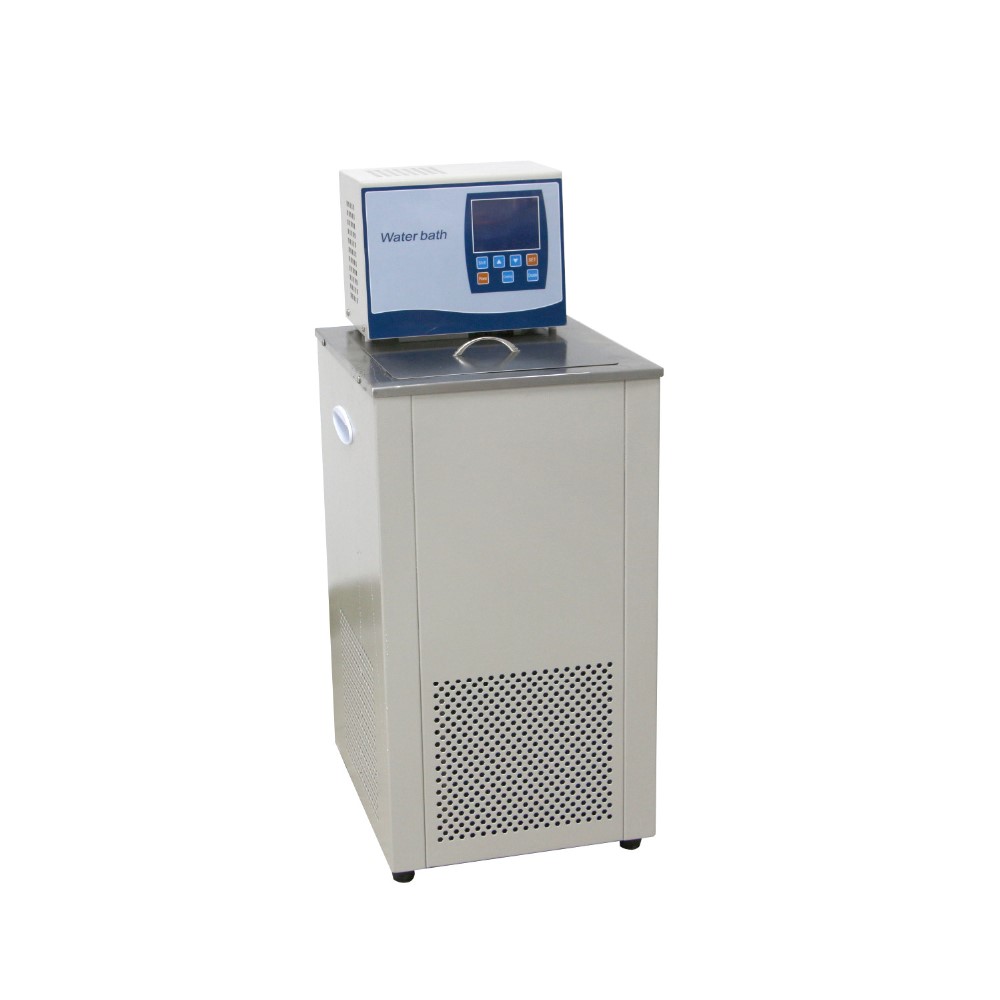

| Low-temperature cooling circulator for external condenser | |
| Model | DC-0515 |
| Reservoir Volume | 15L |
| Temperature Range | -5~95 ℃ |
| Temperature Accuracy | ± 0.1 ℃ |
| Pump capacity | Max:6 L/min |
| Electricity | 220V, Single-Phase |

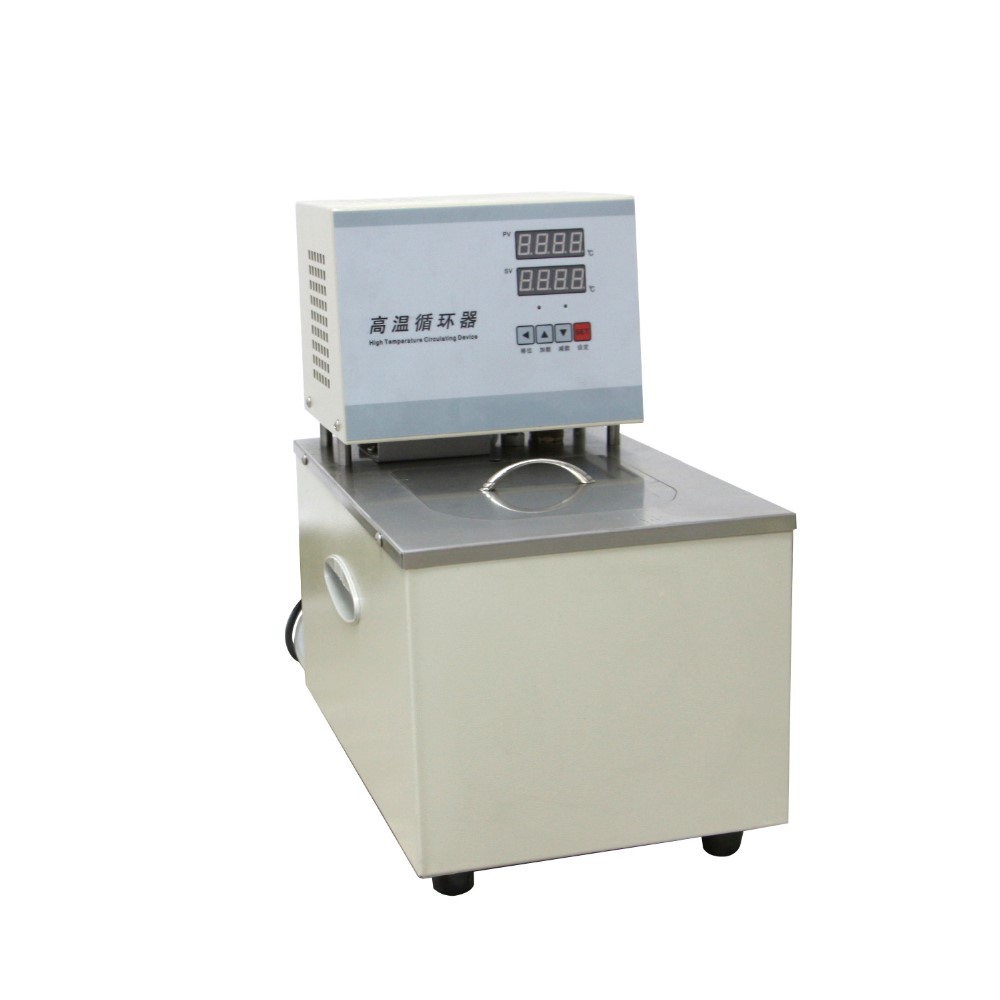

| Circulating heater for feeding system | |
| Model | GX-2005 |
| Bath volume | 5L |
| Temperature Control Range | RT~300 ℃ |
| Temperature Accuracy | ± 0.2 ℃ |
| Heating Power | 1.6KW |
| Circulate Flow Rate | 8L/min |
| Running Piping | Stainless Steel |
| Pipe with Thermal Insulation Coat |

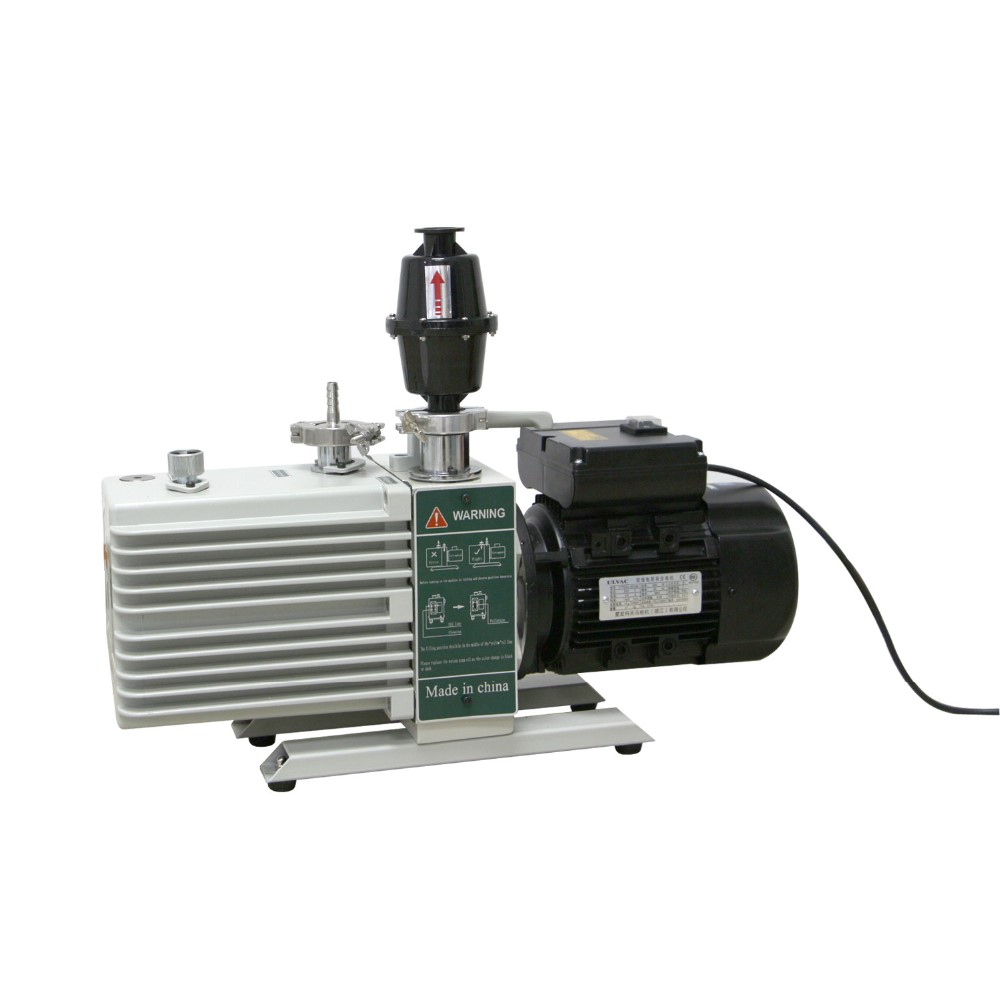

| Vacuum pump | |
| Model | YHX-16 |
| Pump speed | 9CFM |
| Ultimate.partial pressure | ≤4X10-4 mbar |
| Allowable pressure of vapor | 25mbar |
| Oil consumption | 1.5Ltr |
| Rotating speed | 1420r/min |
| Motor power | 0.55kw 0.7HP |
| Power supply | single /3-phase |
