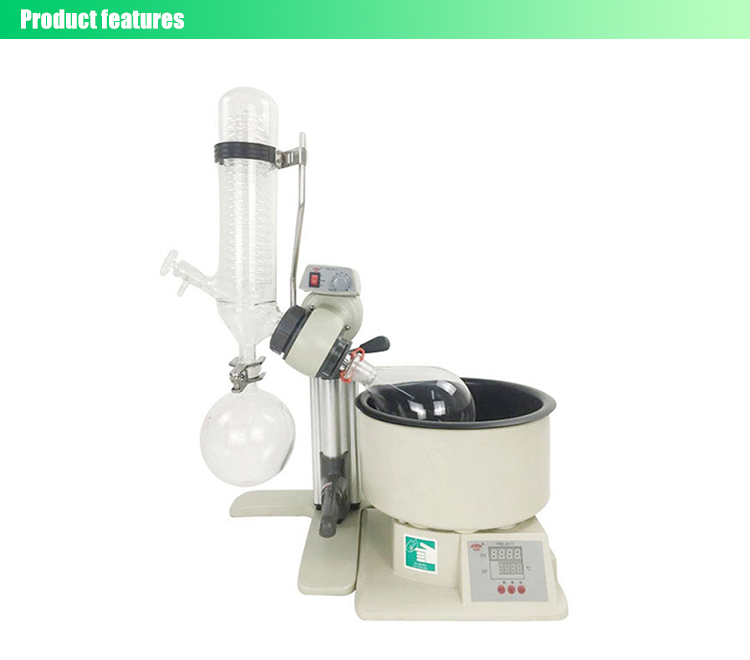

| Model | 2011 | |
| Performance | Rotating speed | 0-120rpm |
| Function | Evaporation capacity | Max25ml/min(The evaporation of water) |
| Attainable vacuum | 399.9pa(Below 3mmHg) | |
| Speed setting | Knob type CVT | |
| Structure | Safety function | Over-current protection(fuse) |
| The lifting function | Manual weight balance | |
| Motor | The output power of 25w | |

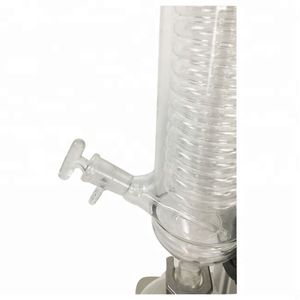

| Specification | Condenser tube | Vertical type three layer Cooling area 0.27m2 |
| Rotary Flask | 1LPear-shaped Flask | |
| Collection Flask | 1lLPear-shaped Flask | |
| The Rotary connecting shaft | Diameter 18*Long178mm(TS29/38) | |

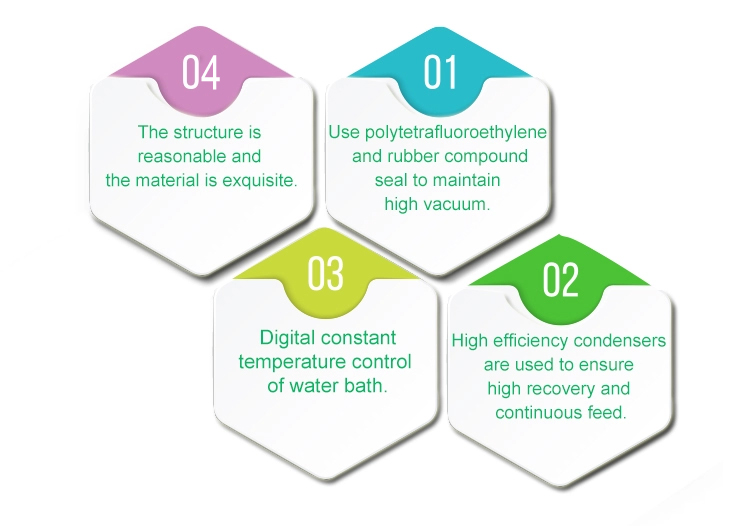

| Vacuum sealing ring | Teflon+Teflon,fluorinated rubber double sealing ring | |
| Interface diameter | The nozzle diameter 10mm | |
| The base | 450*320mm | |
| Lift stroke | 100mm+150mm(sliding lifting+manual lifting) | |
| Ambient temperature used | 5-35℃ | |
| Power | 0.16A, 35VA | |
| Rated power | 220V 50HZ | |
| Sized and shape(mm) | 480*320*910 |
Qiyu Industrial (Shanghai) Co., Ltd. is located in the Jiading District Industrial Park of Shanghai city. We have considerable experience in R&D, and have obtained the national patent. We mainly produce glass reactor, rotary evaporator, short-path molecular distillation, temperature control system, vacuum equipment and other types of equipment.
The company has strong technical force, complete production equipment, continuous absorption of advanced technology at home and abroad, and active development of new products.
We will continue to pursue the dedication of "honesty and innovation", and provide customers with perfect pre-sale, sale and after-sales service. Internationalization and standardization will transform innovation into productivity and let customers to use synchronized international products.
1,Are you a manufactury or a trading company?
-We are a manufactury of a rotary, glass reactor and heating and cooling equipment and now we begin to import and export by ourselves.
2,How long is your date of delivery?
-If the goods are in stock,it is within 7 days. However, it will be 15 days. Also it is depending on the quantity.
3,Do you accept OED/ODM?
--Yes, of course.
4,How to solve the equipment trouble during the using?
-Please send us email of the problem, pictures or a small video, we will find the problem and help you to solve it.
5,What is your MOQ?
-One set.
6,What size of the products do you have?
-Our regular products are 1L,2L,5L,10L, 20L,30L,50L,100L,200L and custom product models are based on different specifications.
7,Do you provide samples? Is it free?
Yes, but considering the high value of our products, so the sample is not free.
