Multiple effect tubular evaporator,
Multiple-effect film-falling evaporator concentrates!!!
BRIEF INTRODUCTION
Multiple-effect film-falling evaporator concentrates the solution by means of vaporizing the thin solution through film-falling principle. It introduces continuous production and it features in high concentration ratio (1/5-1/10), large viscosity scope (400CP), good heat-transferring effect, large processing capacity, etc. In this case, it can be introduced on vaporizing materials which are of high heat sensibility, high concentration, high viscosity, and corrosive characteristics. Therefore, it is widely used for concentrating corn slurry, glucose and maltose in starch industry, juice and MSG liquid in food industry, milk liquid in dairy industry, as well as lees filtrate in alcohol industry.
PRODUCT ADVANTAGES
- This equipment is of higher heat-transferring ratio, so the heat difference requested is small.
- It can be combined into double, triple, quadruple, or quintuple-effect evaporating system on the basis of different materials characteristics and evaporating results.
- It can be used as waste-heat evaporator with the resources of waste steam from bundle dryer, disc dryer or other heat resources with low thermal value such as condensate steam.
- Raw steam consumption can be greatly reduced for energy saving.
- It is economically beneficial when waste steam can be completely used and raw steam is saved.
DRAWING & 3D DESIGN
SPECIFICATIONS AND PARAMETERS
| MKTE-3 | MKTE-4.5 | MKTE-6 | MKTE-9 | MKTE-12 | MKTE-15 | MKTE-20 | |
| Evaporation (Kg/h) | 2500-3000 | 4000-4500 | 5000-6000 | 6000-9000 | 9000-12000 | 12000-15000 | 15000-20000 |
| Raw Steam Consumption (Kg/h) | 900 | 1150 | 1500 | 1900 | 3200 | 3600 | 4200 |
| Current Vacuum Degree (MPa) | |||||||
| 1st Effect | 780 | ||||||
| 2nd Effect | 300 | ||||||
| 3rd Effect | 120 | ||||||
| Temperature (°c) | |||||||
| 1st Effect | 96 | ||||||
| 2nd Effect | 74 | ||||||
| 3rd Effect | 51 | ||||||
| Steam Pressure (MPa) | 0.6-1.0 (absolute pressure) | ||||||
| Inlet DS Content (%) | 25-28% | ||||||
| Outlet DS Content (%) | 72-79% |

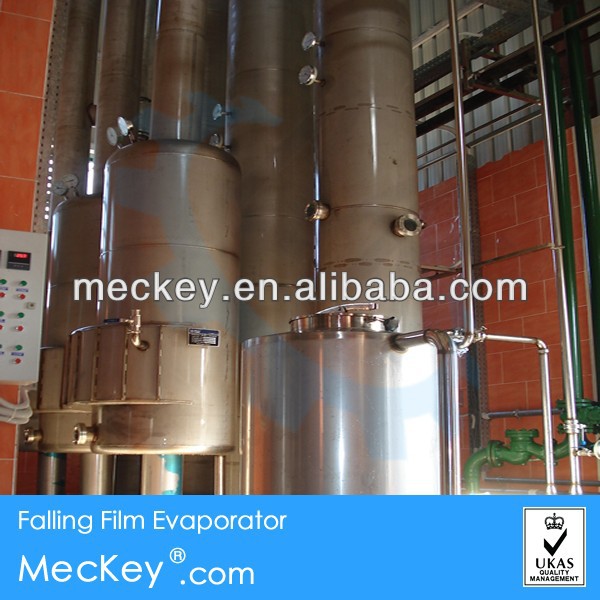

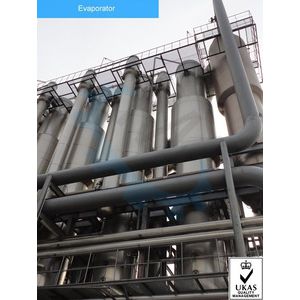

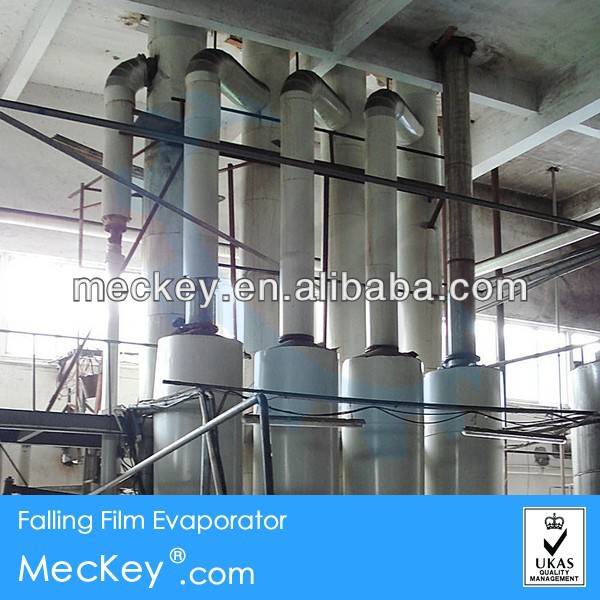

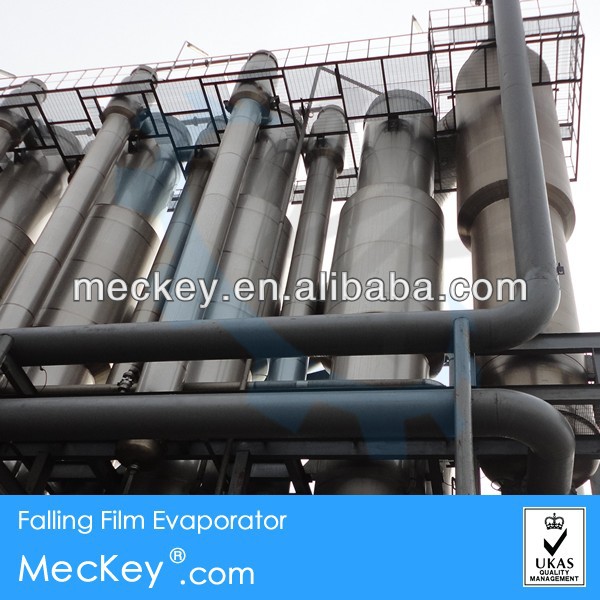

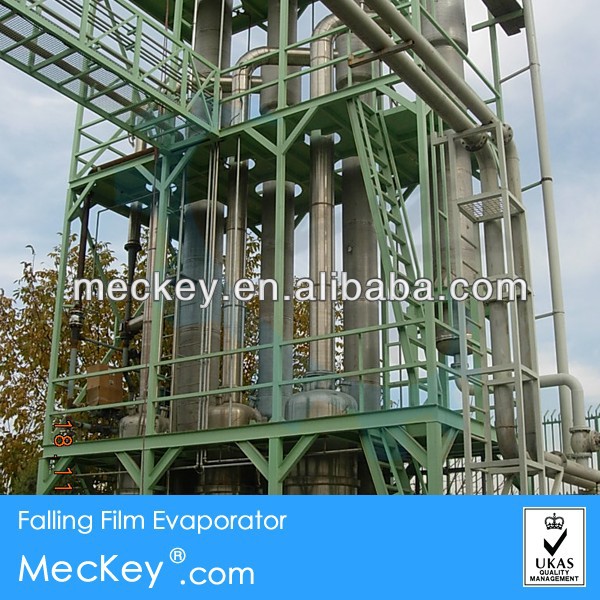

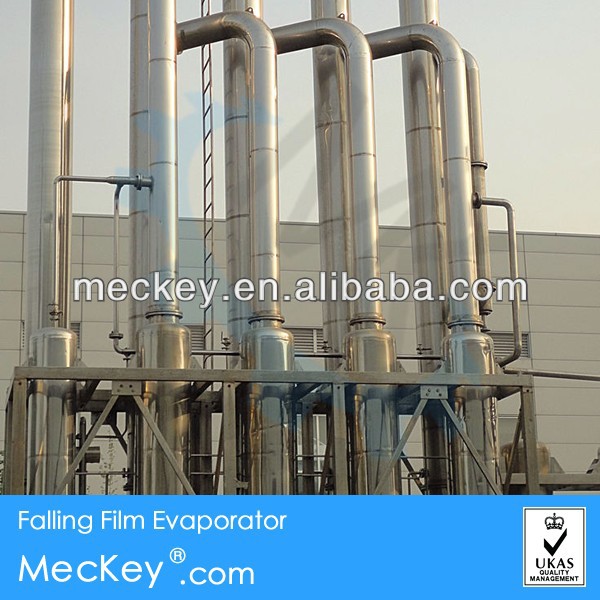

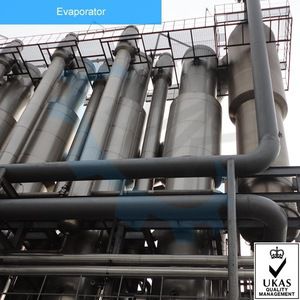

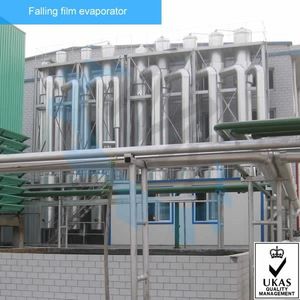

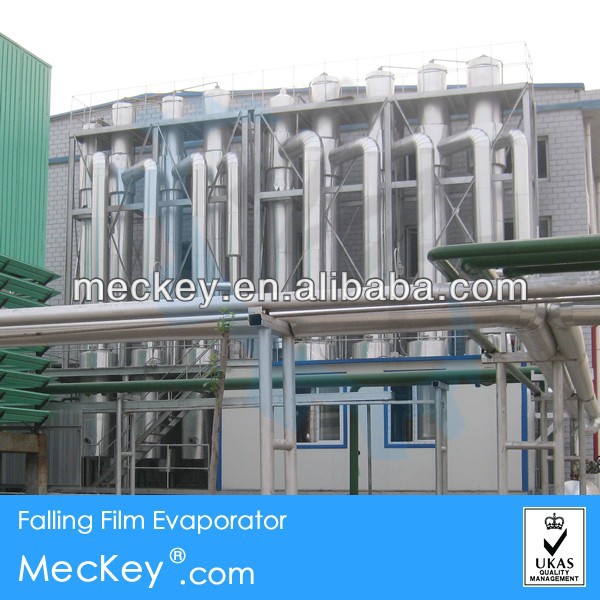

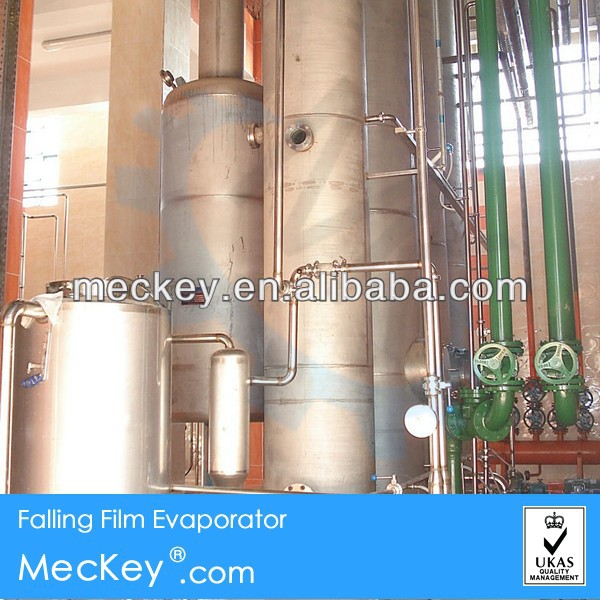

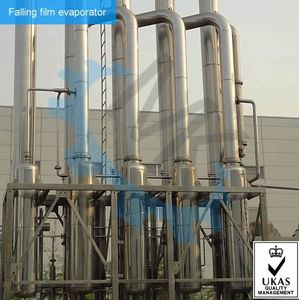

PPRODUCT SHOWCASE
More info pls feel freely to contact with our team!
