Multiple Effect Vacuum Thin Film Distillation Rotary Evaporator Price
Introduction:
Rotary evaporators, also called "rotavaps" in lab slang, are used to remove solvents from reaction or extraction mixtures, the process of reducing the volume of a solvent by distributing it as a thin film across the interior of a vessel at elevated temperature and reduced pressure. This promotes the rapid removal of excess solvent from less volatile samples. They are found in almost every organic laboratory. the primary use of a rotovap is to dry and purify samples for downstream applications.
Applications:
Flavor extraction/food industry
Solvent removal/separation and recycling
Chemical/educational/fuel/environmental
Sample concentration
HPLC and natural product sample prep
Drying down powders (using test tube adapter)
Trapping hazardous waste liquid

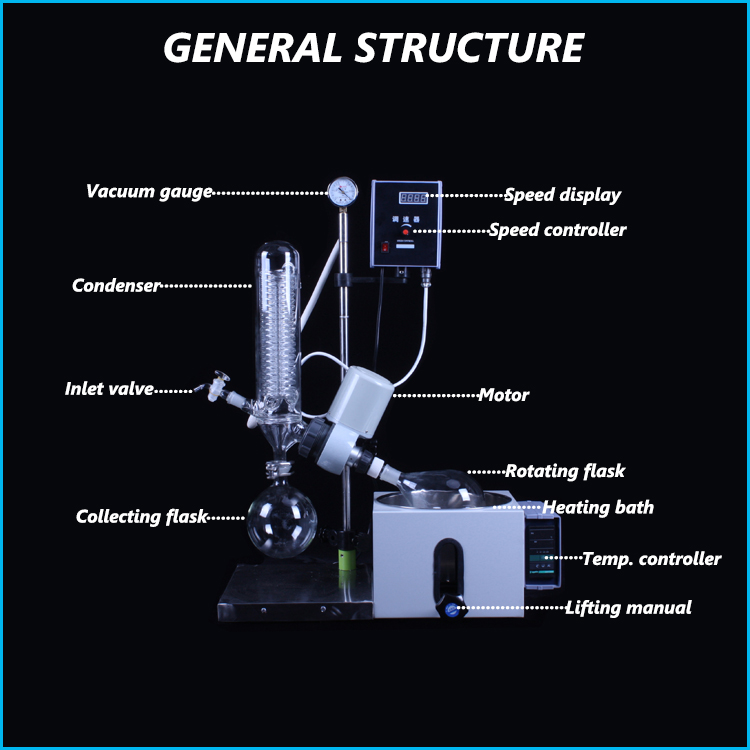

Detail Show of Thin Film Distillation Rotary Evaporator:

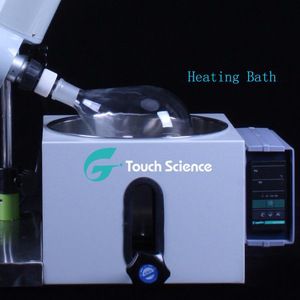

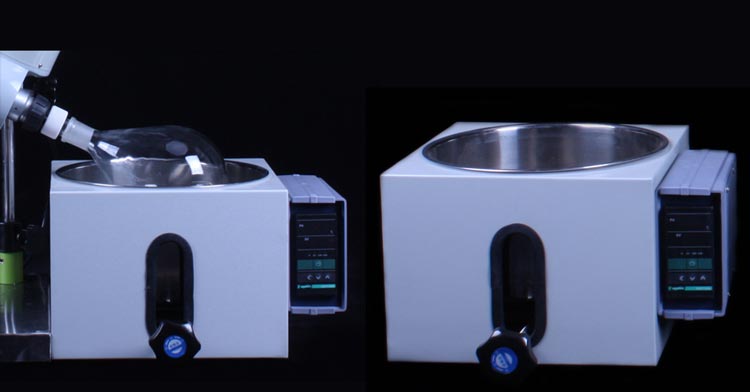

The Heating Bath:
Material: Stainless steel inner bath container, Spray anti-corrosion steel bath shell
Parameter: Inner size: 250*140mm, Heating power: 1.5KW, Temp. range: 0-400℃
# Optimisation of Intelligent temperature control and heat transfer
# Fully enclosed heating, constant temperature, efficient and durable.
# More homogeneous distribution of temperature achieved in the heating bath and evaporation flask.

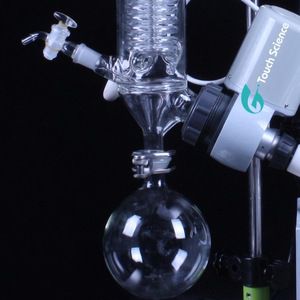

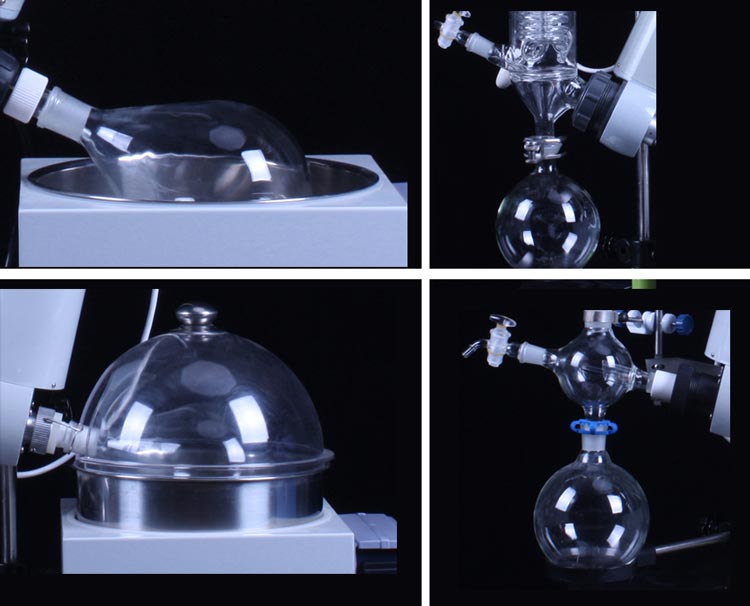

The Flasks:
Material: GG17 high borosilicate glass and PTFE teflon seal.
Parameters: 1L rotating flask, 1L recieving flask. Temp. range: -100℃~400℃
# PTFE/glass liquid pathway for chemical inertness.
# Anti-pollution, Anti-corrosion, Heat-resistant.
# Easily recover the condensed liquid while maintaining low pressure
# Advantages of rotation: Increase evaporating area;The risk of boiling delay is reduced;No localized overheating; No crust formation

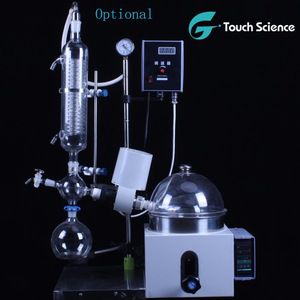

# Heat preservation splash-proof cover is optional. Double reciever cross Bottle is optional.

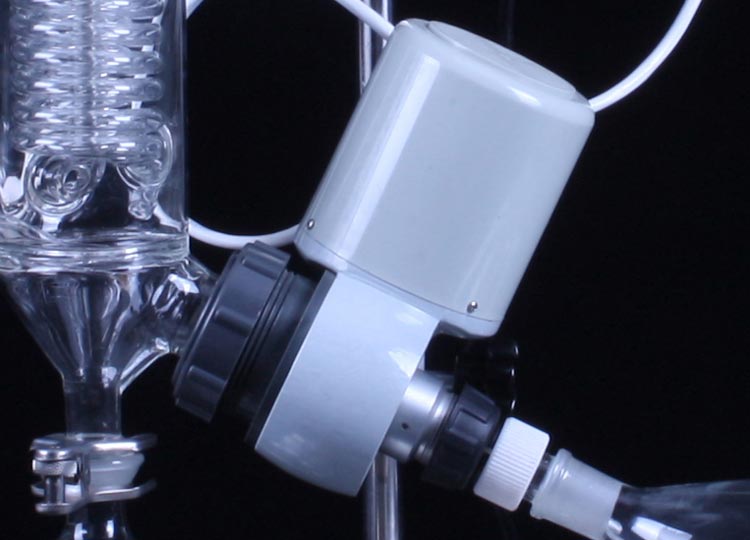

The Rotation:
Parameters: Rotating Power: 30W, Speed: 0~120 rpm.
# Quiet and low vibration. Strong force and steady rotation
# Brushless, sparkless high-torque induction motor for constant rotation.
# Explosion-proof motor optional.

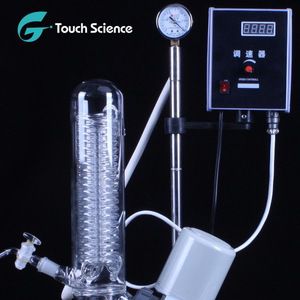

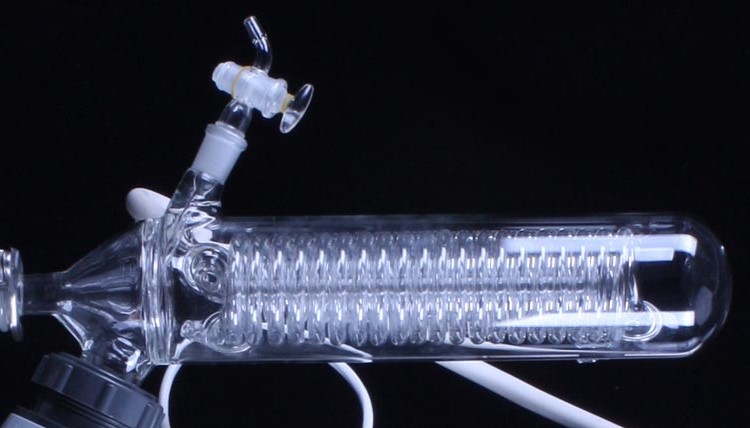

Spiral Condenser:
Material: GG17 high borosilicate glass and PTFE teflon seal. Size: 85*460mm
# The spiral coil increase surface area of the condenser to provide excellent cooling
# Better condensation effect and higher recovery rate
# V type (vertical) condenser can prevent the condensed solution to reflux into sample flask
Parameters of Thin Film Distillation Rotary Evaporator:
| Model | RE-2000 | RE-201D | RE-501 | RE-1002 | RE-2002 | RE-5002 |
| Evaporating Flask(L) | 2 | 2 | 5 | 10 | 20 | 50 |
| Receiving Flask(L) | 1 | 1 | 2 | 5 | 10 | 20 |
| Rotating Motor(W) | 40 | 120 | 180 | |||
| Rotary Speed(R/MIN) | 0~120 | 0~90 | ||||
| Bath Power(W) | 1500 | 1500 | 1500 | 3000 | 4500 | 7000 |
| Temp.Control Range | RT~99℃ | RT-399℃ | ||||
| Temp.Fluctuation(℃) | ±1℃ | ±2℃ | ±1℃ | |||
| Evaporate Rate(H2O) | ≥1L/h | ≥1.5L/h | >3L/h | >5L/h | >9L/h | |
| Max Vacuum Degree | <133pa(1.33mbar,1Torr,0.098Mpa) | |||||
| Water Bath Size(mm) | Φ230*130 | Φ240*150 | Φ280*170 | Φ280*170 | Φ450*250 | Φ550*320 |
| Condenser | Vertical Condenser | Vertical Double Condenser | ||||
| Lifting Mode | Electric | Water(Oil) Bath Mannal Lifting | ||||
| Lifing Height(mm) | 0~120 | 0~150 | 0~220 | |||
| Voltage | 220V/50Hz or 110V/60Hz | |||||
| Sealing Mode | PTFE,Fluoro Rubber Sealing |
Features of Thin Film Distillation Rotary Evaporator:
1. High level of gas tightness, high vacuum, high performance
2. Effcient flask and vapour tube ejection system
3. Modular design allow for safe and effortless ttachment and detachment.
4. Digital temperature and rotation speed displays allow to reproduce evaporation conditions very accurately
5. Each unit is also provided with an easy to use vacuum release and a continuous feed system
6. Beauty in appearance, clear number of vacuum meter.

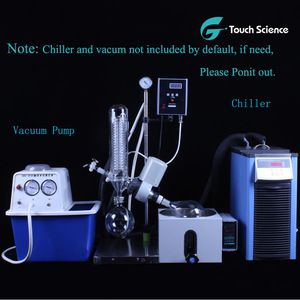

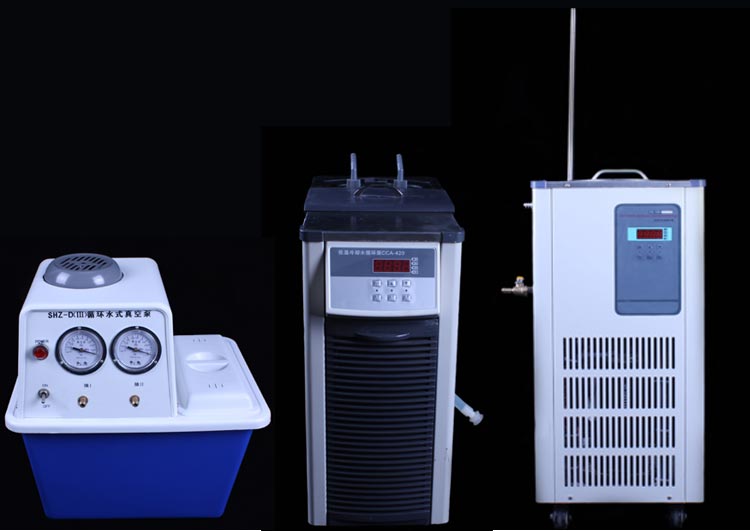

Circulating water vacuum pump: Used to provide a vacuum source
Low temperature cooling liquid circulation pump: For condensation and reducing waste of materials.
Packing:
-Thin film distillation rotary evaporator glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
-Both neutral and customized packaging can be available.
Shipping:
-Usually we ship the goods by one of three methods as below. You can choose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.
| Shipping method | Note |
| By Express | Door to door, very convenient, don't need to do customs clearance or pick-up |
| By air to the airport | Airport to airport, you need to do customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By air and dispatch | Airport to door. You need to cooperate with our shipping broker to do customs clearance and don't need to pick up at the airport. |
Henan Touch Science Instruments Co.Ltd

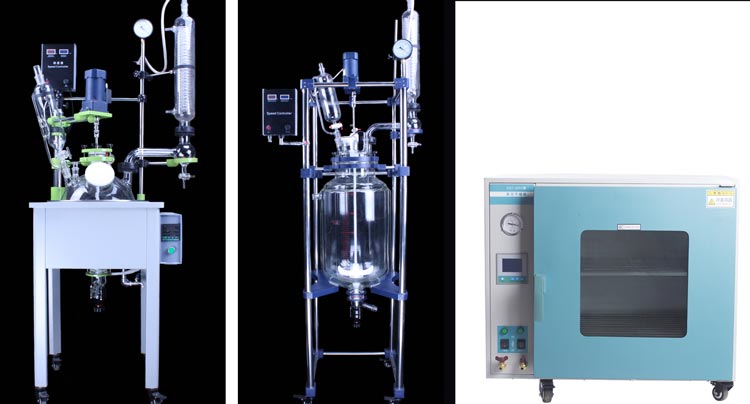

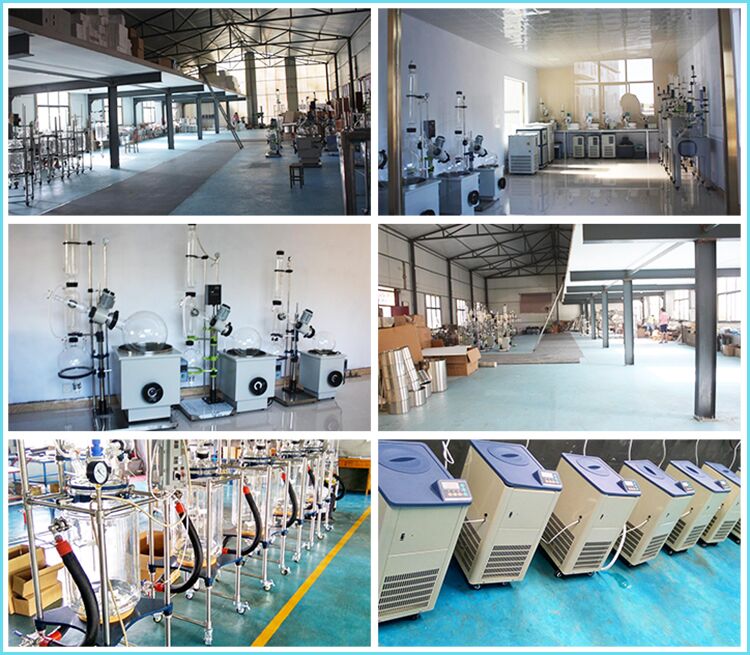

Founded and based in Henan, China, Touch Science is is a professional manufacturer and exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more than 15 years of manufacturing experience with rotary evaporator, glass reactors, drying ovens, chillers, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europe, Chile, Japan, India, etc.
