Liquefied Jet cooker

MKJC series full automatic liquefaction jet cooker is a new type of liquefaction injector, which stands a leading level of the similar products.

Technical Feature

China (Mainland)

Meckey

MKJC

Engineers available to service machinery overseas

Automatic/ Manual

3- 120 m3/h

Send Standard Inquiry

Add Inquiry List

$500~800

PRIMARY PARAMETERS

Place of Origin

China (Mainland)

Brand Name

Meckey

Model Number

MKJC

After-sales Service Provided

Engineers available to service machinery overseas

Control mode

Automatic/ Manual

Capacity

3- 120 m3/h

Inlet size

32- 200

Outlet size

25- 150

DETAIL DESCRIPTION

Product Description

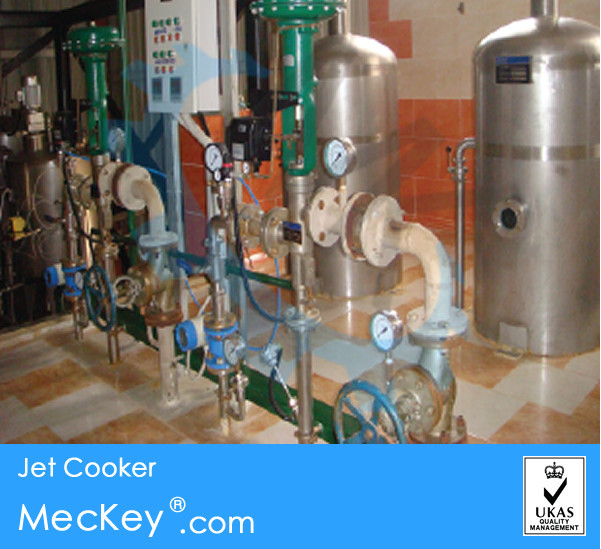

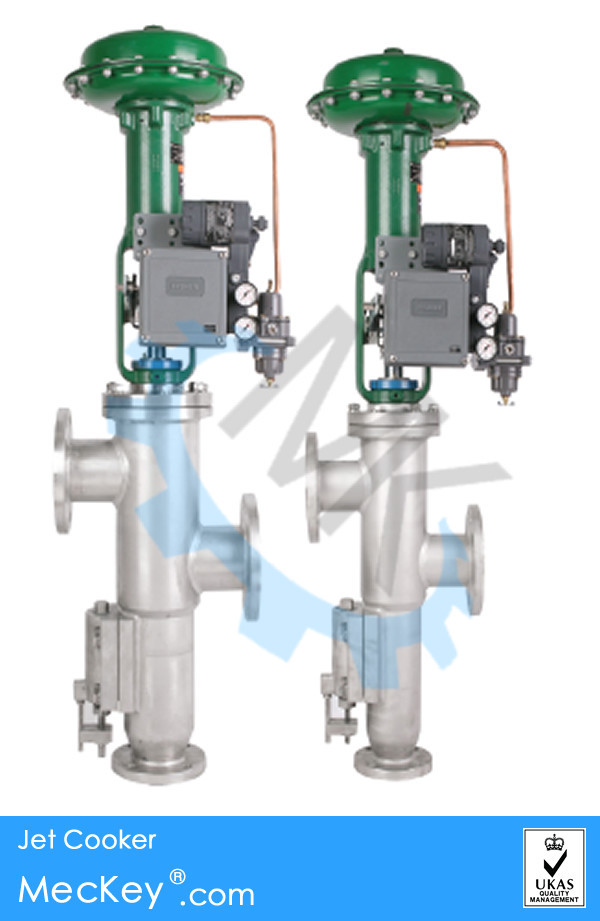

Jet cooker

MKJC series full automatic liquefaction jet cooker is a new type of liquefaction injector, which stands a leading level of the similar products. There is no rusting, no jamming in it . In the steam pressure over than 0.5Mpa, the starch can be liquefied by the jet cooker completely, high liquefied substrate concentration, high steam thermal efficiency and high conversion rate of starch.

Technical Features

Heat is transferred from steam to liquid instantaneously to avoid vibrating and steam punching.

It can precisely control the flow rate of the steam by regulating the sectional area between the steam stem and nozzle.

Mixing tube is adjustable. It can work without any vibrating. Pressure and flow rate can be adjusted, too.

It can control the temperature precisely, because there is no obstacle of heat transferring in it and lag reponding time.

It can fully make use of all the sensible heat and latent heat, so as to get almost 100% heat-transfer.

Main Technical Specification

Model	Capacity ( m³/h )	Inlet size	Outlet size	Automatic	Manual
MKJC-03	3-5	DN32	DN25	√	√
MKJC- 06	6-10	DN50	DN40	√	√
MKJC- 10	10-15	DN65	DN50	√	√
MKJC- 15	15-20	DN80	DN65	√	√
MKJC- 20	20-30	DN100	DN80	√	√
MKJC- 30	30-40	DN100	DN80	√	√
MKJC- 40	40-50	DN125	DN100	√	√
MKJC- 50	50-60	DN125	DN100	√	√
MKJC- 80	60-80	DN150	DN125	√	√
MKJC- 100	80-120	DN200	DN150	√	√

Packaging & Shipping

Packaging Details: Sea carry available packing

Delivery Detail: 2-3 months after received down payment

Our Services

C-Credit: We promise only what we can do to do our customers and keep our promise.

E-Efficient: Our work is efficient based on our qualified staff and company’s standard working

process.

E-Exact: We study your requirements and supply exact solutions to you.

S-Standard: We have standard systems to guarantee our activities to be complied with

international ones.

WE ARE WHERE YOU ARE

By choosing MecKey you are choosing the perfect long-term parter for your daily operation. Our

service network can reach you wherever you are.

Company Information

Beijing Meckey Engineering Co. is a shareholding company in the filed of engineering and construction of bio-chemical project, equipment manufacturing,technology import & export. MecKey possesses the most advanced wheat deep process technology and equipment, and the maturing production techniques of all kinds dairy products.

Welcome for your inquiry !
