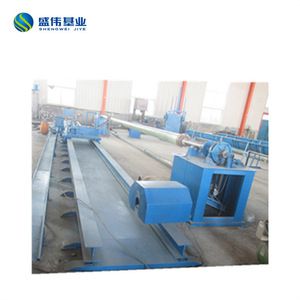

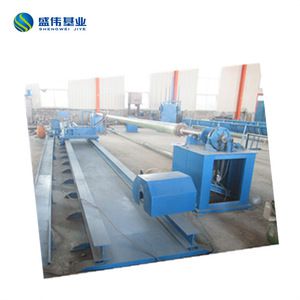

FRP cable pipe filament winding production line
Hebei Shengwei Jiye FRP Group Co.,Ltd. Is the professional manufacturer and supplier of FRP cable pipe filament winding production line in China.
This production line can produce frp lighting pole with diameter 140mm - 320mm, pole length 12m by using raw material of resin, fiberglass roving, reinforcement yarn. It require about 3 staffs to control this line.
Full set of frp pole filament winding production line consist different parts as below:

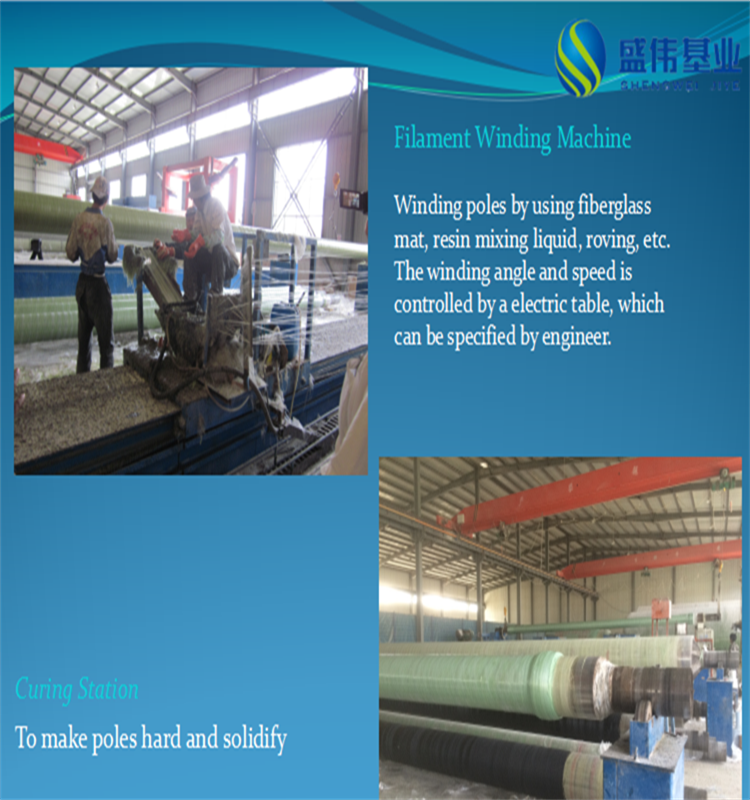

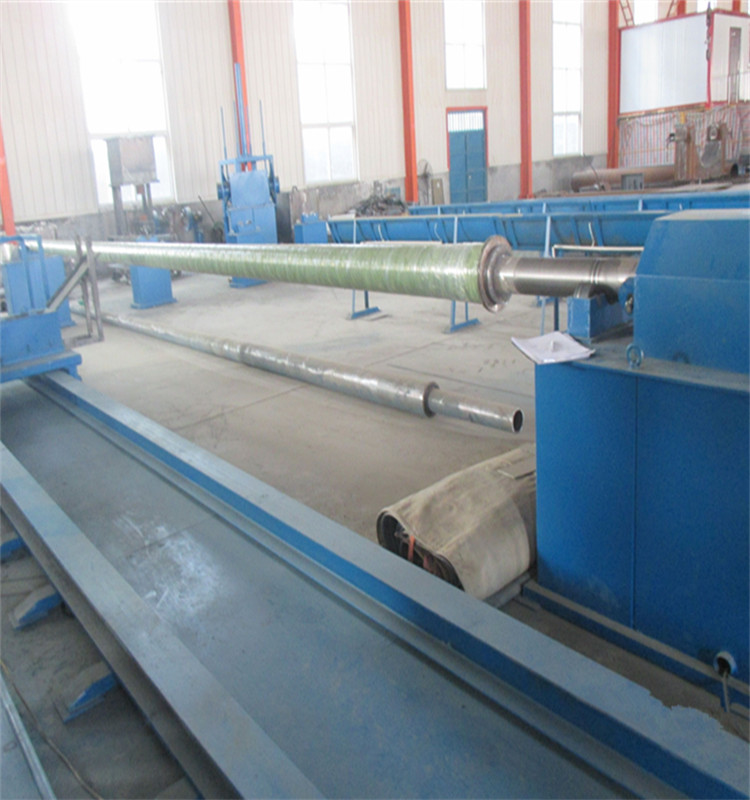

1), Filament winding machine
2), Curing station

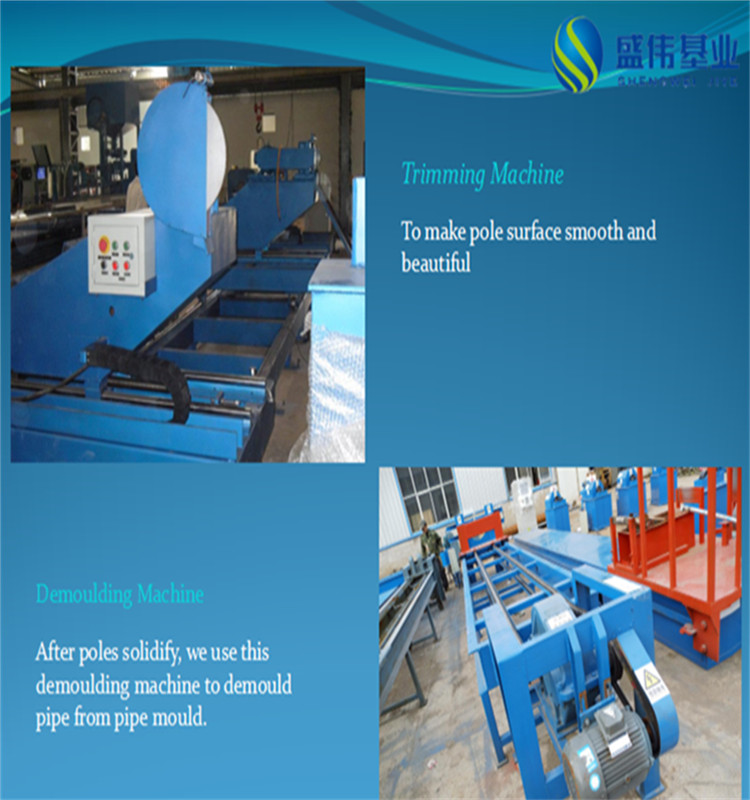

3), Trimming machine
4), Demoulding machine
5), Computer controlled system
Technical parameter
Control precise 1mm Helical winding 20°-65° (Suggested winding angle 57°)
Hoop winding without mortar Winding speed ≤120r/min Regular power supply 380V, 3 phases 50hz.
(can be customized by client's requirement.)
