High Quality FRP PVC Corrugated Roofing Sheet Production Line

for more than 20 years and has acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.

Technical Feature

  • New
  • Sheet
  • PVC
  • Single-screw
  • Automatic
  • Shanghai, China (Mainland)
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Application
Sheet
Plastic Processed
PVC
Screw Design
Single-screw
Automatic Grade
Automatic
Place of Origin
Shanghai, China (Mainland)
Brand Name
CSSCO
Model Number
CS-PC
Voltage
380v
Power(W)
300KW
Dimension(L*W*H)
40*4*4m
Weight
40T
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Name
Twin Screw Extruder
Raw material
PVC Resin
Usage
Roof Sheet
Color
Customizable
Warranty
18months

DETAIL DESCRIPTION

FRP PVC Corrugated Roofing Sheet Production Line

Product Description

1.Technical data overview

Material: PVC powder

Width: L=800mm;

Thickness: δ=0.2~1.5mm;

Output : 200Kg/H;

Use condition: 380V/3 phase/50Hz (especial require)

2.Scope of Supply

NO.Name
1JH-120/21 twin parallel extruder
2Die head
3Electrical control cabinet
                 Downstream machine:
4Three-roller calender
5Heating film coating unit
6Water roller temperature controller
7Cooling transmission bracket
8Edge cutting unit
9Waste edge collecting device
10Haul-off unit
11Measure length device
12Two working station winder

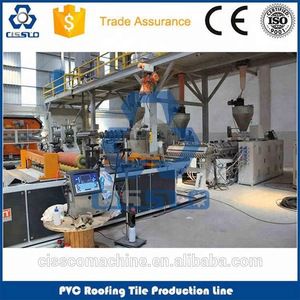

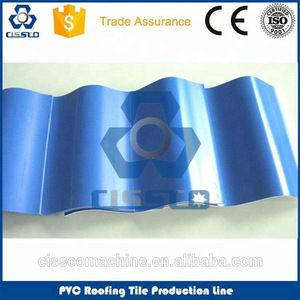

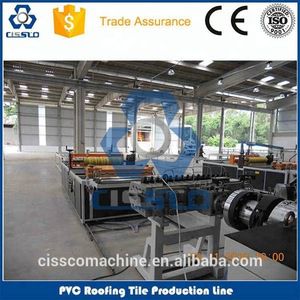

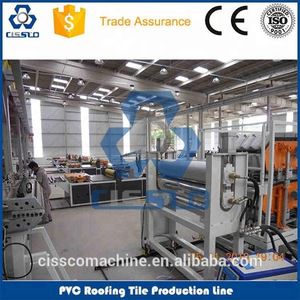

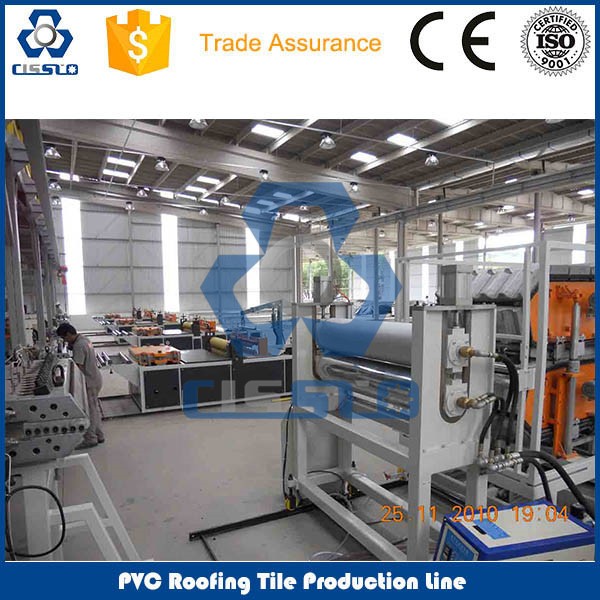

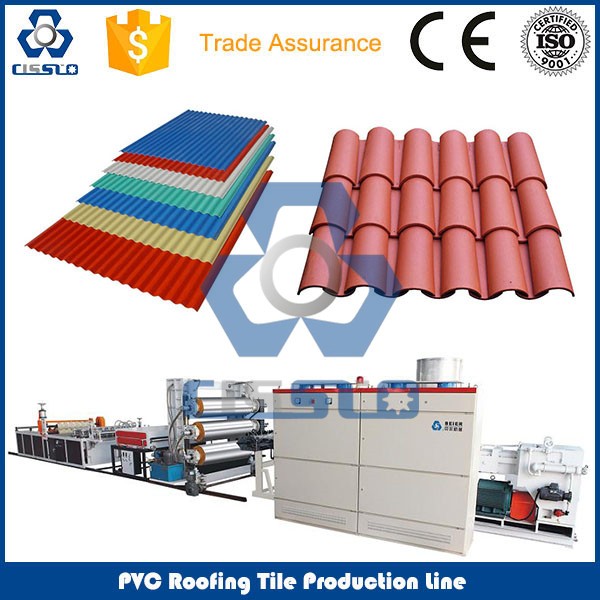

3.Pictures


Contact Me

l  Contactor: Ms. Shelley Huang

l  Skype: shelley2737

l  Whatsapp: +86 18602153584

l  Viber: +86 18918189632

l  Cell: +86 18918189632

l  Web: www.cisscomachinery.com

l  Add: No. 58, New Jinqiao Road, Pudong, Shanghai, China

Company Information

CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUDing MACHINERY for more than 20 years and has acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.


Our Services

• We design, engineer and manufacture and customized the production line for every customer.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
