Concrete pipe production line
Overview of concrete pipe production line

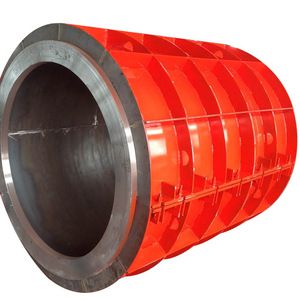

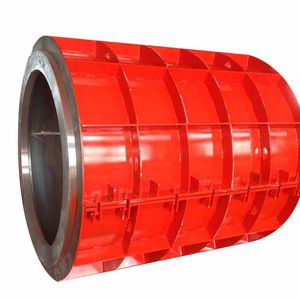

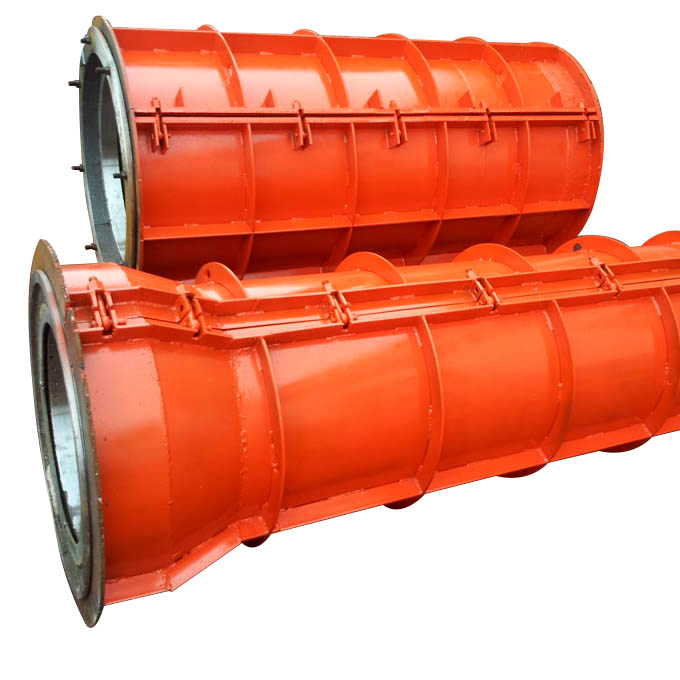

concrete pipe production line is a drainage steel mold with rigid joint, when running on the centrifugal spinning machine , it rotates rely on the friction force made by the roller and steel mold. Under the action of centrifugal force ,the concrete will be distributed to the inner of mold equally to form reinforced concrete pipe, it is a simple but useful concrete machine.
Specification :
Category: concrete pipe production line
Capacity: 2pcs per mould per day
Concrete ratio:C40
Weight:1400kg or other
Detection for concrete pipe production line
1. The deviation for the wheel edge is 2-8mm, it is convenient to put the mold to the wheels and avoid to moving .
2 .The inner diameter in cross-section is bigger 2-4mm than the diameter in vertical direction .
3. After closing the mold, the gap should not bigger than 0.5mm. If the gap is bigger,it is easy to leak or fly the cement.
4. The deviation of effective length for concrete culvert pipe is 1-3mm.
5. Inspecting all the parts to ensure no rag ,sharp edge and damage.
6. The welding gap should be plain completely without indication , the welding gap of inner mold is flat and smooth.
7. The longitudinal plate is flat with spiral plate.
8. The oil paint should be light .
9. Working test: After inspecting the mold,put the mold on the spinning machine to test, the running time is more than 15 minutes smoothly without abnormal voice.
| XG 200-600 | XG800-1200 | XG 1000-1500 | XG 4M | |
| Diameter | 200-600mm | 800-1200mm | 1000-1500mm | 300-2000mm |
| Length | 2000mm | 2000mm | 2000mm | 1000-4000mm |
| Power of Motor | 15kw | 45kw | 90kw | 110kw |
| Capacity | 10-15Pc/h | 8-12Pc/h | 6-10PC/h | 6-8pc/h |
| Labor demand without feeding machine | 4-5 | 4-5 | 4-5 | 4-5 |
| Labor demand with feeding machine | 3-4 | 3-4 | 3-4 | 3-4 |
| Joint | Plain,socket and spigot ,male and female | Plain,socket and spigot ,male and female | Plain,socket and spigot,tongue and groove | Plain,socket and spigot,tongue and groove |
Different Machines with Different Package, Plastic and Thick Paper, Wooden Box etc.
1.Complete production line supporting machines and all necessary accessories with high performance and good quality;
2. Free Service of plant structure design and layout plan drawings and other necessary construction drawings and guidance of construction work,office, warehouse etc and related drawings according to customers’ requirements.
3.Installation and commissioning of all production machines as well as the workers training
Shandong Haiyu Industry Co.Ltd is a Chinese supplier and manufacturer producing concrete pole machines and concrete pile machines and concrete pipe machine .Our company provides complete set of production line equipment of drainage pipe/culvert pipe/electrical pole. And can be customized according to the standards of the world .Our products have passed certification of International Quality System.
