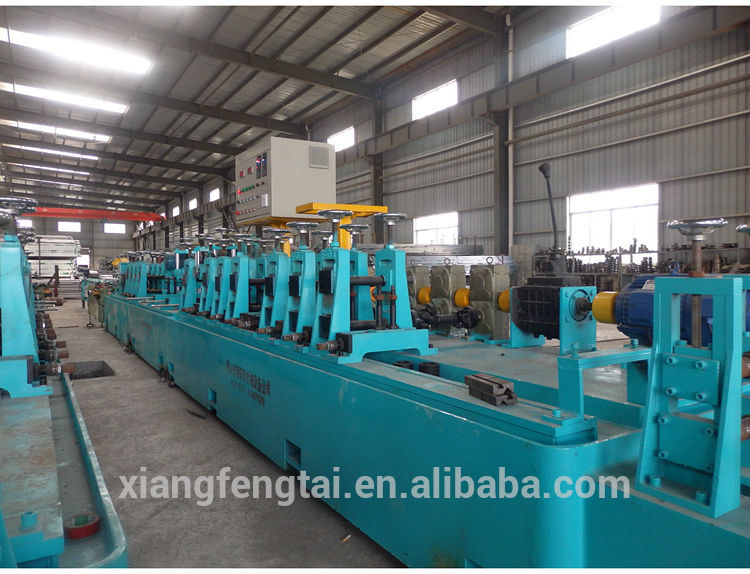

precision stainless steel pipe production line
Making pipes of decorative purpose or industria purpose
Pipe wall thicknes: 0.5-5.0mm
Pipe outside diamete: 8-219mm
Brief introduction:
Stainless Steel Pipe Welding Machines are designed to form steel strips into round, square or retangle pipes or special section tubes mostly for ornamental or industrial purpose.The pipes for industrial use require a finer inner surface leveling than for ornametal use.FOT steel pipe mills are designed and fabricated in accordance with industry-defined standards.
With improved metallurgy and welding process,the benifits of welded pipe have diminished the use of seamless tubes in many fields such as stair railing, drinking water pipes, food hygiene tubes,auto exhaust pipes,heat exchanger etc.
Process:
Uncoiling → Forming → Welding → Grinding → Straightening → Sizing → saw cutting → stacking
Line composition:
1. Decoiler

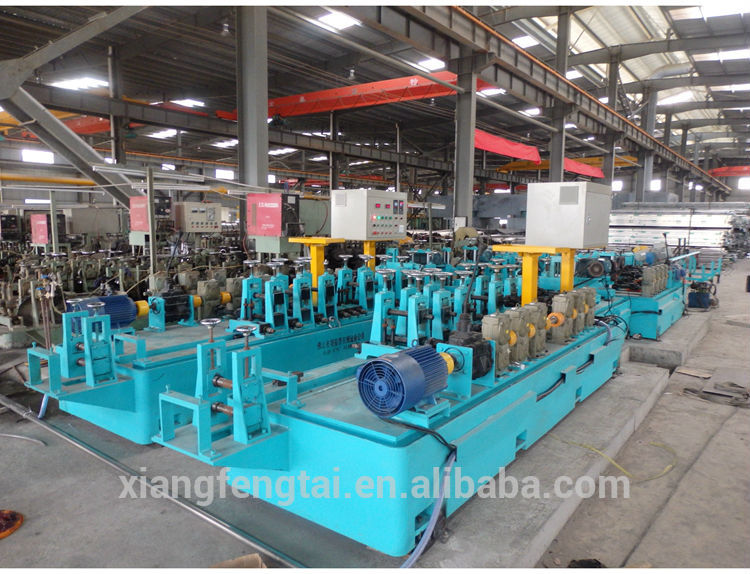

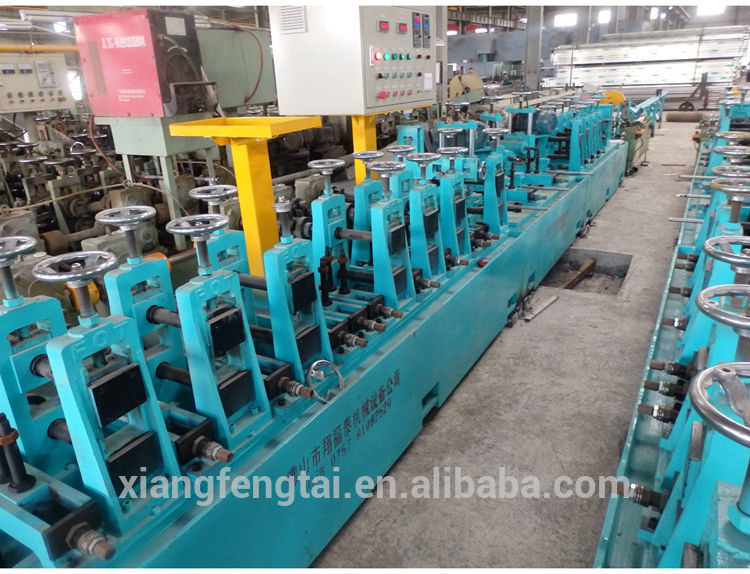

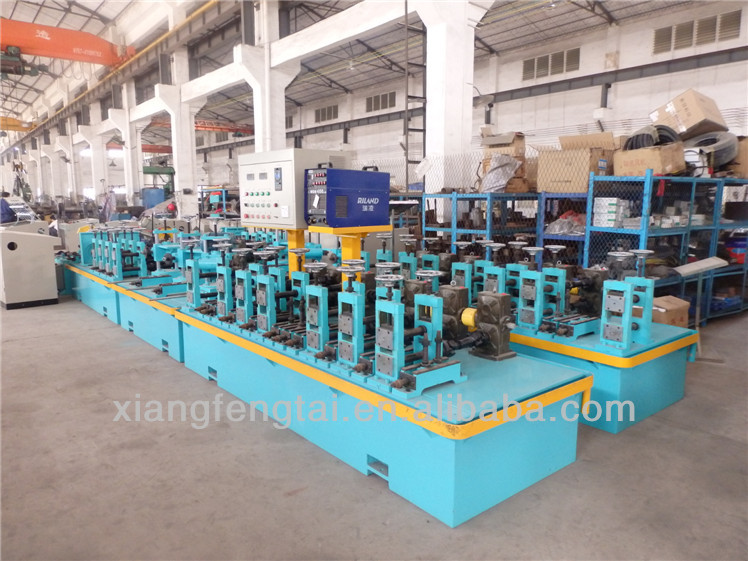

2. Forming and welding machine

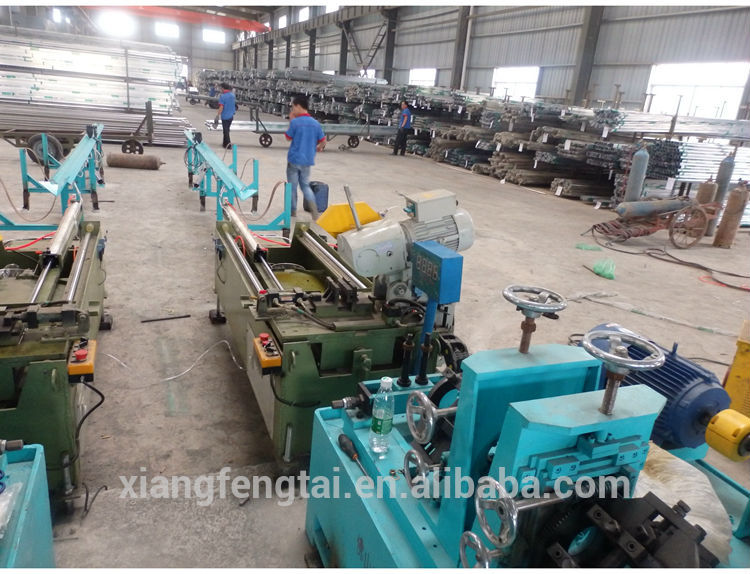

3. Grinding machine
4. Straightening frame

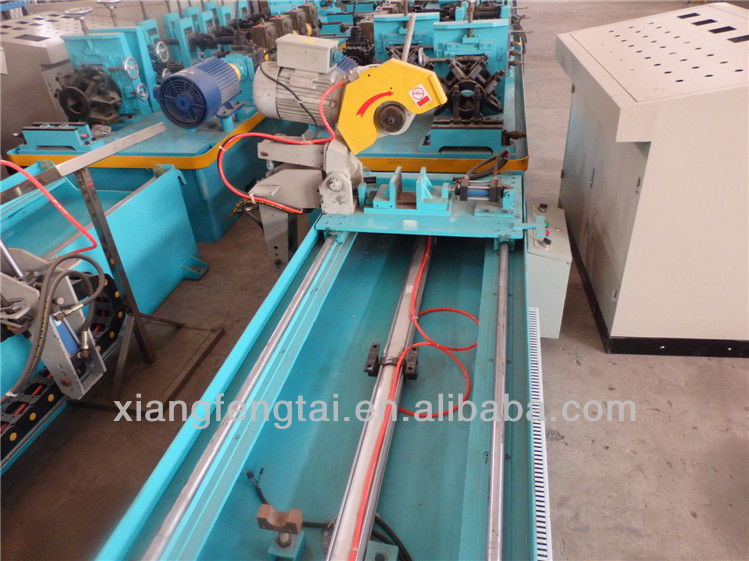

5. Cutting machine
6. Finished product stacking frame
Line speed: 1-8m/min
Argon arc welder is used for pipe wall thickness under 3mm.
Plasma welder will be used for welding pipes with wall more than 3mm in thickness
Technical parameters:
Model | Horizonal axis diameter (mm) | Vertical axis diameter (mm) | Pipe diameter (mm) | Pipe wall thickness (mm) | Main motor power(Double drive) | Line size |
FOT-40 | 40 | 25 | 8-51 | 0.5-2.0 | Front 7.5 KW | 29m×1.5m |
FOT-50 | 50 | 30 | 25-63 | 0.5-3.0 | Front 11KW | 32m×1.5m |
FOT-60 | 60 | 40 | 50-114 | 0.6-3.5 | Front 15 KW | 35m×1.8m |
FOT-80 | 80 | 50 | 89-168 | 1.0-4.5 | Front 18.5 KW | 40m×2.5m |
FOT-100 | 100 | 60 | 114-219 | 1.0-5.0 | Front 22 KW | 43m×3.0m |
