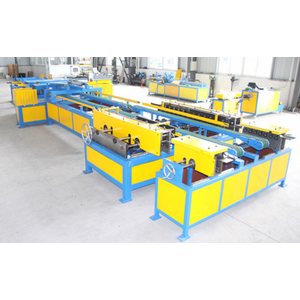

Product Application

Mainly complete coil uncoiling, leveling, embossing, Angle of attack, single and double joint mouth mouth processing, the product line covers an area of small, convenient combination, the site construction is convenient, and can be upgraded to use super four line.

Main Features

1. All rollers are made of bearing steel, with service life increased more than 5 times
2. The numerical control system adds the material saving mode, and realizes automatic discharging for each task
3. With the function of production memory, it has the function of inquiring production orders

Machine Parts

Name: plate forming

1. Common flange forming;This function is the key step of making double-sided common flange.
2. Bending forming;The last process is completed and the rectangular air duct with common flange has been formed.

Main Features

Name: Cutting forming
1. Cylinder design, powerful cutting, smooth cutting surface
2. Cut off function;This function disconnects the sheet material from the coil material for further processing.

Machine Parts

Name: cutting folding
1. SKD11 material blade.structural durabilities
2. this function can realize the edge pressing operation of sheet material and make joint Angle.

Main Features

Name: Rolling material support
1. Material selection and feeding function of coil materials;Choose 2 to 6 rolls of different thickness or material.
2. Compaction and leveling function;The function is to adjust the process before the coil material processing to prevent the production of waste.
