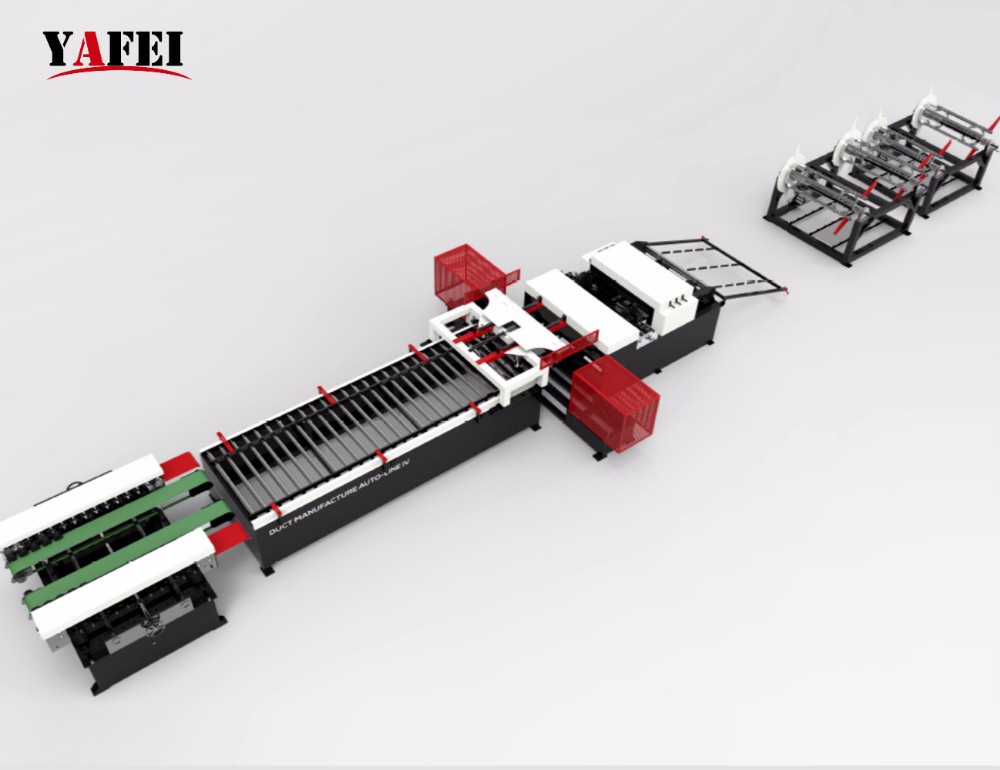

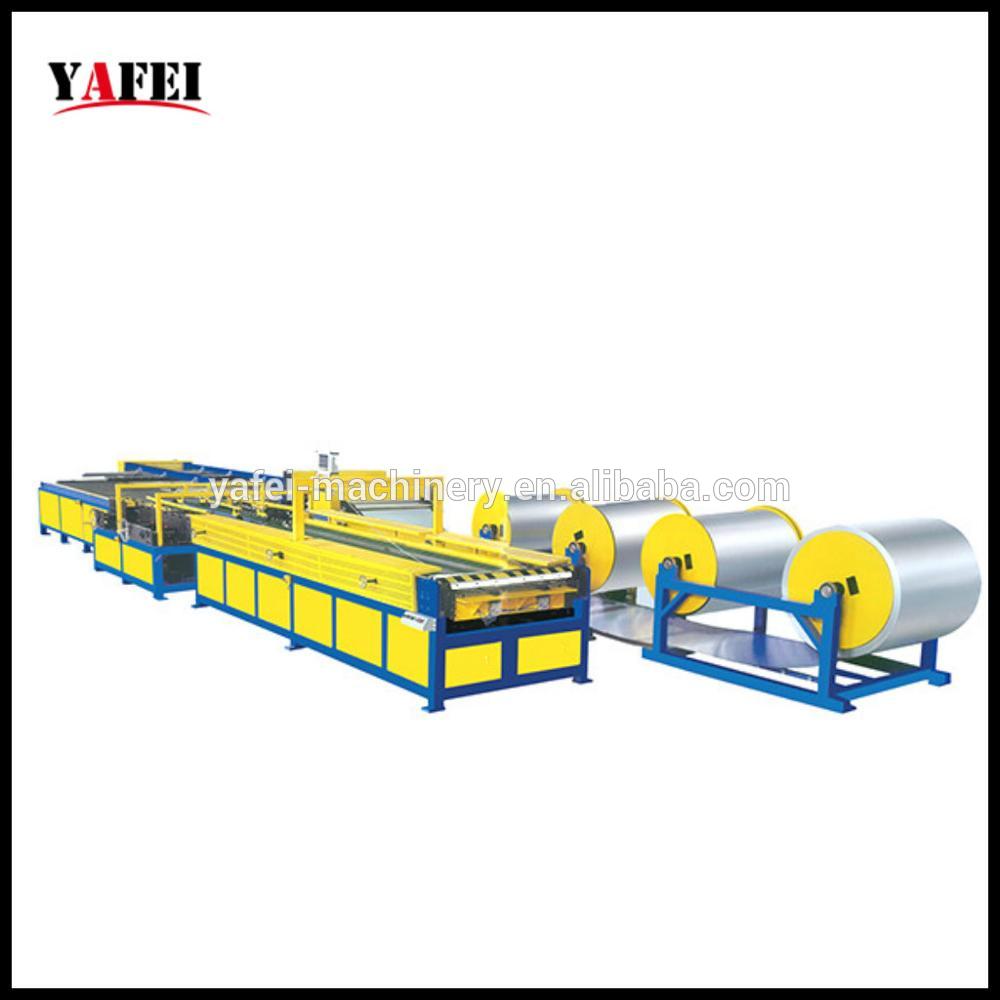

Stainless steel square tube making machine pipe production line for ventilation
Performance Features
1. The linear structure of machine makes processing smoothly and occupies a small space.
2. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
3. Under the material-saving mode of CNC system, waste is less than 20 mm per roll.
4. The locating system is very accurate with servo feeding mechanism, especially when processing square-shaped pipes.

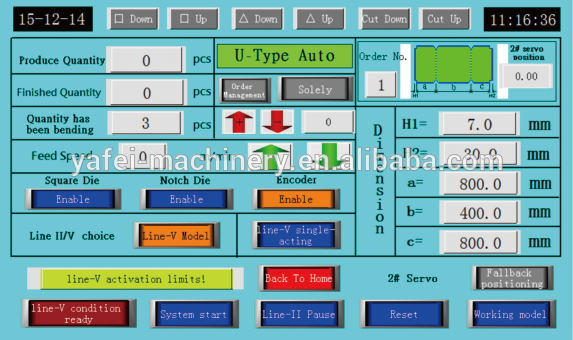

5. It's equipped with 10 inch LCD touch screen and optional dual keyboard mode to keep operation stable.
6. It requires at least one person to operate and each shift can output 600-2000.
7. With production memory functions, the production orders can be tracked and checked.
Function

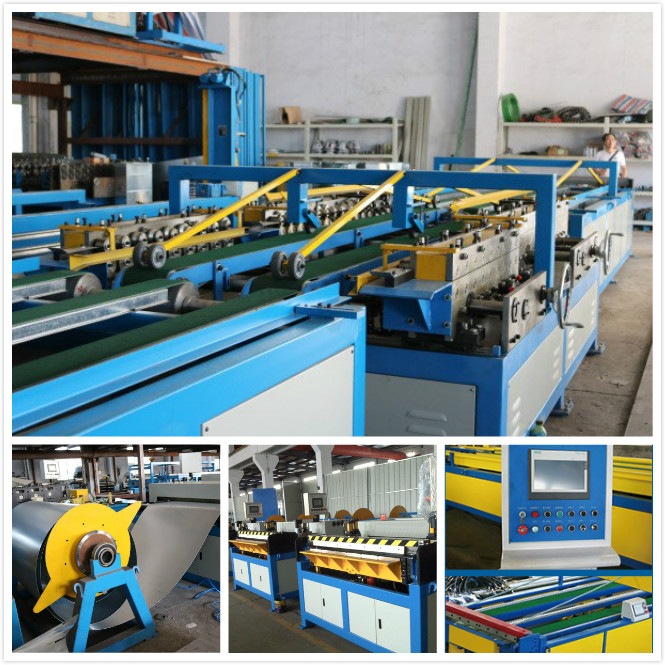

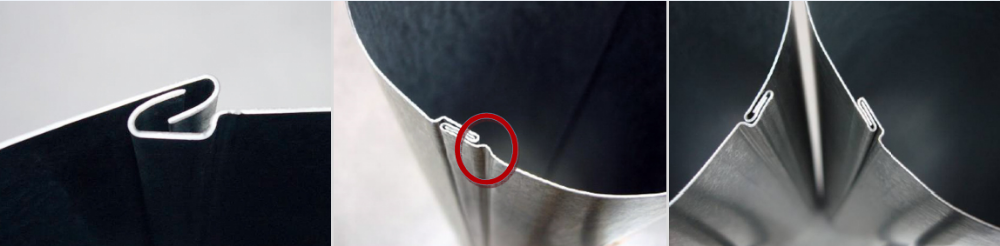

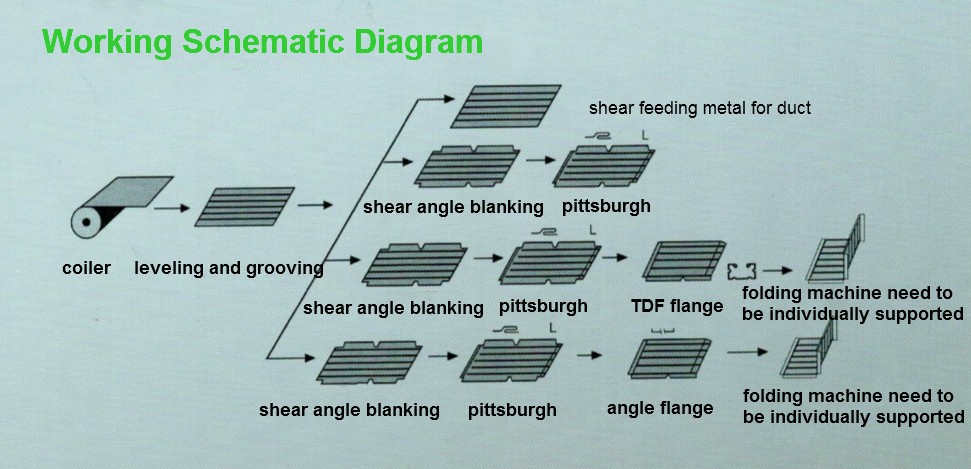

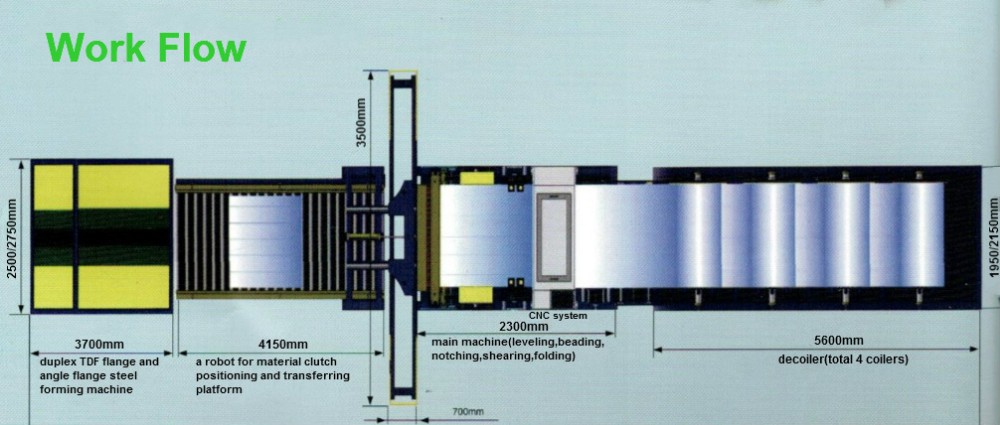

It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 600-2000 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF / angle steel / C-shaped flange and folding.
| Main Import Configuration | Basic Configuration |
| 1.Cylinder imported from Germany Festo | 1.Two electric coil cradles,4 material trays(5-7t each roll) |
| 2.Beijing Huade or hydraulic system from Taiwa | 2.One rack |
| 3.Japan Omron encoder | 3.One host(line 3 host) |
| 4.Taiwan Hiwin linear guideways | 4.One mechanical arm clutching,locating and transferring platform |
| 5.Taiwan Delta CNC system | 5.One displacement type locking machine |
| 6.One duplex TDF flange forming machine | |
| 7.One duplex angle steel flange forming machine | |
| 8.One set of computer controlling system |
Packing
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Delivery
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
ANHUI YAFEI MACHINE TOOL CO.,LTD is one of the oldest duct machine manufacturer in China, we have engaged in designing and manufacturing duct machines by ourselves for over 20 years. now our workshop covers more than 10,000 square metres. We got ISO9001:2008 and CE certification. Our products have been exported to nearly 100 countries in the rest of the world.The major products include: Auto duct line, TDF flange former, TDC flange former, Lock forming machine, Folding machine, Spiral tube forming machine, Plasma cutting machine, Round elbow making machine, Aluminum flexible tube former, Groove beading machine, Plate shearing machine, 3-roller bending machine, Section bending machine and Non-standard Roll forming Machine and Spin forming machine,etc.
Our company locates in China’ s biggest ma-chine tool, blades and dies production base--Bowang Zone, Anhui Province. With a great location merely 20km from Nanjin international airport, we are able to provide quick cargo transportation and face-face communication for customers all around the world.We are aimed at becoming a leading and respected company in Machinery industry.
Our core culture is “total commitment on qual-ity and service” .
Welcome for your kind inquiry and cooperation!

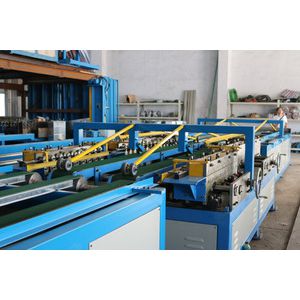

duct line 5
91.8% Response Rate
duct line 2
91.8% Response Rate

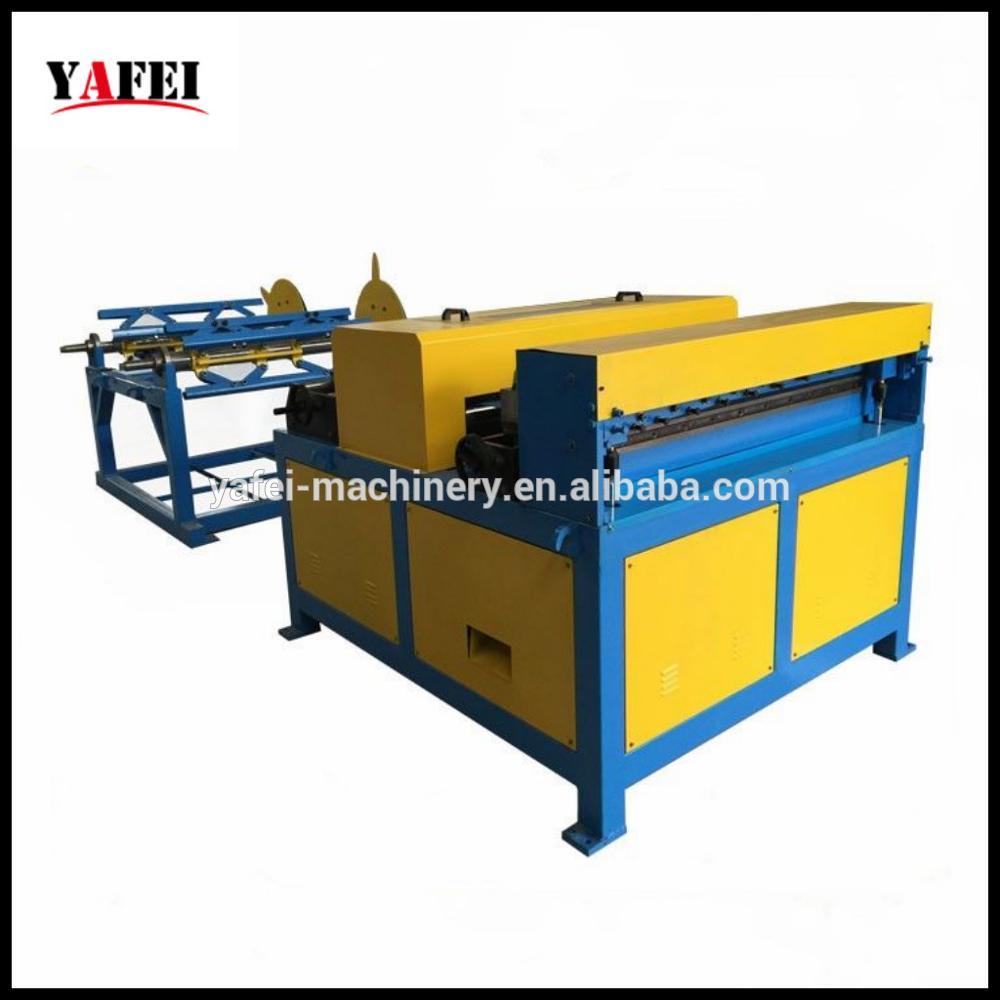

locking machine
91.8% Response Rate
Presale service
Supply item design,process design. Help you chose the fit machine. Manufacture the machine according to your and accessories.
Sale service
Acceptance of equipment together with you. Offer you help to make the operating instruction. Any other help you need.
Aftersale service
one year warranty. Free repair whole using life(without the freight and accessories charge).
