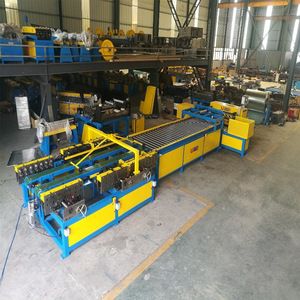

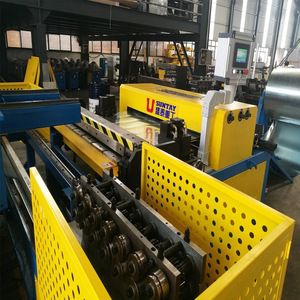

SUPER AUTO DUCT LINE 4

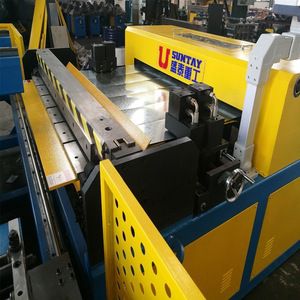

=Duplex TDF flange forming machine
+Duplex angle steel flange forming machine

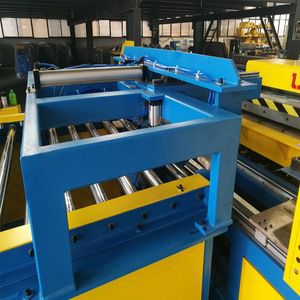

+Mechanical arm cluting, locating and transferring platform
+Displacement lock machine
+Line 3 host
+Dual racks
| Fuction | It's mainly for uncoiling , leveling, beading, punching, locking, bilateally angle steel or TDF flange forming. Because of its small space requirement and easy to install and operate, people also call it"small line 5". |
| Performance Features | 1. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 years; 2. The injection holes are used at both ends of the drive shaft, to enhance the bearing life; 3. Under the material-saving model of CNC system, waste is less than 20mm per roll; 4. With production memory fuctions, the productin orders can be tracked and checked. |
| Main Import Configuration | 1. Cyliner imported from Hermany Festo; 2. Beijing Huade or hydraulic system from Tianwan; 3. Janpan Omron encoder; 4. Taiwan Hiwin linear guideways; 5. Tianwan Delta CNC system |
| Basic Configuration | 1. Two electric coil cradles, 4 material trays(5-7tons each roll); 2. One rack; 3. One host(line 3 host); 4. One mechanical arm clutching, locating and transferring platform; 5. One displacement type locking machine; 6. One duplex TDF flange forming machine; 7. One duplex angle steel flange forming machine; 8. One set of computer controlling system. |
| Products Advantages | 1. The latest design can resovle the problems like getting stuck, too many repairs from rll-shearing displacement lock machine; 2. The three-line bending fuction can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to aviod wasting. |
1.Q: Where is your factory located ? how could we visit there ?
A: We're located at Bowang economic development zone, Maanshan of steel city. 0.5 hour to Nanjing Lukou International Airport by car, or 2 hours to Shanghai by high speed train.
2. Q: How long is your machine's guarantee time ?
A: 2 years. Main parts are made of high tool steel by special quenching treatment. With high corrosion resistance and wear resistance.
3. Q: What can you provide for after-sale service ?
A: We can send engineers to your factory to installation and training if customers reuire.
4. Q: What are your payment terms:
A: T/T or L/C. Other ways can also be acceptable after discussion and agreement.
5. Q: What's policy for guarantee and broken parts ?
A: Warranty period of equipment lasts 2 years. During which the brokern parts and spares caused by quality can be offered for free.
6. Q: What does your factory do regarding quality control ?
A: Quality is priority. We always attach great importance on quality controlling from the beginning to the very end.
7. Q: Do you have stock?
A: Yes, more than 50 piece are in stock. Machine with different color can be customized.
