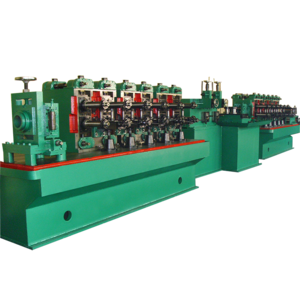

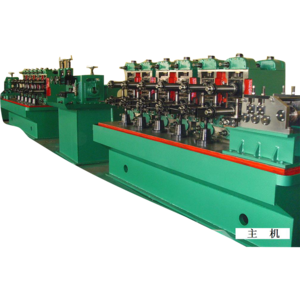

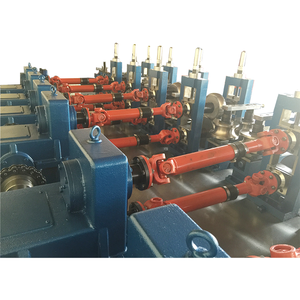

Zhongtuo Used Stainless Steel Pipe Production Line
-------------------------------------------------------------------------------------------------------------------
Basic information of used Zhongtuo Used Stainless Steel Pipe Production Line:

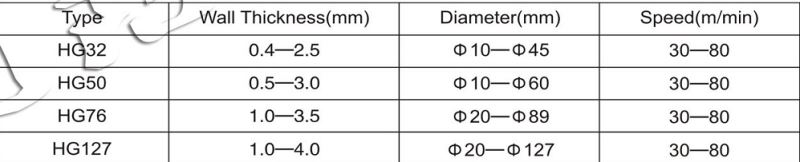

Zhongtuo Used Stainless Steel Pipe Production Line is made up of a complete set of pipe forming machine, rotating capstan, single or double decoiler, straightening machine, shearing and bead weld device, accumulator, used stainless steel pipe production line section, flying saw and packaging device. As the leading supplier of welded pipe making machines, we has extensive experience in high frequency welded used stainless steel pipe production lines. We can supply various models including HG50, HG76, HG32, HG127
Zhongtuo used stainless steel pipe production line features:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2.The quality mill is reliable in the welding seam technology.
3.The pipe produced by welded pipe mill covers most ss pipes which are currently used by build
construction.
4.Straight seam welded pipe mill shares outstanding advantages such as low production cost and high production capacity.
Working flow in chart:
Steel Strip → Decoiling → Shearing and Butt Welding → Material Accumulating → Non-Power Leveling → Roll Forming → High Frequency Welding → Removing Burrs Outside of Weld Seam → Cooling →
Sizing →Straightening→ Cut to Length → Run-out Table
Main technical parameters:
Decoliler coil inner diameter:450-550mm coil max width:300mm 3.max carrying capacity: 1500kg Usage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system |
Leveling system: Usage:Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |

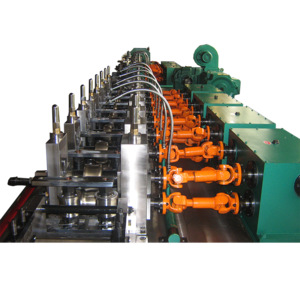

Main roller system: 1.Shaft material & rollers material & shaft diameter45# steel adjustable treatment; 45# steel, polished, plate of chrome 0.05mm; 60mm 2. power: 101kw 3. Transport; Motor; chain drive 4. Forming speed; 20m/min Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62 |
Shearing system Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12 quenched Power supply : hydraulic power Components:It contains one set of blade, one hydraulic tank and one cutter machine. |

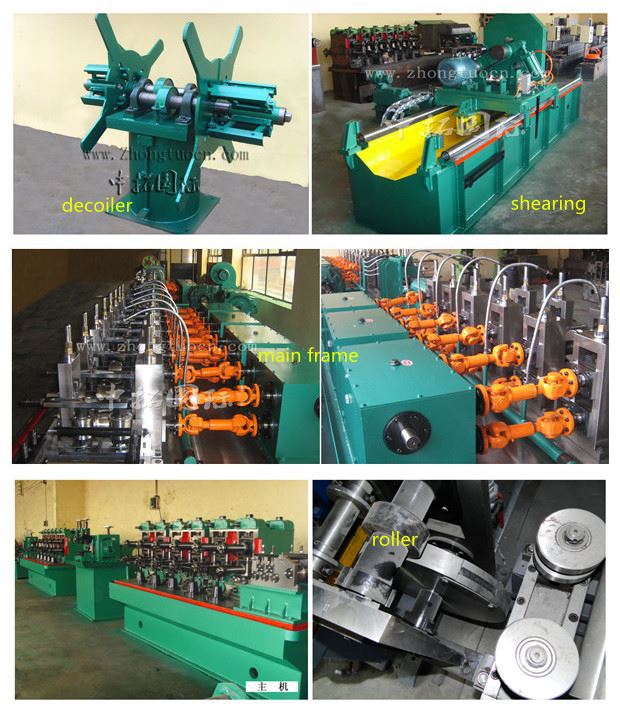

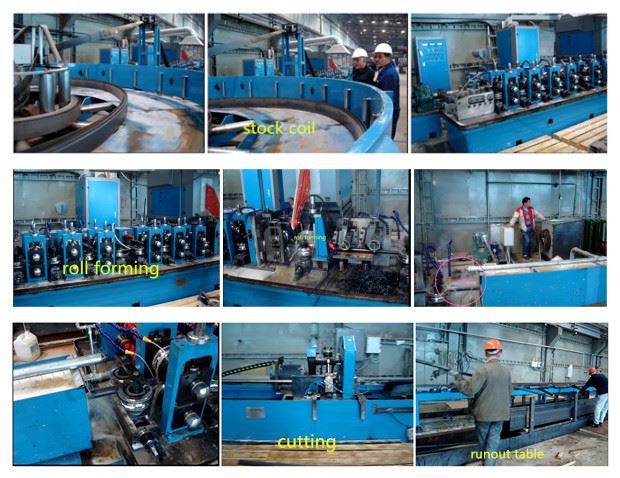

Working flow in pictures:
Check details of the machine from the following pictures:

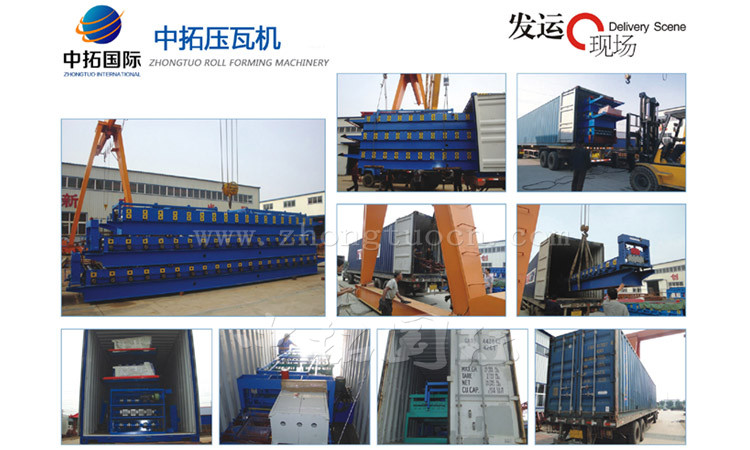

Straight welded pipe mills package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas
and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)

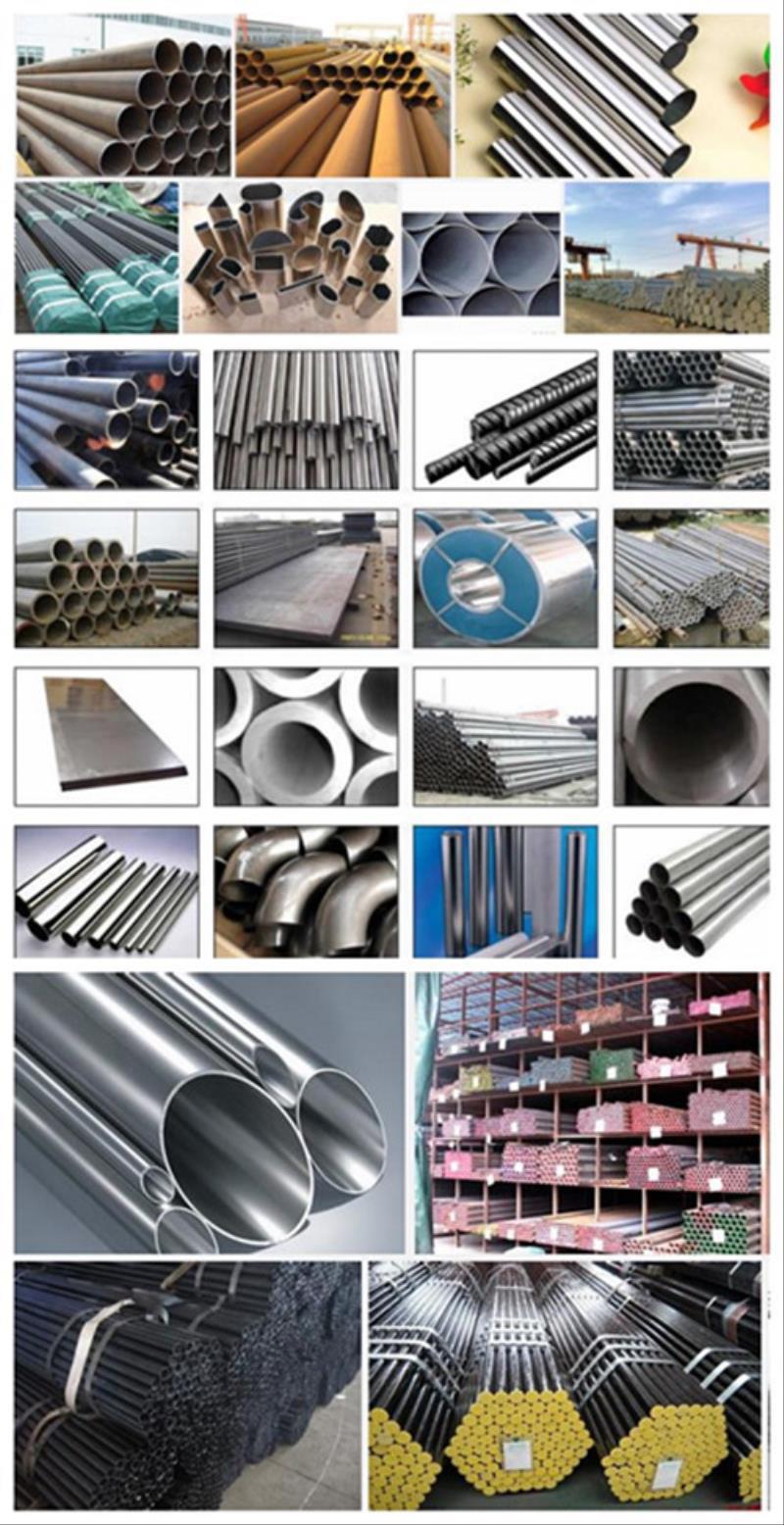

Check finished pipes from the following pictures:
