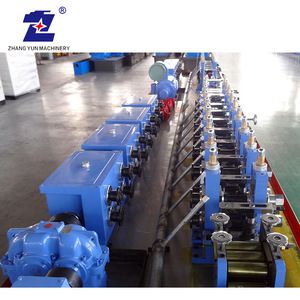

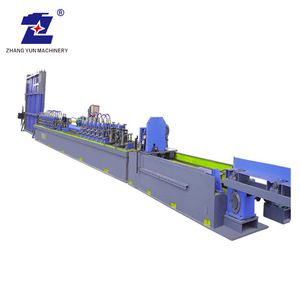

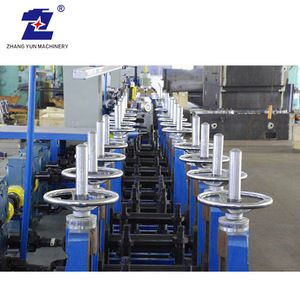

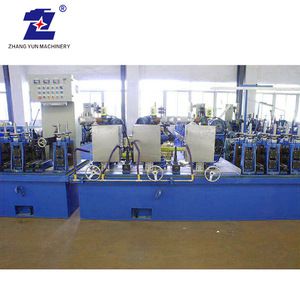

Stainless Steel tube production line pipe making machine duct forming line
ZY-HF50 Type pipe making production line is specialized equipment to produce high frequency straight seam welded pipe for structural pipe and industrial pipe with Φ20~Φ63.5mm and wall thickness of δ0.8~3.0mm. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.
| Width of Strip, mm | 60~200 |
| Thickness of strip, mm | 0.8~3.0 |
| Strip weight | ≤2ton |
| Speed, m/min | 0-70 |
| Roller shaft material | 40Cr |
| Roller stand diameter(Horizontal) | 60mm |
| Roller stand diameter(Vertical) | 40mm |
| Cutting accurancy | +-3mm |
| cutting length | 4~10m |

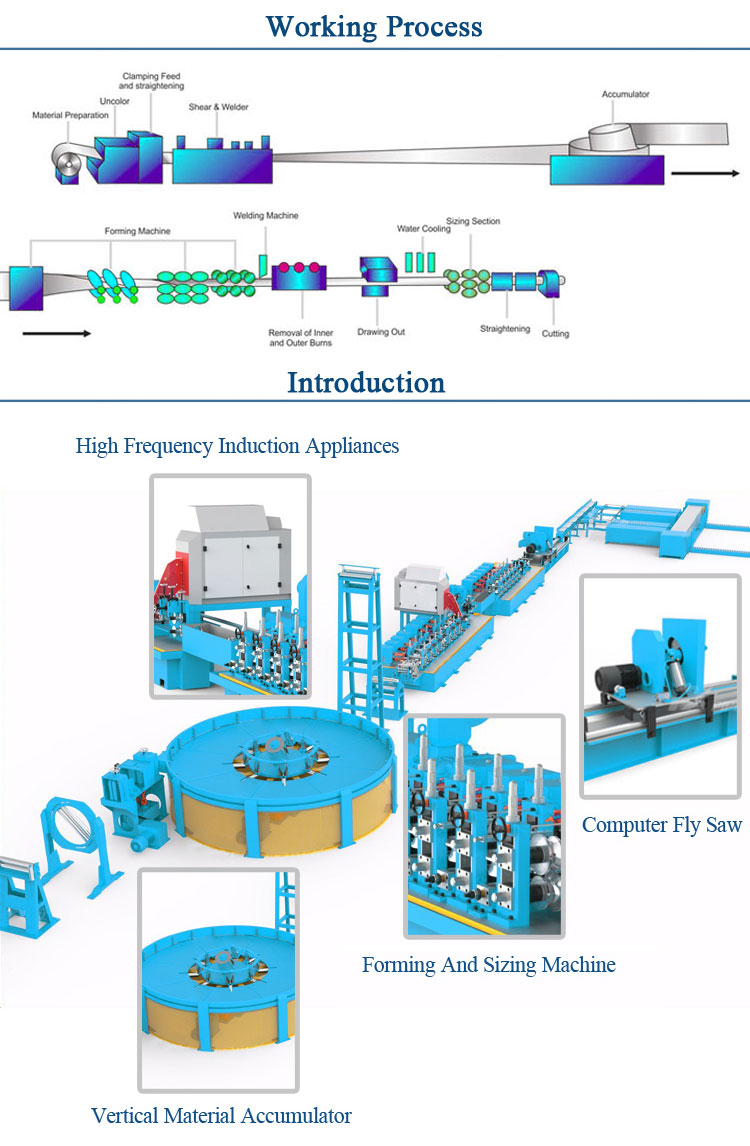

I. Process Flow

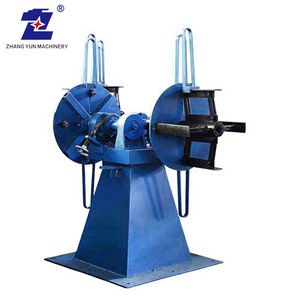

Raw material steel strip→Feeding→Uncoiler→Leveling→Shearing and butt-welding→Cage accumulator→Forming machine→HF welding→De-burr→Water cooling→Sizing→Cutting to length→Roller table→Final inspection→Storage
FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
