List-head decoiler
Description: manual tension and manual brake device
Parameters:
(1)The max. weight of coil:300kg
(2)The inside diameter of coil:300-350mm
(3)The max. outside diameter of coil :1000mm
(4)The max .width of coil: 110mm
Main drive
1.The main motor is driven by model
YVP132M-4, 7.5KW Change frequency motor
2.Model ZSY160 speed reducer ,the ratio is 80:1
3. Adopt adjustable speed device with frequency conversion
Clean slot
1. Mode: welded by PVC board, nylon roller and PVC bar
Cutting saw
A.Travel Switch Baffle Device
1.The max .diameter to be cut :Φ30mm
2.The range of cutting length :4m-7m
3.The max. wall thickness to be cut :1.5mm
B Type : round metal saw blade:
Φ300mm×Φ30mm×3.0mm
C. Power of the saw: 1.5kw
E. Accuracy of the cutting length :within±0.3mm
Discharging table
Conveyed onreversed pneumatically
Argon Arc Welder
1.Model:WSM-500A
2.Input power: 380V50HZ
3.Output power:18KVA

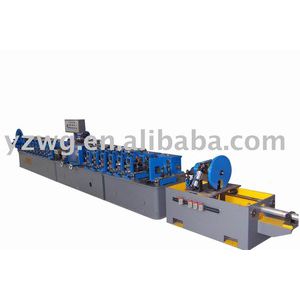

BG-30 Stainless Steel Pipe Production Line
List-head decoiler Description: manual tension and manual brake device Parameters: (1)The max. weight of coil:300kg (2)The inside diameter of coil:300-350mm (3)The max. outside diameter of coil :1000mm (4)The max .width of coil: 110mmMain drive
Technical Feature
- Pipe Production Line
- Stainless Steel
- Energy Supply Pipe
- Jiangsu, China (Mainland)
- Weiguang
- BG-30
DESIGN SERVICE OVERVIEW
Project Design Scope
Project Service Scope
PRIMARY PARAMETERS
Type
Pipe Production Line
Pipe Material
Stainless Steel
Application
Energy Supply Pipe
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Weiguang
Model Number
BG-30
Quality
reliable
DETAIL DESCRIPTION
Yangzhou Weiguang Metal Products Co., Ltd.
High Frequency Welded Pipe Making Machine,drawing and annealing line,slitting machine
